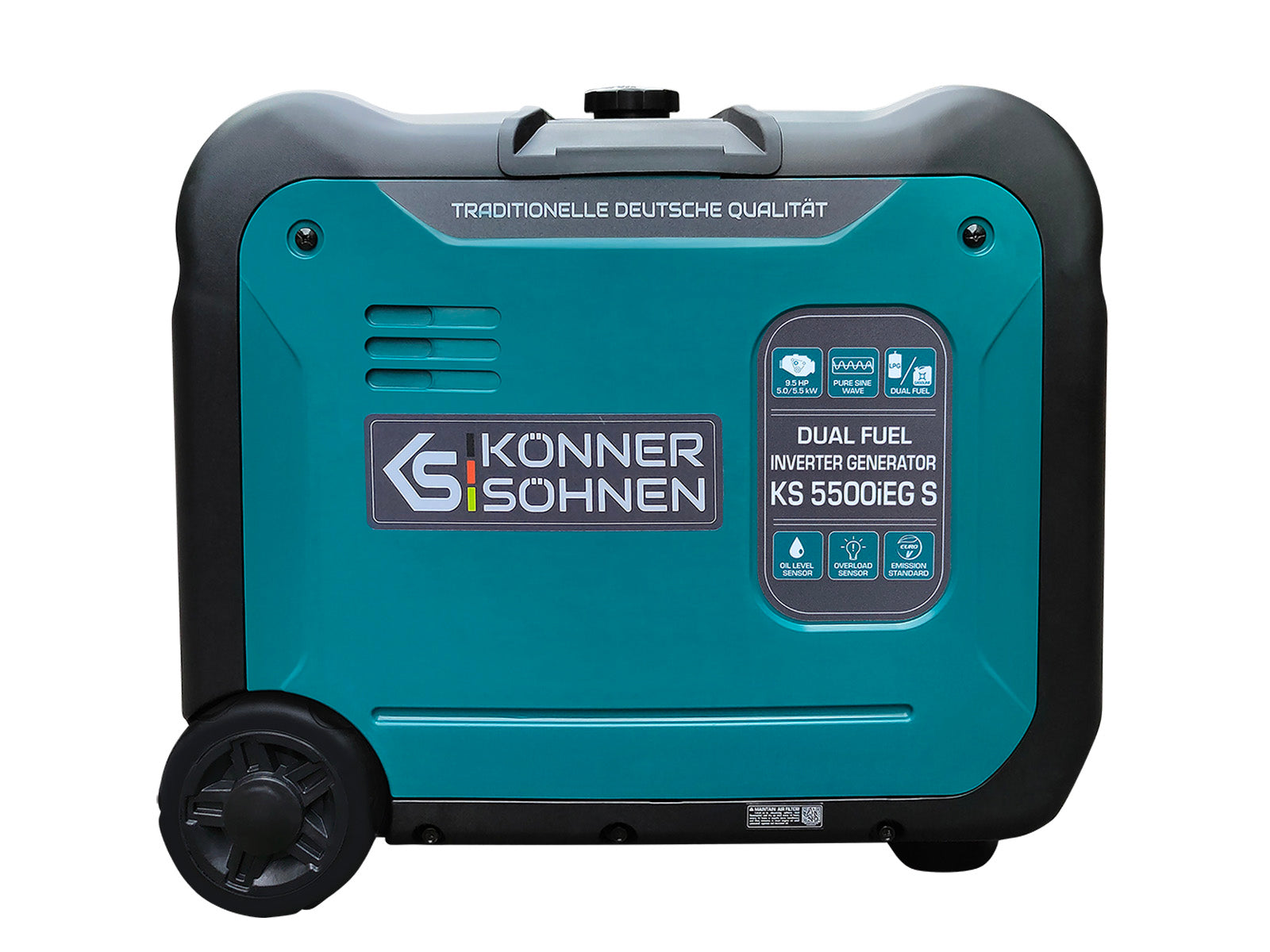

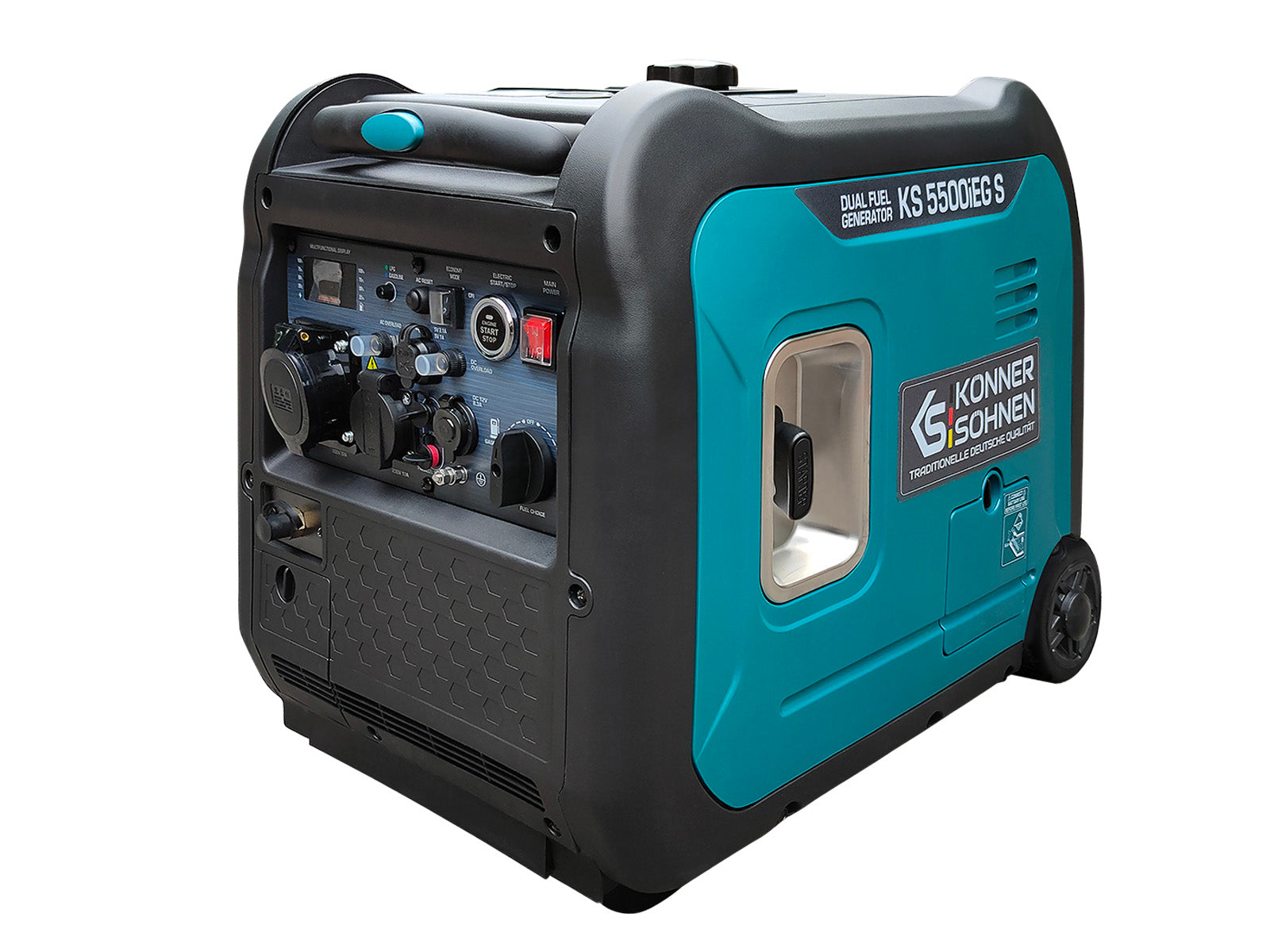

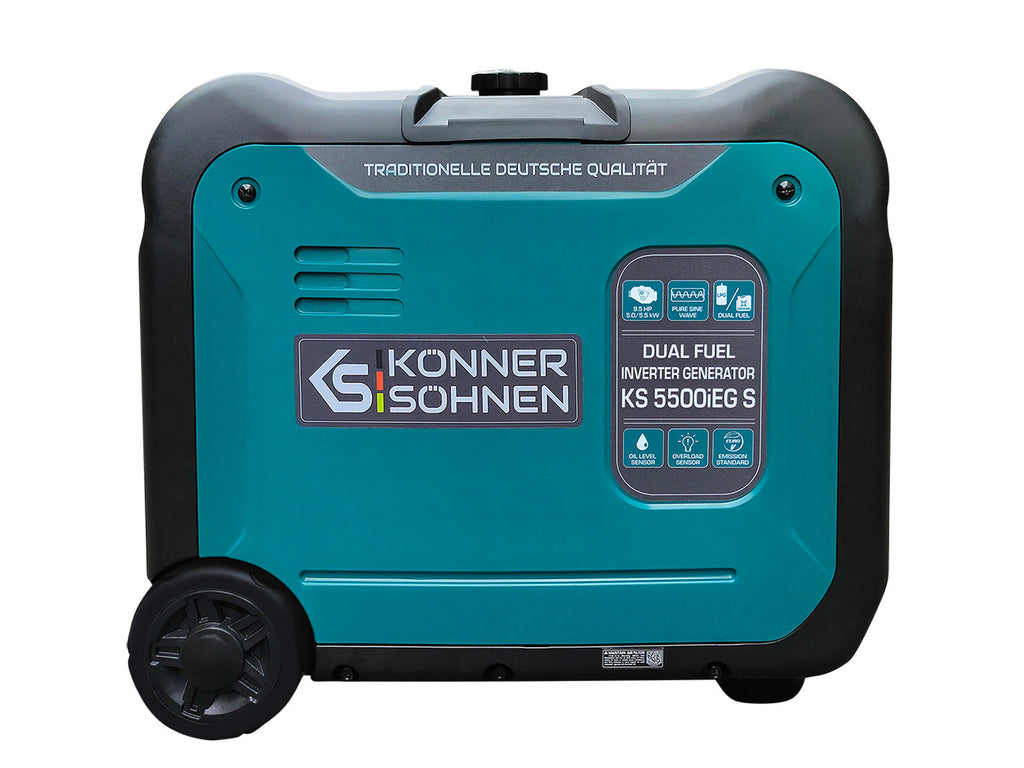

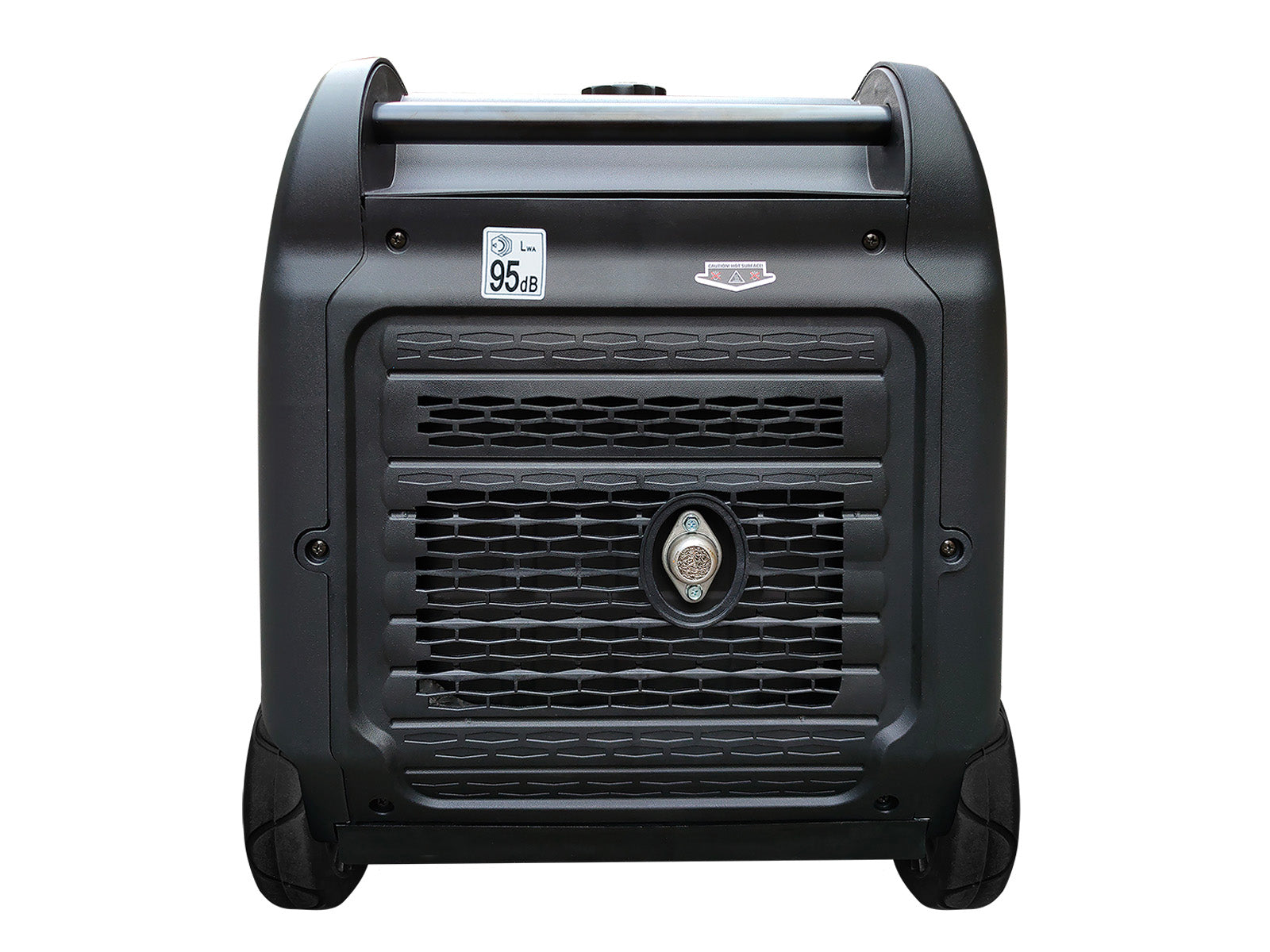

Könner & Söhnen KS 5500iEG S LPG/Petrol Dual Fuel Inverter generator
Könner & Söhnen LPG/Petrol Inverter Generator KS 5500iEG S
The KS 5500iEG S is a compact, low-noise inverter generator that runs on petrol or LPG (propane-butane). It delivers a pure sine wave output for safe use with sensitive electronics. A EURO V-compliant K&S engine with Economy Mode (up to 50% fuel saving), a copper-wound alternator and an LED display help ensure reliable performance and timely maintenance.
Features
PURE SINE WAVE
The microprocessor-controlled inverter provides a stable 230 V 50 Hz sine wave output, suitable for the reliable operation of sensitive electronics.
LPG/PETROL

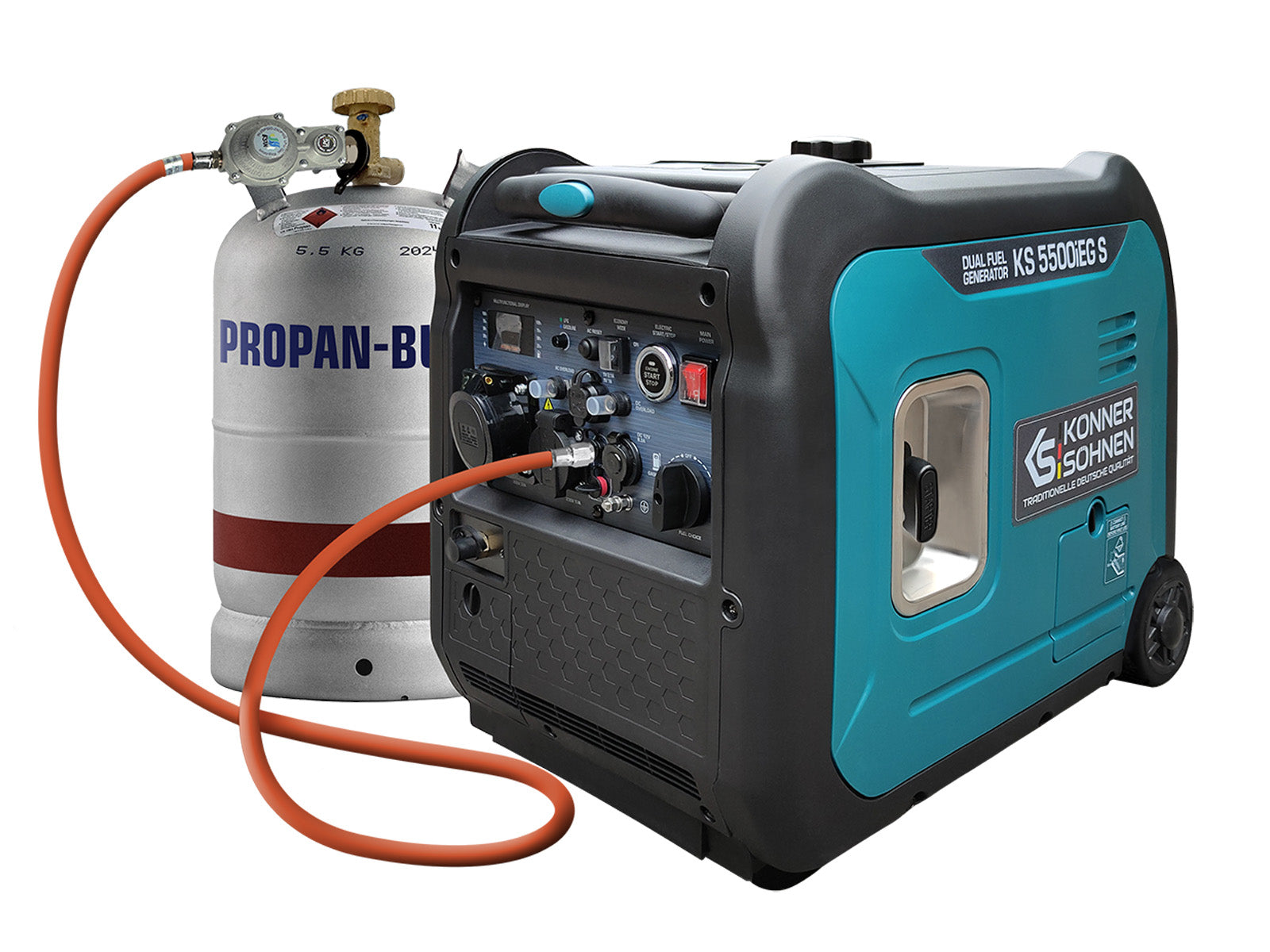

Runs on both petrol and liquefied gas (propane-butane). Supplied with a hose and reducer for a secure connection to an LPG cylinder—simply connect and start.
VERSATILITY OF USE
Suitable for portable LPG cylinders or fixed gas tanks (gasholder). Connection must be performed by a certified specialist. Supply pressure must not exceed 16 bar.
LOW NOISE LEVEL
The special protective housing helps keep noise to just 70 dB, making operation comfortable and unobtrusive.
ECONOMY MODE
A fuel-saving switch reduces engine speed at low loads, cutting consumption by up to 50%.
ROBUST ENGINE
The reliable Könner & Söhnen engine is designed for long, stable operation and meets European standards, including EURO V.
ERGONOMIC CONTROL PANEL

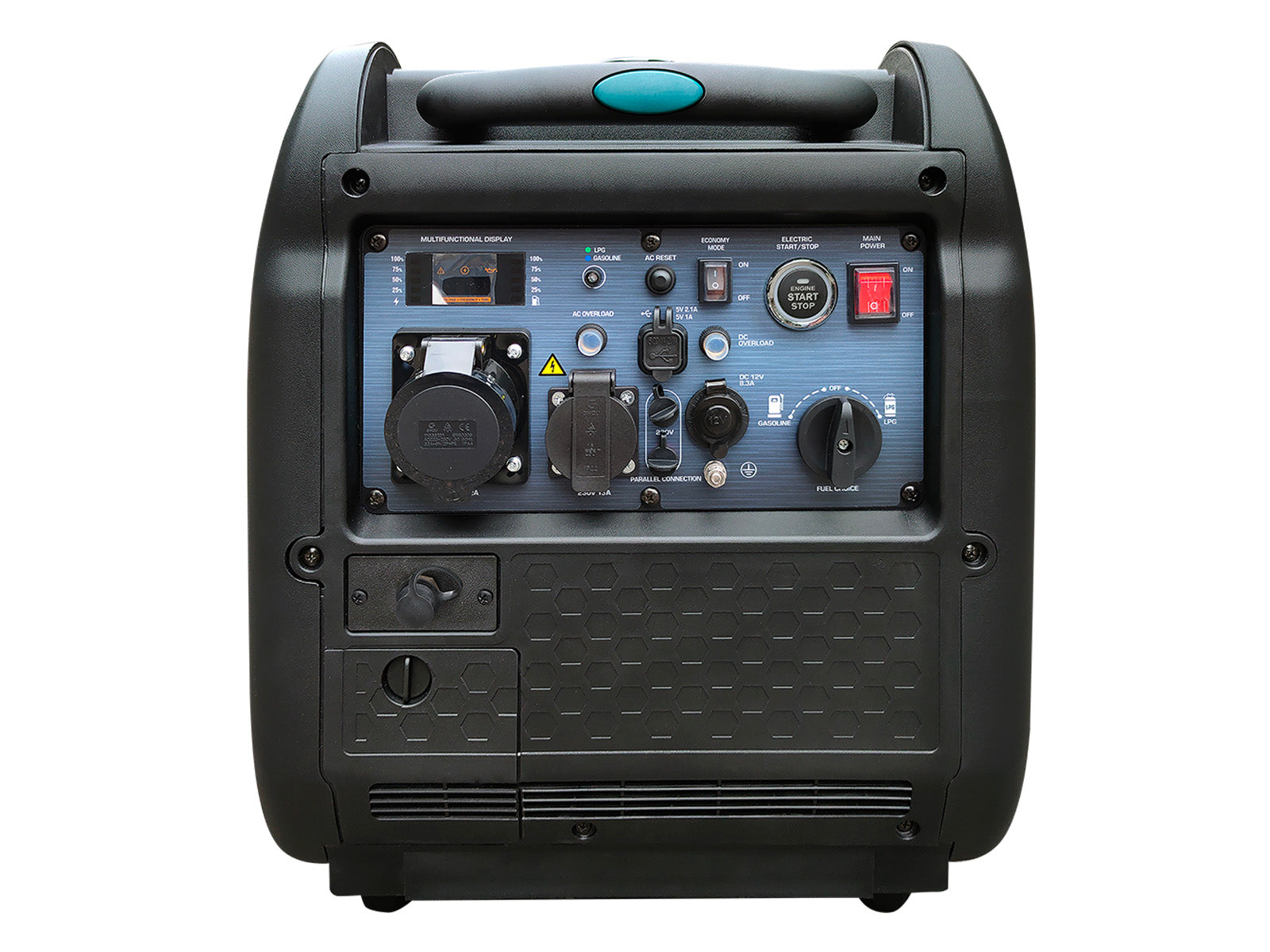

Clear layout of all functions: multifunction LED display (hour meter, frequency, voltage), mode indicator, overload and short-circuit protection, low-oil sensor, Reset button, parallel-connection port, two USB outputs (5V/1A, 5V/2.1A), 230 V socket and earth terminal.
HIGH QUALITY ALTERNATOR
Brushless alternator with 100% copper winding in a compact permanent-magnet design. Engineered to withstand high loads for long-term reliable operation.
PARALLEL CONNECTION
Connect two generators in parallel (cable included) to increase total output for higher-demand devices. Combined output equals the sum of the rated powers of the connected models.
ADDITIONAL ACCESSORIES
Included: spark-plug wrench, filling funnel, parallel-connection cable, hose with pressure reducer, and PH2 screwdriver 6.0 mm.
Technical Specifications
| Voltage (V) | 230 |
|---|---|
| Max power (kW) | 5.5** |
| Nominal power (kW) | 5.0** |
| Frequency (Hz) | 50 |
| Max current (A) | 23.9 |
| Sockets | 1 × 13A 230V, 1 × CEE 230V 32A |
| Engine start | Manual/electric |
| Fuel tank volume (L) | 13.5 |
| Average runtime @ 50% load (h)*** | 8.4 |
| LED display | Multifunctional: load, fuel level, voltage, frequency, working hours; overload indicator, voltage indicator, oil level indicator |
| Noise level Lpa (7m) / Lwa (dB) | 70/95 |
| DC output (V/A) | 12V/8.3A |
| USB outputs | 5V/1A, 5V/2.1A |
| Engine model | KS 330i |
| Engine cylinder volume (cm³) | 312 |
| Engine type | LPG/petrol powered one-cylinder, four-stroke air-cooled |
| Engine power (hp) | 9.5 |
| Parallel connection | + |
| Crank case volume (L) | 0.85 |
| Accumulator (A·h) | 1.6 |
| Protection class | IP23M |
| Alternator winding | Copper |
| Net dimensions (L×W×H, mm) | 610 × 470 × 535 |
| Gross dimensions (L×W×H, mm) | 765 × 510 × 605 |
| Net weight (kg) | 52.5 |
| Gross weight (kg) | 63 |
| EAN code | 4260405365586 |
Assembled in PRC.
** LPG operation reduces generator power by 10%.
*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, and the technical condition of the generator.
Support Documents
Video Reviews
The KS 5500iEG S LPG/petrol inverter generator of the German brand “Könner & Söhnen” is a convenient, compact and almost noiseless source of electric power. One of the main features of this model is that it produces electric current with the pure sine wave.
All models are based on robust engines, which meet all European quality standards, including EURO V. Engines of K&S inverter generators have an Economy mode, which allows using the generator at low speeds and reduces fuel consumption by up to 50%. Alternator with copper winding and high-performance K&S engine guarantee trouble-free and long-term operation and meet all European quality standards. The LED display makes it possible to monitor the operation of the generator and to carry out its maintenance in time.
PURE SINE WAVE
LPG/PETROL
VERSATILITY OF USE
LOW NOISE LEVEL
ECONOMY MODE
ROBUST ENGINE
ERGONOMIC CONTROL PANEL
HIGH QUALITY ALTERNATOR
PARALLEL CONNECTION
ADDITIONAL ACCESSORIES
Generator is equipped with additional accessories: spark plug wrench, filling funnel, parallel connection cable, hosepipe with pressure reducer, PH2 screwdriver 6.0 mm.
