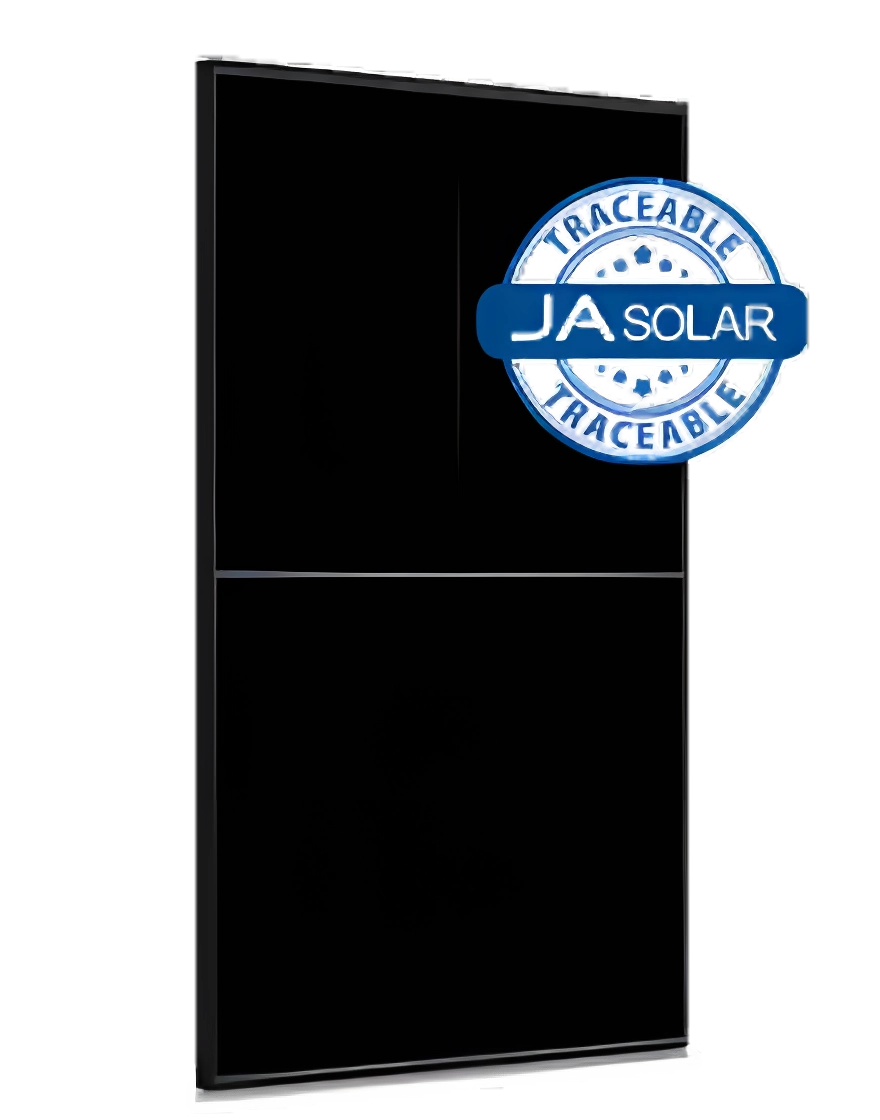

JA Solar JAM54S30-405/MR 405W Mono Black Frame Solar Panel
- 405 W monocrystalline panel with high module efficiency, ideal for commercial and industrial rooftop and ground-mount systems.
- Half-cell PERC design for improved performance in high temperatures and partial shading.
- Compact 108-cell format with black frame for neat, professional installations on warehouses, depots and logistics hubs.
The JA Solar JAM54S30-405/MR 405W mono black frame solar panel is a high-efficiency module from JA Solar’s Deep Blue 3.0 range, well suited to UK commercial, industrial and logistics applications. Its 108 half-cell monocrystalline PERC layout delivers solid energy yield in a compact footprint, making it a good fit for rooftops where space and weight matter. Pair it with inverters and mounting from Energian for a robust, low-maintenance PV system backed by UK-based expert support.
Key features
- Rated power output of 405 W with module efficiency around 20.7%, helping maximise energy generation per square metre.
- 108-cell mono PERC half-cell construction for better shade tolerance and lower internal losses.
- Black frame aesthetic, suitable for visible commercial rooflines and mixed-use buildings.
- 1500 V DC maximum system voltage for flexible string design in larger arrays.
- Designed for standard framed mounting systems used on flat and pitched commercial roofs and ground-mount structures.
Technical specifications
Values below are taken from manufacturer documentation and typical published data for the JA Solar JAM54S30-405/MR module.
| Electrical characteristics (STC) | |
|---|---|
| Module type | Monocrystalline PERC half-cell. |
| Rated maximum power (Pmax) | 405 Wp. |
| Module efficiency | 20.7% |
| Open-circuit voltage (Voc) | 37.23 V |
| Short-circuit current (Isc) | 13.87 |
| Maximum power voltage (Vmp) | 31.21V |
| Maximum power current (Imp) | 12.98 |
| Maximum system voltage | 1500 V DC (IEC). |
| Temperature coefficient of Pmax | Approx. −0.35% / °C. |
| Mechanical characteristics | |
| Cell technology and layout | Monocrystalline PERC, 108 half-cells, multi-busbar. |
| Frame colour | Black frame. |
| Backsheet colour | White backsheet for higher output compared with full-black variants. |
| Module construction | Glass–sheet (front glass with polymer backsheet). |
| Operating conditions | |
| Operating temperature range | Approx. −40 °C to +85 °C. |
| Standards and certifications | |
| Design and safety standards | Certified to IEC PV module standards (IEC 61215 / IEC 61730 series – see datasheet for full list). |
| Connectors and cabling | |
| Cable type and length | Factory-fitted DC cables sized and length |
| Connectors | QC 4.10 / MC4-type |
Documents available for download
JA Solar JAM54S30-405/MR 405W Mono Black Frame datasheet (PDF)
Shipping and support
Shipping is available across the UK, Ireland, Africa, the Caribbean and worldwide. If a shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a tailored quote.
UK expert support is available – get in touch with our team via phone, email or live chat for help with product selection, system design and integration. For larger projects, we can recommend trusted installation partners so the JA Solar JAM54S30-405/MR panel is installed safely and in line with local standards.
