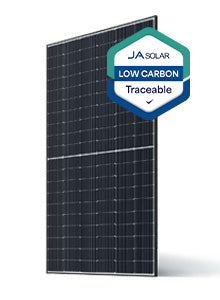

JA Solar 535W N-Type TOPCon Traceable Low Carbon Bifacial Double-Glass Black Frame Solar Panel
By JA Solar
JA Solar 535W N-Type TOPCon Traceable Low Carbon Bifacial Double-Glass Black Frame Solar Panel
Key Features
- 535W rated front-side output at STC, with 22.9% module efficiency.
- 120-cell N-Type TOPCon monocrystalline silicon, MBB half-cell design.
- Bifacial double glass; bifaciality 80% ±5%.
- Traceable low-carbon TSLC supplier variant, distinct from the standard TS version.
- Power temperature coefficient of -0.29%/°C.
- IP68 junction box with three bypass diodes; maximum system voltage 1500V DC.
- Manufacturer-rated static test loads: 5400Pa front and 2400Pa rear.
- Product warranty: 25 years as shown in the supplied manufacturer datasheet; subject to manufacturer warranty terms.
- 30-year linear power performance warranty, subject to manufacturer terms.
Where to Use
Suitable for professionally designed residential and commercial rooftop solar PV systems, agricultural buildings and ground-mounted arrays using compatible mounting equipment. Energian can help check module quantities, mounting compatibility and inverter string design.
Technical Specifications
| Manufacturer | JA Solar |
| Product series | DeepBlue 4.0 Pro JAM60D42 LB |
| Manufacturer model | JAM60D42-535/LB |
| SKU | JAM60D-42-535-LB-TSLC-BF |
| Rated maximum power at STC | 535W |
| Module efficiency at STC | 22.9% |
| Cell technology | N-Type TOPCon monocrystalline silicon, MBB half-cell |
| Cell count | 120 |
| Module construction | Bifacial double glass; bifaciality 80% ±5% |
| Frame finish | Black anodised aluminium frame |
| Dimensions (L × W × D) | 2063 × 1134 × 30 mm |
| Module weight | 28.8 kg |
| Front / rear cover | 2.0 mm front glass / 2.0 mm rear glass |
| Voltage at maximum power (Vmp) | 37.03V |
| Current at maximum power (Imp) | 14.45A |
| Open-circuit voltage (Voc) | 44.13V |
| Short-circuit current (Isc) | 15.31A |
| Power tolerance | 0 to +3% |
| Maximum system voltage | 1500V DC |
| Maximum series fuse / overcurrent protection rating | 30A |
| Connectors | QC 4.10-351 / MC4-EVO2A as specified in the manufacturer datasheet; supplier SKU designates MC4 |
| Junction box | IP68, three bypass diodes |
| Operating temperature | -40°C to +85°C |
| Temperature coefficient of Pmax | -0.29%/°C |
| Temperature coefficient of Voc | -0.25%/°C |
| Temperature coefficient of Isc | +0.045%/°C |
| Maximum static test load (front / rear) | 5400Pa / 2400Pa |
| Protection class | Class II |
| Pallet quantity (information only) | 36 panels; this listing is priced per single panel |
| Product warranty | 25 years as shown in the supplied manufacturer datasheet; subject to manufacturer warranty terms |
| Performance warranty | 30 years; 1% first-year degradation and 0.4% annual degradation thereafter |
Additional Details
- Price and quantity refer to one solar panel. Mounting equipment, inverter and installation are supplied separately.
- Solar panels must be installed by a qualified installer in accordance with the manufacturer instructions. Cold-weather open-circuit voltage and input-current limits must be checked against the inverter or controller.
- Rear-side energy gain depends on reflectivity, mounting height, spacing and rear shading. Rated panel wattage is the front-side STC output.
- The TSLC suffix identifies the supplier’s traceable low-carbon variant. The linked manufacturer datasheet covers the JAM60D42 LB electrical and mechanical range. No unverified carbon-footprint figure is claimed.
UK delivery available. Contact Energian to confirm delivery charges, lead time and unloading arrangements before ordering. The supplier specifies a forklift on site to unload these oversized modules.
