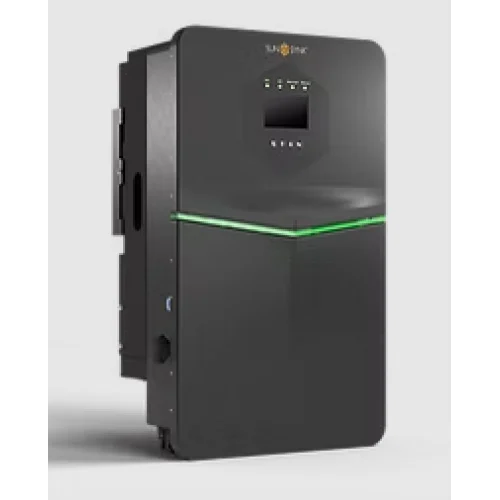

Sunsynk Acure 7kW Black Single-Phase Hybrid Inverter
- 7 kW single-phase hybrid inverter for solar PV, 48 V battery storage and backup-power installations.
- Connect up to 14 kW of PV access power across two MPPTs, allowing flexible array design for different roof orientations.
- Works with lead-acid and lithium-ion batteries, with automatic adaptation to a compatible lithium battery BMS.
Sunsynk Acure 7kW hybrid inverter for solar and battery systems
The black Sunsynk Acure 7kW Single-Phase Hybrid Inverter combines solar generation, low-voltage battery storage and AC supply management in one IP65-rated unit. It is suited to larger homes, small commercial premises and off-grid or backup-power systems where a single-phase supply is required.
The inverter provides 7,000 W rated AC input/output power, supports up to 175 A battery charge and discharge current, and can provide off-grid peak power of twice its rated power for up to 10 seconds. Installation, commissioning and protection design should be completed by a qualified trusted partner. [file:60]
Key features
- Solar-ready: two MPPT trackers and up to 14,000 W PV access power for optimised string layouts.
- Low-voltage battery compatibility: supports 40–60 V lead-acid or lithium-ion batteries with one battery input.
- Backup capability: 7 kW rated AC power with up to two-times-rated off-grid peak power for 10 seconds.
- Efficient energy conversion: 97.6% maximum efficiency, 96.5% European efficiency and 99% MPPT efficiency.
- Outdoor-capable enclosure: IP65 protection, intelligent air cooling and an operating temperature range of -40°C to +60°C.
Where to use
Use the Sunsynk Acure 7kW hybrid inverter in single-phase solar-and-battery systems for homes, farm buildings, workshops, small offices and light-commercial premises. Its two MPPTs can suit PV arrays installed over two roof aspects, subject to voltage, current and string-design limits.
It can form part of an energy-storage and backup arrangement, but battery selection, load assessment, cable sizing, earthing and grid-connection requirements must be designed for the specific site. Contact Energian for UK expert support and help identifying compatible batteries and installation partners. [file:60]
Technical specifications
| Model | SunC2-7.0LV01WB |
| Battery type | Lead-acid or lithium-ion |
| Battery voltage range | 40–60 V |
| Maximum charging current | 175 A |
| Maximum discharging current | 175 A |
| Lithium-ion charging strategy | Self-adaption to BMS |
| Number of battery inputs | 1 |
| Maximum PV access power | 14,000 W |
| Maximum PV input power | 11,200 W |
| Maximum PV input voltage | 500 V |
| Start-up voltage | 125 V |
| MPPT voltage range | 150–425 V |
| Rated PV input voltage | 370 V |
| Maximum operating PV input current | 32 A / 32 A |
| Maximum input short-circuit current | 48 A / 48 A |
| Number of MPPT trackers / strings per MPPT | 2 / 2+2 |
| Rated AC input/output active power | 7,000 W |
| Maximum AC input/output apparent power | 7,700 VA |
| Peak power off-grid | 2 times rated power, 10 seconds |
| Rated AC input/output current | 31.9 A / 30.5 A |
| Maximum AC input/output current | 35 A / 33.5 A |
| Maximum continuous AC passthrough, grid to load | 50 A |
| Rated input/output voltage range | 220 V / 230 V; 0.85Un–1.1Un |
| Grid connection form | L/N/PE |
| Rated input/output grid frequency range | 50 Hz: 45–55 Hz; 60 Hz: 55–65 Hz |
| Power factor adjustment range | 0.8 leading–0.8 lagging |
| Total current harmonic distortion | THDi <3% of nominal power |
| DC injection current | <0.5% In |
| Maximum efficiency | 97.6% |
| European efficiency | 96.5% |
| MPPT efficiency | 99% |
| Protection | Integrated DC polarity reverse connection protection, AC output overcurrent protection, thermal protection, AC output overvoltage protection, AC output short-circuit protection, DC component monitoring, overvoltage load drop protection, ground fault current monitoring, optional arc fault circuit interrupter, power network monitoring, island protection monitoring, earth fault detection, DC input switch, DC terminal insulation impedance monitoring, residual current RCD detection |
| Surge protection level | Type II DC, Type II AC |
| Display | LCD / LED |
| Communication interface | RS485 / RS232 / CAN |
| Monitoring mode | GPRS / WiFi / Bluetooth / 4G / LAN optional |
| Operating temperature range | -40°C to +60°C; derating above +45°C |
| Permissible ambient humidity | 0–100% |
| Permissible altitude | 2,000 m |
| Noise | <30 dB |
| Ingress protection rating | IP65 |
| Inverter topology | Non-isolated |
| Over-voltage category | OVC II DC; OVC III AC |
| Cabinet size (W × H × D) | 366 × 630 × 281.41 mm, excluding connectors and brackets |
| Weight | 27.1 kg |
| Cooling | Intelligent air cooling |
| Warranty | 5 years; 10 years when installed with a Sunsynk battery |
| Grid regulation | G98/G99, NRS 097-2-1, EN 50549-1 |
| Safety and EMC standards | IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4, IEC/EN 62109-1, IEC/EN 62109-2 |
