Hybrid Energy Storage System Fox ESS HV2600 5-15kWh Battery, Fox ESS H1 5.0kWHybrid Inverter, 6kW JA Solar Panels
£3,196.57
By Fox ESS
Empower Your Energy Independence with 5-15kWh Hybrid Energy Storage System
A Hybrid Energy Storage System opens the door to harnessing energy from cost-effective sources like solar panels or off-peak Octopus tariff mains power. This innovative solution enables you to optimize energy usage, avoiding low feed-in tariffs and mitigating the reliance on expensive peak-rate power.
Zero VAT applies to new residential energy storage batteries when purchased from your installer. Take advantage of our cost effective battery installation service (starting at just £199) and pay zero VAT on your battery installation! Click here to request a quote or contact us via live chat, email info@energian.co.uk or call 020 8064 0335 for live expert advice.

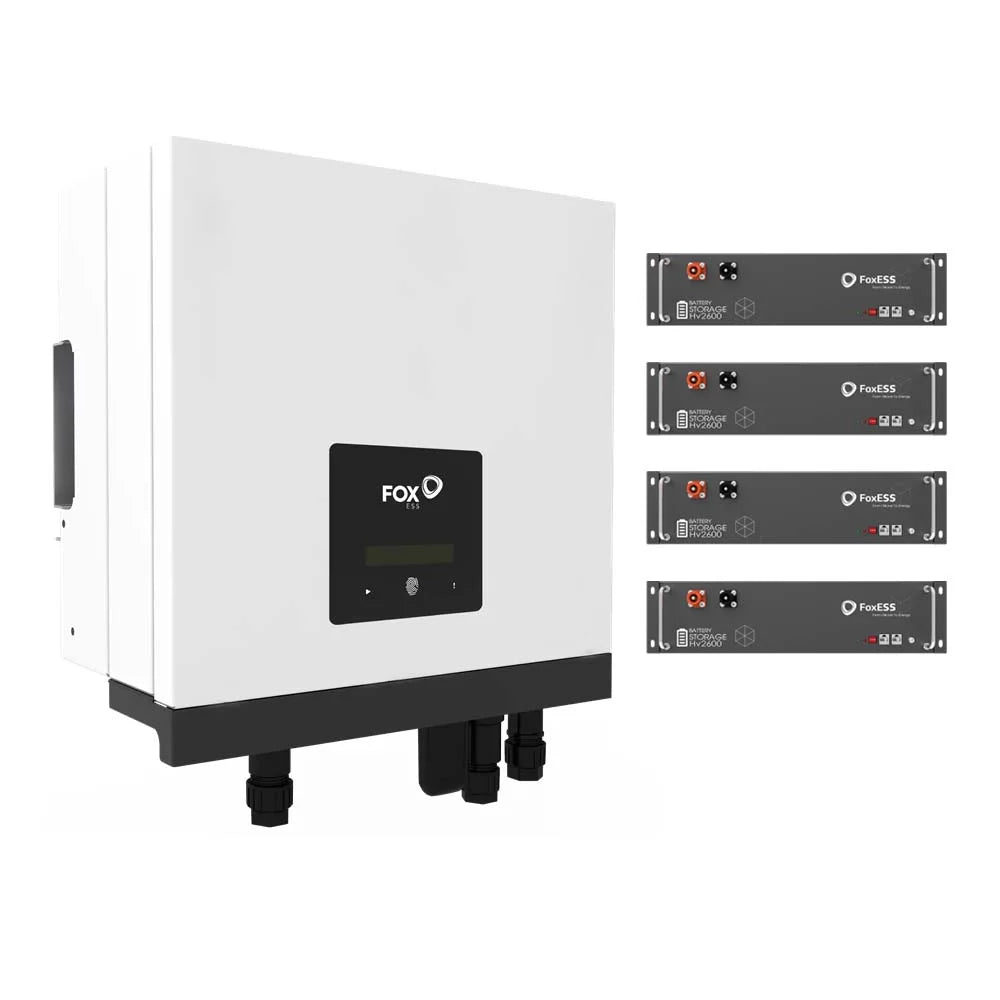

The Hybrid Energy Storage System, featuring Fox ESS HV2600 5-15kWh Battery, Fox ESS 5.0kW Inverter, and 6kW JA Solar Panels (5-15kWh/5.0kW ESS), is a comprehensive energy management solution. The system includes:
- 2x - 6x Fox ESS HV2600 2.56kWh High Voltage Battery V2
- 1x Fox ESS H1 5.0kW Hybrid Inverter
- 1x Fox ESS HV BMS-V2 High Voltage Battery Management System

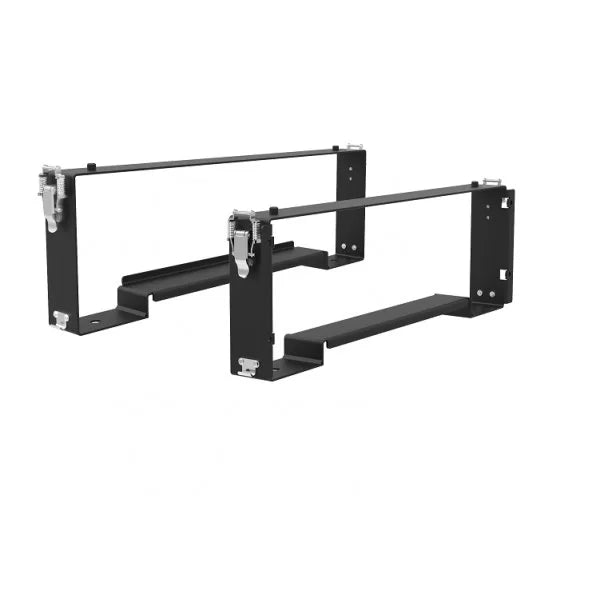

- 3x - 7x Fox HV Battery Brackets (pair)
- 12x JA Solar 500W Solar Panels
The 5-15kWh/5.0kW ESS efficiently optimizes energy usage, providing a stable electricity supply and cost savings by charging the battery with affordable Octopus electricity. Integrating an ESS with a private power source ensures a reliable 24/7 electricity supply for your home.
Don't miss the opportunity to enhance your energy efficiency and savings with the Hybrid Energy Storage System.

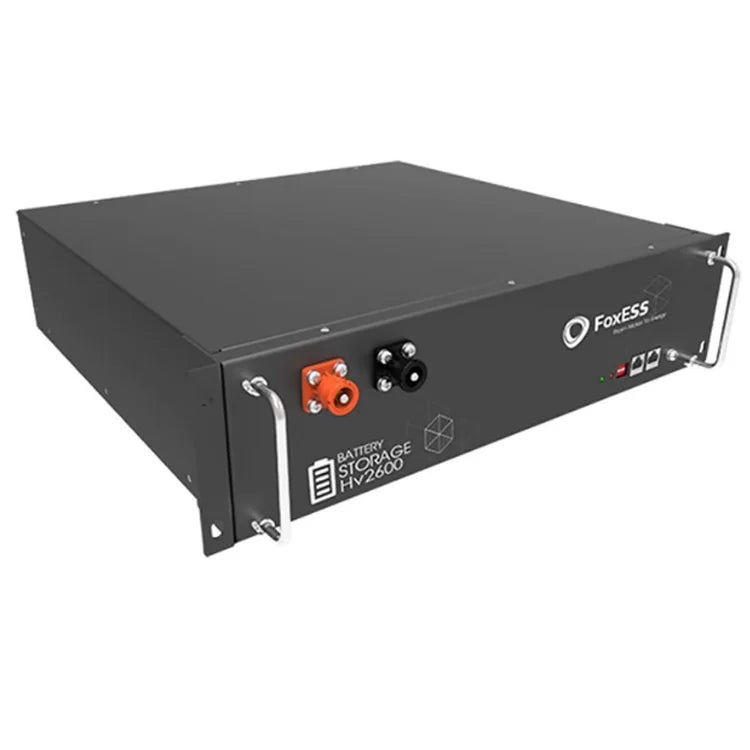

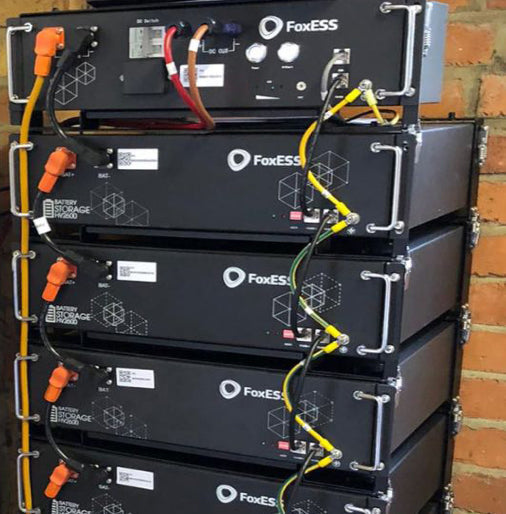

- FOX ESS HV2600 2.56KWH HV BATTERY V2 is a high-performance, scalable battery storage module. The modular design allows for maximum flexibility with storage. Additional batteries can be installed in series, allowing a maximum storage capacity of 20.48kWh (1 master and up to 7 slaves). Installation is easy, with a plug-and-play solution that can save valuable time for installers. The batteries have a 98% charge/discharge efficiency and 90% depth of discharge. The batteries have a cycle life of over 6000 cycles.

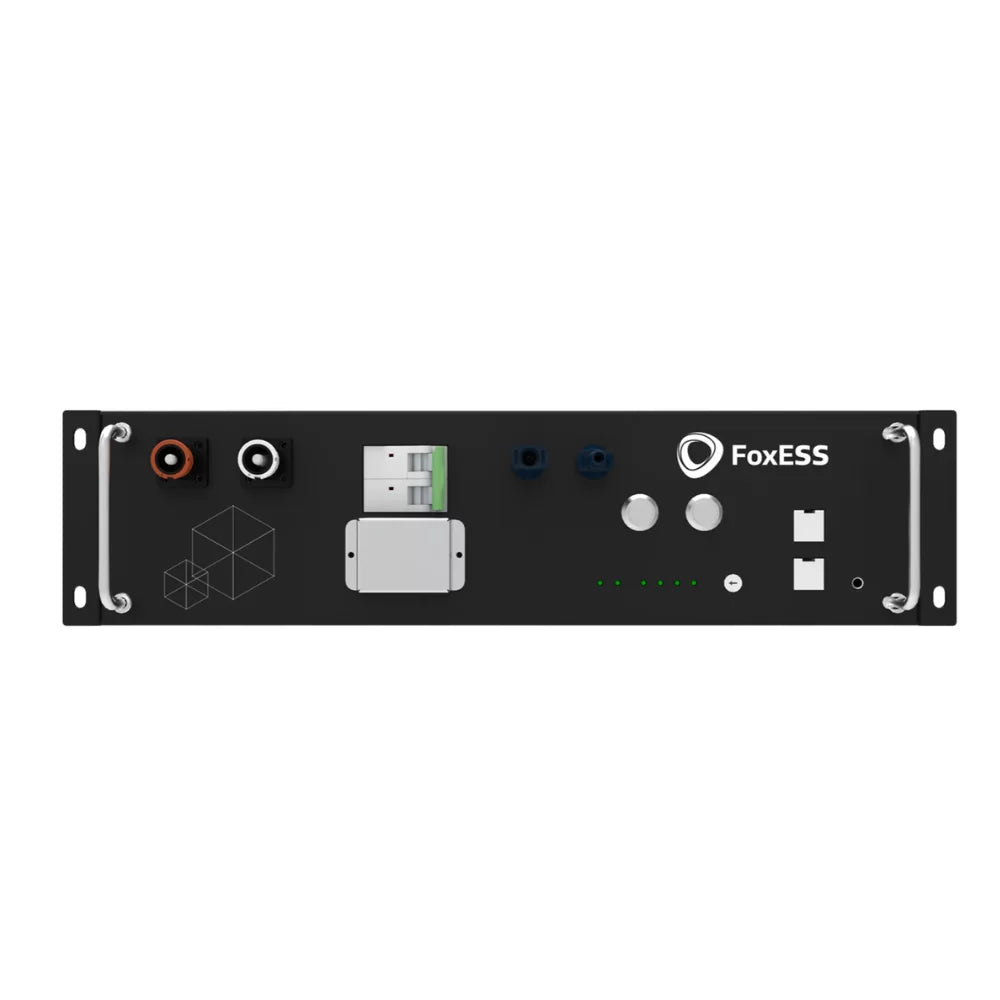

- FOX ESS HV BMS-V2 HIGH VOLTAGE BMS is a communication module which is required for each stack of HV2600 batteries. The use of the FoxESS BMS battery control system extends battery life, which is a very profitable investment. It reduces the risk of failures related to energy storage in batteries. It also allows you to constantly monitor the charge level. It is distinguished by compact dimensions, a wide operating range in terms of voltage and temperature, as well as the presence of RS485 and CAN communication interfaces. Weight 8.75kg.

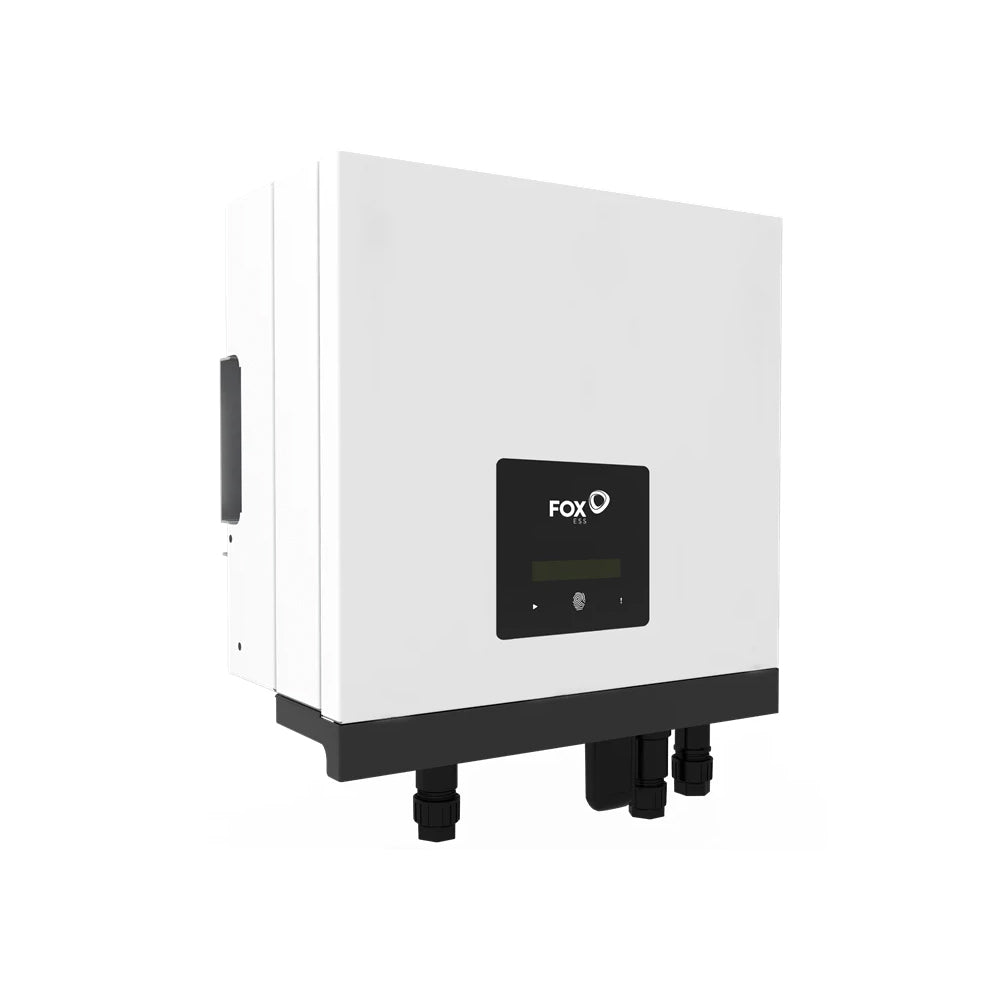

- FOX ESS H1 5.0kW HYBRID INVERTER is a high-quality inverter which converts solar energy to AC energy which is stored in a battery. The inverter can be used to optimise energy consumption, store energy in the battery for future use or feed energy into the energy grid. System advantages:
- Advanced DSP control technology
- Utilises the latest high-efficiency power components
- Advanced anti-islanding
- Max. efficiency up to 97.8%, THD<3%
- Export limitation (CT/Meter/DRM0/ENSTOP)
- WiFi remote control (with WiFi dongle installed)
- FOX ESS H1 5.0kW HYBRID INVERTER has five work modes:
- Self-use (with PV power): The energy produced by the PV system is used to optimise self-consumption. The excess energy is used to charge the batteries and then is exported to the grid.
- Self-use (without PV power): When no energy is produced by the PV system, the battery will discharge for local loads first, and the grid will supply power when the battery capacity is not enough.
- Feed in priority: In the case of an external generator, the power generated will be used to supply the local loads first, then export to the grid. The redundant power will charge the battery.
- Force time use: This mode is used in the area which has peak and off-peak prices. The user can use off-peak electricity to charge the battery. The charging and discharging time can be set flexibly, and this also allows one to choose whether to charge from the grid or not.
- Back up (EPS) mode: When the grid experiences an outage, the system will supply emergency power from PV or a battery to supply the home loads.
- FOX ESS HYBRID 5-15kWh ENERGY STORAGE SYSTEM has been designed to work seamlessly with smart Octopus tariffs. The first energy supplier to offer such a tariff is Octopus Energy, but the Fox energy storage system also works perfectly with any other energy provider. The Fox energy storage system can be controlled automatically to take advantage of Plunge Prices and super cheap prices. With solar panels and the battery storage system, your electric unit price can be drastically reduced!

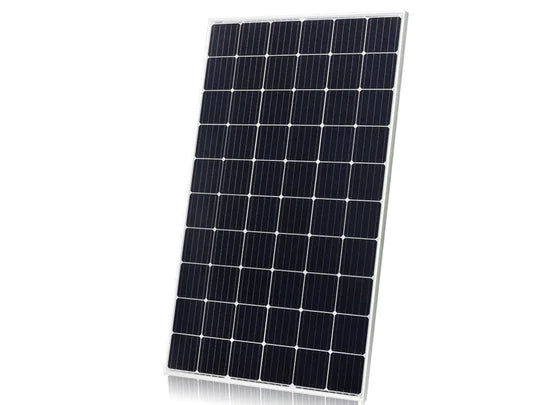

- JA SOLAR 500W MONO PERC HALF-CELL MBB SILVER FRAME MC4 SOLAR PANELS is a power source which captures up to 6kW DC electricity and then converts it to AC electricity to use immediately in the home or a business, store excess energy in the battery or feed into the National Grid. JA Solar 500W is a high efficiency PV module with PERC cells, which thanks to its half-cell configuration offers high power output, better temperature coefficient, lower efficiency loss against shading and higher resistance to mechanical loads. JA solar panels come with a 12-year product warranty and a 25-year linear output warranty.
- 4-5 WORKING DAYS DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).
| HV2600 2.56KWH HIGH VOLTAGE BATTERY V2 |
| Battery Type: Lithium Iron Phosphate (LiFePO4) |
| Nominal Capacity: 2.56kWh |
| Maximum Charge Voltage: 2pcs 116.8V 3pcs 175.2V 4pcs 233.6V 5pcs 292.0V 6pcs 350.4V |
| Discharge Cut Voltage: 40V |
| Rated Charge/Discharge Current: 50A |
| Peak Discharge Current: 60A |
| Peak Charge Current (30sec): 60A |
| Operating Temperature: -10 ~ +50°C |
| Storage Temperature: -20 ~ +50°C |
| Charge/Discharge Efficiency: >98% |
| Protection Level: IP21 |
| Weight: 27kg |
| Size: 443 * 410 * 116mm |
| Cycle Life: >6000 |
| Depth of Discharge: 90% |
| FOX ESS H1 5.0KW HYBRID INVERTER |
| INPUT PV |
| Max. Input PV: 6500W |
| Max. Input Voltage: 600Vdc |
| Startup Input Voltage: 75V |
| MPPT Operang Voltage Range: 80-550Vdc |
| Max. Input Current: 13.5A/13.5A |
| Max. Short-circuit Current: 15A/15A |
| No. of Independent MPP Trackers: 2 |
| No. of Strings per MPP Tracker: 1 |
| BATTERY CONNECTION |
| Battery Type: Lithium Iron Phosphate (LiFePO4) |
| Battery Voltage: 85-450V |
| Max. Charge/Discharge Current: 40A |
| Communication Interface: CAN(Communicate With Inverter), RS485 (Upgrade BMS) |
| AC INPUT AND OUTPUT (GRID) |
| Max. AC Input Power: 10000VA |
| Max. Input Current (per phase): 45.5A |
| Rated Output Power: 5000W |
| Max. Output Apparent Power: 5500VA |
| Rated Output Current (per phase): 21.7A |
| Max. Output Current: 23.9A |
| Rated Grid Voltage: 220-240VAC |
| Rated Grid Frequency: 50/60Hz |
| Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging ) |
| THDi: <3% @rated power |
| EPS OUTPUT (WITH BATTERY) |
| Max. Output Apparent Power: 6000W |
| Peak Output Apparent Power (60sec): 7200W |
| Max. Current (per phase): 26.1A |
| Rated Output Voltage: 220-240 V AC |
| Rated Output Frequency: 50/60Hz |
| Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging ) |
| THDi (linear load): <2% @rated power |
| Switch Time: 20ms |
| EFFICIENCY |
| Max. Efficiency: 97.80% |
| Max. Battery Discharge Efficiency (BAT to AC)(@full load): 97.00% |
| Operating Temperature: -25 ~ +60°C |
| Protection Degree: IP65 |
| Size: 430 x 410 x 178mm |
| Net Weight: 23kg |
| JA SOLAR 500W MONO PERC HALF-CELL MBB MC4 SOLAR PANELS |
| Rated (Peak) Power (Wp): 500W in Standard 1000w/m2 solar light |
| Open Circuit Voltage (Voc): 45.59V (Vmp =38.35V) |
| Short Circuit Current (Isc): 13.93A (Imp = 13.04A) |
| Cell Type: Monocrystalline Silicon |
| Connector Type: MC4-Evo2 |
| Efficiency: 21.1% |
| Net Weight: 26.3KG |
| Size: 2093 X 1134 X 30mm |
- 2x - 6x Fox ESS HV2600 2.56kWh High Voltage Battery V2,
- 1x Fox ESS H1 5.0kW Hybrid Inverter,
- 1x Fox ESS HV BMS-V2 High Voltage Battery Management System,
- 3x - 7x Fox HV Battery Brackets (pair),
- 12x JA Solar 500W Panels.
