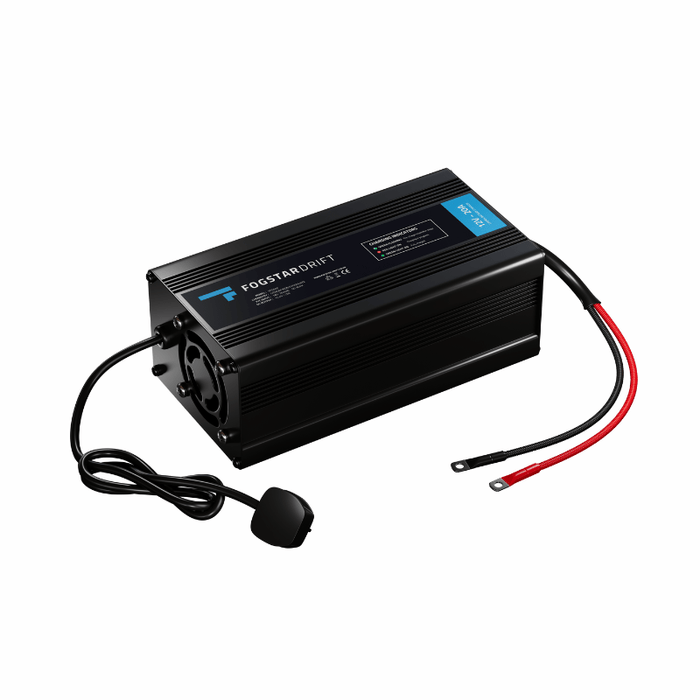

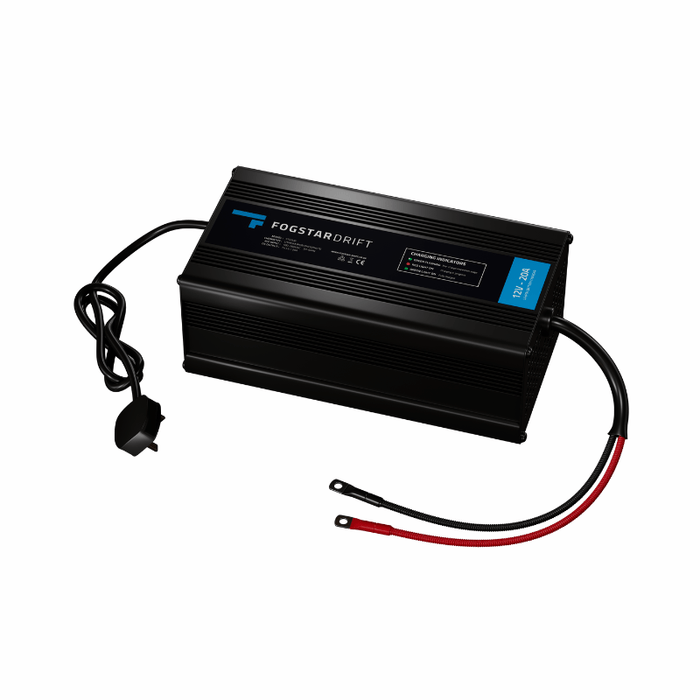

Fogstar Drift 12V 20A - LiFePO4 Charger
These chargers have been designed by Fogstar specifically to work with our Fogstar Drift LiFePO4 batteries, in particular our 105Ah, 230Ah and 300Ah 12V Leisure Batteries.
Key Features
-
V3.0 Chargers now include a temperature-controlled fan that intelligently starts and stops when required, ensuring optimal conditions and significantly quieter performance.
-
Extensive protective features
-
High seismic grade - carry them with you worry-free.
Where to Use
For charging any 12V Fogstar lithium batteries
Technical Specifications
| Working Temperature | 30°c ~ +40°c |
| Storage Temperature | -40°c ~ +70°c |
| Relative Humidity | 5% ~ 95% |
| Heat Dissipation Mode | Fan Cooling |
| Input Voltage | 180-260 VAC |
|
Input Frequency DC Output |
50Hz / 60 Hz 14.2V / 20A |
HOW TO USE
- Remove your charger from the packaging
- Retain the packaging
- Ensure the charger air vents are not blocked before connecting
- Connect the black (negative -) cable to the black (negative -) terminal on the battery
- Connect the red (positive +) cable to the red (positive +) terminal on the battery
- Ensure terminal rings are tightened to a torque value of around 10 N.m
- Plug your battery into the mains and switch ON
- Your battery indicator light should be flashing green (pre-charge inspection stage).
