EcoFlow AD/DC Smart Distribution Panel for EcoFlow Power Kits

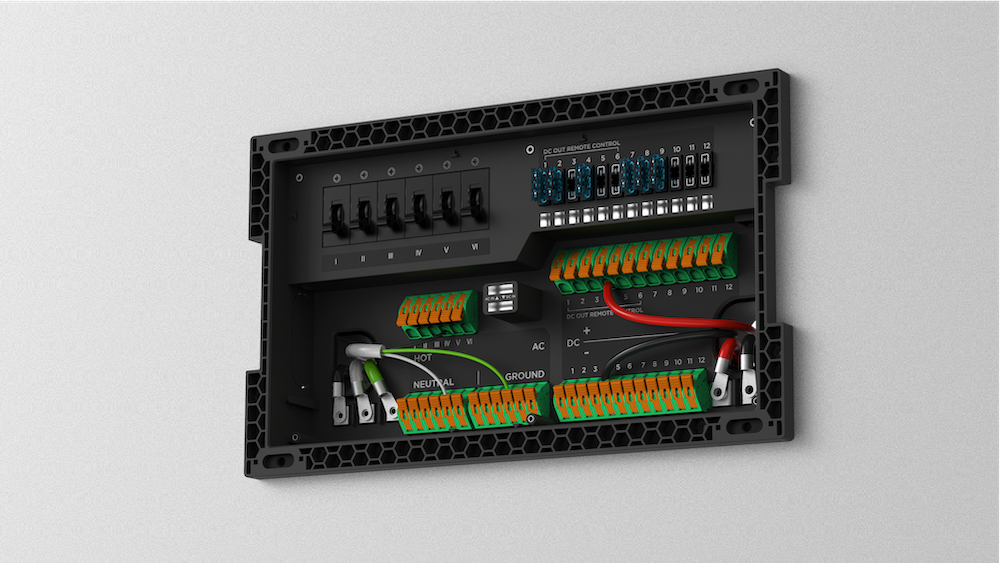

The EcoFlow Smart Distribution Panel is the clean, practical way to split power from an EcoFlow Power Kits setup into multiple AC and DC circuits, without ending up with a messy tangle of inline fuses and add-on boards. You get 6 AC breaker positions plus 12 fused DC outputs, with 6 DC circuits controllable from the Power Kit Console and EcoFlow app for simpler day-to-day power management. Compatible with other inverters matching specifications.
Key benefits
- Safer, tidier distribution for a Power Kits electrical system (centralised AC and DC outputs).
- Remote control for DC circuits: control supported DC outputs via the Power Kit Console / EcoFlow app (AC circuits are not supported for remote control).
- Quick, straightforward setup: designed as part of the Power Kits ecosystem, aiming to make installation simpler and more consistent.
- Easy monitoring mindset: built to help you keep track of energy usage at the distribution point.
Great For:
- Campervans and motorhomes (lights, water pump, fridge, sockets, ventilation)
- Off-grid cabins and workshops
- Marine and mobile builds where you want a single, labelled distribution point
As always, make sure your overall system design and protection are suitable for the vehicle/building and local regulations.
Compatibility
Designed for EcoFlow Power Kits systems. Compatible with third party inverters - make sure the inverter specifications are a match for the
Specifications
| AC/DC Smart Distribution Panel (EU) | |
| AC Main Input | 16A Max, 230V, 3600W |
| DC Main Input | 70A Max |
| AC Output | 6 AC Positions, 10A Max Each |
| DC Output | 12 Fused DC Positions (6 Positions Controllable via Power Kit Console & App) |
| Operating Temperature | -25℃-60℃ |

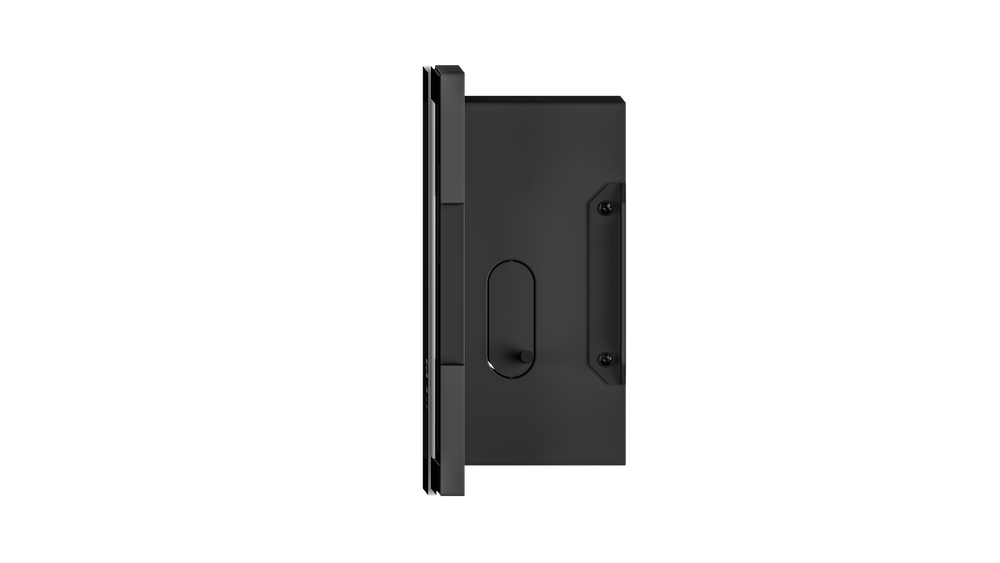

| Dimensions | 210x354x98mm (Height x Width x Depth) |
| Net Weight | 2.6kg |
| Protection Level | IP21 |
| Tests and Certifications | CE, UL, FCC, EMC Class B |
What’s included
- EcoFlow Smart Distribution Panel
Documents available to download
- EcoFlow AC/DC Smart Distribution Panel user manual – available from EcoFlow’s download centre
