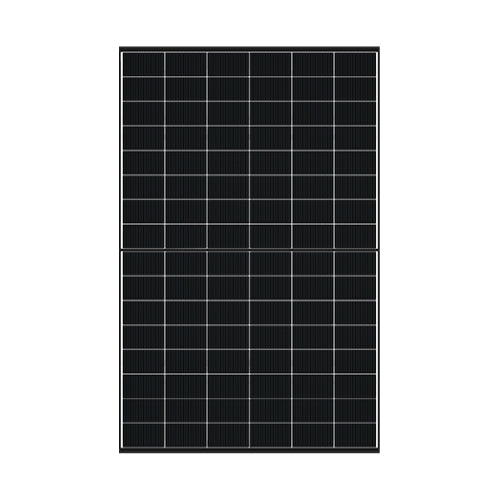

DMEGC 460W Infinity RT N-Type Bifacial Double-Glass Black Frame Solar Panel
Key Features
- 460W rated front-side output at STC, with 23.0% module efficiency.
- 96-cell N-Type monocrystalline silicon design.
- Bifacial double glass with transparent rear glass; bifaciality 80% ±5%.
- Power temperature coefficient of -0.29%/°C.
- IP68 junction box with three bypass diodes; maximum system voltage 1500V DC.
- Manufacturer-rated static test loads: 5400Pa front and 2400Pa rear.
- 30-year linear power performance warranty, subject to manufacturer terms.
Where to Use
Suitable for professionally designed residential and commercial rooftop solar PV systems, agricultural buildings and ground-mounted arrays using compatible mounting equipment. Energian can help check module quantities, mounting compatibility and inverter string design.
Technical Specifications
| Manufacturer | DMEGC Solar |
| Product series | Infinity RT |
| Manufacturer model | DM460G12RT-B48HBT |
| SKU | DM460G12RT-B48HBT |
| Rated maximum power at STC | 460W |
| Module efficiency at STC | 23.0% |
| Cell technology | N-Type monocrystalline silicon |
| Cell count | 96 |
| Module construction | Bifacial double glass with transparent rear glass; bifaciality 80% ±5% |
| Frame finish | Black anodised aluminium frame |
| Dimensions (L × W × D) | 1762 × 1134 × 30 mm |
| Module weight | 24.0 kg |
| Front / rear cover | 2.0 mm heat-strengthened front glass with anti-reflective coating / 2.0 mm heat-strengthened rear glass |
| Voltage at maximum power (Vmp) | 30.95V |
| Current at maximum power (Imp) | 14.87A |
| Open-circuit voltage (Voc) | 36.32V |
| Short-circuit current (Isc) | 15.83A |
| Power tolerance | 0 to +3% |
| Maximum system voltage | 1500V DC |
| Maximum series fuse / overcurrent protection rating | 30A |
| Connectors | PV-ZH202B or MC4-EVO2A, as specified in the manufacturer datasheet |
| Junction box | IP68, three bypass diodes |
| Operating temperature | -40°C to +85°C |
| Temperature coefficient of Pmax | -0.29%/°C |
| Temperature coefficient of Voc | -0.25%/°C |
| Temperature coefficient of Isc | +0.048%/°C |
| Maximum static test load (front / rear) | 5400Pa / 2400Pa |
| Protection class | Class II |
| Pallet quantity (information only) | 36 panels; this listing is priced per single panel |
| Performance warranty | 30 years; ≤1% first-year degradation and ≤0.4% annual degradation; 87.4% output at year 30 |
Additional Details
- Solar panels must be installed by a qualified installer in accordance with the manufacturer instructions. Cold-weather open-circuit voltage and input-current limits must be checked against the inverter or controller.
- Rear-side energy gain depends on reflectivity, mounting height, spacing and rear shading. Rated panel wattage is the front-side STC output.
UK delivery available. Contact Energian to confirm delivery charges, lead time and unloading arrangements before ordering.
Documents available for download:
Download DMEGC Solar DM460G12RT-B48HBT Manufacturer Datasheet
