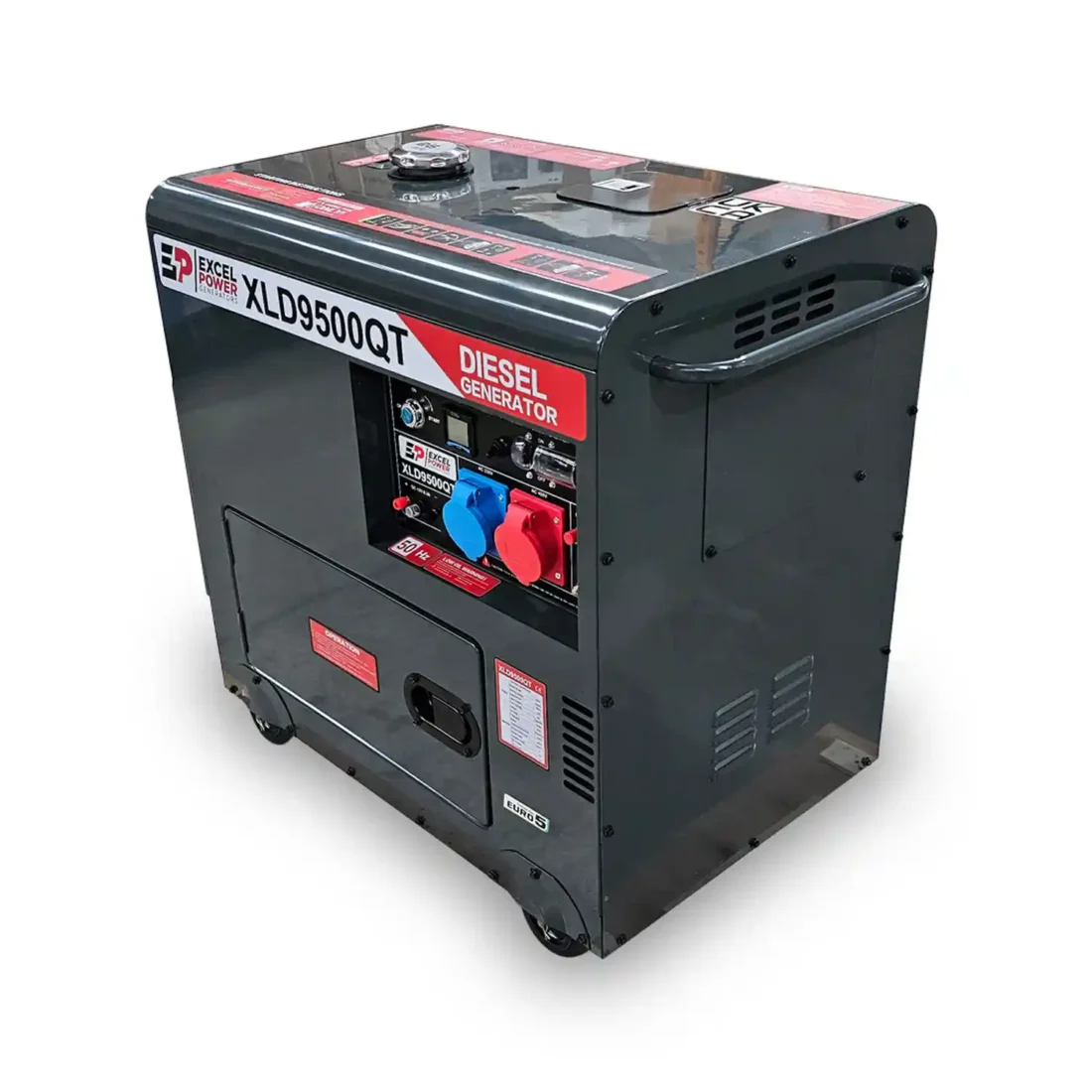

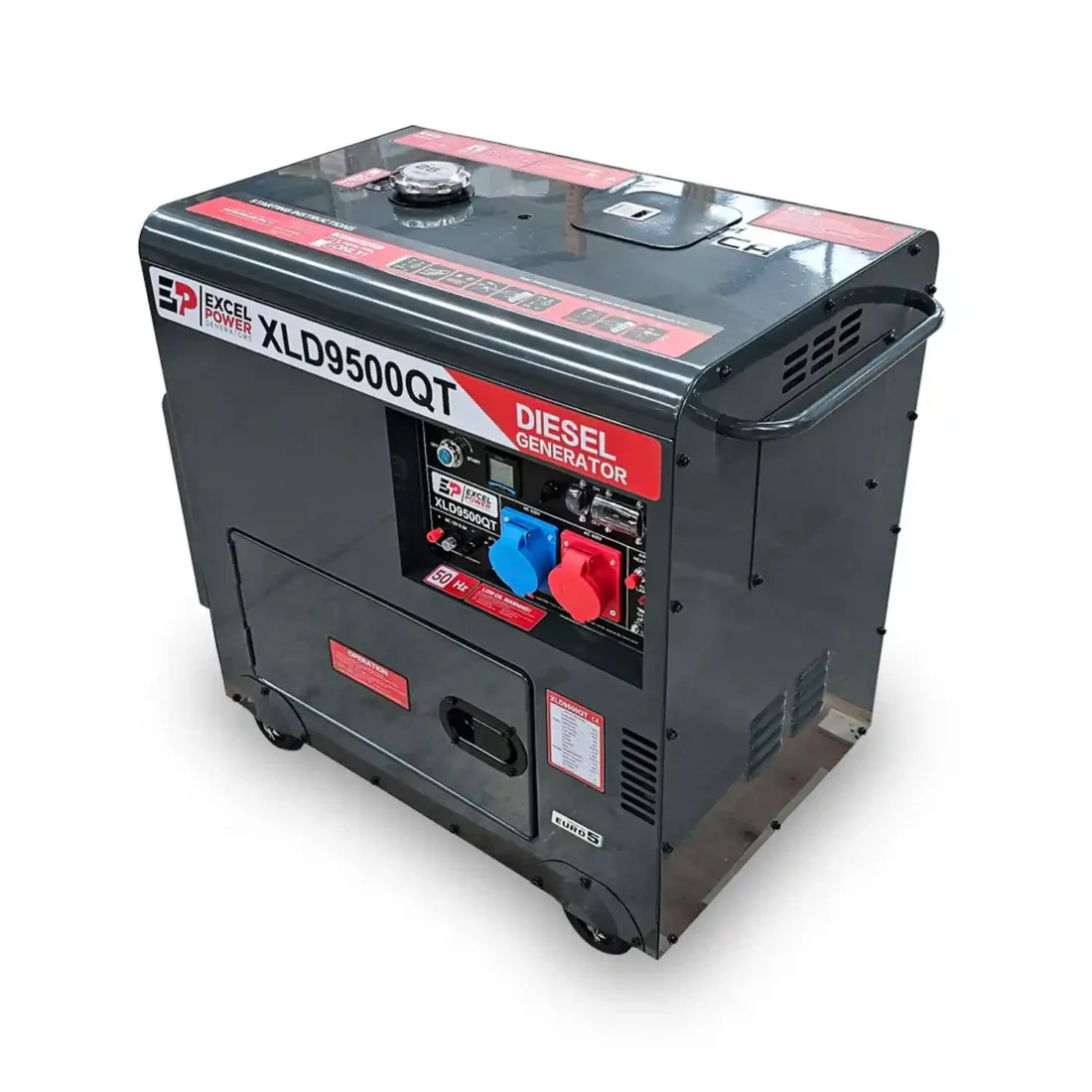

Excel Power XLD9500QT 6.5kW Three Phase Diesel Generator
The Excel Power XLD9500QT is a compact yet heavy-duty diesel generator designed for standby use in small commercial and domestic applications. Built around a robust 192FE 498cc air-cooled direct injection diesel engine, it delivers up to 6.5kW maximum output and 6.0kW continuous running power. It offers both single phase 230V and three phase 400V output, making it a practical choice for workshops, mobile businesses, site use, backup power and a wide range of general-purpose applications.
With electric start, AVR-controlled output, a tough canopy, wheel kit and handle, this generator gives a strong balance between portability, performance and value. It is also ATS compatible and fitted with a low-emission Stage V compliant diesel engine.

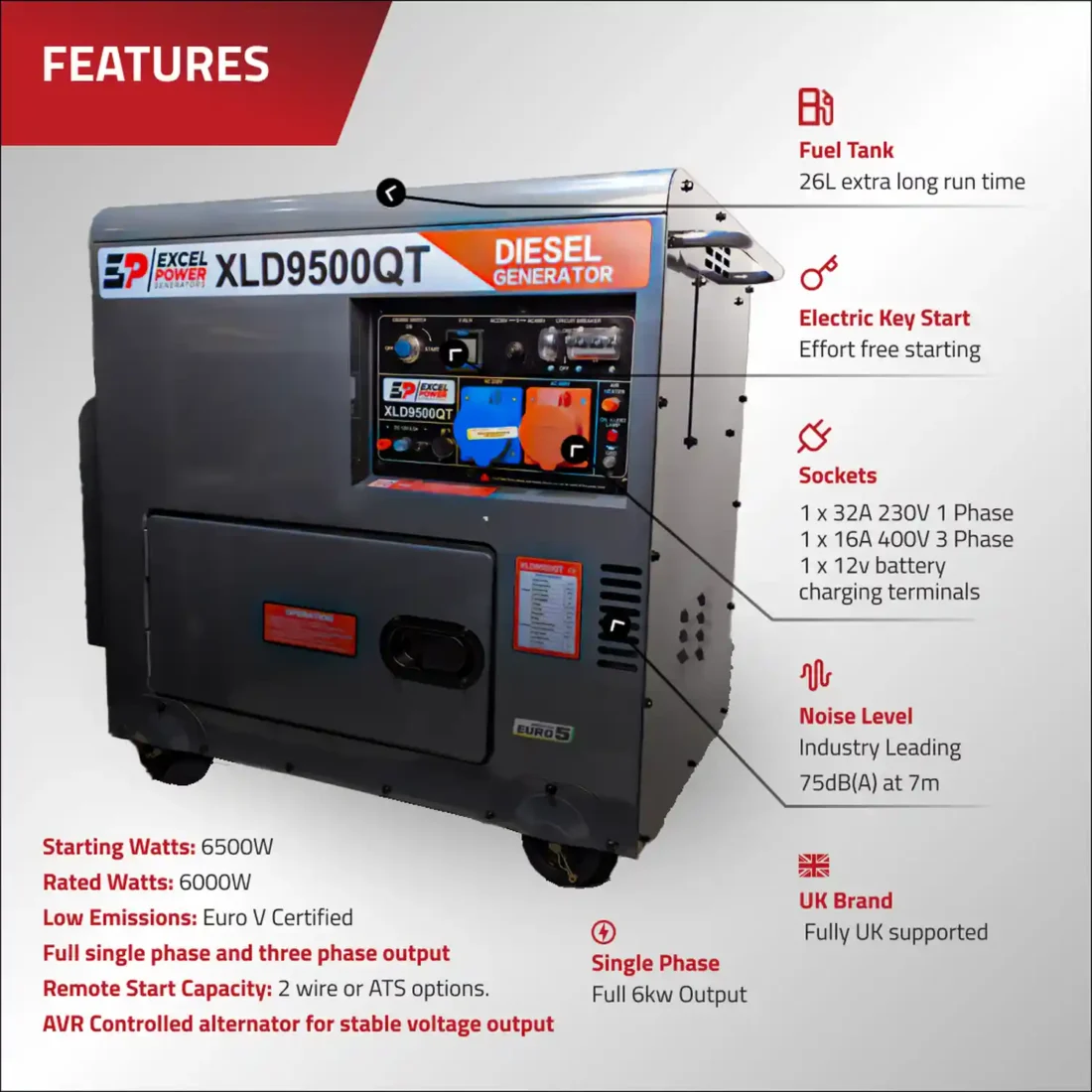

Features
6.5kW Maximum Output, 6.0kW Running Power
The XLD9500QT provides 6.5kW maximum output and 6.0kW rated running power. This makes it suitable for powering small to medium appliances, lighting, workshop equipment and medium-sized outdoor power tools. The stated power rating is available at both single phase and three phase output.
Single Phase and Three Phase Power

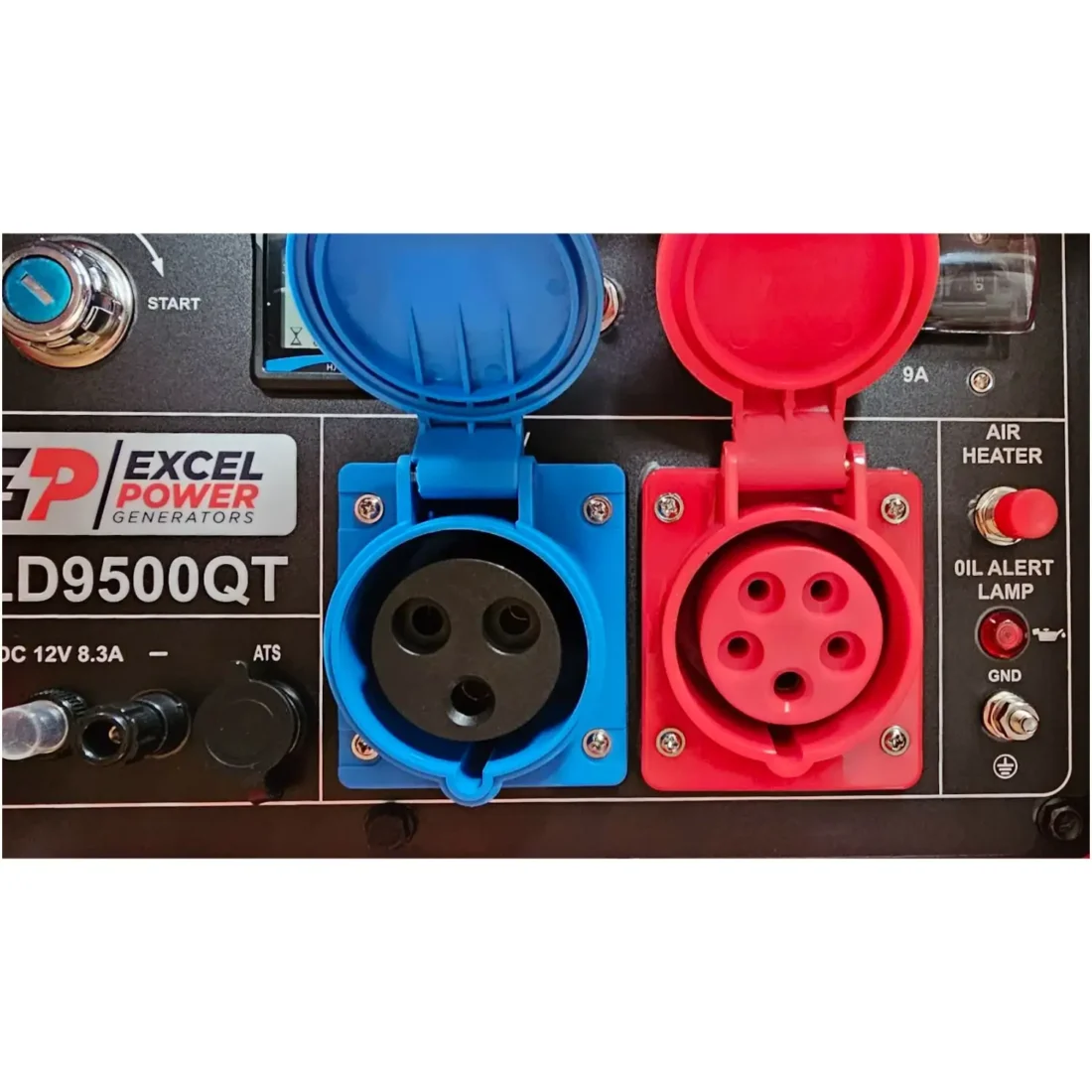

This generator offers both 230V single phase and 400V three phase output, giving more flexibility for mixed applications. Outputs include 1 x 32A 230V socket, 1 x 16A 400V socket and 12V DC battery charging terminals.
Reliable 498cc Diesel Engine
Powered by a 192FE single-cylinder, air-cooled, direct injection diesel engine, the XLD9500QT is designed to provide dependable performance with good fuel economy. Diesel power makes it well suited to standby applications where robustness and long running times matter.
Electric Start for Easy Operation
Starting is straightforward thanks to the electric key start system. This makes the generator easy to use for regular standby duties or for users who want a simple, no-fuss starting process.
ATS Compatible
The XLD9500QT is compatible with the Excel Power diesel generator Automatic Transfer Switch. When used with a suitable ATS, the generator can automatically start when mains power fails and switch off again when grid power returns. This is particularly useful for backup power applications where automatic operation is important.
Stage V Low Emission Engine
This model is fitted with a low-emission certified Stage V diesel engine, helping it meet current requirements for portable and mobile diesel generators while reducing environmental impact compared with older non-compliant models.
AVR-Controlled Output
Equipped with an AVR alternator, the XLD9500QT produces stable power suitable for many electronic devices including PCs, laptops and TVs, as well as more general electrical loads.

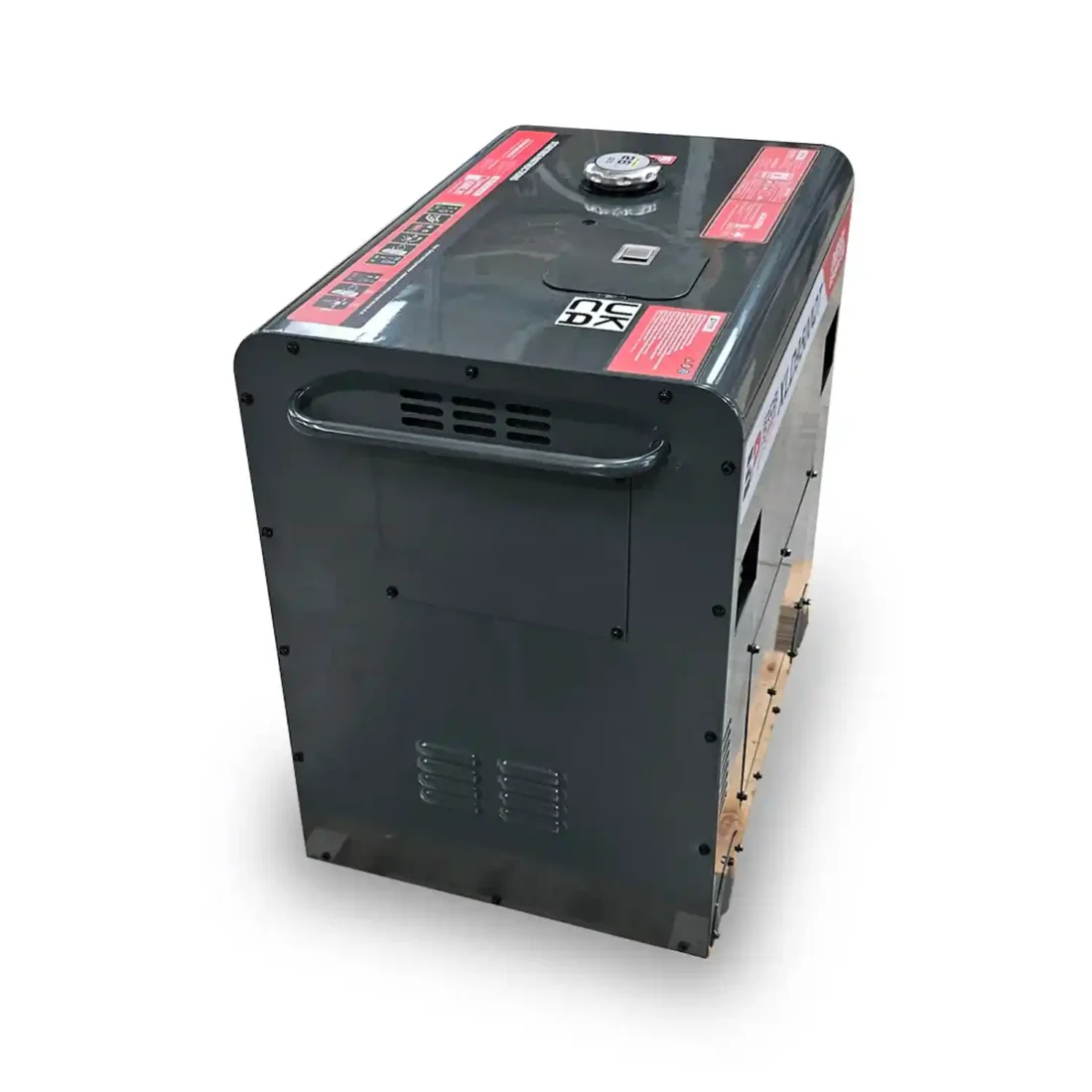

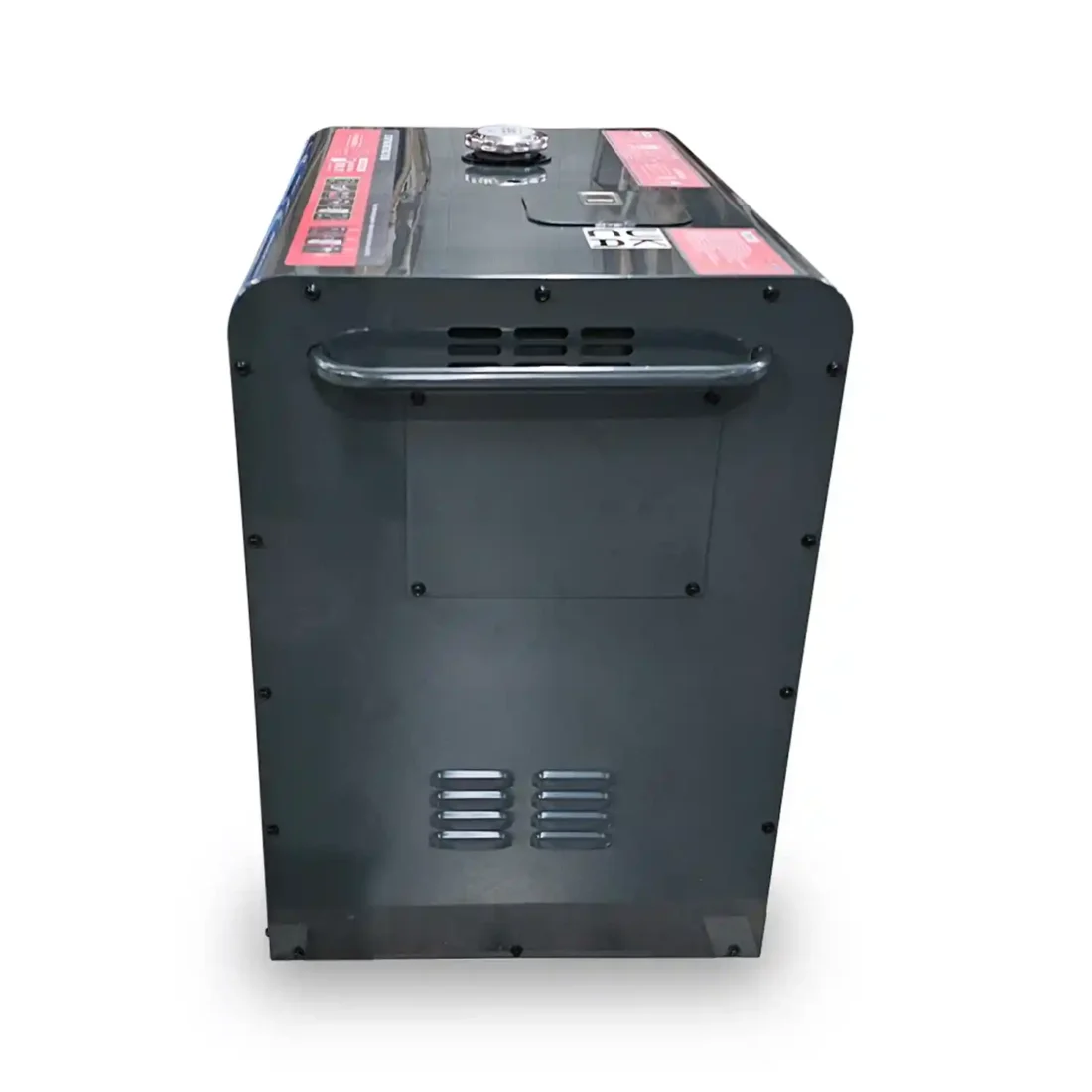

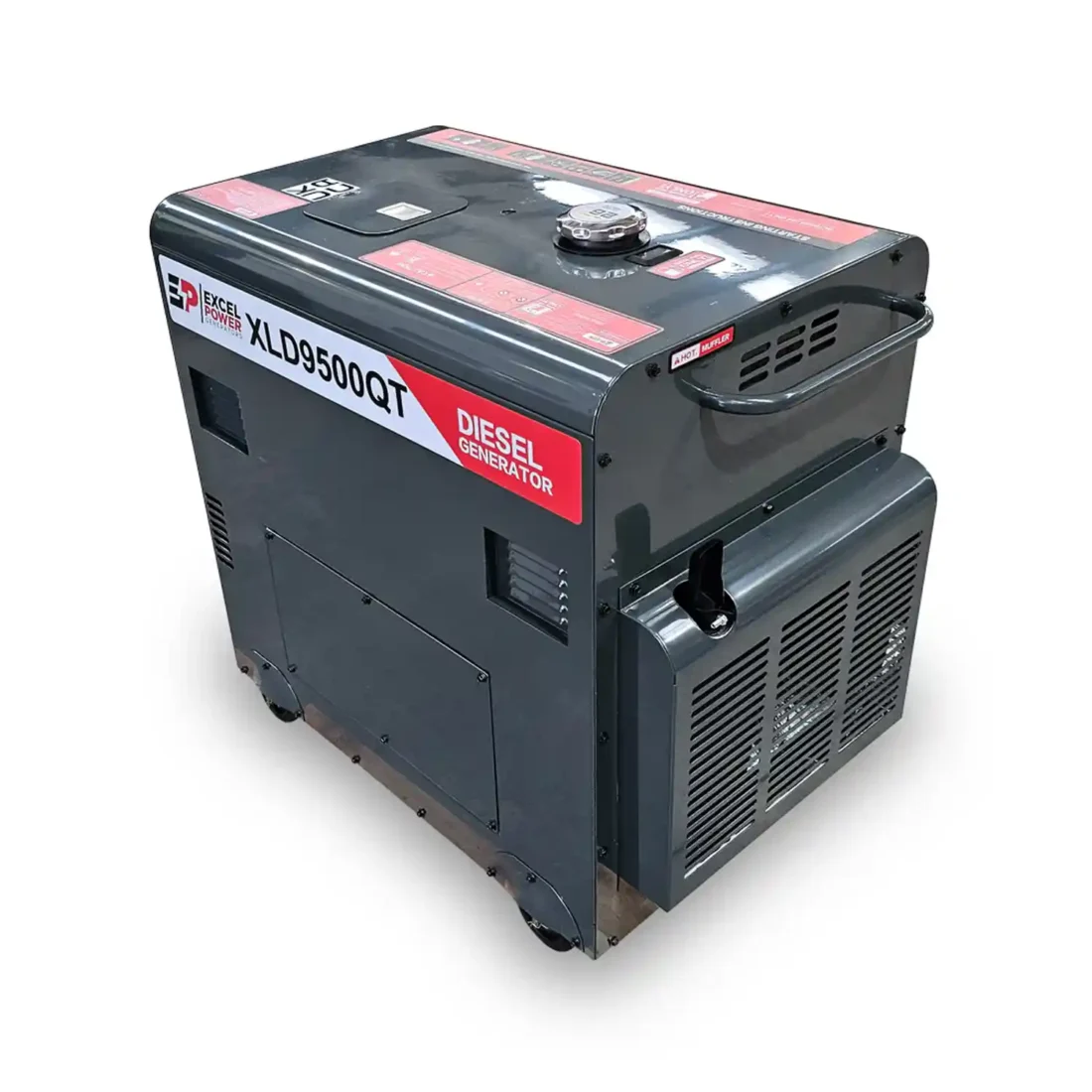

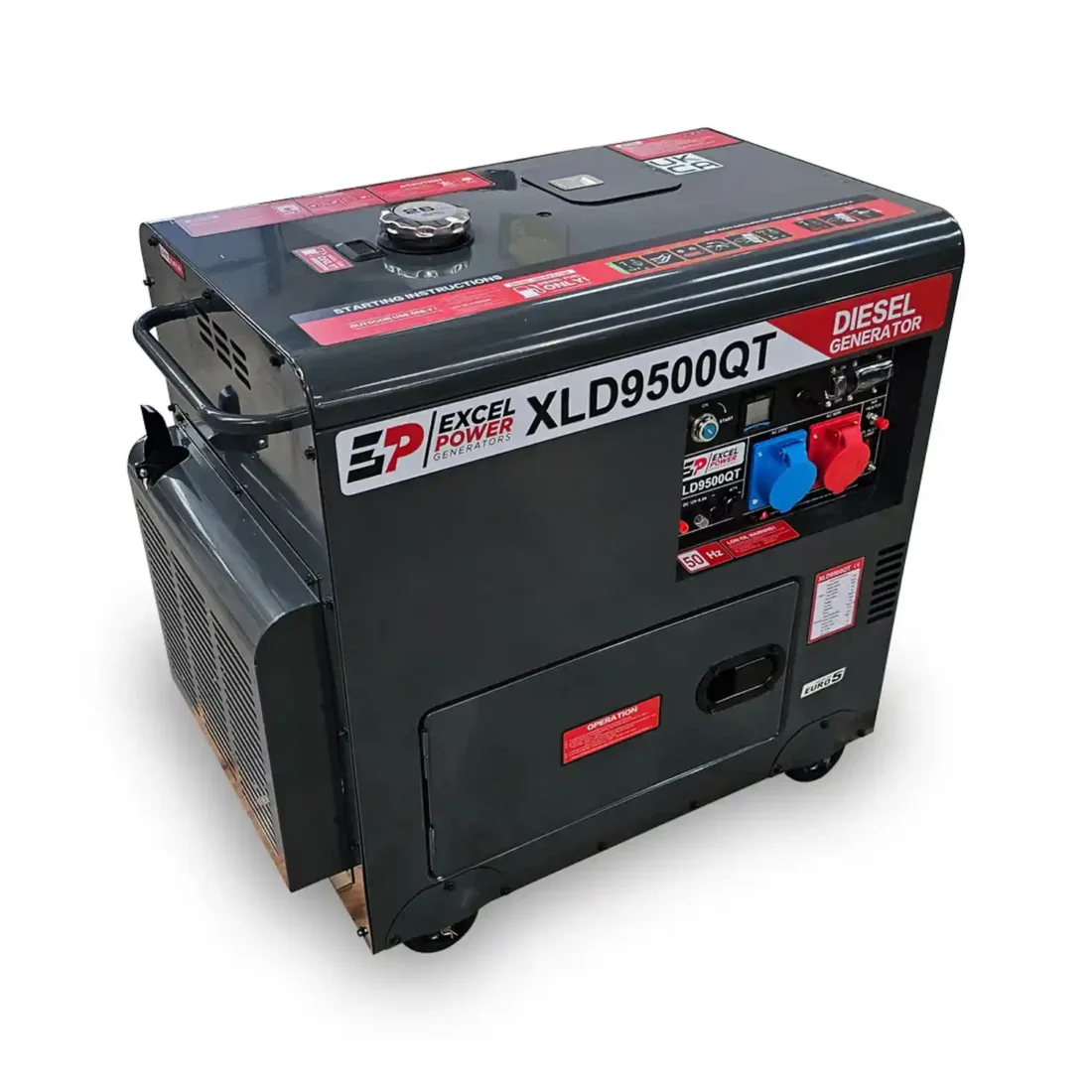

Compact Canopied Design
The heavy-duty metal canopy helps protect the generator while keeping the unit compact and practical to store. Its red chip-resistant finish is tough and durable, making it suitable for domestic, commercial, construction, industrial and catering environments.

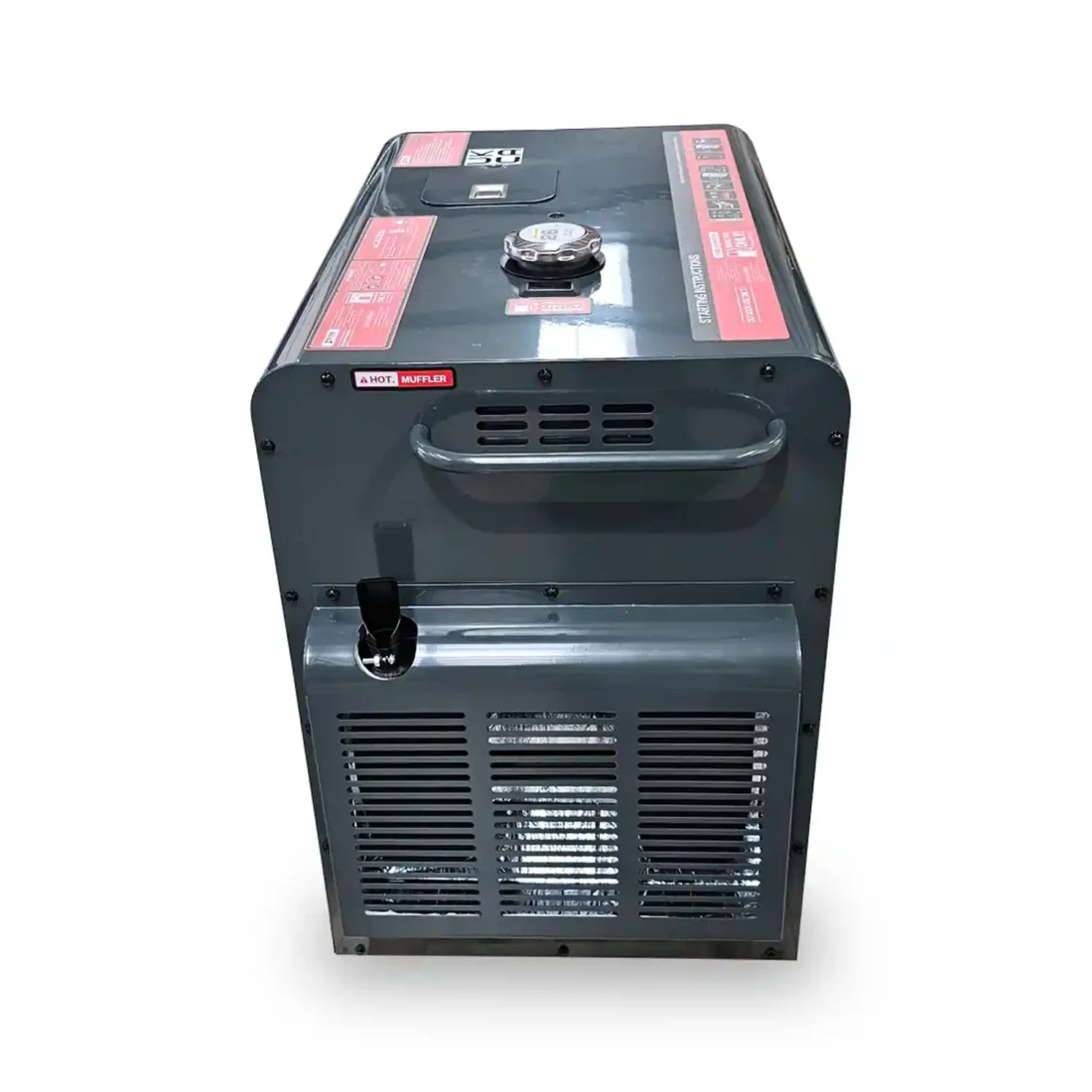

Long Run Time and Good Fuel Capacity
With a 26 litre fuel tank and quoted run time of up to 24 hours at 100% load, the XLD9500QT is built for extended operation when required. This makes it useful for backup use, mobile working and locations where regular refuelling would be inconvenient.

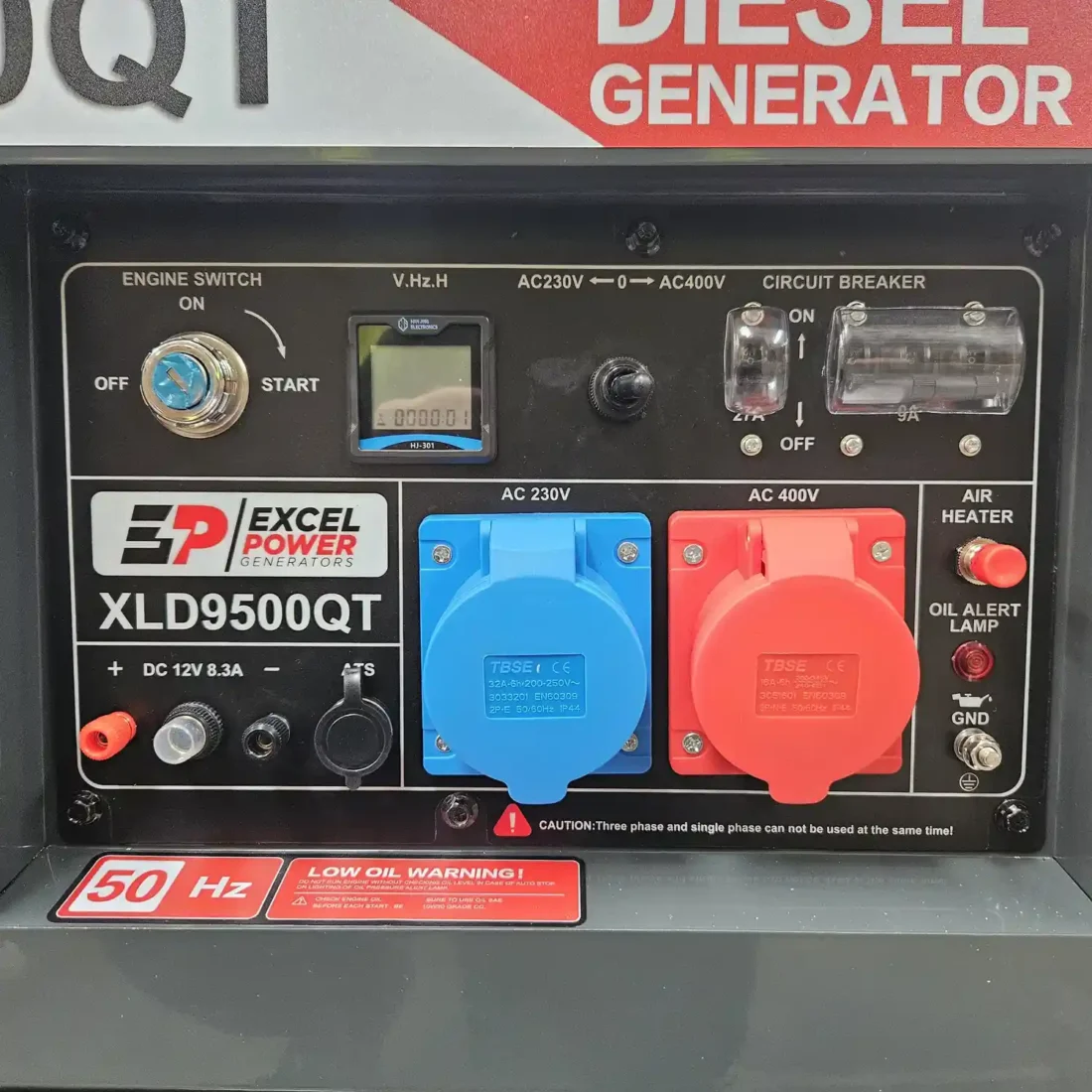

Digital Display and Service Monitoring

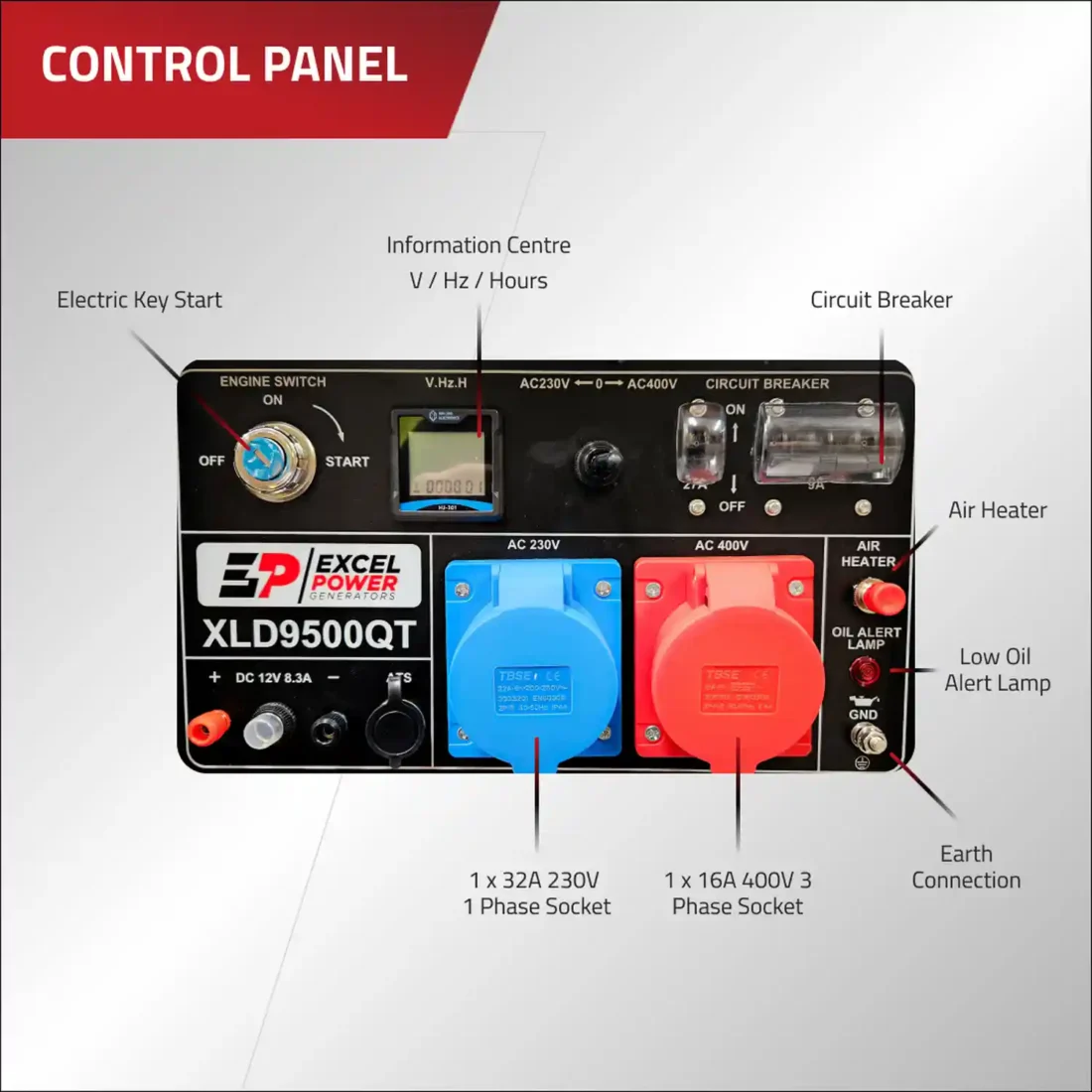

An onboard digital display shows key operating information such as running hours, output voltage and frequency. The hour meter helps users keep track of service intervals so the generator can be maintained properly over the long term.
Portable Industrial Frame with Wheels and Handle
Although this is a substantial diesel generator, movement is made easier by the fitted wheels and handle. The industrial frame design helps when positioning the unit around workshops, yards, business premises and mobile operations.
UK Support and Spare Parts Backup
The XLD9500QT is fully supported in the UK by Hampshire Generators, with service workshops, spare parts stock and aftersales support available. For many buyers, that is a major advantage compared with unsupported imported models.
Typical Uses
This generator is well suited to standby and general-purpose use in applications such as:
- Small commercial premises
- Workshops and garages
- Mobile catering vans
- Construction and trade use
- Home backup power
- Lighting and small to medium appliances
- Medium-sized outdoor power tools
- Battery charging via 12V DC terminals
Technical Specifications
| Model | XLD9500QT |
| Frequency | 50Hz |
| Voltage | 230V / 400V |
| Phase | Single phase and three phase |
| Casing | Metal canopy |
| Maximum Power | 6.5kW |
| Rated Running Power | 6.0kW |
| Engine Type | 192FE air-cooled direct injection diesel |
| Displacement | 498cc |
| Number of Cylinders | 1 |
| Fuel Type | Diesel |
| Starting System | Electric start |
| Oil Capacity | 1.65L |
| Certification | UKCA, Euro 5 / Stage V emissions |
| Alternator Voltage | 230V / 400V |
| Rated Current | 26A single phase / 8A per phase three phase |
| Overload Protection | Yes |
| Fuel Tank Capacity | 26L |
| Run Time at 100% Load | 24 hours |
| Noise Level at 7m | 75 to 80 dBA |
| Socket 1 | 1 x 32A 230V single phase |
| Socket 2 | 1 x 16A 400V three phase |
| DC Output | 12V battery charging terminals |
| Packed Dimensions (L x W x H) | 970 x 570 x 910mm |
| Unpacked Dimensions (L x W x H) | 920 x 550 x 735mm |
| Dry Weight | 175kg |
| Packed Weight | 177kg |
What’s in the Box
- 1 x Excel Power XLD9500QT generator
- User manual
- Tool kit
The generator is supplied with a 1-year warranty.
Important Notes
- Maximum output is the short-duration peak figure. For ongoing use, the rated running power of 6.0kW is the more important comparison point.
- Where three phase equipment is being used, make sure the connected load is suitable for the generator’s three phase output arrangement.
- For automatic mains failure backup operation, a compatible Automatic Transfer Switch is required.
