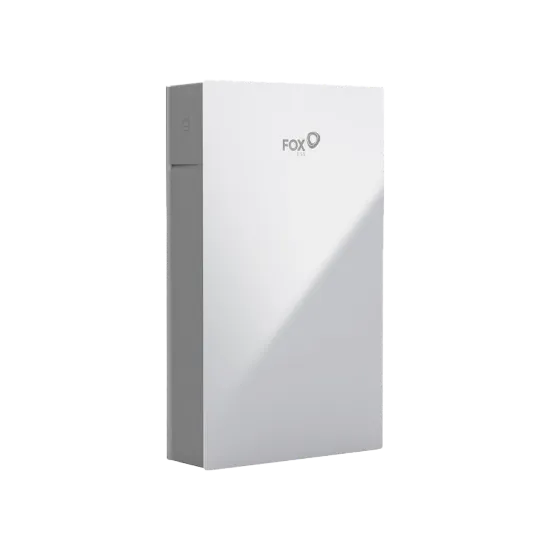

All in One Fox ESS Evo Series Hybrid Energy Storage System with 8kW Inverter and 10.24kWh LFP Battery
Solar Synergy: Fox ESS Evo Series Energy Storage System with 8kW Inverter and 10.24kWh LFP Battery
- All-in-One: 8kW hybrid inverter + robust 10.24kWh LiFePO4 battery for homes, businesses, and public sector
- Dependable backup: Seamless emergency power switching (<4ms), double off-grid overload (200% for 10s)
- Weatherproof IP66: Install indoors or outdoors with flexible floor or wall mounting
The Fox ESS Evo Series Hybrid ESS is engineered to store excess solar power, provide backup during outages, and simplify energy management for your property. It suits new installations and retrofits, giving you smart self-consumption, grid support, and reliable backup all year round. UK installer support is available.
Compatible with most rooftop solar arrays and ground-mount panels, the Evo Series actively manages solar generation, battery storage, and power delivery. Store daytime solar for evening use, run appliances during outages, or optimise for electric vehicle charging and home upgrades.
Scale up to 30.72kWh by stacking additional battery modules. Perfect for EV owners and anyone planning future upgrades to their renewable system or home heating.
Order installation via our trusted partners and pay zero VAT. Enquire here.
Installers: Fast-fit design. Call 020 8064 0335 to join our authorised partner network.
Key Features
- Integrated 8,000W single-phase hybrid inverter and 10.24kWh LiFePO4 battery
- Expandable: up to 3 battery modules (30.72kWh total)
- Quick-switch emergency power (EPS) mode & double overload capability
- IP66 steel enclosure for flexible mounting – indoors/outdoors
- Advanced monitoring and control: FoxCloud app/web, LCD, LED
Technical Specifications
| Inverter Output (AC) | 8,000 W |
| Battery Type | LiFePO4 (LFP) |
| Nominal Battery Energy | 10.24 kWh (expandable to 30.72kWh) |
| Battery Cycle Life | 6,000+ cycles at 95% DoD |
| Maximum PV Array Power | 12,000 W |
| MPPT Input Voltage Range | 80–550 V (max. 600 V) |
| No. of MPPT trackers | 2 |
| Rated EPS Power | 8,800 VA; 200% overload (10s); <4ms switch time |
| Round-trip Efficiency | Up to 96.4% |
| Noise | <45 dB (typical) |
| Operating Temperature Range | –20°C to +55°C |
| Ingress Protection | IP66 (indoor or outdoor) |
| Mounting | Wall or floor-mounted |
| Dimensions (W×H×D) | 584 × 1,009 × 197 mm |
| Weight | 113 kg |
| Communications | WiFi, LAN, 4G (optional), RS485, Meter, CAN, Bluetooth |
| Certifications | G99, EN/IEC 62109-1/2, EN 50549-1, UN38.3, ROHS, REACH, WEEE, UK/EU safe |
| Display & Monitoring | LED, LCD, FoxCloud app & web |
