SolaX X1-AC 3.6kW AC Coupled Battery Inverter and 5.8-17.3kWh SolaX T58 Battery Energy Storage System
Optimise Your Energy Usage with 3.6kW Inverter and 5.8-17.3kWh AC Coupled Energy Storage System
Trade only product - MCS or NICEIC membership required
AC Coupled Energy Storage System (ESS) offers a strategic solution for harnessing energy efficiently from cost-effective sources like solar panels and off-peak Octopus mains power. This system empowers users to utilise stored energy effectively, avoiding low feed-in tariffs and expensive peak-rate power.
Zero VAT applies to new residential energy storage batteries when purchased from your installer. Take advantage of our cost effective battery installation service (starting at just £199) and pay zero VAT on your battery installation! Click here to request a quote or contact us via live chat or call 020 8064 0335 for live expert advice.
The SolaX X1-AC 3.6kW AC Battery Inverter and 5.8-17.3kWh SolaX T58 5.8kWh Battery Energy Storage System (5.8-17.3kWh/3.6kW AC Coupled ESS) comprises:
- 1x SolaX T58 Triple Power HV 5.8kWh LFP Battery System including

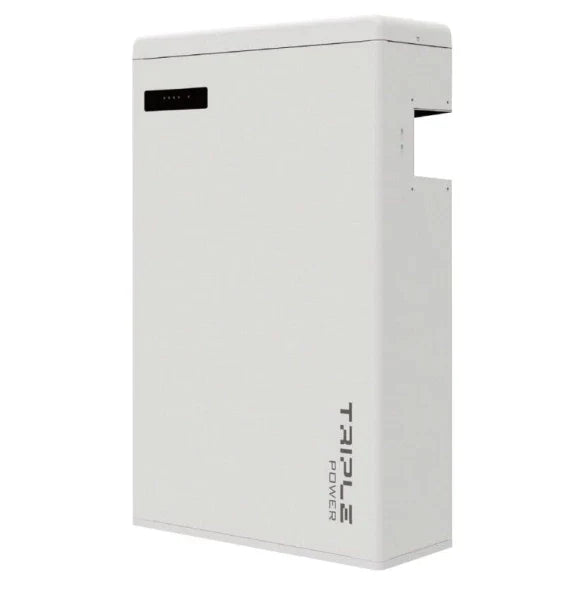

- SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER V2, and

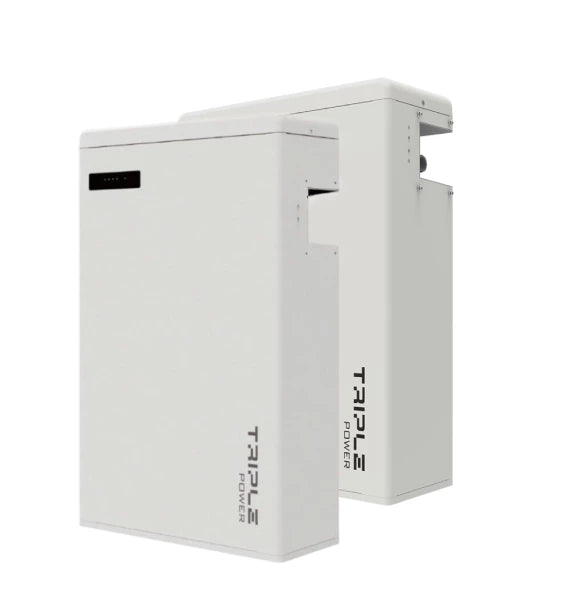

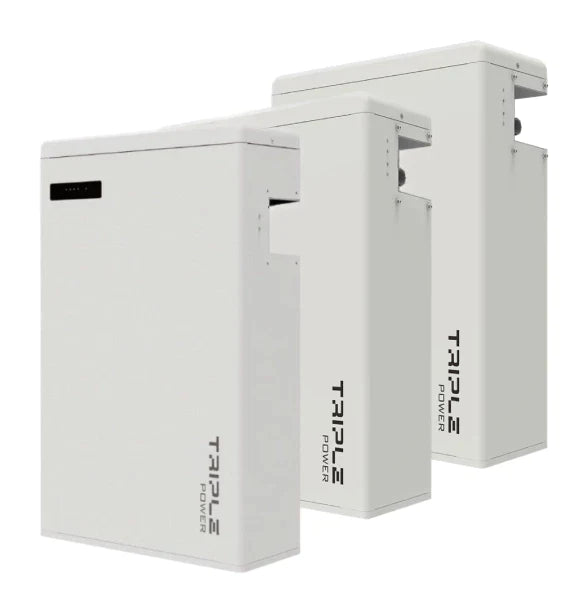

- 1x or 2x SolaX Triple Power HV 5.8kWh LFP Main Battery SLAVE V2,
- 1x SolaX X1-AC 3.6kW AC Coupled Battery Inverter.
This 5.8-17.3kWh/3.6kW AC Coupled ESS efficiently manages energy usage, ensuring a stable electricity supply and reducing costs by charging the battery with solar or low-priced off-peak Octopus electricity. Coupled with a private power source like on-grid solar panels, it provides a continuous 24/7 power supply for your home.
The 3.6kW X1-AC 3.0kW AC Coupled Battery Inverter is designed for compatibility with an external backup generator, seamlessly supplying electricity during prolonged grid outages when the battery storage is emptied.-
SolaX 5.8kWh Triple Power T58 Master and Slave Battery Module: A high-performance, scalable battery storage module with a modular design for maximum flexibility. Easy installation, plug-and-play solution, 95% charge/discharge efficiency, 100% depth of discharge, and a cycle life of over 6000 cycles.

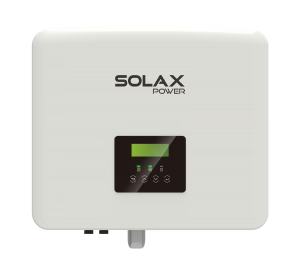

- SolaX X1-AC 3.6kW AC Coupled Battery Inverter: A high-quality inverter converting solar energy to AC energy, compatible with high voltage batteries. Suitable for indoor or outdoor installation, featuring natural cooling, quiet operation, and low maintenance.
-
SolaX X1-AC 3.6kW AC Battery Inverter Working Modes:
- Self-use (default): Because there is no PV supplied, battery will discharge for local loads firstly, and grid will supply power when the battery capacity is not enough.
- Feed in priority: The priority of inverter output power is: feeding to the grid --> supplying the load --> charging the battery. This work mode applies to the area with high feed-in tariff.
- Force time use: In this work mode the charging and discharging time can be set flexibly, and
- Back up mode: Battery will stop discharing to keep higher capacity when the grid is on. Only when the gird is off is not enough, battery will start to discharge to keep the emergency load working normally. This work mode applies to the area where suffering from blackout regularly.
The system seamlessly integrates with smart Octopus tariffs, allowing automatic optimisation for Plunge Prices and super cheap prices. With solar panels and the battery storage system, your electric unit price can be drastically reduced!
- Enjoy a 2-3 working day delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
| SOLAX TRIPLE POWER T58 BATTERY STACK MASTER AND SLAVE V2 |
| Battery Type: Lithium Iron Phosphate (LiFePO4) |
| Total Energy: 5.8kWh |
| Useable Energy: 5.1kWh |
| Nominal Voltage: 115.2V |
| Operating Voltage Range: 100-131V (MASTER)/200-262V (MASTER + SLAVE)/300-393V (MASTER + 2xSLAAVE) |
| Rated Power: 2.8kW |
| Max. Power: 4.0kW |
| Recommended Charge/Discharge Current: 25A |
| Max. Charge/Discharge Current: 35A |
| Available Charge/Discharge Temperature Range: 0 ~ +55°C |
| Charge/Discharge Efficiency: 95% |
| Cycled life (90% DOD): 6000 cycles |
| Depth of Discharge: 100% |
| Expected Life Time / Warranty: 10 years |
| Protection Level: IP65 |
| Net Weight: MASTER - 72.2kg; SLAVE: 68.5kg |
| Size: MASTER: 474×193×708mm, SLAVE: 474×193×647mm |
| SOLAX 1 PHASE X1-AC 5306W AC COUPLED BATTERY INVERTER |
| OUTPUT DC (BATTERY) |
| Rated Battery Voltage: 70-400V |
|
Recommended Battery Voltage: 300V |
| Max. Charge/Discharge Current: 35A |
|
Communication Interfaces: CAN |
|
Reverse Connect Protection: Yes |
| AC INPUT (GRID SIDE) |
| Max. Apparent AC Input: 3680VA |
| Max. AC Current: 16.8A |
| Nominal Grid Voltage (AC Voltage Range): 220/230/240V |
| Nominal Grid Frequency/Range: 50/60Hz |
| AC OUTPUT (GRID SIDE) |
| Nominal AC Power: 3680W |
| Max. AC Apparent Power: 3680VA |
|
Nominal AC Current: 16A |
| Max. AC Output Current: 16.8A |
| Rated Grid Voltage: 220/230/240V |
| Rated Grid Frequency: 50/60Hz |
| Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging ) |
| THDi: <2% @rated power |
| EFFICIENCY |
| Battery Charge/Discharge Efficiency: 96.5%/96.5% |
| Operating Temperature: -25 ~ +60°C (derating at 45°C) |
| Protection Degree: IP65 |
| Size: 430*341.5*143mm |
| Net Weight: 15.5kg |
- 1x SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER V2,
- 1x or 2x SolaX Triple Power HV 5.8kWh LFP Main Battery SLAVE V2,
- 1x SolaX X1-AC 3.6kW AC Coupled Battery Inverter
