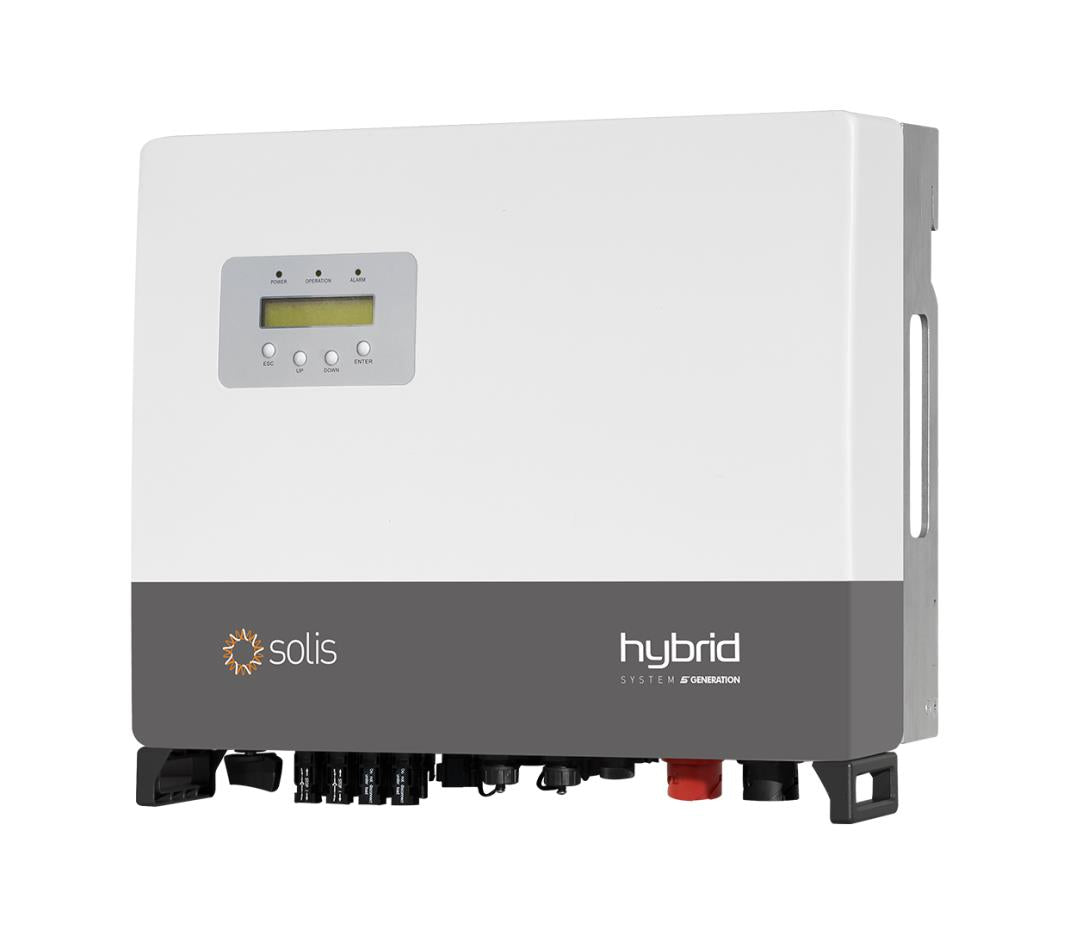

Experience Uninterrupted Power with Solis 8.0kW 3-Phase Hybrid On-grid/Off-grid Inverter
Unleash the potential of your solar energy system with the Solis 8.0kW 3-Phase RHI-3P8K-HVES-5G Hybrid On-grid/Off-grid 5G Inverter, providing essential power during load shedding and optimizing energy usage during peak demands.
-
Key Features:
- Max. efficiency 98.4%
- Intelligent EMS function
- Support three-phase imbalance on backup output port
- 2 MPPT and 4 DC input; Max 26A DC input current
- Time of use shifting and peak shaving capabilities to grid
- AFCI protection, proactively reduces fire risk
- Remotely control and upgrade any selected inverter
- Power supply can be switched automatically and switching time within 40ms
- Ensures AC backup for up to 8kW of continuous power and 16kVA of peak power
- 24-hour fully intelligent energy management, Real-time grasp of PV plant status
- Remotely control & upgrade function, making digital power plant maintenance at your fingertips
-
Four Work Modes:
- Self-consumption mode: Prioritizes using energy produced by the PV system for self-consumption. Excess energy charges the batteries and is then exported to the grid.
- Feed-in priority: Utilizes power generated by the PV system to supply local loads first, exporting excess power to the grid. Redundant power charges the battery.
- Back-up Mode: Maintains the battery at a specific State of Charge (SOC) and only utilizes it during power outages.
- Off-Grid Mode: For off-grid use and AC-Grid Port Disconnected use.
- Battery Compatibility: The Solis RHI-3P8K-HVES-5G 8.0kW 3-Phase Hybrid On-grid/Off-grid 5G Inverter seamlessly integrates with LG RESU10H PRIME and LG RESU16H PRIME High Voltage Batteries.
- Fast Delivery Across the UK: Experience quick 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland). Elevate your power resilience with the Solis 8.0kW 3-Phase Hybrid On-grid/Off-grid 5G Inverter.
Detailed specifications:
| Model: RHI-3P8K-HVES-5G |
| BATTERY |
| Battery Type: Lithium-Ion |
| Battery Voltage: 160-600V |
| Max. Charge/Discharge Power: 8000W |
| Max. Charge/Discharge Current: 25A |
| Max. Charge/Discharge Power: 8kW |
| Communication Interface: CAN/RS485 |
| INPUT PV |
| Max. Input Power: 12,800W |
| Max. Input Voltage: 1000V |
| Start-up Voltage: 120V |
| Rated Voltage: 600V |
| MPPT Operating Voltage Range: 200-850V |
| Max. Input Current: 26A/13A |
| Max. Short-circuit Current: 39A/19.5A |
| No. of Independent MPP Trackers/Max. input strings number: 2/3 |
| OUTPUT AC (GRID SIDE) |
| Rated Output Power: 8000W |
| Max. Output Apparent Power: 8000VA |
| Rated Grid Output Current: 12.2A / 11.5A |
| Max. Output Current: 13.4A |
| Rated Grid Voltage: 3/N/PE, 380/400V |
| Rated Grid Frequency: 50/60Hz |
| Power Factor: >0.99 ( Adjustable from 0.8 leading to 0.8 lagging ) |
| THDi: <2% @rated power |
| OUTPUT AC (BACK-UP) |
| Rated Output Power: 8000W |
| Max. Output Apparent Power: 8000VA |
| Peak Output Apparent Power: 16,000VA@60sec |
| Rated Output Current: 12.2A / 11.5A |
| Max. Output Current: 13.4A |
| Rated Output Voltage: 3/N/PE, 380/400V |
| Rated Output Frequency: 50/60Hz |
| THDi (linear load): <2% |
| Backup Switch Time: <40ms |
| EFFICIENCY |
| Max. Efficiency: 98.4% |
| Operating Temperature: -25 ~ +60°C |
| Protection Degree: IP65 |
| Size: 535*455*181mm |
| Net Weight: 25.1kg |
In the Box:
- 1 X Solis RHI-3P8K-HVES-5G 8.0kW Hybrid On-grid/Off-grid 5G Inverter,
- 1 X Solis RHI-3P8K-HVES-5GL 8.0kW Hybrid On-grid/Off-grid 5G Inverter User's Manual.
