The new Fujitsu wall-mounted air conditioners (series ASYG-KMCC R32) offer a range of user-friendly, feature-packed, and environmentally conscious heating and cooling solutions. These indoor units are designed for a variety of spaces, including living rooms, server rooms, offices, bedrooms, and children’s rooms. All Fujitsu air conditioning models feature heat pump inverter technology, which is highly efficient and conserves energy.
Key features
- Slim and stylish design: A sleek, square design is achieved through the use of a high-density multi-path heat exchanger and a highly efficient fan.
- Comfortable airflow and quiet operating mode: The combination of a large louvre and an advanced air-blowing structure ensures a quiet and comfortable airflow.
- Outstanding energy efficiency: Exceptional energy-saving performance is provided by a high-efficiency lambda heat exchanger, a large cross flow fan, and the use of R32 refrigerant.
- Smart device control: You can control the air conditioner from anywhere, inside or outside, using a smartphone, tablet, or PC.
- R32 refrigerant: Help reduce the impact on our planet by using the more eco-friendly R32 refrigerant.
- 5-year manufacturer’s warranty: This system comes with a 5-year warranty on parts.
- Wireless WiFi control: The unit includes a wireless WiFi control system, allowing operation via a smartphone or tablet.
- Lightweight outdoor unit: The lightweight outdoor unit provides great flexibility for installation.
Efficiency | |
Series | ASYG07KMCC/AOYG07KMCC |
Nominal heating capacity (min - max): | 2.5 (0.9 - 3.4) kW |
Nominal cooling capacity (min - max): | 2.0 (0.9 - 3.0) kW |
Power consumption heating / cooling: | 0.555 / 0.45 kW |
COP (heating) / EER (cooling): | 4.52 / 4.43 |
Seasonal COP (heating) / seasonal EER (cooling): | 4.1 / 7.2 |

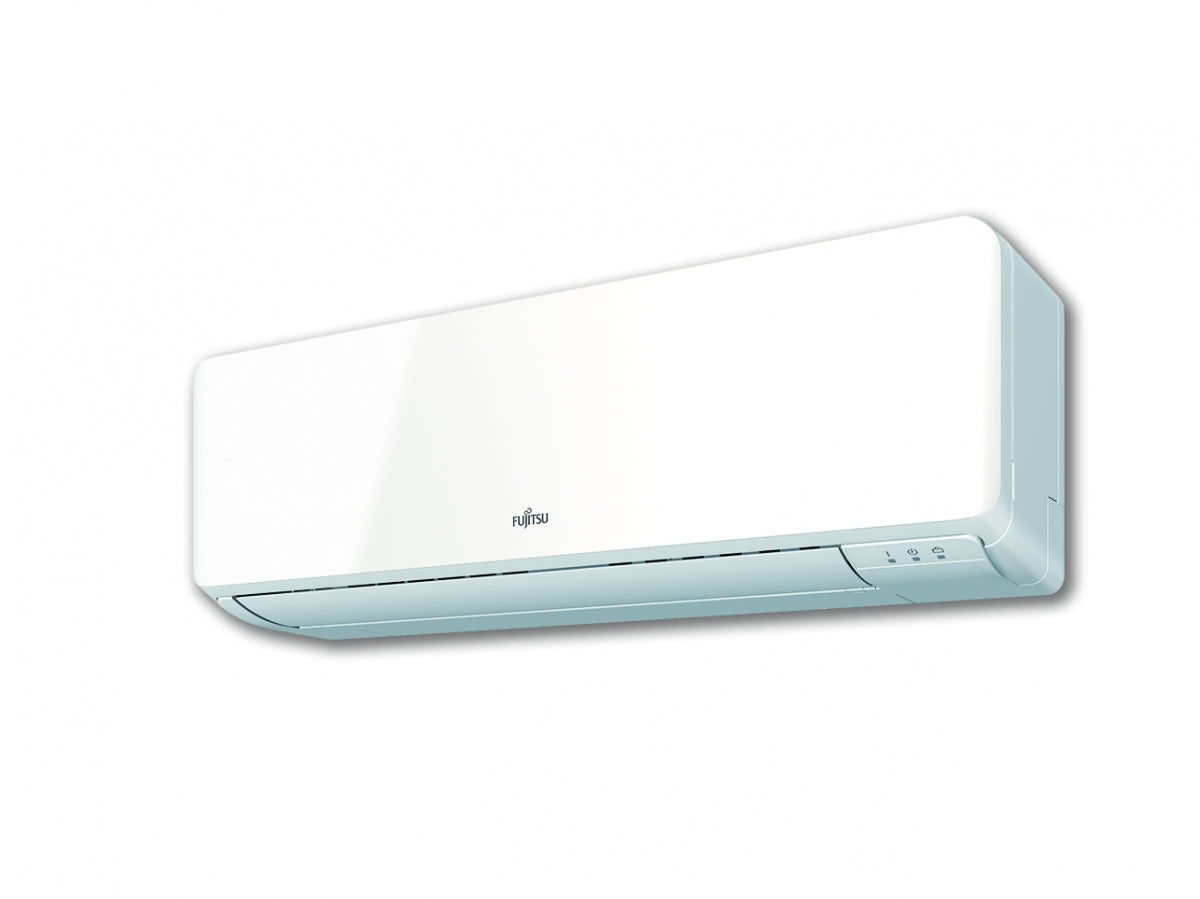

Indoor unit ASYG07KMCC | |
Air flow heating: | 12 m3/min |
Sound level (H/M/L) heating: | 41 / 35 / 31 dB(A) |
Air flow cooling: | 10.8 m3/min |
Sound level (H/M/L) cooling: | 38 / 33 / 29 dB(A) |
Size: | 270 / 834 / 222 mm |
Weight: | 10 kg |
Outdoor unit AOYG07KMCC | |
Sound level cooling/heating: | 46/46 dB(A) |
Size: | 541 x 663 x 290 mm |
Weight: | 23 kg |
Electrical data | |
Power source: | 1ph 220-240VAC/50Hz |
Max. operating current: | 9 A |
In the box:
- 1 x Fujitsu Air Conditioning Heat Pump ASYG07KMCC Wall Indoor Unit
- 1 x Fujitsu Air Conditioning Heat Pump AOYG07KMCC Wall Outdoor Unit 220-240V 50Hz
- 1 x Infrared Remote Controller
