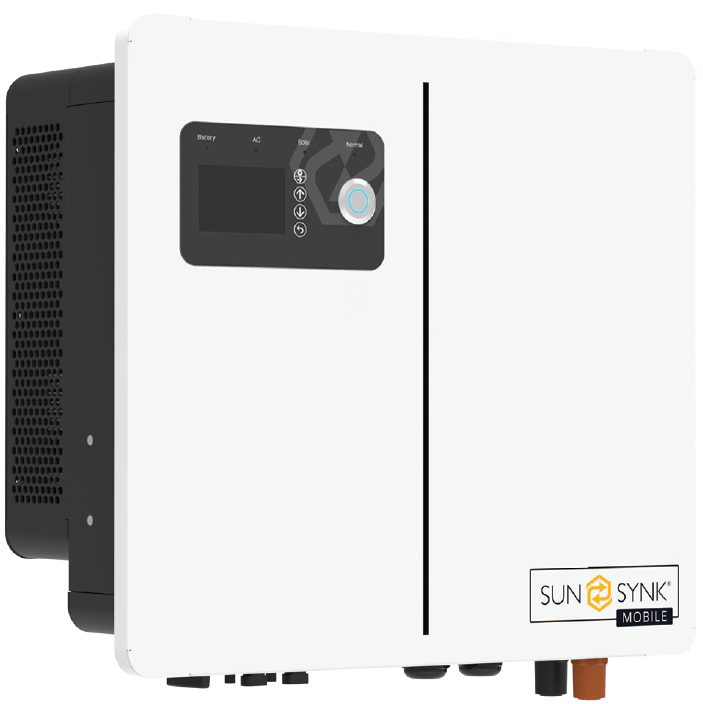

Sunsynk LYNKS 3.6kW LV Single Phase Hybrid Inverter
The Sunsynk LYNKS 3.6kW hybrid inverter delivers flexible power management for commercial solar installations. Supporting external 48V LiFePO4 or lead-acid batteries, it offers 3600W of hybrid power for off-grid and grid-connected systems.
Key Features
- IP65-rated protection against dust and water for reliable outdoor use in UK weather.
- Twin MPPT trackers support up to 7200W of PV input, with two 15A inputs to maximise solar harvest across different panel orientations or shading conditions.
- 10ms grid-to-backup switching supports essential loads, including logistics fridges and site offices.
- Supports lithium-ion and lead-acid batteries, with a maximum charging current of 60A and discharge current of 90A.
- Backup output up to 3600W/16A, with a 40A grid bypass for continuous supply.
- Works with Sunsynk low-voltage batteries via BMS communication.
- Integrates with conventional PV systems, wind turbines and microinverters for flexible energy management.
- Grid compliance includes VDE-AR-N 4105 and G100 for UK exports.
Where to Use
Suitable for commercial solar installations, warehouse backup supplies, site offices and off-grid systems with generator support. Use with external low-voltage batteries for standalone operation or as part of a hybrid system to reduce grid electricity bills. Contact our UK experts for system design advice.
Technical Specifications
| Battery Input | Nominal 48V; 40–60V range; LiFePO4/lead-acid; maximum charge current 60A; maximum discharge current 90A |
| PV Input | Maximum 7200W (3600W × 2); MPPT range 120–450V; maximum 15A per tracker; startup voltage 150V |
| AC Output (Backup) | 3600W/3600VA; peak 7200VA; 230Vac/50Hz; maximum 16A; THDv <3% |
| AC Input | 230Vac single-phase; maximum bypass current 40A; switching time 10ms |
| Efficiency & Protection | Maximum efficiency 97.6%; MPPT efficiency 99.9%; IP65; operating temperature −20°C to +50°C; overcharge, overload and short-circuit protection |
| Dimensions & Weight | 450 × 435 × 230mm; 22kg |
Installation & Support
- Professional installation and setup are required for safe operation and warranty. This inverter is not plug-and-play.
- Professional installation through trusted partners is recommended.
- UK expert support is available by phone, email or live chat, or by visiting our office.
