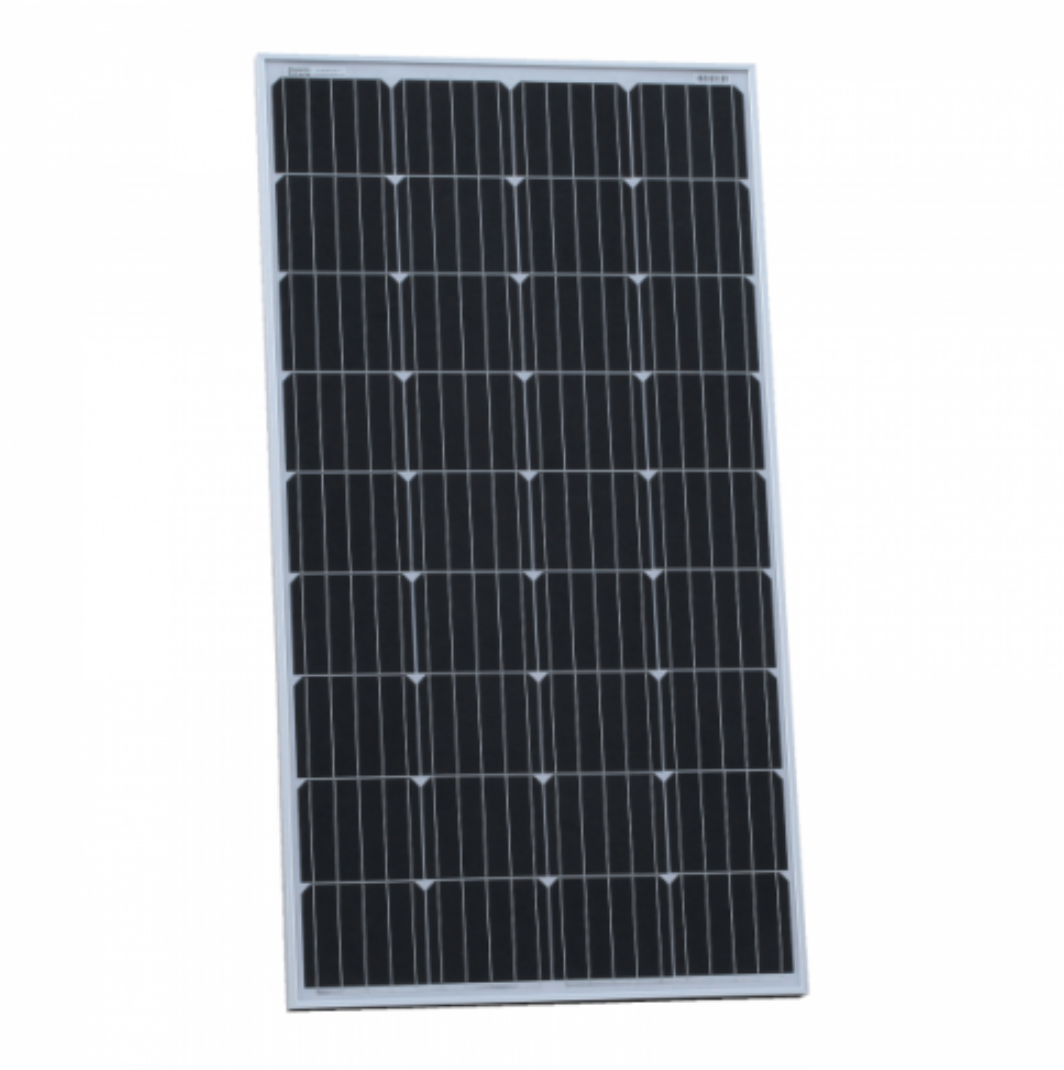

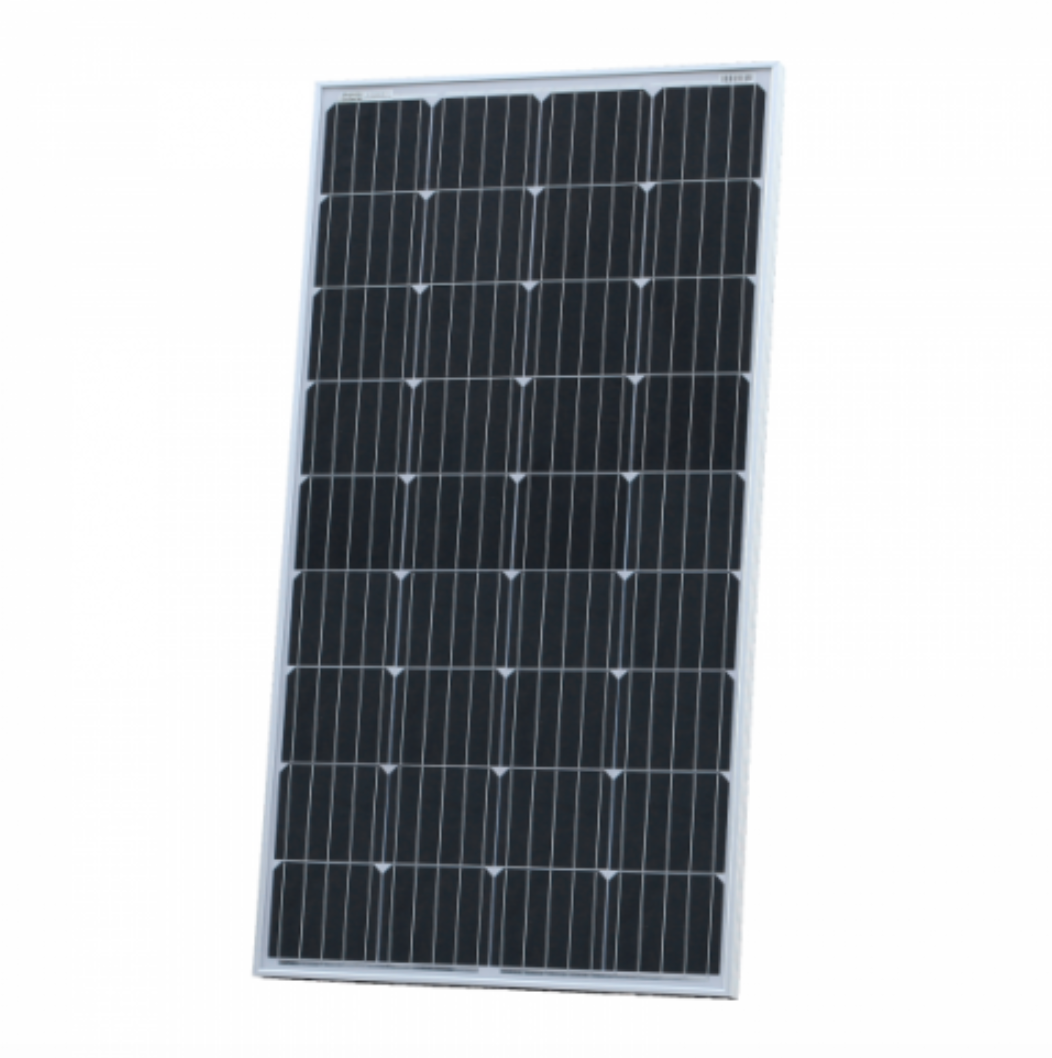

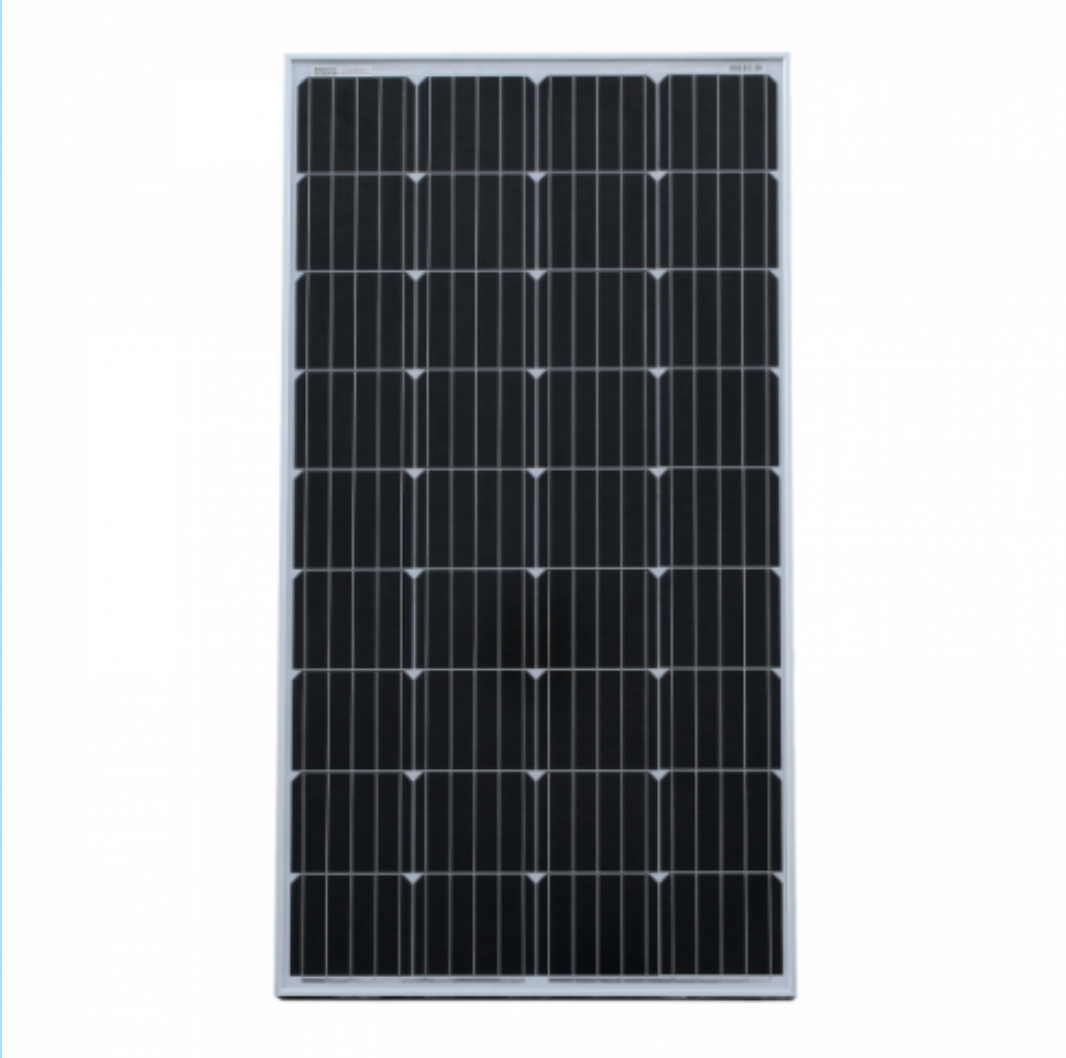

150W Rigid Solar Panel German Cells with 5m Cable

£199.00

Delivery available

This high efficiency, waterproof 150W monocrystaline solar panel is perfect for permanent outdoor use to provide free electricity for charging 12V batteries to power various applications such as in a camper van, motorhome, boat, shed, farm, as well as remote applications such as telecommunications or monitoring equipment. It can also be used to provide a direct power supply for applications not sensitive to changes in input voltage / current (e.g. electric motors or pumps).

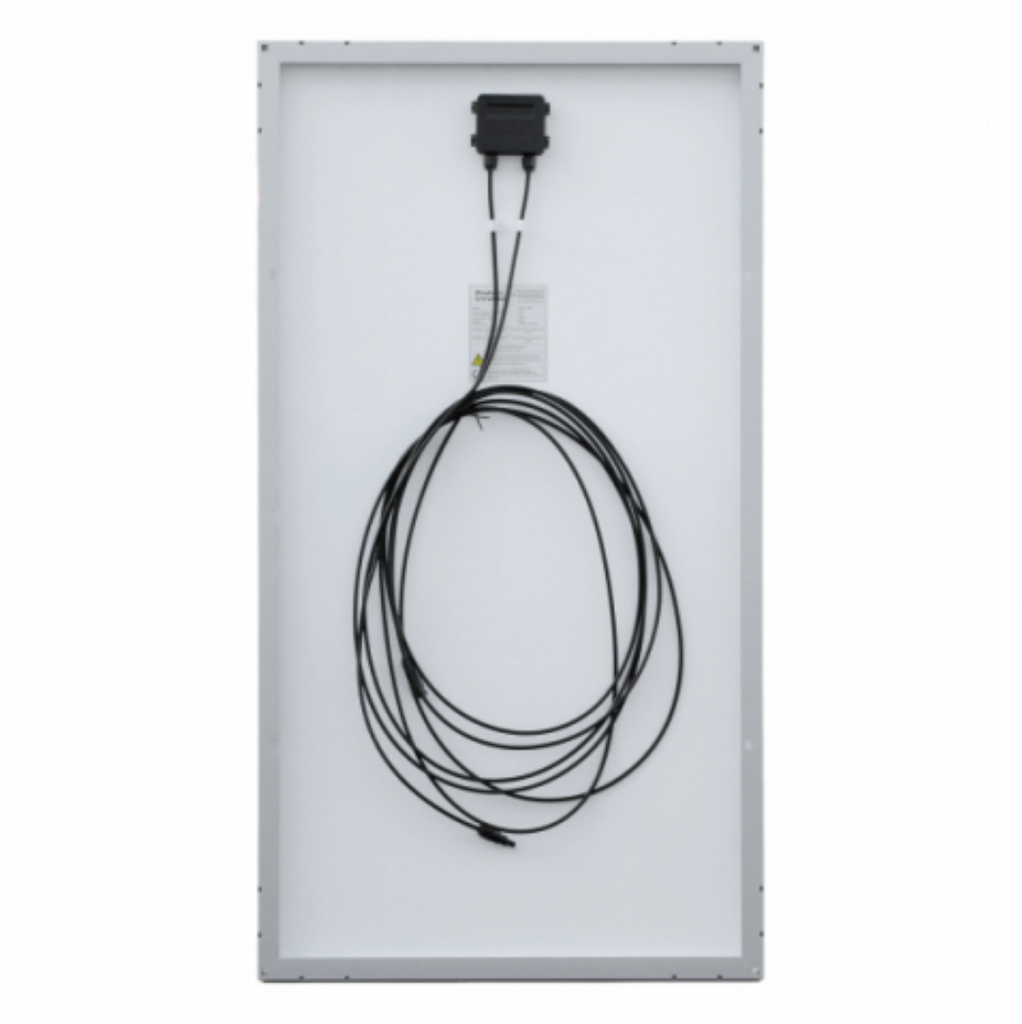

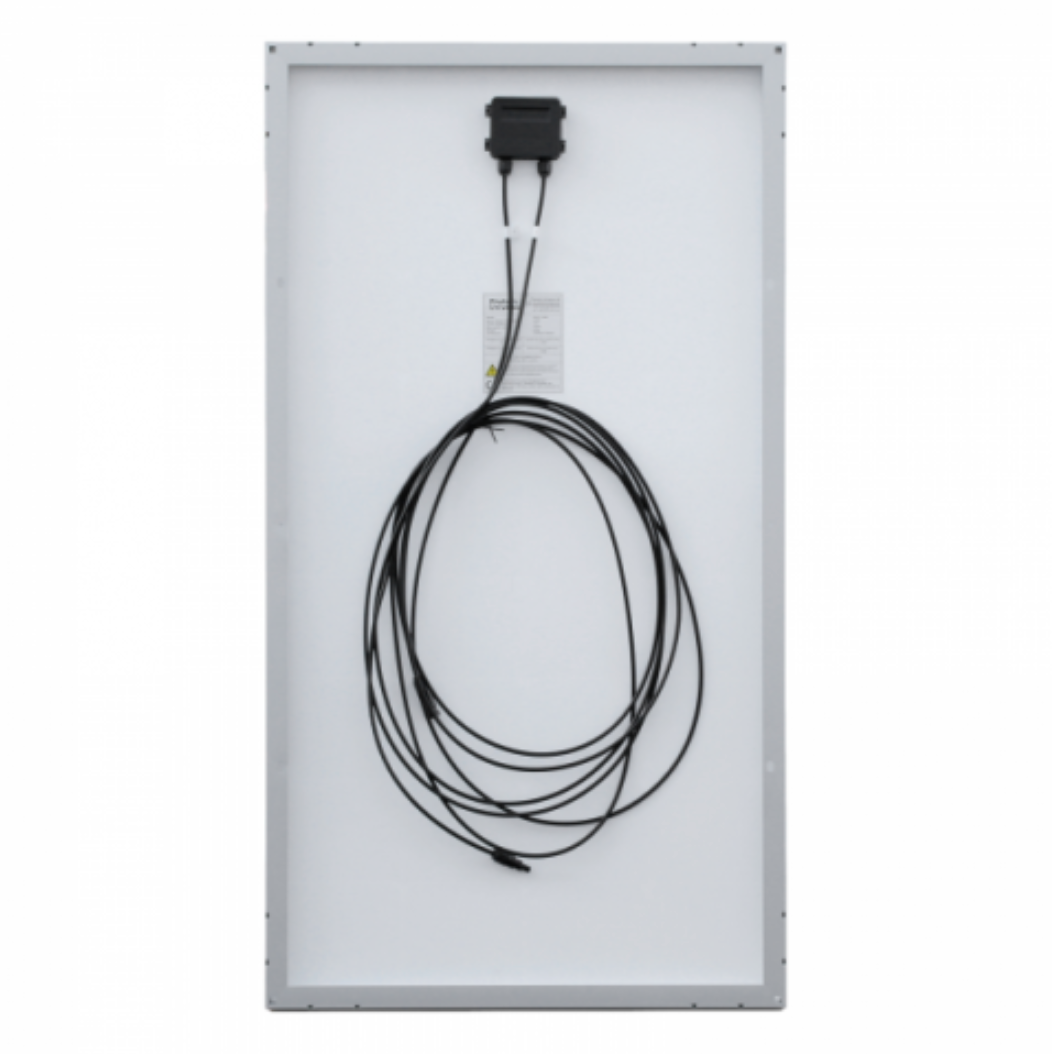

The panel is fitted with 5m of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection to other solar panels, your existing system or 4mm extension cable. The MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller.

The long-lasting, high-efficiency monocrystaline solar cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions.

This panel also features innovative 5 busbar solar cells, which are more efficient than the 2, 3 or 4 busbar solar cells used in most other solar panels, and are able to extract more power from the same surface area. This results in a smaller overall solar panel, which is ideal for applications where space is limited. These solar cells are also the best choice for applications in warmer climates, as they operate well even in high ambient temperatures.

Features

  • 100% GERMAN CELLS made to the highest European quality standards
  • DURABLE, DUST & WATER RESISTANT
    • SUPERIOR WARRANTY The product comes with a 1 year workmanship warranty which covers material and production defects. In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.
      • FREE TWO WORKING DAY SHIPPING if ordered by 1PM on a working day (longer to the Scottish Highlands, Islands and Northern Ireland).

      Detailed specifications

      Rated (Peak) Power (Wp): 150W in Standard 1000w/m2 solar light
      Open Circuit Voltage (Voc): 23.9V (Vmp = 20.2V)
      Short Circuit Current (Isc): 7.89A (Imp = 7.43A)
      Cell Type: Monocrystaline Silicon
      Connector Type: MC4
      Certification: IEC
      Net Weight: 3.65 KG
      Size:  124 X 67 X 3.5 cm
      Installation

      Warning!

      This solar panel does not come with an installation manual. Please see the links below for technical drawings. If you need additional guidance, please contact us on info@energian.co.uk or 020 8064 0335.

      Drawings:

      Technical drawing 1

      Technical drawing 2
