Hybrid Solar Kits for Powering Commercial Security Systems

Name: Hybrid Solar Kits for Powering Commercial Security Systems
Brand: Energian
SKU: 5760-3.6-10.24
Price: 3793.08 GBP
Availability: InStock

By Energian

Quantity

Delivery available

More details

Hybrid Solar Kit for Powering Commercial Security System

This kit provides power for small commercial security systems with CCTV, cameras, gates, and sensors 24/7, reducing costs and enabling quick deployment. Small commercial security systems (e.g., 4–8 cameras, basic gates, sensors) typically consume 60–300 watts total during 24/7 operation, translating to 1.5–7 kWh daily. If your system has more components then contact us to receive a quote for your system.

Breakdown by Component

Component	Idle/Active Watts	Total Watts	Daily kWh (24h)
4–8 IP Cameras (PoE)	5–15 each	20–120	0.5–2.9
NVR + HDD	10–40	10–40	0.2–1.0
Motion Sensors (6)	0.5–2 each	3–12	0.07–0.3
Control Panel	5–10	5–10	0.1–0.2
Gate Motor/Controller	5–50 (idle/active)	10–50	0.2–1.2
Siren + Router/4G	5–15	5–15	0.1–0.4
Misc (lights, sensors)	5–20	5–20	0.1–0.5
System Total	-	60–300W	1.5–7 kWh

What solar panels and a battery are required to generate approx. 7.0Wh?

To answer this question we have simulated solar generation with Photovoltaic Geographical Information System for a test location with coordinates 57.613 latitude and -4.688 longitude (West-Northern Scotland). The simulation shown that the required solar generation can be achieved from April to September with 12x 450W solar panels and 10kWh battery. From October to March an additional energy up to 6300Wh per day is drawn from the grid as shown on the diagram below.

Main components

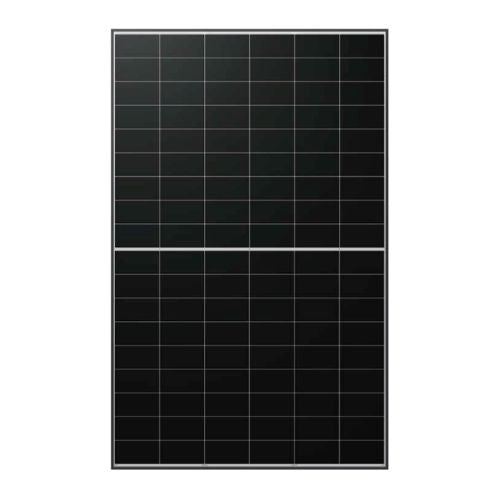

12x Longi Solar 480W Hi-MO X10 Explorer Black Frame Solar Panels.
1x Dyness Powerbox G2 10.24kWh Lithium Battery storing energy generated (can be upgraded up to 50 batteries).

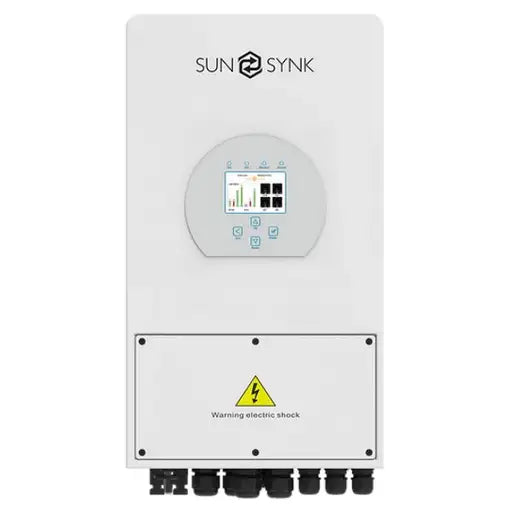

1x Sunsynk ECCO 3.6kW 48V Off-grid Hybrid Inverter Charger to manage charging, protect the battery and sometimes provide basic monitoring.

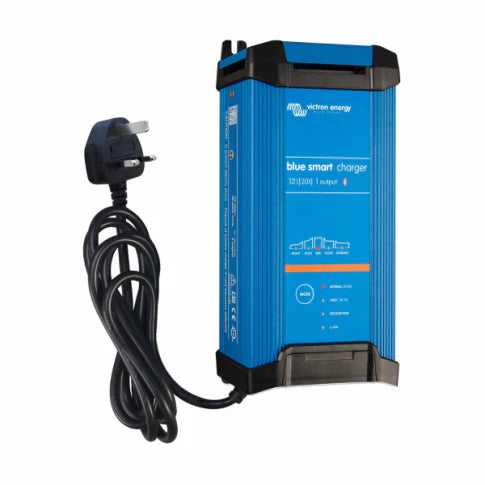

1x Victron Blue Smart IP22 Mains Battery Charger 12V/30A
to convert 230W to 12VDC for 12V loads.
Cabling and switches so users can control lights in stalls, aisles, tie‑up areas and feed rooms exactly where needed.

Technical specifications

Solar panel: 480W monocrystalline, 1800 x 1134 ×30 mm, 21.6kg
Battery: 10.24kWh LiFePO4, 98kg
Inverter: 3.6kW 48V 14.6kg
Load Converter: Victron Mains Charger 12V/30A to convert 230W to 12VDC for 12V loads, 1.3kg
Operating temp: -20°C to 50°C

Shipping & UK support

Shipping throughout UK, Ireland, Africa, Caribbean and worldwide. Contact +44 2080640335 or info@energian.co.uk for quotes. UK expert support for system sizing, install advice and troubleshooting – phone, email, live chat or office visit.
