100 L Becker & Wolf Wall‑Mounted Hot‑Water Heat Pump
Model BWHP100WM290 100 L All‑in‑One Cylinder

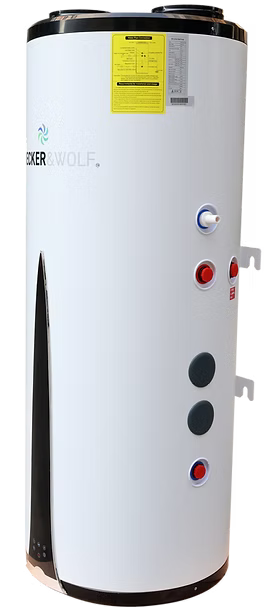

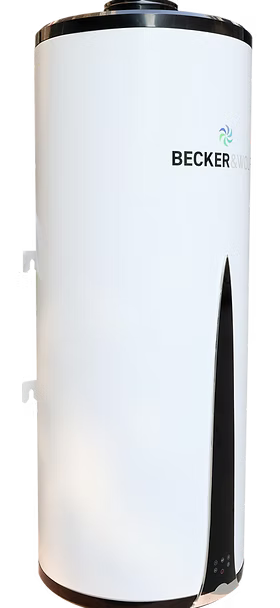

The BWHP100WM290 is a compact, wall‑mounted hot‑water heat‑pump cylinder designed for small homes and offices requiring more storage. It draws heat from the surrounding air using an energy‑efficient air‑source heat pump and stores it in a 100‑litre tank. Because heat‑pump water heaters move heat rather than create it, they deliver much higher efficiency than conventional electric resistance water heaters.
Attention: vacuuming and refrigerant filling must be carried out by a licensed technician
Key specifications
| Specification | Details |
|---|---|
| Model number | BWHP100WM290 |
| Barcode | 5061085070055 |
| Product name | Becker & Wolf Wall100EU |
| Power supply | 220–240 V / 1 phase / 50 Hz |
| Position | Wall‑mounted vertical |
| Rated heating capacity (kW) | 0.95 kW |
| Refrigerant | R290 (propane) |
| Wi‑Fi connected | Yes |
| Tapping cycle | M |
| Energy efficiency class | A+ |
| Energy efficiency (nWh %) | 118.3 % |
| COP EN 16147 | 2.787 |
| COP (non EN rated) | 4.32 |
| Tank capacity | 100 L |
| Air flow (m³ h⁻¹) | 450 |
| Air discharge | Vertical |
| Air duct diameter | N/A (no duct) |
| Auxiliary electric heater | 2 kW |
| Default water temperature | 55 °C |
| Working temperature range | –7 °C to +43 °C |
| Unpacked dimensions (L × W × H) | Φ468 × 1422 mm |
| Packed dimensions (L × W × H) | 580 × 580 × 1460 mm |
| Net weight | 56 kg |
| Gross weight | 63 kg |
| Noise level | 48 dB(A) |
| Rated hot‑water production | 20 L / h |
| Rated power input | 220 W |
| Rated current input | 0.98 A |
| Power input (max) | 2,300 W |
| Current input (max) | 10.2 A |
| CO₂ equivalent | 0.00045 t |
| Maximum allowable pressure | 3 MPa |
| IP class | IPX1 |
| Water piping connections | DN 15 |
| Rated working pressure of tank | 0.8 MPa |
Why choose this heat‑pump cylinder?
- Reduce energy use. Traditional tankless‑coil boilers must stay hot to deliver hot water; in summer they cycle on and off and waste energy. Heat‑pump water heaters transfer heat instead of generating it and deliver much higher efficiency.
- Lower running costs. Heat‑pump water heater systems may cost more up front, but their lower operating costs generally offset the higher purchase price. The BWHP100WM290 draws just 220 W while producing nearly a kilowatt of heat.
- Eco‑friendly refrigerant. Uses R290 refrigerant with a very low environmental impact and harnesses renewable energy from the air to reduce reliance on fossil fuels.
- All‑season hot water without firing the boiler. Maintain hot water throughout the year without keeping a gas or oil boiler running during warm months, cutting fuel consumption and avoiding wasted energy.
- Quick delivery from stock. The 100 L cylinder is readily available for fast dispatch, helping you upgrade without delay.
- Expert UK support. Becker & Wolf’s UK‑based team offers knowledgeable advice before purchase and technical support after installation.
- Mobile showroom. Interested in seeing the technology in person? Qualifying customers can arrange for Becker & Wolf’s mobile showroom to visit their site or office for a hands‑on demonstration.
Documents available for download:
Becker & Wolf BWHP100WM290 100 L Hot Water Heat Pump Cylinder Data Sheet
Becker & Wolf BWHP100WM290 100 L Hot Water Heat Pump Cylinder Vacuuming and regas Instructions
