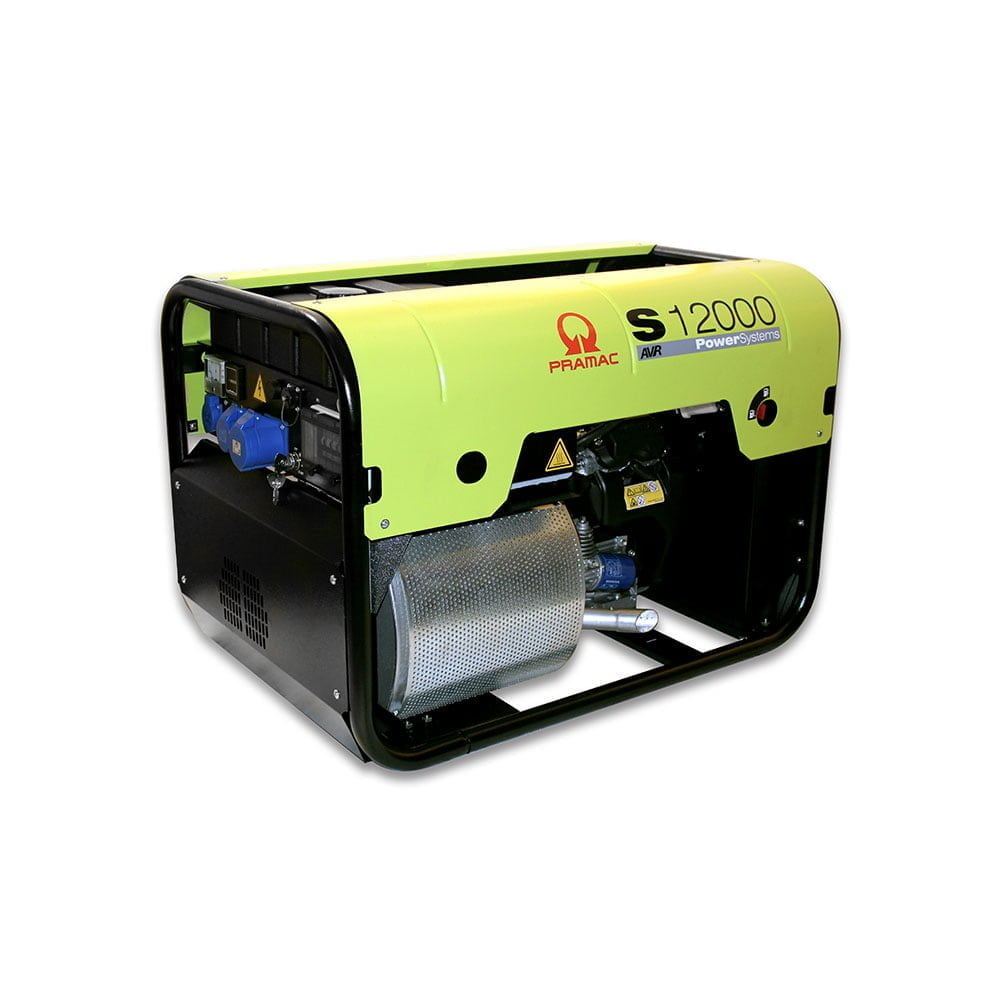

Pramac S 12000 Honda Engine 10.7kW Single Phase Long Run Petrol Generator
- Delivers up to 10.7 kW standby power for large tools, appliances, sites, and backup applications.
- Honda GX630 Stage V engine, advanced AVR voltage regulation and modern control panel for intensive, sensitive loads.
- Rugged long run design with 24 litre tank, robust steel frame and UK/EU-compliant low noise emissions.
The Pramac S 12000 Honda Engine 10.7kW Single Phase Petrol Generator offers dependable power for demanding uses. Purpose-built for heavy duty settings including construction, events, farm or home backup, it features a premium Honda GX630 engine, stable voltage output (AVR), extended run times and clear, practical controls. Handy for fixed or portable use, it ensures compliance with current EU noise standards and comes ready for connection or integration.
Key Features
- Maximum output: 11.9 kVA / 10.7 kW (standby), 10.0 kVA / 9.1 kW (continuous) at 230V, 50Hz, 0.9 pf.
- Honda GX630 air-cooled engine, Stage V emission compliant, 3000 rpm, electric start.
- Automatic Voltage Regulator (AVR), capacitor regulation, suitable for voltage-sensitive kit.
- Heavy-duty control panel: selector key (OFF–ON–START), choke, voltmeter, hour counter, magneto thermal and differential protection, Oil Guard.
- Three socket outputs: 1 × SCHUKO 230V 16A IP54; 1 × 230V 16A CEE; 1 × 230V 32A CEE (IP44).
- 24 litre fuel tank for 5.7 hours running at 75% load, with easy fill design and fuel gauge.
- Low noise: 96 dB(A) LWA, 68 dB(A) at 7m (laboratory rating).
- Integrated handles, optional transport kit for mobility; tough steel frame for durability.
- AMF/remote start options for seamless integration into backup systems and changeover.
Wide applications
Boasting high output and automatic voltage stability, the S 12000 is suited to power professional tools and site loads, temporary buildings, rural workshops, home backup, refrigeration, lighting, heaters and events equipment within its rated output. Where direct connection isn't suitable, installation by a trusted partner or qualified electrician is advised—especially for integration with fixed wiring and changeover panels.
Honda reliability
The Stage V Honda GX630 engine is renowned for efficiency, ruggedness and easy starting under tough conditions. Safety features include Oil Guard, magneto thermal and RCD protection, safeguarding equipment and users.
Long run autonomy and noise compliance
Designed for long shifts and site compliance, the S 12000 achieves more than 5 hours runtime at typical working loads, and meets EU market requirements on noise. Actual autonomy will vary depending on load profile and site environment.
Technical specifications
| Generator Performance | |
|---|---|
| Model | Pramac S12000 230V 50Hz #AVR #CONN #DPP |
| Frequency | 50 Hz |
| Voltage | 230 V single phase |
| Power factor | 0.9 |
| Emergency Standby Power (ESP) | 11.9 kVA / 10.7 kW |
| Continuous Power (COP) | 10.0 kVA / 9.1 kW |
| Engine | |
| Engine brand / model | Honda GX630 (Stage V) |
| Displacement | 688 cm³ |
| Cooling system | Air-cooled |
| Aspiration | Natural |
| Speed (nominal) | 3000 rpm |
| Speed governor | Mechanical |
| Fuel | Petrol |
| Oil capacity | 1.9 litres |
| Starting system | Electric start |
| Alternator | |
| Type | Brushless |
| Insulation class | H |
| IP protection | IP23 |
| Poles | 2 |
| Voltage regulation | Capacitor + AVR |
| Fuel & autonomy | |
| Fuel tank capacity | 24 litres |
| Fuel consumption at 75% load | Approx. 4.23 l/h |
| Fuel consumption at 100% load | Approx. 5.64 l/h |
| Running time at 75% load | Approx. 5.67 hours |
| Running time at 100% load | Approx. 4.26 hours |
| Noise level | |
| Guaranteed noise level (LWA) | 96 dB(A) |
| Sound pressure @ 7 m | 68 dB(A) (laboratory) |
| Dimensions & Weight | |
| Length (L) | 960 mm |
| Width (W) | 641 mm |
| Height (H) | 667 mm |
| Dry weight | 162 kg |
| Sockets & Outputs | |
| AC sockets | 1 × SCHUKO 230V 16A IP54 1 × 230V 16A CEE IP44 1 × 230V 32A CEE IP44 |
| Protections | Magneto thermal, RCD (differential protection), Oil Guard |
| Transport kit | Integrated handles (fix and folding), steel frame; optional trolley kit |
