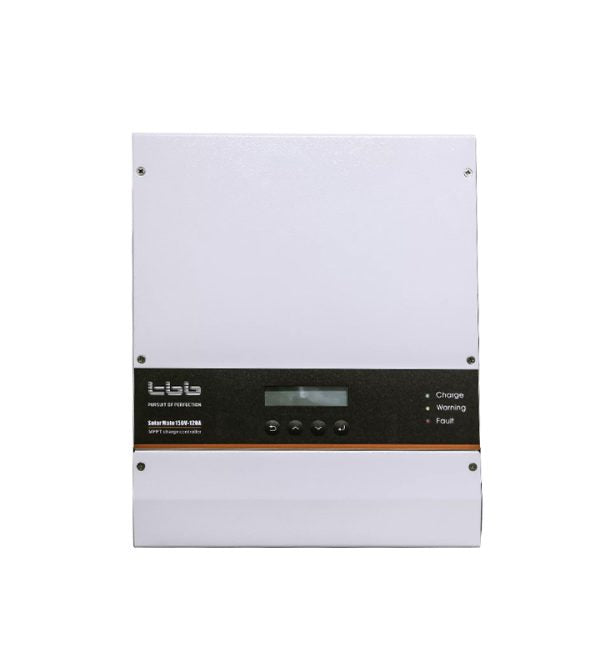

TBB SOLAR MATE SP600 48V 120A HIGH POWER MPPT SOLAR CHARGE CONTROLER UP TO 16,000W SOLAR PANELS
Extend Your Solar System with High‑Power TBB Solar Mate SP600‑120 MPPT Charge Controller
The Solar Mate SP600‑120 is a high‑voltage, transformer‑isolated MPPT charge controller designed to convert solar energy into electricity for 48 V lithium or lead‑acid batteries. With a 600 V open‑circuit PV input and dual independent MPPT trackers, it maximises solar harvest while reducing balance‑of‑system costs. High conversion efficiency (≈97 %) and robust safety mechanisms make it ideal for off‑grid, hybrid and energy‑storage applications.
Key functions:
1. High‑voltage & wide MPPT tracking: The wide 80–525 V MPPT range minimises the need for a combiner box and allows greater system flexibility.
2. Dual independent MPPT trackers: Two separate trackers allow different roof orientations or arrays, optimising energy harvest.
3. High electrical safety & isolation: Reinforced insulation between the PV and battery sides and built‑in earth‑fault detection improve safety and reliability.
4. Superior efficiency & compact design: Overall efficiency up to 97 % reduces energy losses while the compact housing saves space.
- Smart cooling system: intelligent fan control minimises noise while optimising thermal management.
- User‑friendly interface: LCD display and LED indicators provide real‑time system insights:contentReference.
- Advanced monitoring & communication: RS485, CAN bus and Bluetooth app support allow seamless monitoring and control.
- Programmable relay & dry contact: includes one programmable relay (dry output) and one dry input for custom integration.
- Parallel capability: supports parallel connection of up to 15 units for higher power capacity.
- Battery compatibility & grounding: supports lead‑acid and lithium batteries with CAN bus communication; the positive battery pole grounding meets telecommunication standards.
- Versatile applications: suitable for residential and commercial energy storage, off‑grid and hybrid systems, telecommunication backup power and remote energy solutions.
Controller specifications:
- Nominal battery voltage: 48 V.
- Maximum charge current: 120 A
- Maximum charge power: 7000 W @57.6 V total (5000 W per tracker).
- Maximum PV open‑circuit voltage: 600 V
- PV operating voltage range: 120–525 V
- MPPT voltage range: 80–525 V
- Number of MPPT trackers: 2
- Maximum PV input current per tracker: 18 A
- Maximum PV power per tracker: 8000 W
- MPPT efficiency: >99.9 %
- Maximum conversion efficiency: ≈97 %
- Operating temperature range: –20 °C to +65 °C
- Dimensions (approx.): 484 × 280 × 108 mm
- Weight: 7.8 kg
The product is covered by a 5‑year warranty.
The product includes a detailed user manual covering wiring and operation.
Documents available for download:
User Manual for TBB Power Solar Mate SP600 48V 120A MPPT solar charge controller (SP600-120)
Datasheet for TBB Power Solar Mate SP600 48V 120A MPPT solar charge controller (SP600-120)
