150m Perimeter Off-grid Solar Lighting Kit with 2.4kW Inverter, 6.72kWh Battery, 0.9kW Solar Panels and 3.2kW Generator
Reliable Solar Power for Construction Site Modular Perimeter Lighting
Take advantage of this robust and cost-effective 150m Perimeter Off-grid Solar Construction Site Lighting System to receive and store energy from low-cost source, such as solar panels, every day and use electricity at night whenever you need it for lighting. The system uses a festoon kit of 150m cable and 60 LED bulbs, powered with solar panels and all in one 2400W 6.72kWh single-phase portable power station that seamlessly integrates a 2400W inverter with built-in MPPT charge controller, 6.72kWh lithium batteries (including two extension batteries each of 2.24kWh), a screen device for local monitoring, and power distribution accessories - all housed in a compact IP54 cabinet. A reserve generator is included.

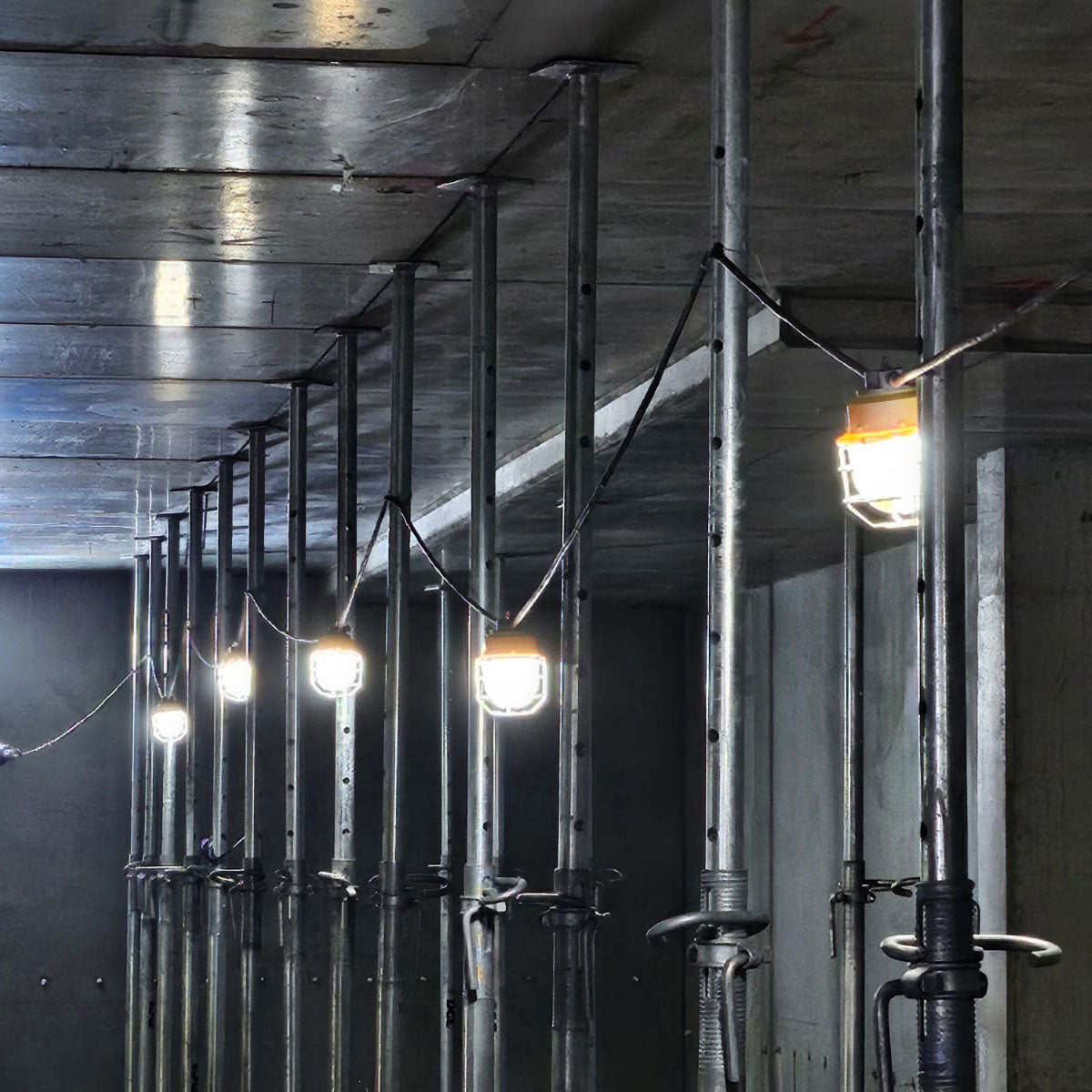

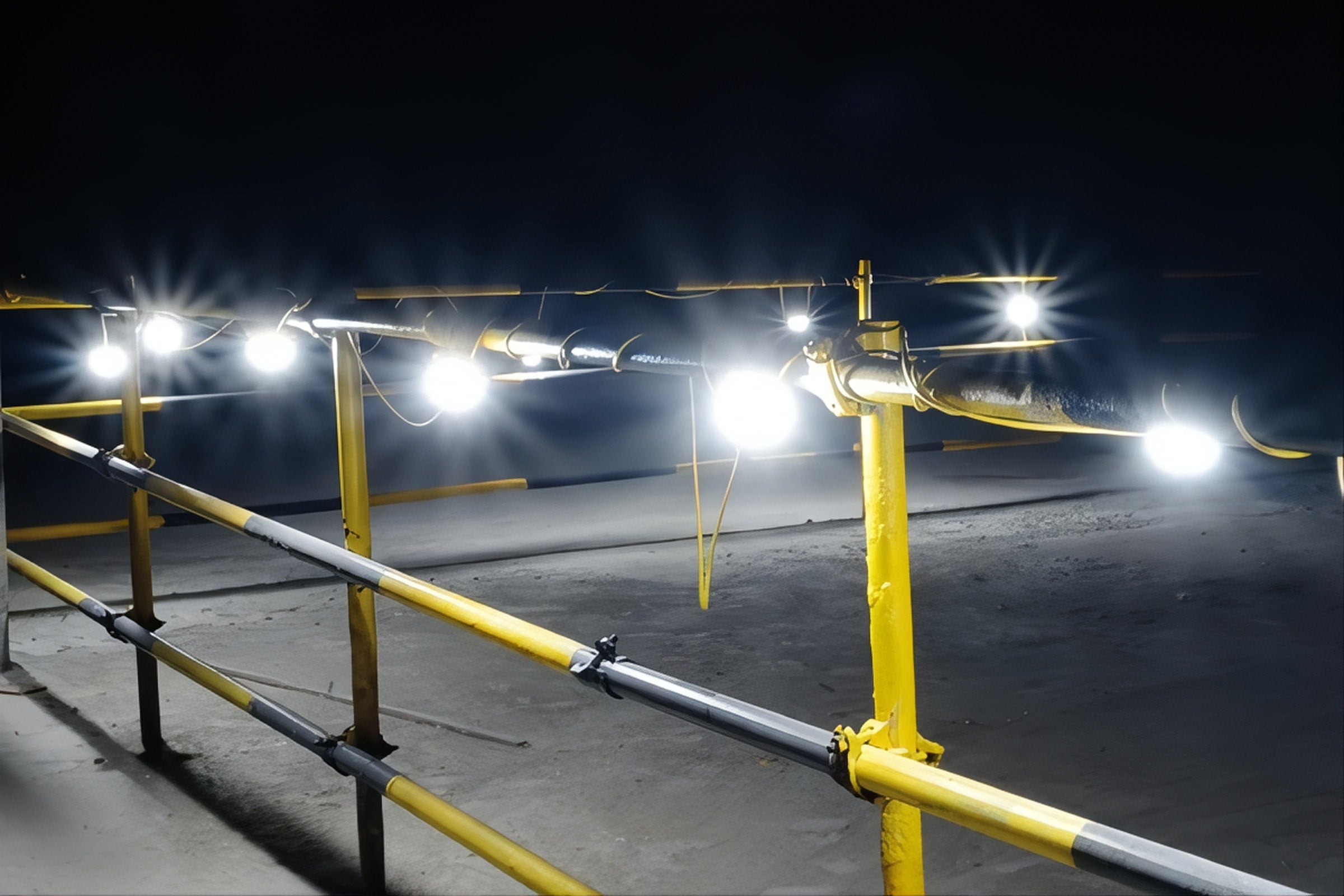

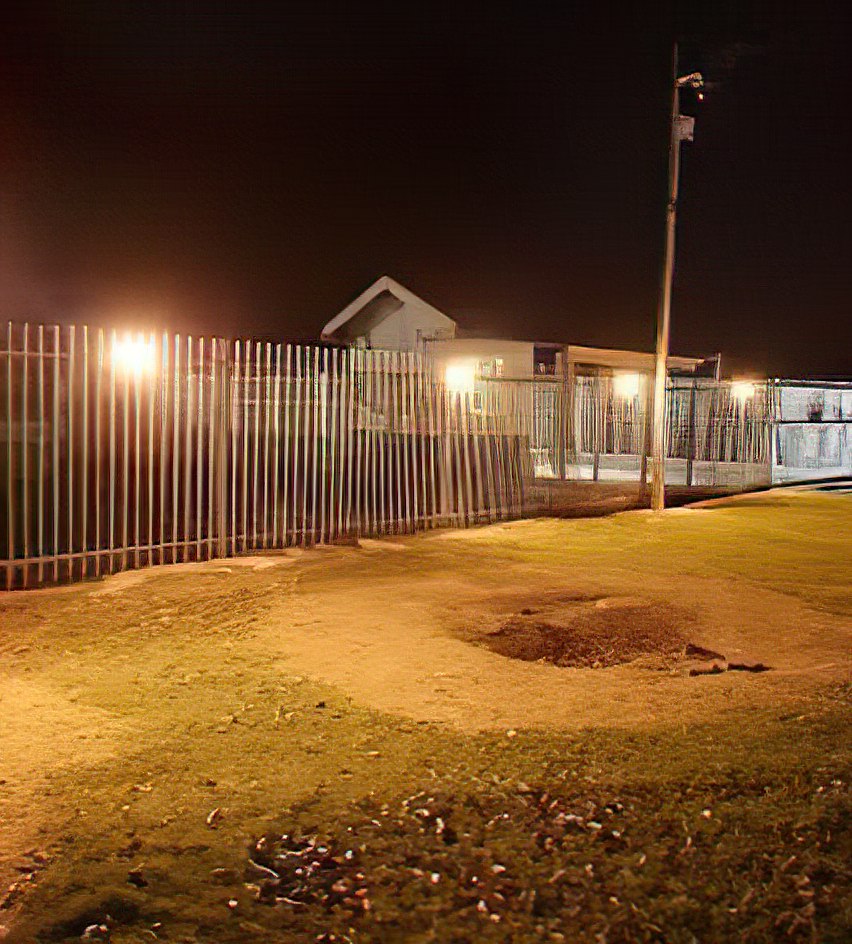

The bulbs are usually spaced out evenly along the cable, creating a uniform string of light and powered with solar energy. In winter months, when solar generation is insufficient, the generator starts up automatically. The string of light is positioned primarily along construction site perimeter fencing, but can be position along walkways, pathways, scaffolding to maintain clear illumination.
The system is easily assembled and disassembled to relocate it to another construction site. The system is fully modular, so, If you need lighting of a longer perimeter more than 150m then simply install a necessary number of additional kits.
Key Features

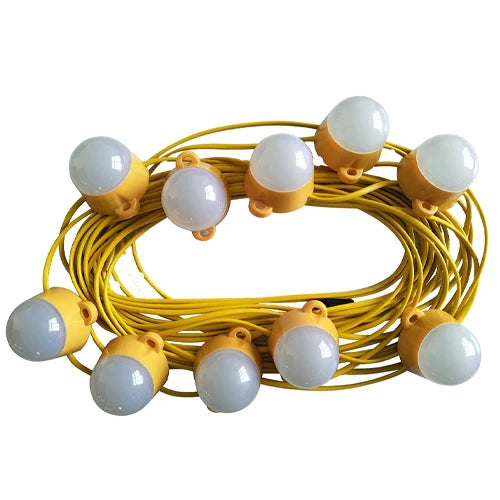

Connectable Festoon Kit: Featuring unique plug and play connectors, the festoon kit can be extended simply and quickly as required, up to a maximum of 200m in length. The 150m festoon kit consists of the first kit of 60 LED heads and 150m long cable, with a lumen output of 11000 lumens each.
All-In-One Design for Simple Installation: The P2400S is factory pre-assembled and fully tested, reducing installation time to under three hours. It features a rugged IP54-rated enclosure, ensuring protection against dust and water ingress—perfect for indoor or outdoor deployment.
Seamless Generator Integration with AGS Function: The built-in Automatic Generator Start (AGS) feature intelligently manages generator usage based on load, battery state-of-charge, or time schedules. When paired with the generator, the P2400S enables them to run for shorter, high-output periods, greatly improving fuel efficiency by reducing idle or low-load runtime.
Extension Battery Connection: The P2400S system can connect Extension Battery 2.24kWh to its external battery pack terminal. This configuration allows total energy storage capacity to be expanded up to 6.72 kWh, what gives an opportunity to increase construction site perimeter up to 150m.
Reliable and Intelligent Energy Distribution: The built-in smart EMS (Energy Management System) dynamically balances solar, battery, and generator power. AC output includes leakage protection for enhanced safety, while smart load prioritisation ensures critical loads are always powered.
Light your Constriction Site Perimeter with Our Off-Grid Solar Perimeter Lighting Kit which includes:
- 1x P2400S 2.24kWh Portable Power Station,
- 2x P2400SB 2.24kWh Extension Battery, and
- 3x 20 LED lights 110V 5W each with 50m Cable Festoon Kit,
- 2x DMEGC 500W N-type Double Glass Bifacial Solar Panel,
- 2x FASTENSOL Solar Panel Ground Mounting Tray for Landscape,
- 1x 230V/110V Step Down Transformer 3kVA, and
- 1x Hyundai HY3200SEi 3200W Petrol Inverter Generator.
The system includes cables, disconnectors, and accessories to complete your installation. User manuals and wiring diagram included.
Installation Safety Requirements
Battery systems installed in or near homes must comply with PAS 63100:2024 – Fire Safety for Residential Battery Systems.
The system must be installed by a qualified electrician. For residential use, see official guidance here.
Need help with installation? Contact us at info@energian.co.uk or call 020 8064 0335 for a quote.
-
P2400SB 2.24kWh LFP EXTYENSION BATTERY: Enhance your portable power experience with the Photonic Universe P2400SB Battery Expansion Pack, designed to seamlessly integrate with the P2400S Portable Power Station. With one or two additional packs each 2240Wh of capacity, this expansion pack enables users to double or triple their total energy storage, providing extended power for off-grid adventures, emergency backup, and professional applications.

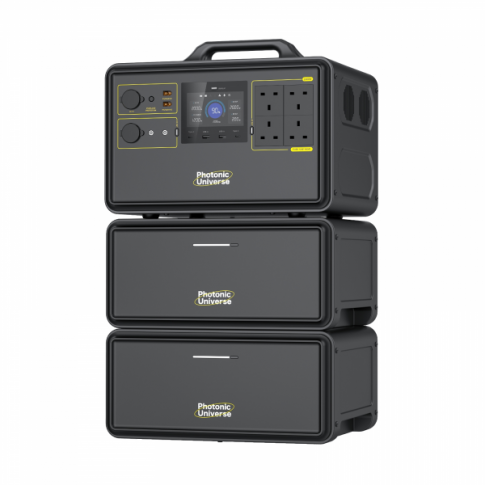

- P2400S PORTABLE POWER STATION: Built with advanced LiFePO4 battery technology, the P2400S boasts an impressive lifespan of over 4,000 cycles at 80% depth of discharge. This ensures durability, high energy efficiency, and safe operation, making it a sustainable investment for both short-term and long-term use. The P2400S allows to expand its capacity with 1x or 2x P2400SB Battery Expansion Packs. The LED display clearly indicates when battery expansion packs are connected, providing seamless integration for extended energy storage needs

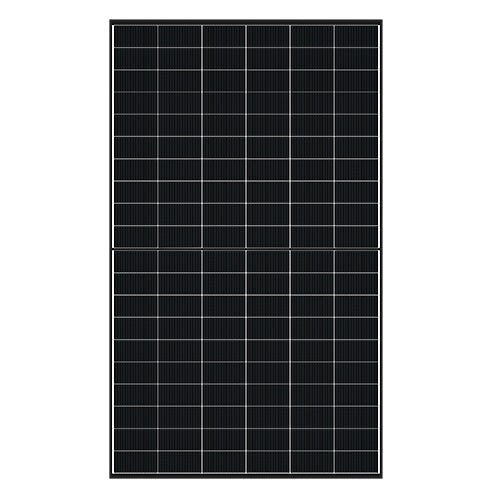

- DMEGC 500W solar panels offer high 23.1% efficiency, excellent durability, and cost-effectiveness with an appealing payback period. With a heavy snow load capacity of 5,400Pa and a wind load of up to 2,400Pa, they are ideal for domestic, agricultural, or garden office installations. The panels feature a black frame and come with a 30-year product warranty.

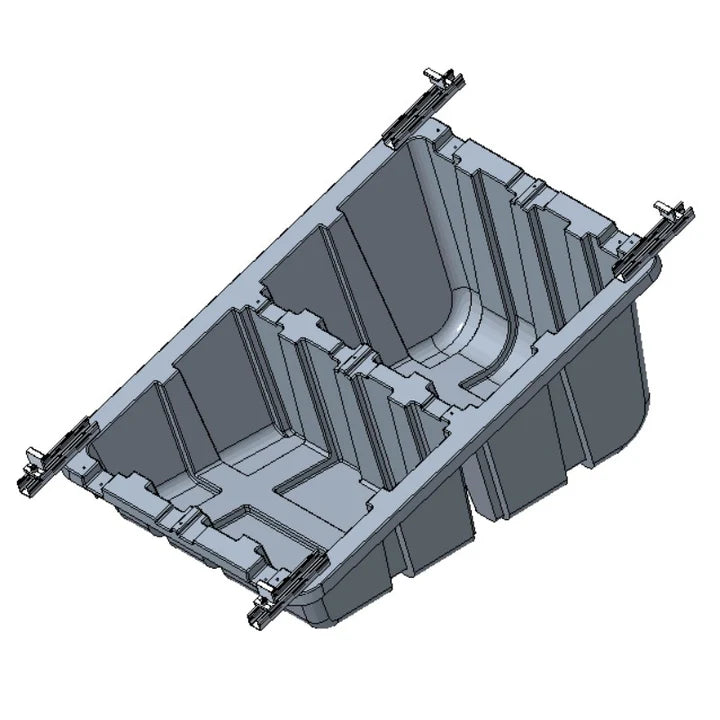

- FASTENSOL SOLAR PANEL GROUND MOUNTING TRAY is an easily assembled and disassembled support for solar panel in landscape orientation (Mounting kit for portrait orientation on request).

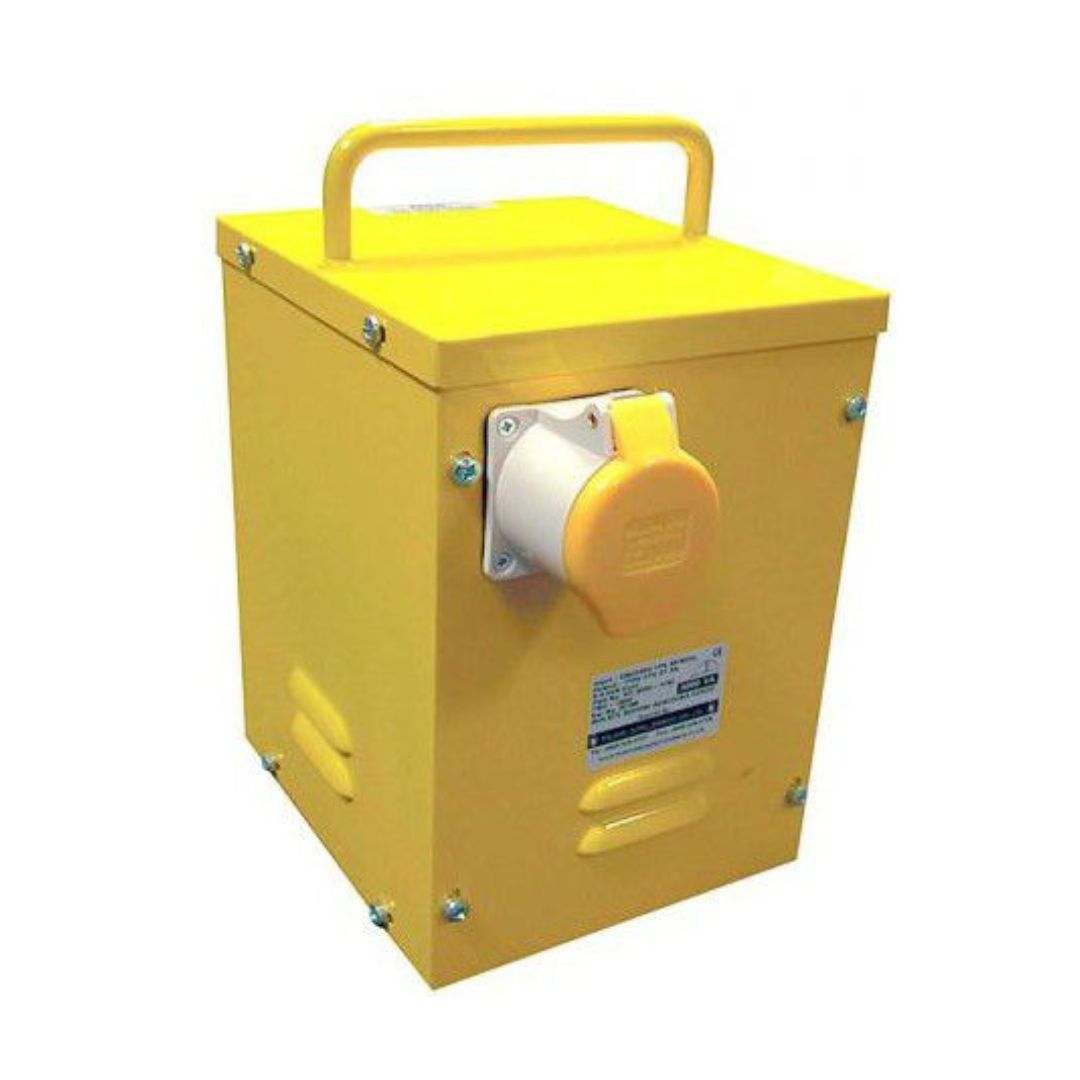

- 230V/110V STEP DOWN SITE TRANSFORMER 3KVA to convert the inverter 230V output to 110V used in the construction sites.

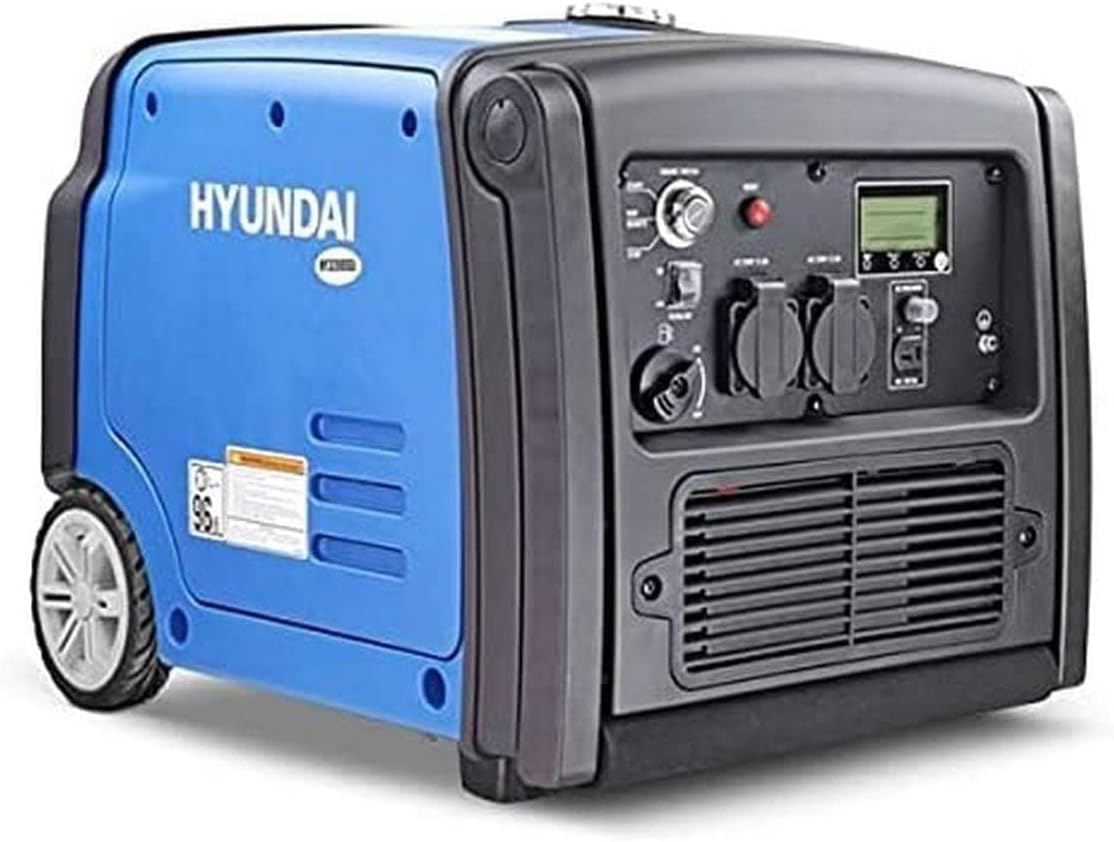

- HYUNDAI HY3200SEi 3200W PETROL INVERTER GENERATOR is a top-of-the-range portable generator from Hyundai. Providing a convenient and cost-effective source of power, this quiet inverter generator has an impressive maximum output of 3200W / 3.2kW, and continuous power rating of 2800W / 2.8kW.
2-3 WORKING DAYS' DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).
| Rated (peak) power (Wp): 500W in Standard 1000w/m2 solar light |
| Open circuit voltage (Voc): 44.7V (Vmp =37.66V) |
| Short circuit current (Isc): 14.22A (Imp = 13.30A) |
| Efficiency: 23.1% |
| Cell type: Mono-crystalline Silicon |
| Connector type: MC4-EVO2 |
| Certification: IEC 61215 / IEC 61730 / CE |
| Panel size: 1950 X 1134 X 30 mm |
| Net weight: 26.8kg |
| FASTENSOL SOLAR PANEL GROUND MOUNTING TRAY |
| Dimensions: 1054 × 695 x 507 mm |
| Net Weight: 7.5 kg |
| Ballast: 50-92kg depending on wind speed |
| P2400S PORTABLE POWER STATION |
| Battery capacity: 2400Wh |
| Battery chemistry: LiFePO4 |
| Nominal battery voltage: 48Vdc |
| Continuous power output: 2400W 220-240VAC 50Hz |
| Peak power: 4800W |
| Output waveform: Pure sine wave |
| Maximum PV input power: 500W per each XT60 input |
| Number of XT60 inputs: 2 |
| Maximum PV input current per XT60 input: 40A |
| Maximum PV open circuit input voltage (Voc): 59V |
| Maximum solar charging current: 80A (40A + 40A) |
| Maximum input mains AC power: 2000W |
| Cycle Life: 4,000+ cycles (at 25°C, at 80% depth of discharge) |
| Ingress protection: IP54 |
| Operating temperature: -10°C to 40°C |
| Size (W x H x D): 405 x 299 x 310mm |
| Net Weight: 25.8kg |
| EXTENSION BATTERY P2400SB FOR P2400S STATION |
| Battery type: Lithium-Ferro-Phosphate (LFP) |
| Nominal capacity: 2240Wh |
| Depth of discharge: 95% |
| Usable capacity: 2128Wh |
| Nominal voltage: 48V |
| Charge/discharge current: 50A/100A |
| Cycle Life: 4,000+ cycles (at 25°C, at 80% depth of discharge) |
| Ingress protection: IP54 |
| Parallel quantity: 2 |
| Operating temperature: -10°C to +40°C |
| Net weight: 19.7kg |
| Size (W x H x D): 360 x 198 x 310 mm |
| Input Voltage: 230V |
| Output Voltage: 110V |
| Output socket: 1 X 32 Amp |
| Ingress protection: IP20 |
| Model: Hyundai HY3299SEi |
| Maximum power: 3,200W/3.2kW |
| Continuous power: 2,800W/2.8kW |
| Fuel consumption: 1.7lL/hr @ 100% load; 1.056L/hr @ 50% load |
| Phase: Single |
| Voltage: 240VAC |
| Frequency: 50Hz |
| Engine model: DJ170F |
| Engine type: 4-Stroke Forced Air-Cooled |
| Engine size: 210cm3 |
| Max power output: 5.4hp |
| Fuel: Petrol |
| Fuel capacity: 7.8L |
| Engine oil: 10w40 / 15w40 |
| Engine oil capacity: 600mL |
| No. of cylinders: 1 |
| Noise level @ 7m: 69db(A) |
| Net weight: 39.6kg |
| Fully assembled dimensions (H x W x L): 604 x 456 x 540mm |
- 2x P2400SB 2.24kWh LiFePO4 Batteries
- 1x P2400S 2400W 48V Portable Power Station, and
-
3x 20 LED lights 110V 5W each with 50m Cable Festoon Kit,
- 2x DMEGC 500W N-type Double Glass Bifacial Solar Panel,
- 2x FASTENSOL Solar Panel Ground Mounting Tray,
- 1x 230V/110V Step Down Transformer 3kVA,
- Hyundai HY3200SEi 3200W Petrol Inverter Generator
