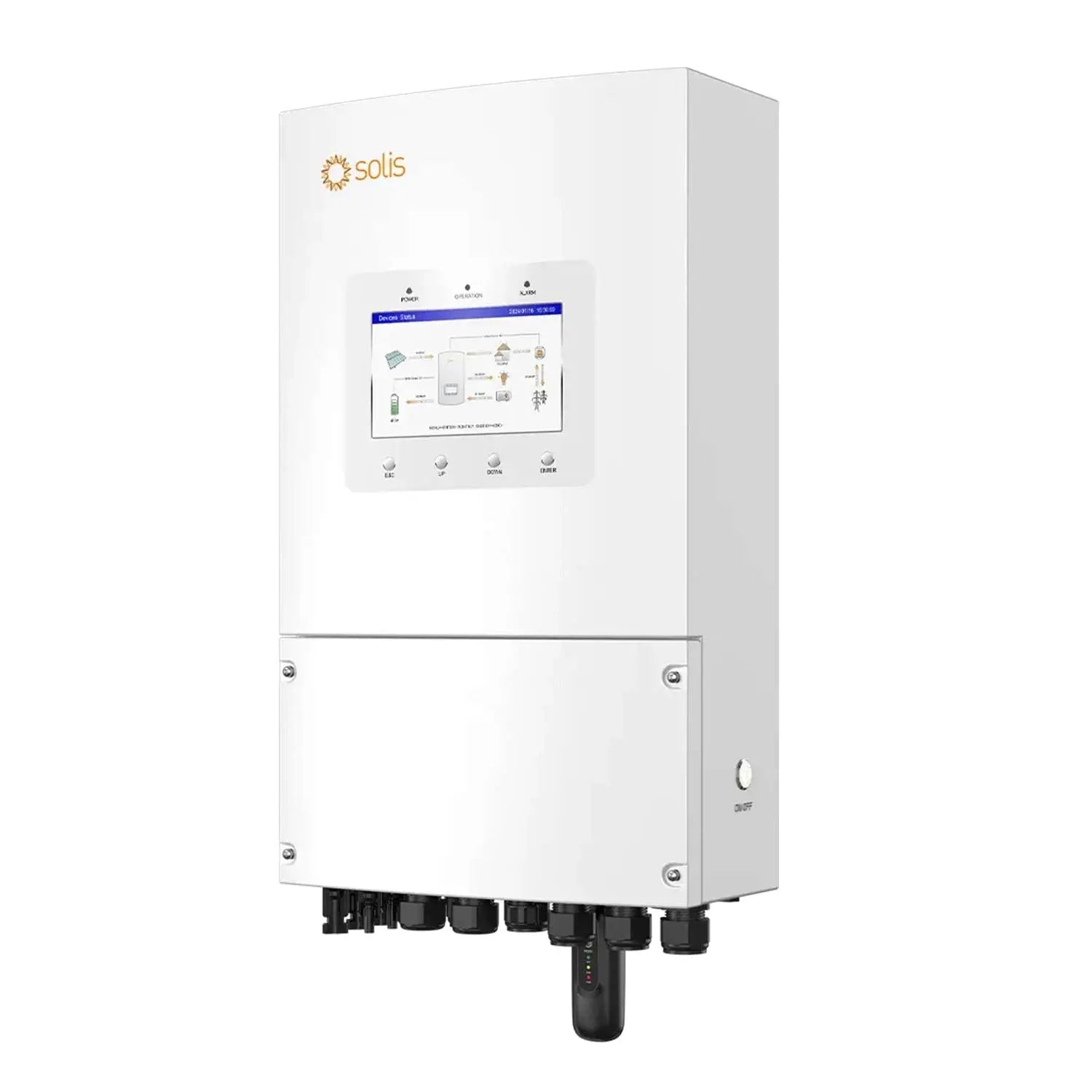

Solis S6-EH1P8K-L-PLUS 8kW Single Phase Hybrid Inverter
The Solis S6-EH1P8K-L-PLUS combines solar generation, low voltage battery storage and a dedicated backup output. It supports scheduled charging and generator integration for installations where these functions are required. This inverter is compatible with many LV batteries e.g. Pylontech US2000C, US3000C, US5000, Pelio-L-5.12.
Key Features
- 8kW rated output on a single phase supply.
- Two MPPT trackers for separate solar strings.
- Compatible lithium or lead-acid battery operation within the specified voltage range e.g. Pylontech US2000C, US3000C, US5000-1C LV Batteries.
- Generator input and configurable energy management.
- IP66 enclosure, a 7-inch display and Bluetooth setup.
Where to Use
For residential and small commercial solar and battery installations, including systems with essential-load backup or a generator. Battery capacity, load demand and PV strings must be specified together.
Technical Specifications
| Model | S6-EH1P8K-L-PLUS |
| Rated AC output | 8 kW |
| AC connection | Single phase, 220 / 230 V, 50 / 60 Hz |
| Battery voltage range | 40–60 V |
| MPPT trackers / maximum PV strings | 2 / 4 |
| Maximum PV input voltage | 500 V |
| MPPT voltage range | 90–435 V |
| Ingress protection | IP66 |
| Dimensions (W × H × D) | 335 × 560 × 253 mm |
| Weight | 23.5 kg |
| Maximum usable PV input power | 12.8 kW |
| Continuous backup output | 8 kW |
| Maximum battery charge / discharge current | 190 A |
| Backup transfer time | <10 ms (UK datasheet) |
| Cooling | Fan cooling |
Additional Details
- Output and charge rates depend on the battery, state of charge, temperature and settings.
- A monitoring stick is a separate accessory unless specifically included in the order.
Warranty
Solis warranty cover depends on the model, manufacture date, territory and the terms supplied with the product. The UK warranty document below applies to eligible products manufactured from 1 July 2025; earlier products retain their original terms. Any extension is subject to separate approval and terms.
UK delivery is normally 2–3 working days, with longer delivery times to the Highlands, islands and Northern Ireland. For product selection or a complete system, call 020 8064 0335 or email info@energian.co.uk.
Documents available for download:
S6-EH1P(3–10)K-L-PLUS UK datasheet (PDF)
S6-EH1P(3–8)K-L-PLUS installation and user manual (PDF)
