750m Perimeter Off-grid Solar Lighting Kit with 8kW Inverter, 30kWh Battery, 7.2kW Solar Panels and 8.8kW Generator

• TBB ES100-II LFP BATTERY: Utilises lithium iron phosphate (LiFePO4) cells, providing superior safety and longevity compared to traditional battery technologies. Automatically assigns communication addresses to slave modules, making the parallel connection process straightforward and efficient. Capable of short-time high-current charge and discharge with an impressive 90% depth of discharge (DoD) and a lifespan of up to 6,000 cycles. Each battery pack includes an advanced Battery Management System (BMS) for effective monitoring and management of modules. Warranty: 5 years.


• TBB RIIO SUN II OFF-GRID 8000W 48V PURE SINE WAVE INVERTER CHARGER: This innovative hybrid inverter combines the functions of an 8000W pure sine wave inverter, a 100A MPPT solar charge controller with two MPPT trackers, and a 90A mains/generator battery charger in a single device. The inverter is compatible with input of up to 8,800W from solar panels, mains power, a generator, or a battery, with the flexibility to use one or multiple input sources simultaneously.

The AGS (Automatic Generator Start) function is available on the RiiO Sun II series allowing the inverter to automatically start and stop a generator based on system conditions such as low battery voltage.

With hybrid capabilities, advanced communication functions, and highly customisable settings, the inverter delivers 8,000W of continuous AC power and up to 16,000W peak power to power appliances like pumps, vacuum cleaners, or power tools. The built-in 100A MPPT solar charge controller (consists of two trackers) maximises solar panel efficiency (up to 98%) and offers comprehensive safety features, including overcharge, overheating, and reverse current protection. Its LCD screen displays real-time performance data for the solar array.

The integrated 90A smart battery charger ensures safe, efficient, and unattended charging from a generator, with multiple charging stages and overcharge protection.

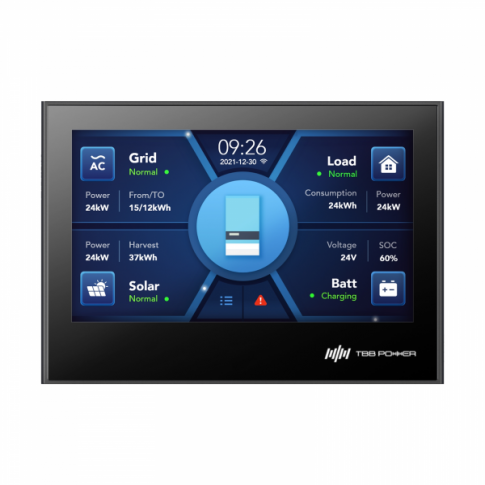

• TBB E4 LCD Monitor is an advanced, touch-enabled central display designed for intuitive, real-time control and monitoring of TBB’s off-grid solar kits.

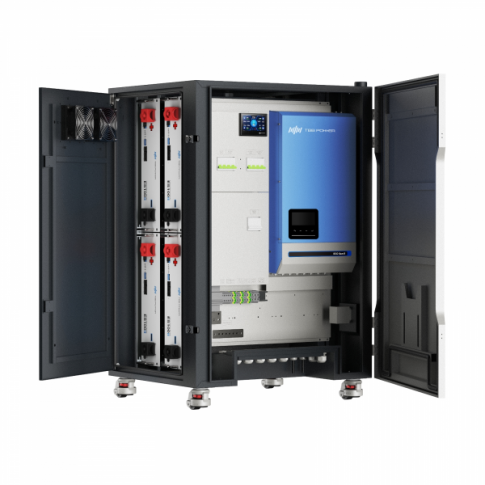

• TBB IP54 CABINET contains the a.m. components and can be moved to the place of installation with four wheels.

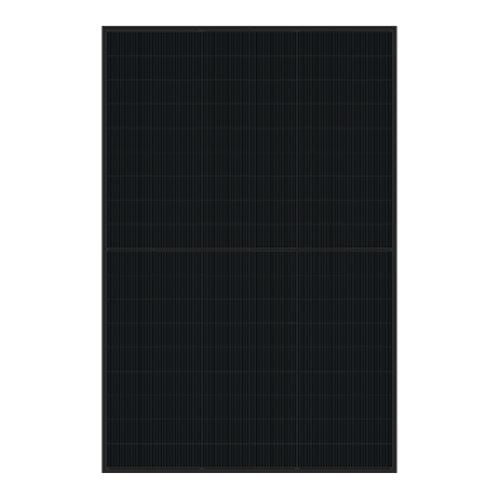

• DMEGC 450W solar panels offer high 22.5% efficiency, excellent durability, and cost-effectiveness with an appealing payback period. With a heavy snow load capacity of 5,400Pa and a wind load of up to 2,400Pa, they are ideal for domestic, agricultural, or garden office installations. The panels feature a black frame and come with a 30-year product warranty.

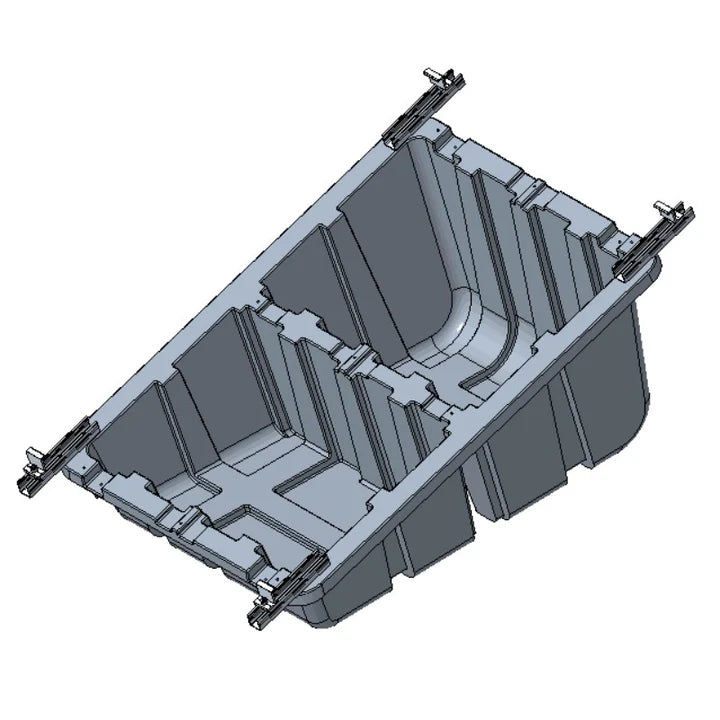

• FASTENSOL SOLAR PANEL GROUND MOUNTING TRAY is an easily assembled and disassembled support for solar panels in portrait orientation (Mounting kit for landscape orientation on request).

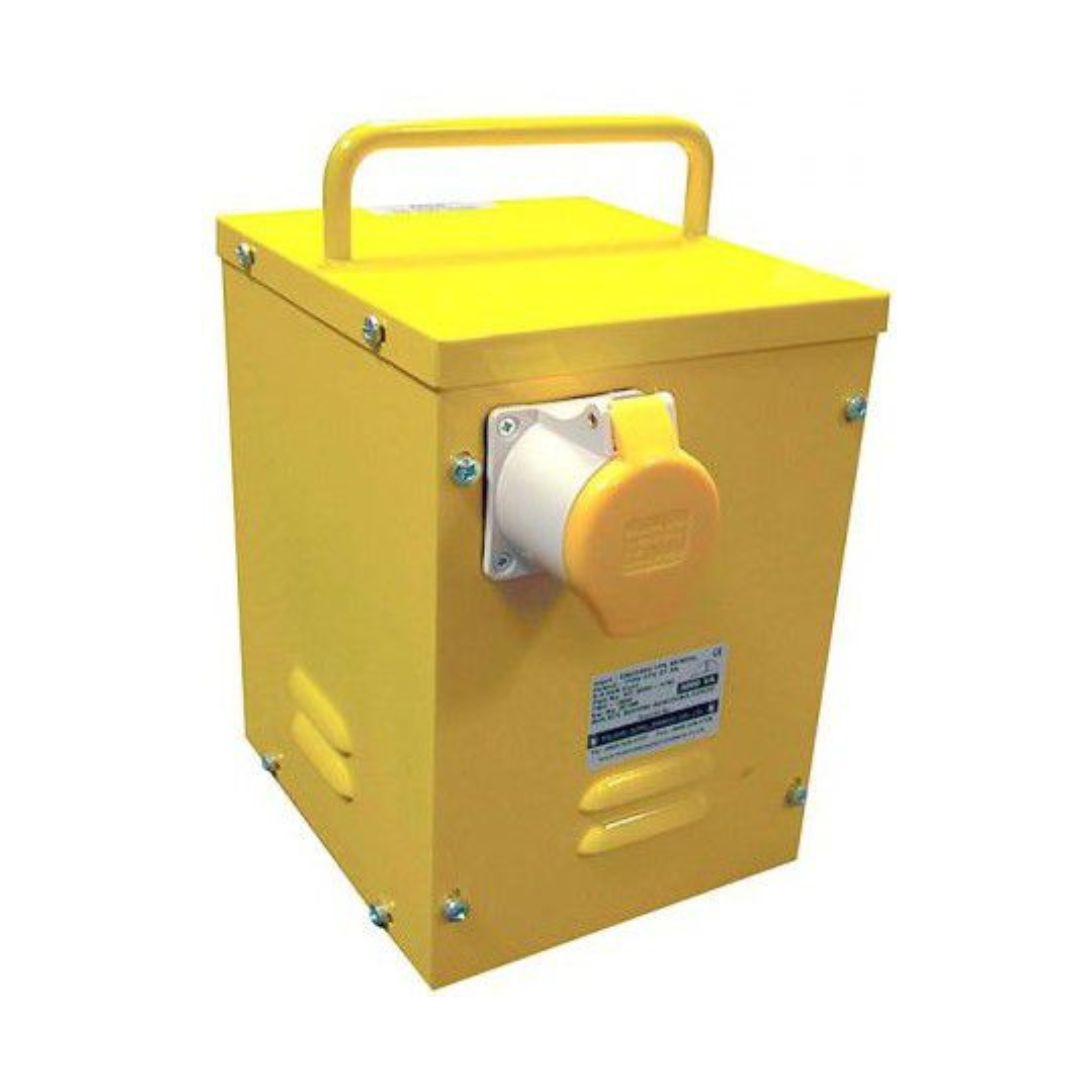

• 230V/110V STEP DOWN SITE TRANSFORMER 3KVA to convert the inverter 230V output to 110V used in the construction sites.

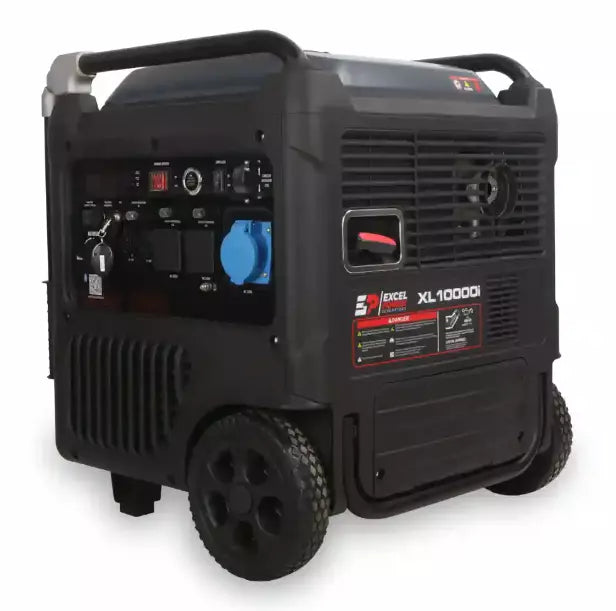

• EXCEL POWER XL10000i 8800W petrol inverter generator is a top-of-the-range portable generator from Hyundai. Providing a convenient and cost-effective source of power, this quiet inverter generator has an impressive maximum output of 8,800W / 8.8kW, and continuous power rating of 8,200W / 8.2kW.

2-3 WORKING DAYS' DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).

• 6x TBB ES100-II 5.05kWh LiFePO4 Batteries
• 1x TBB RIIO SUN II Off-Grid Hybrid 8000W 48V Pure Sine Wave Inverter/Charger, and
• 1x TBB E4 LCD Monitor, all installed and prewired in an IP54 rated compact movable Cabinet,

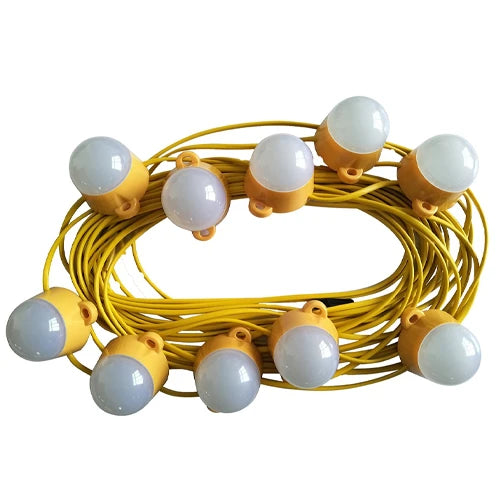

• 15x 20 LED lights 110V 5W each with 50m Cable Festoon Kit,

• 16x DMEGC 450W N-type Double Glass Bifacial Solar Panel,
• 2x FASTENSOL Solar Panel Ground Mounting Kit for 8 panels,
• 1x 230V/110V Step Down Transformer 3kVA,
• 1x Excel XL10000i 8800W Inverter Generator
