New-Build 1.8kW (4 Panels) Grid-Tie Solar Kit with 3.0kW AC Coupled Inverter and 5kWh Battery


By Energian
Size
Minus Plus

Delivery available

More details Right

New-Build 1.8kW (4 Panels) Grid-Tie Solar Kit with 3.0kW AC Coupled Inverter and 5kWh Battery

  • Meets UK Future Homes Standard regulations for new builds while cutting running costs.
  • Store surplus solar in a 5kWh battery instead of exporting it all to the grid, with SEG export payments still available.
  • Complete new-build kit with all-black panels, PV inverter, 3.0kW AC coupled inverter, 5.12kWh battery, in-roof mounting and safety components.

Solar panels on new builds are now common to meet tightening energy regulations while cutting costs and adding property value. This 1.8kW grid-tie kit includes 4 all-black Canadian Solar panels, Solis 2.0kW PV inverter, protection gear and GSE in-roof mounting kit. Suits pitched roofs needing G98/G99 DNO approval.

The 3.0kW Solis S5-EA1P3K-L G5 AC coupled inverter and 5.12kWh Dyness PowerDepot H5B G2 LFP battery add on-site storage, helping you shift solar to evenings and backup essential loads during outages when used with a suitable system design.

Key Features

  • 4 × Canadian Solar 450W TOPHiKu6 all-black panels (22.5% efficiency) for discreet, high-yield new-build roofs.
  • Solis 2.0kW S6-GR1P2K-M PV inverter with 97.3% max efficiency and IP66 weather protection for outdoor or loft mounting.
  • Solis 3.0kW S5-EA1P3K-L G5 single-phase low-voltage AC coupled inverter for flexible retrofit or hybrid-style storage.
  • Dyness PowerDepot H5B G2 5.12kWh IP65 LFP battery for long life, high safety and indoor/outdoor wall or floor mounting.
  • BENY IP65 AC switch, RCBO and Emlite generation meter for safety and compliance in UK installations.
  • Hark G100 Export Limitation Scheme (if required by DNO).
  • GSE in-roof solar mounting kit for a neat, integrated appearance ideal for new-build housing.
  • Option 1: Marlec Solar iBoost diversion kit for hot water immersion heaters.
  • Option 2: Marlec heat pump control using the iBoost Heat Pump Interface (HPI) to prioritise low-carbon heating.

Applications

  • New-build homes needing Part L / Future Homes-compliant on-site renewables with in-roof PV and battery storage.
  • Small commercial units, home offices and small logistics buildings looking to cut imported energy and add resilience.
  • Developers wanting a pre-engineered kit that can be installed by trusted MCS partners with DNO approval.

Canadian Solar CS6.2-48TD-450W – Electrical Data

Parameter Value
Nominal Max. Power (Pmax) 450W
Opt. Operating Voltage (Vmp) 44.8V
Opt. Operating Current (Imp) 10.05A
Open Circuit Voltage (Voc) 52.9V
Short Circuit Current (Isc) 10.68A
Module Efficiency 22.5%

Canadian Solar CS6.2-48TD-450W – Mechanical Data

Parameter Value
Dimensions 1762 × 1134 × 30 mm
Weight 24.6kg
Cell Type TOPCon cells
J-Box IP68, 3 bypass diodes
Wind Load 4000Pa
Snow Load 6000Pa

Solis S6-GR1P2K-M PV Inverter – Key Specifications

Parameter Value
Recommended max. PV power 3.0kW
Max. input voltage 600V
MPPT voltage range 80–500V
Max. input current 14A
Rated output power 2.0kW
Max. output power 2.2kW
Max. apparent power 2.2kVA
Rated AC output current 9.1/8.7A
Max. output current 10.5A
Power factor >0.99 (0.8 leading – 0.8 lagging)
THDi <3%
Max. efficiency 97.3%
Dimensions (W×H×D) 310 × 373 × 160 mm
Weight 7.4kg
Operating temperature range -25 ~ +60°C
Ingress protection IP66
DC Connection MC4
AC Connection Quick connection plug
Communication RS485, Optional: Wi-Fi, GPRS

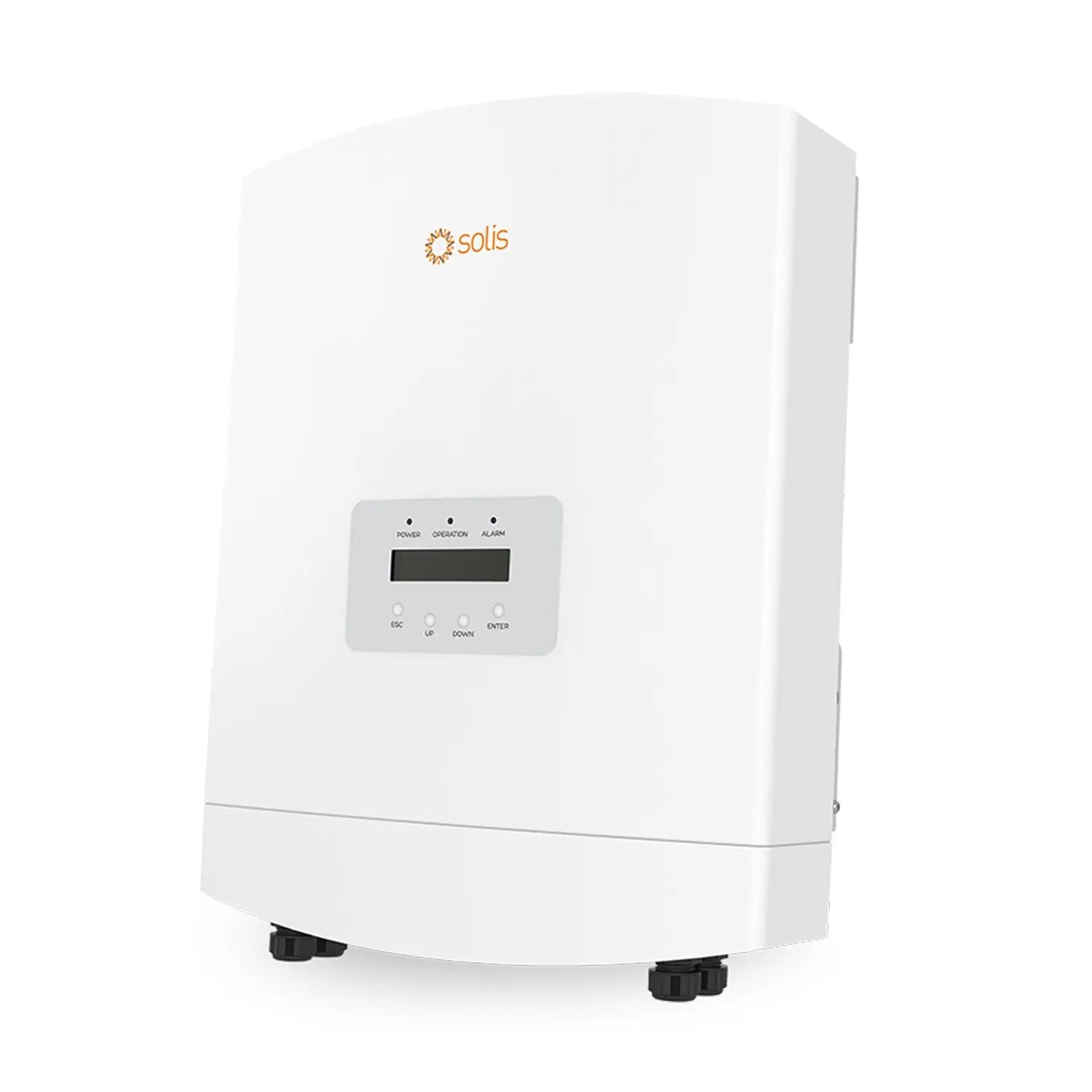

Solis S5-EA1P3K-L G5 3.0kW AC Coupled Inverter – Technical Specifications. AC Output – Grid Side

Parameter Value
Rated output power 3kW
Max. output power 3kW
Max. apparent output power 3kVA
Operation phase 1NPE
Rated grid voltage 220V / 230V
Grid voltage range 184 – 264V
Rated grid frequency 50Hz / 60Hz
Rated grid output current 13.6A / 13A
Max. output current 20A
Power factor 0.99 (0.8 leading – 0.8 lagging)
THDi <3%

AC Input – Grid Side

Parameter Value
Rated input voltage 220V / 230V
Input voltage range 184 – 264V
Max. input current 13.6A / 13A
Rated grid frequency 50Hz / 60Hz
Frequency range 45 – 55Hz / 55 – 65Hz

Battery Side

Parameter Value
Battery type Li-ion / Lead-acid
Battery voltage range 40 – 60V
Battery capacity 50 – 2000Ah
Max. charge/discharge current 60A
Battery communication CAN

Efficiency

Parameter Value
Max. battery charge efficiency 94.0%
Max. battery discharge efficiency 94.5%

General Data

Parameter Value
Dimensions (W × H × D) 405 × 510 × 150 mm
Weight 12.1kg
Topology High frequency isolation
Operating ambient temperature range -25 ~ 60°C
Ingress protection IP65
Cooling concept Natural cooling
Max. operating altitude 2000m
Grid connection standard G98 or G99, EN 50549-1 and other international standards (see datasheet for full list).
Safety / EMC IEC 62477, EN 61000-6-2, EN 61000-6-3
DC connection Screw terminal
AC connection Screw clamp terminal (max. 6mm²)
Display LCD
Communication RS485, CAN, Optional Wi-Fi, GPRS

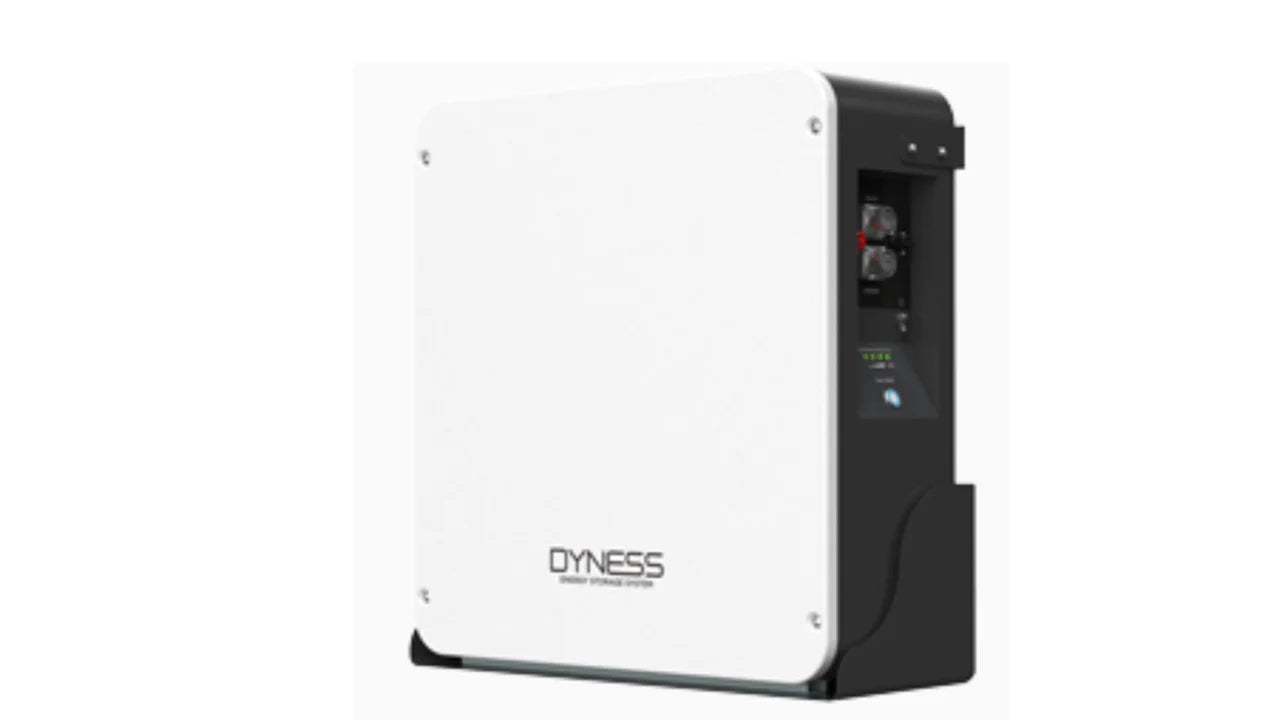

Dyness PowerDepot H5B G2 5.12kWh LV LFP Battery – Technical Specifications. Size and Weight

Parameter Value
Model PowerDepot H5B
Nominal voltage 51.2V
Nominal capacity 100Ah
Dimensions (W × D × H) 574 × 228 × 600 mm
Weight 55kg
IP level IP65

Performance Parameters

Item PowerDepot H5B
Nominal voltage 51.2V
Work voltage range 44.8 – 57.6V
Nominal capacity 100Ah
Nominal energy 5.12kWh
Nominal power 2.56kW
Max. power 3.84kW
Charging current 50A
Discharge current 50A

Interface Definition (Front Panel)

Item Name Definition
1 Positive socket Battery DC output positive pole, connects to inverter positive through cable
2 COM IN CAN/RS485 socket, to inverter or previous battery in parallel system
3 Negative socket Battery DC output negative pole, connects to inverter negative through cable
4 COM OUT CAN/RS485 socket reserved or to next battery in parallel system
5 SOC LEDs showing remaining battery power
6 ALM Red alarm LED (flashing or solid during protection)
7 Reset switch Turns battery system on/off, enables sleep mode when unused
8 Ground connection point Shell ground connection
9 DC circuit breaker Circuit protection
10 COM Communication cascade port, supports RS232

Shipping

Available to UK, Ireland, Africa, the Caribbean and worldwide. If no rate is shown at checkout, contact us on +44 2080640335 or info@energian.co.uk for a shipping quote.

Support & Installation

UK expert support is available via phone, email, live chat or office visit for system design, product selection and after-sales queries.

Installation via trusted, qualified partners is strongly recommended to meet MCS requirements, maintain warranties and secure G98/G99 DNO approval for grid connection.
