New-Build 2.7kW (6 Panels) Grid-Tie Solar Kit with 2.5kW PV Inverter
- Meets UK Future Homes Standard regulations for new builds.
- Lowers energy bills and qualifies for SEG export payments.
- Complete kit with panels, inverter and safety components.
Solar panels on new builds are now common to meet tightening energy regulations while cutting costs and adding property value. This 2.7kW grid-tie kit includes 6 all-black Canadian Solar panels, Solis 2.5kW PV inverter, protection gear and GSE in-roof mounting kit. Suits pitched roofs needing G98/G99 DNO approval.
Key Features
- 6x Canadian Solar 450W TOPHiKu6 All Black panels (22.5% efficiency).
- Solis S6-GR1P2.5K-M PV inverter with 97.3% max efficiency, IP66.
- BENY IP65 AC switch, RCBO, Emlite meter for compliance.
- GSE in-roof solar mounting kit.

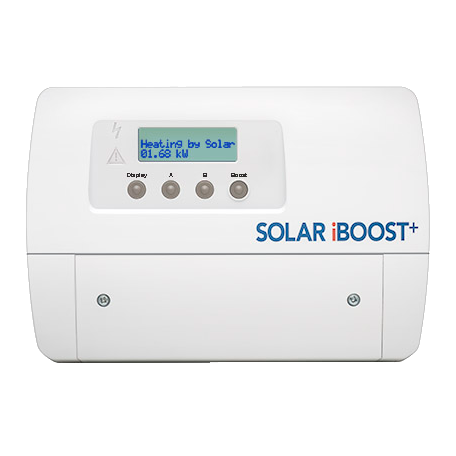

- Option 1: Marlec Solar iBoost diversion kit for hot water immersion heaters.

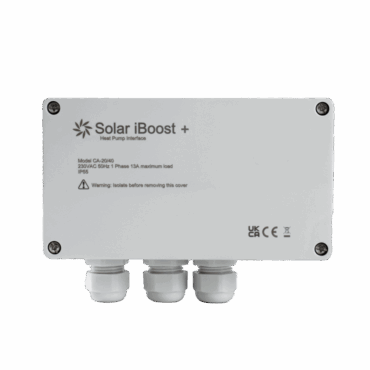

- Option 2: Marlec Heat pump control through an iBoost Heat Pump Interface (HPI).
Technical Specifications

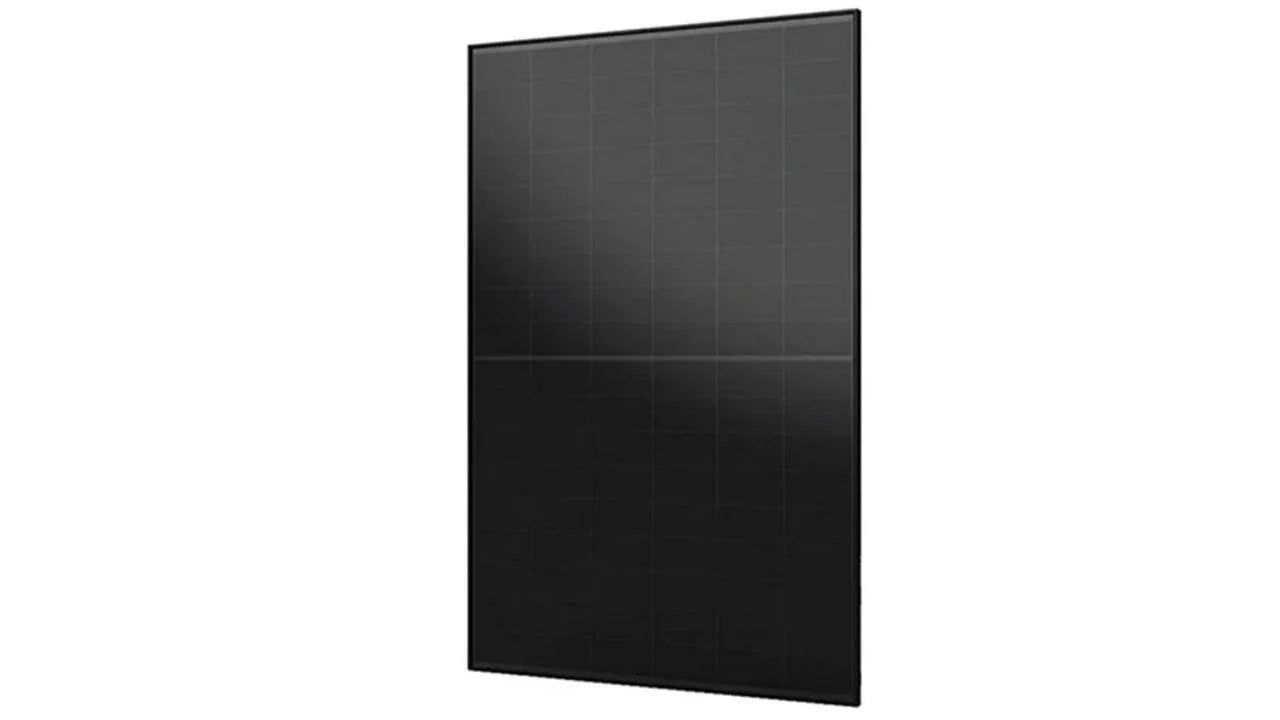

Canadian Solar CS6.2-48TD-450W
| Parameter | Value |
|---|---|
| Nominal Max. Power (Pmax) | 450W |
| Opt. Operating Voltage (Vmp) | 44.8V |
| Opt. Operating Current (Imp) | 10.05A |
| Open Circuit Voltage (Voc) | 52.9V |
| Short Circuit Current (Isc) | 10.68A |
| Module Efficiency | 22.5% |
Canadian Solar Mechanical Data
| Parameter | Value |
|---|---|
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 24.6kg |
| Cell Type | TOPCon cells |
| J-Box | IP68, 3 bypass diodes |
| Wind Load | 4000Pa |
| Snow Load | 6000Pa |

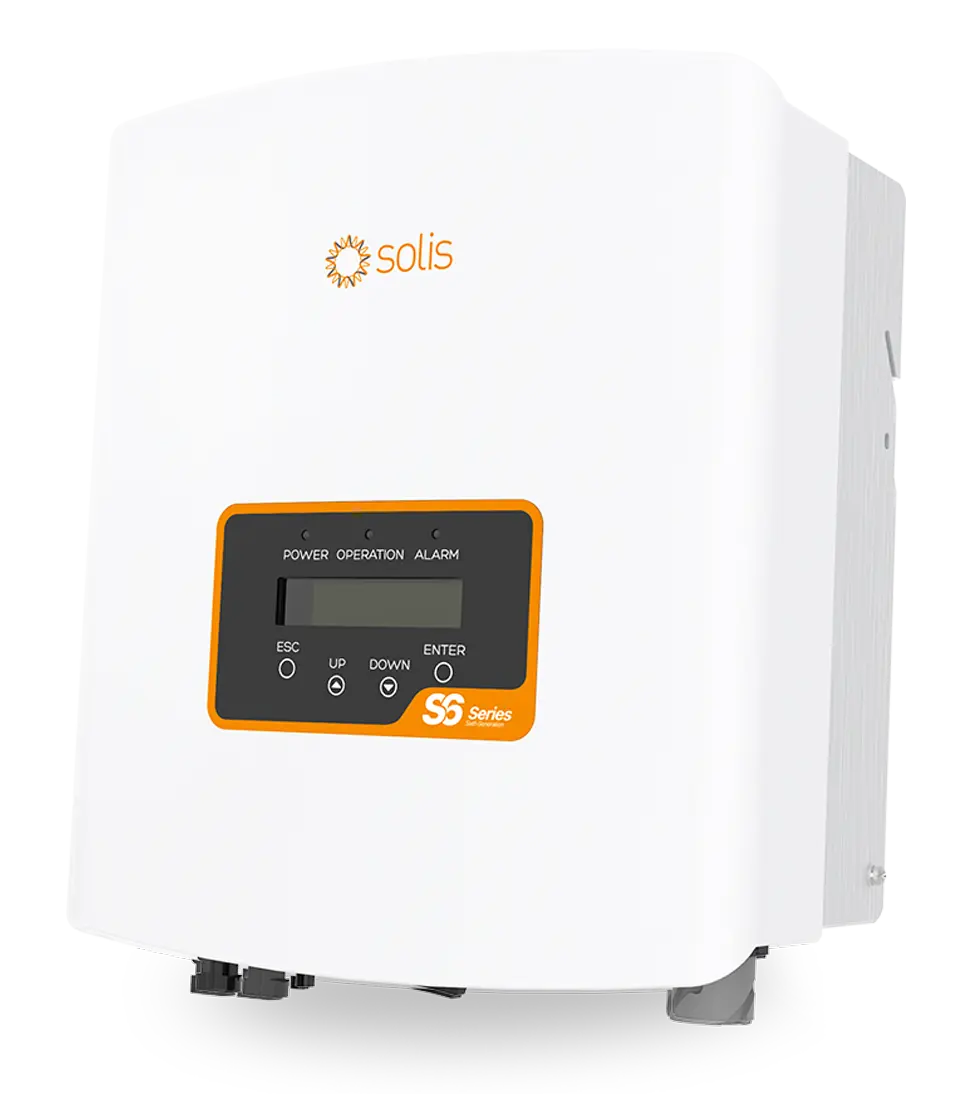

Solis S6-GR1P2.5K-M PV Inverter
| Parameter | Value |
|---|---|
| Recommended max. PV power | 3.8kW |
| Max. input voltage | 600V |
| MPPT voltage range | 80-500V |
| Max. input current | 14A |
| Rated output power | 2.5kW |
| Max. output power | 2.75kW |
| Max. apparent power | 2.75VA |
| Rated AC output current | 11.4/10.9A |
| Max. output current | 13.1A |
| Power factor | >0.99 (0.8 leading - 0.8 lagging) |
| THDi | <3% |
| Max. efficiency | 97.3% |
| Dimensions (W×H×D) | 310×373×160mm |
| Weight | 7.7kg |
| Operating temperature range | -25 ~ +60°C |
| Ingress protection | IP66 |
| DC Connection | MC4 |
| AC Connection | Quick connection plug |
| Communication | RS485, Optional: Wi-Fi, GPRS |
Shipping
Available to UK, Ireland, Africa, the Caribbean and worldwide. If no rate shown at checkout, contact us on +44 2080640335 or info@energian.co.uk for a quote.
Support
UK expert support via phone, email, live chat or office visit. Installation via trusted partners required for MCS certification and DNO approval.
