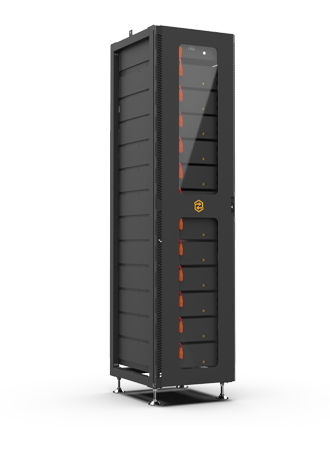

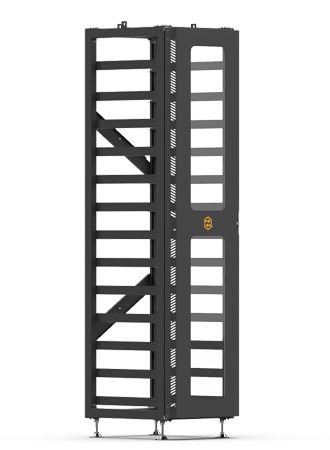

Sunsynk Battery Cabinet with Door for 12 x 5.12 kWh Single Battery Unit – High Voltage Series

Key benefits

  • Rack‑mount cabinet with door designed to house up to 12 Sunsynk 5.12 kWh high‑voltage battery modules (LFP), providing up to 61.44 kWh total DC energy in a single tidy enclosure.
  • Pre‑defined series configurations (3–12 modules) with matched nominal and operating voltages, making system design easier for high‑voltage hybrid and battery inverters.
  • Industrial‑grade rack frame with integrated high‑voltage control box, communication cabling and power bus, suitable for commercial and light‑industrial sites.

High‑voltage rack cabinet – overview

The Sunsynk High Voltage Series battery cabinet with door is a Li‑ion rack‑mount system designed for use with Sunsynk GX high‑voltage batteries and compatible high‑voltage inverters. Each 5.12 kWh module is a 51.2 V, 100 Ah LiFePO₄ unit, and up to 12 modules can be installed in series to form a single high‑voltage battery stack inside the cabinet. This cabinet is ideal for clean, protected installation of high‑voltage storage in commercial, agricultural or larger residential projects where space, cable management and safety are important.

Key features

  • Up to 12 modules in one cabinet: supports GX‑series configurations from G15 (3 modules) up to G60 (12 modules), giving system energies from 15.36 kWh to 61.44 kWh.
  • High‑voltage LiFePO₄ chemistry: stable lithium iron phosphate cells with 6000‑cycle life (to 70 % end‑of‑life SoH at 0.5C/0.5C), 90 % recommended DOD and 10‑year warranty.
  • Integrated high‑voltage control box: 750 V / 100 A control box, communication bus and power cabling designed for series‑connected modules and external PCS/inverter connection.
  • Clear status indication: front‑mounted indicators for “Battery High Voltage Power On” (yellow) and “Battery System Alarm” (red) plus CAN2.0 / RS485 communication ports.
  • Rack‑mount form factor: robust enclosure suitable for indoor rack mounting, with defined dimensions and weight for system layout and structural planning.

Technical specifications

Battery modules (common to all GX models)

  • Battery cell chemistry: Lithium Ferro Phosphate (LiFePO₄ or LFP).
  • Module energy: 5.12 kWh.
  • Module nominal voltage: 51.2 V.
  • Module capacity: 100 Ah.

System configurations (GX high‑voltage series)

  • Battery model numbers: G15, G20, G25, G30, G35, G40, G45, G50, G55, G60.
  • Battery module quantity in series (optional): G15 – 3 modules; G20 – 4 modules; G25 – 5 modules; G30 – 6 modules; G35 – 7 modules; G40 – 8 modules; G45 – 9 modules; G50 – 10 modules; G55 – 11 modules; G60 – 12 modules.
  • System nominal voltage: G15 – 153.6 V; G20 – 204.8 V; G25 – 256 V; G30 – 307.2 V; G35 – 358.4 V; G40 – 409.6 V; G45 – 460.8 V; G50 – 512 V; G55 – 563.2 V; G60 – 614.4 V.
  • System operating voltage range: G15 – 124.8–175.2 V; G20 – 166.4–233.6 V; G25 – 208–292 V; G30 – 249.6–350.4 V; G35 – 291.2–408.8 V; G40 – 332.8–467.2 V; G45 – 374.4–525.6 V; G50 – 416–584 V; G55 – 457.6–642.4 V; G60 – 499.2–700 V.
  • System energy (DC): G15 – 15.36 kWh; G20 – 20.48 kWh; G25 – 25.6 kWh; G30 – 30.72 kWh; G35 – 35.84 kWh; G40 – 40.96 kWh; G45 – 46.08 kWh; G50 – 51.2 kWh; G55 – 56.32 kWh; G60 – 61.44 kWh.
  • System usable energy (DC, 90 % DOD, 0.2C at 25 °C): G15 – 13.82 kWh; G20 – 18.43 kWh; G25 – 23.04 kWh; G30 – 27.64 kWh; G35 – 32.25 kWh; G40 – 36.86 kWh; G45 – 41.47 kWh; G50 – 46.08 kWh; G55 – 50.68 kWh; G60 – 55.29 kWh.
  • Rated DC power: G15 – 15.36; G20 – 20.48; G25 – 25.6; G30 – 30.72; G35 – 35.84; G40 – 40.96; G45 – 46.08; G50 – 51.2; G55 – 56.32; G60 – 61.44 (kW, matching system energy figures).

Charge / discharge and operating limits

  • Recommended charge/discharge current: 50 A.
  • Nominal charge/discharge current: 100 A.
  • Peak discharge current: 125 A (2 minutes at 25 °C).
  • Working temperature: charge 0–55 °C; discharge −20–55 °C.
  • Status indicator: Yellow – Battery high‑voltage power on; Red – Battery system alarm.
  • Communication ports: CAN2.0 / RS485.
  • Humidity: 5–85 % RH.
  • Altitude: ≤2000 m.
  • IP rating of enclosure: IP20.
  • Installation location: rack mounting.
  • Storage temperature: 0–35 °C.
  • Recommended depth of discharge: 90 %.
  • Cycle life: 25 ±2 °C, 0.5C/0.5C, end‑of‑life at 70 % SoH ≥6000 cycles.
  • Warranty: 10 years (whichever is reached first – warranty period or cycle power).
  • Certification: CE / IEC 62619 / VDE 2510‑50 / UL 1973 / UL 9540A / UN 38.3.

Cabinet dimensions and weight (rack‑mount system)

  • Dimension (W / D / H): 589 × 590 × 1640 mm; 589 × 590 × 2240 mm (higher rack variant).
  • Approximate weight: 258 kg (shorter configuration); 434 kg; 628 kg (heavier configuration with more modules).

System components (supplied for high‑voltage rack)

  • High‑voltage control box: 750 V / 100 A, quantity 1.
  • 5.12 kWh battery module (general): quantity 1 (list item in components table; actual quantity depends on system configuration).
  • 120 Ω terminal resistor: quantity 1.
  • Communication cable: 110 mm for battery module, 140 mm for high‑voltage control box; standard, quantity 12.
  • 220 mm positive power cord – high‑voltage control box: standard, quantity 1.
  • 220 mm positive power cord – battery module: standard, quantity 11.
  • Negative power cord – high‑voltage control box: standard, quantity 1.
  • 140 mm ground wire A: standard connecting cable A (connecting the high‑voltage control box); ground wire B for external connection of battery rack is not provided; quantity 1.
  • External PCS positive power cord (EPCable5.0): optional, quantity 1.
  • External PCS negative power cord (ENCable5.0): optional, quantity 1.
  • External 12 V power cord (EPWRCable5.0): optional, quantity 1.
  • External device communication cable (ECOM Cable5.0): optional, quantity 1.

Shipping and UK support

Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, please contact us on +44 2080 640335 or info@energian.co.uk for a quote.

UK expert support is available – contact Energian with any questions or support requests via phone, email or live chat, or visit our office for an in‑person consultation to review your Sunsynk high‑voltage battery cabinet design, inverter compatibility and installation requirements.
