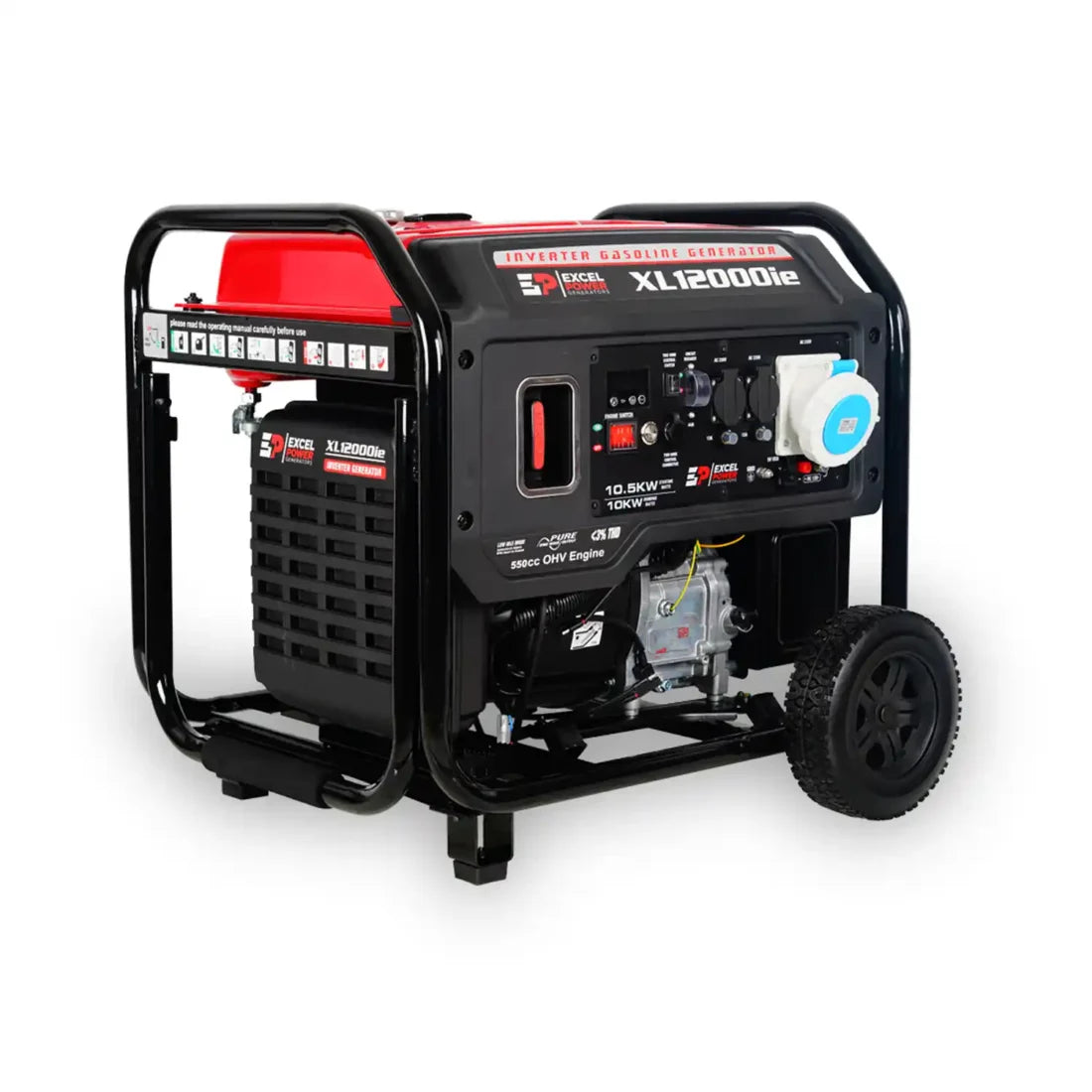

Excel Power XL12000iE 10.5kW Open-Frame Petrol Inverter Generator
The Excel Power XL12000iE is a high-output petrol inverter generator for professional work, mobile applications and compatible home or business backup systems. It delivers 10kW of continuous 230V power with a 10.5kW maximum output, while pure sine-wave inverter technology provides the stable electricity required by sensitive electronics and appliances.
XL12000iE at a Glance
Clean, high-capacity inverter power with electric starting and 2-wire start capability for compatible backup-control equipment.

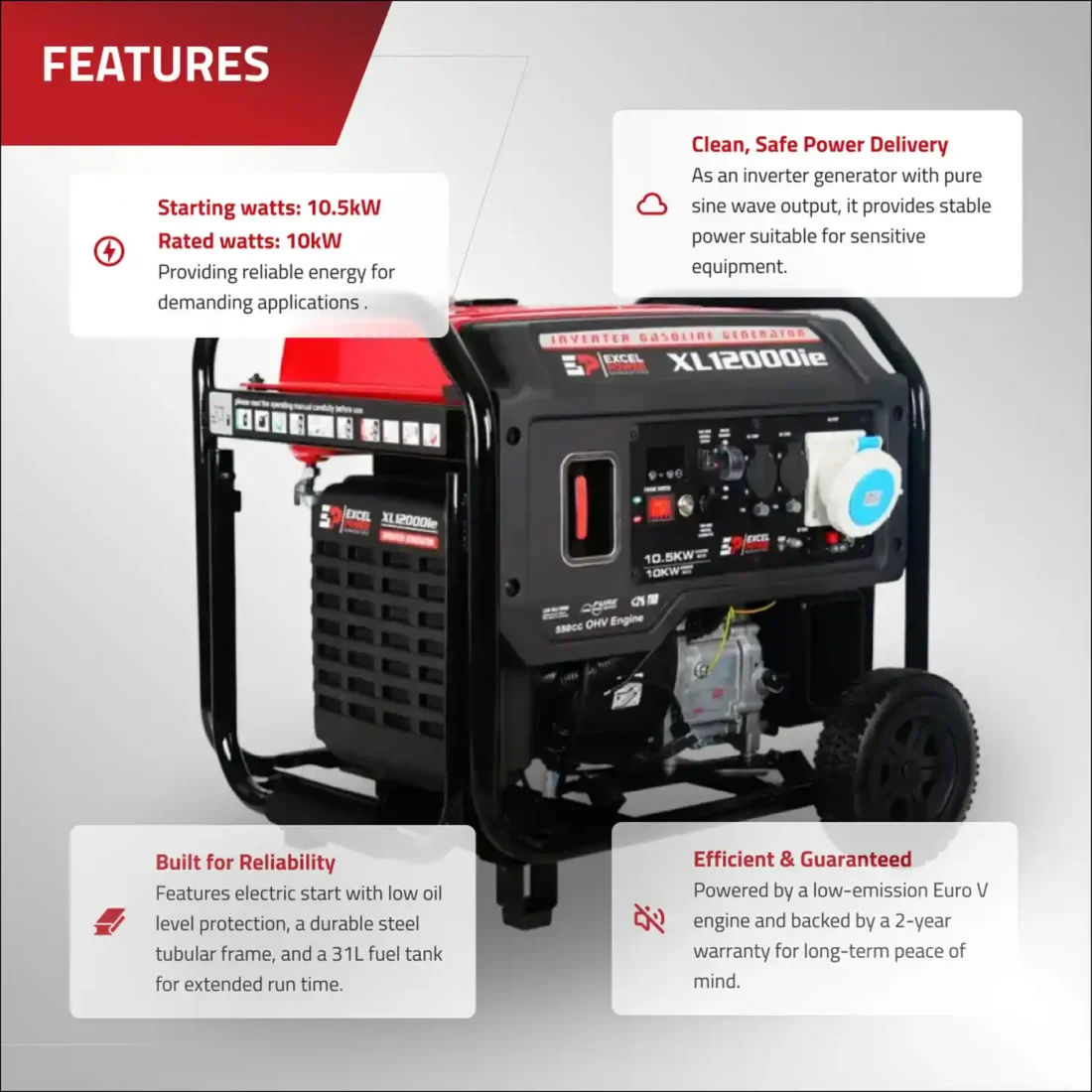

Key Features
High-Capacity Output
10kW continuous power with a 10.5kW maximum output for demanding loads.
Clean Inverter Power
Pure sine-wave output for sensitive electronics, appliances and variable-speed equipment.
Flexible Starting
Electric and recoil starting, plus a 2-wire connection for compatible external controls.
Built to Move
A durable open steel frame, wheels and lifting points support transport and site positioning.
Important safety information: This petrol generator must only be operated outdoors, well away from doors, windows and ventilation openings. Never operate it inside a home, garage, vehicle or other enclosed or partially enclosed area. Read the user manual before use.
Backup-Power Integration
The 2-wire connection can start and stop the generator when used with suitable external control equipment. It does not transfer the electrical supply by itself. Any connection to a building installation requires correctly specified changeover equipment, electrical protection and installation by a competent electrician.
Warranty
Private / domestic use: 3-year or 500-hour limited warranty, whichever occurs first, when the generator is registered within 30 days of purchase. Without registration, the standard 1-year warranty applies.
Commercial use: 1-year or 250-hour limited warranty, whichever occurs first. All warranty coverage is subject to the manufacturer's terms and conditions.
Detailed Specifications
| Specification | Details |
| Model | XL12000iE |
| Generator type | Open-frame petrol inverter generator |
| Maximum output | 10,500W |
| Continuous rated output | 10,000W |
| Voltage / frequency / phase | 230V AC / 50Hz / single phase |
| Alternator | Pure sine-wave inverter |
| Engine | 550cc, single-cylinder, 4-stroke OHV, Euro V |
| Fuel | Regular unleaded petrol, 95 RON or higher |
| Fuel tank capacity | 31 litres |
| Starting system | Electric and recoil, with 2-wire start connection |
| Runtime at 50% load | Approx. 6-11 hours, depending on operating conditions |

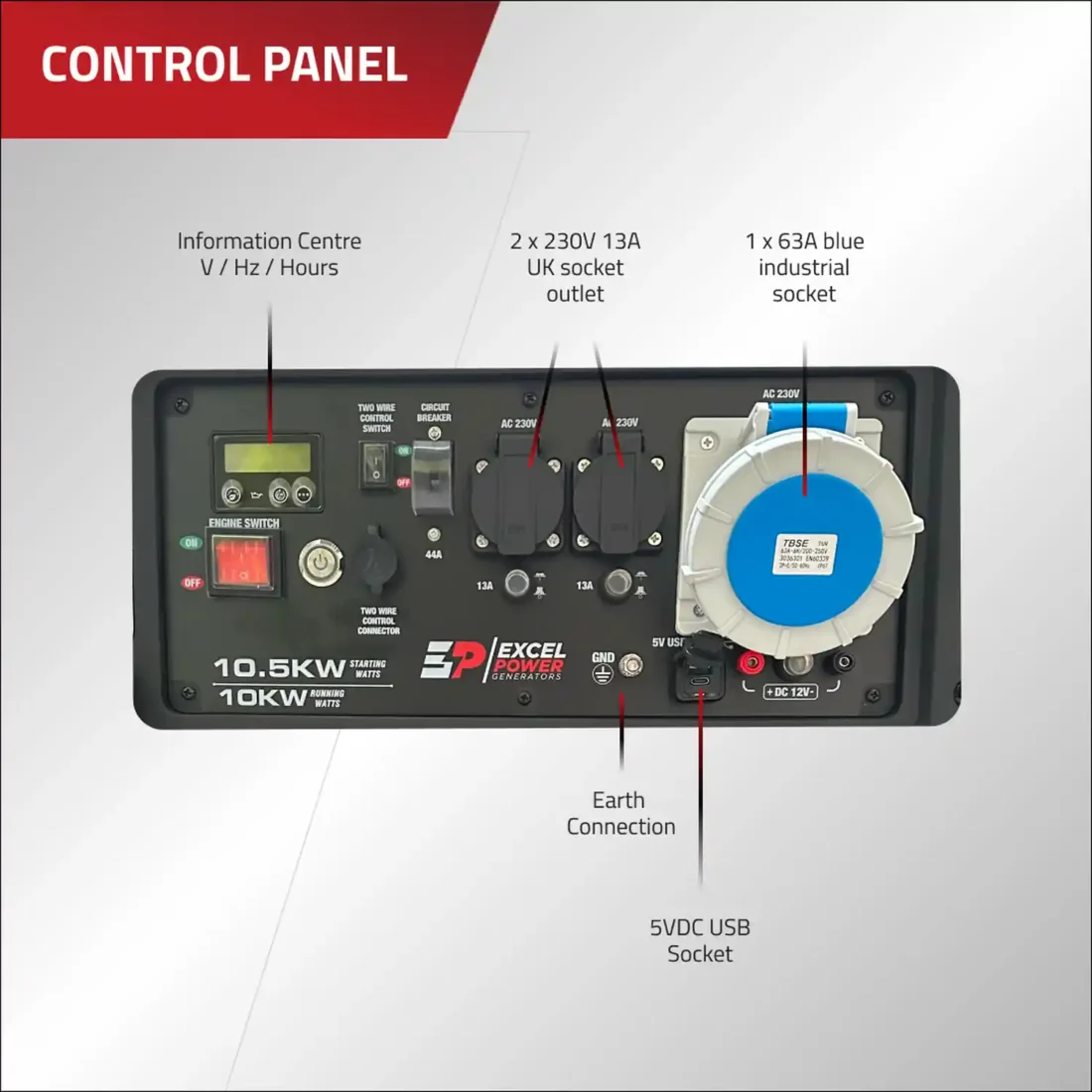

| Sockets | 1 × 230V 63A; 2 × 230V 13A UK sockets; 1 × 5V USB |
| Protection | Low-oil shutdown and overload protection |
| Noise level | 69dB(A) at 7m on low idle |
| Certification | CE, UKCA and EU Stage V |
| Unpacked dimensions | 715 × 735 × 705mm (L × W × H, including wheels) |
| Dry weight | 83kg |
| Packed dimensions | 755 × 700 × 650mm (L × W × H) |
| Packed weight | 89kg |
What's in the Box
- 1 × Excel Power XL12000iE open-frame inverter generator
- Tool kit and oil-filling funnel
- 12V charging cables
- User manual
User Manual
Read the operating, safety, maintenance and storage instructions before using the generator.
