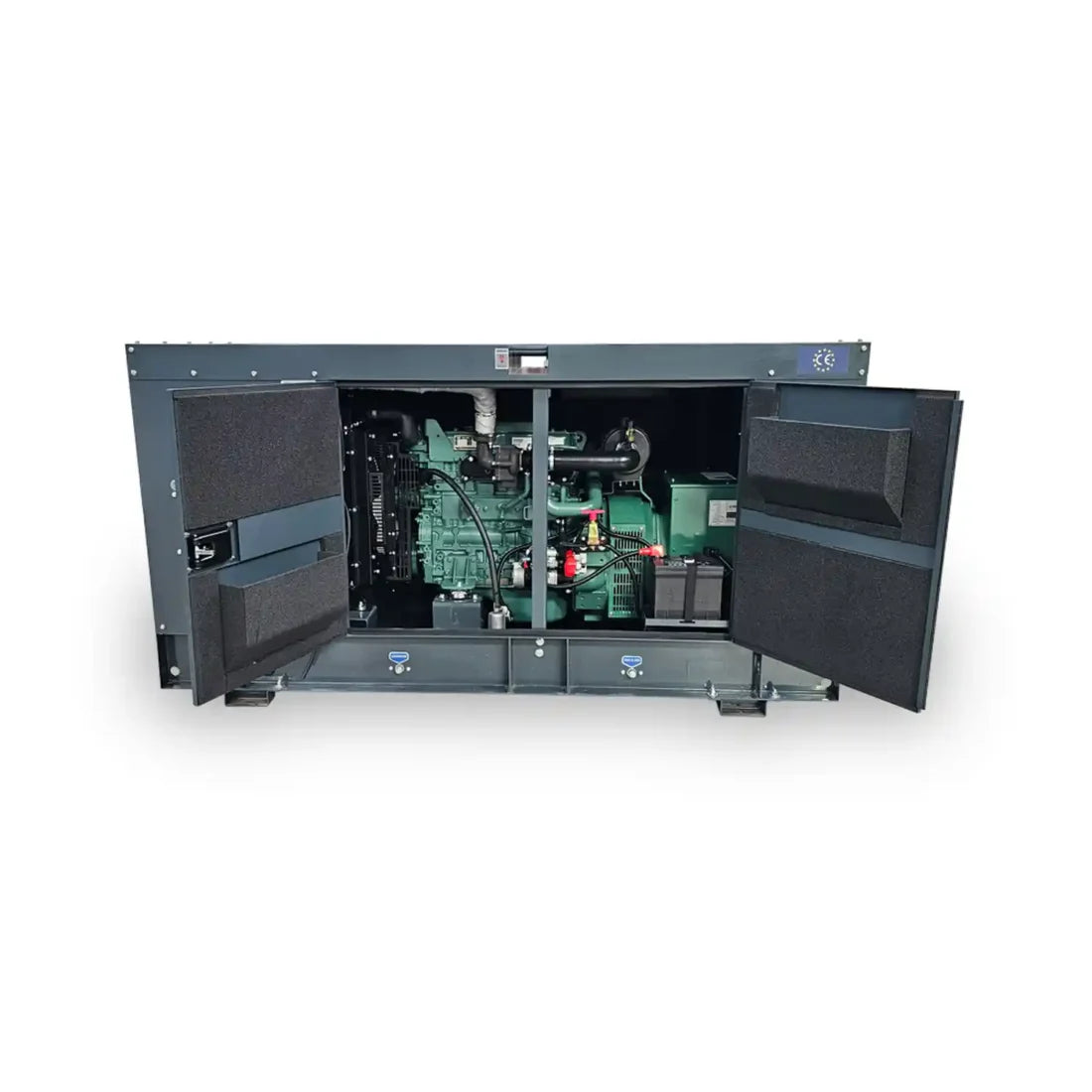

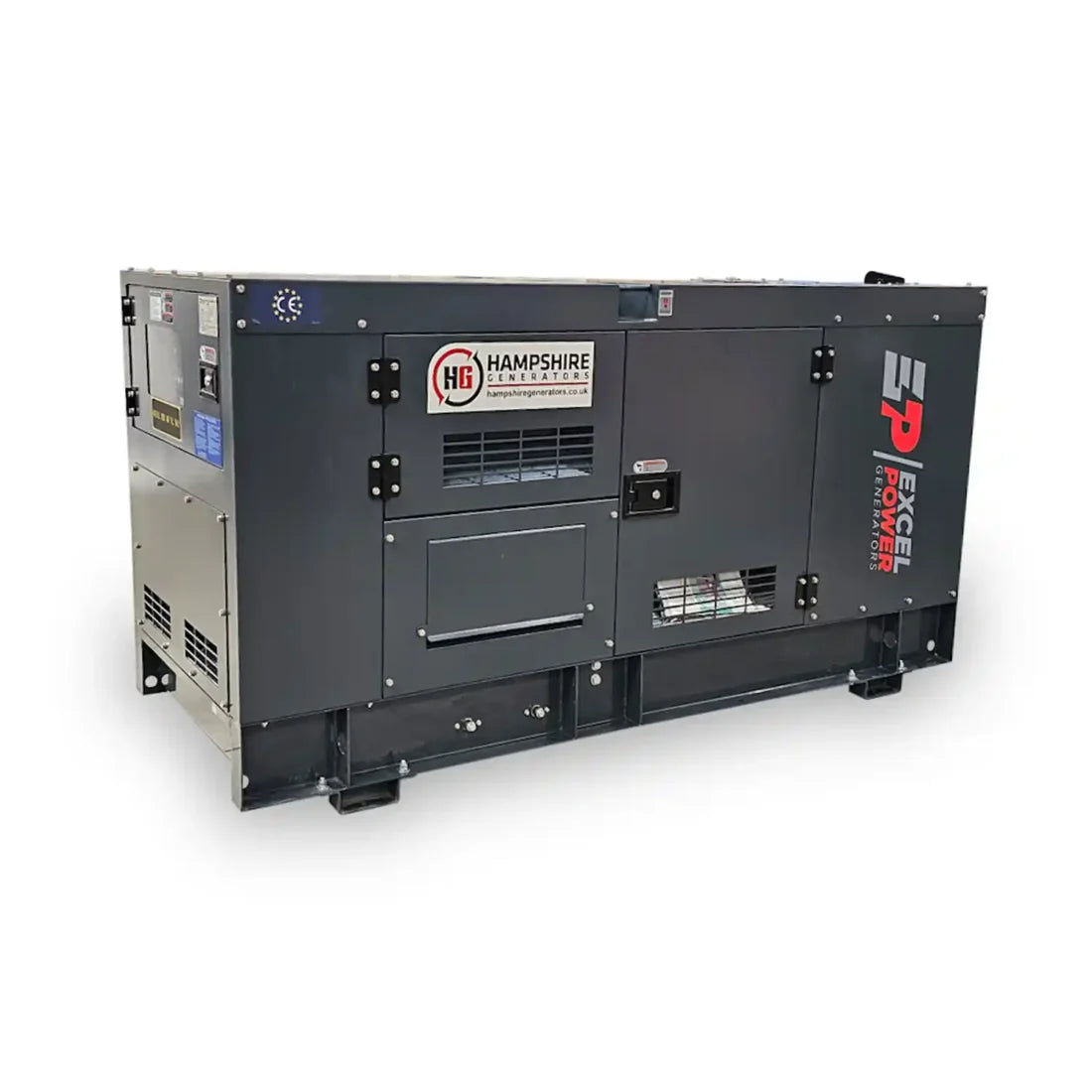

Excel Power XL-DFAW-55 50kVA Three Phase Diesel Generator
- 50kVA three phase diesel generator for dependable backup and light prime power.
- Designed for commercial and industrial sites needing stable 400V three phase supply.
- Water-cooled diesel set in an acoustic canopy for reliable, quieter operation.
The Excel Power XL-DFAW-55 50kVA Three Phase Diesel Generator is a practical choice for UK logistics, commercial and industrial users who need reliable three phase power when the grid is unavailable or unstable. It suits applications such as small factories, pumps, HVAC plant, warehouse distribution equipment and backup for critical building services.
Key Features
- 50kVA three phase diesel generator for backup and continuous duty within its rating.
- Water-cooled industrial diesel engine for controlled operating temperatures and long service life.
- Sound-attenuated canopy to keep noise levels down on busy or built-up sites.
- Integrated digital control panel for straightforward starting, monitoring and protection.
- Heavy-duty base frame suitable for fixed installations and handling by forklift or crane.
Technical Specifications
Generating Set Model:
- Manufacture Excel Power
- Model XL-DFAW-55
- Output rating 50HZ 230V, 1500RPM
- Prime Power 50kVA / 40kW
- Standby Power 55kVA / 44kW
- Noise Level: 72dB(A) at 7m in free field conditions.
Engine Technical Data:
- Engine make: FAWDE
- Engine model: 4DX22-65D
- Governing type: Electronic
- Number of cylinders: 4
- Cylinders arrangement: In-line
- Bore and stroke: 102 x 118
- Displacement: 3.86 (L)
- Aspiration: Turbocharged
- Cycle: 4-Stroke
- Compression ratio: 17 : 1
- Cooling system: Water- Cooling
- Frequency & engine speed: 50HZ & 1500RPM
- Gross engine power Prime: 48kW
- Fuel consumption @ 100% L/hr 12.6
Alternator Data:
- Make: DEPCO
- Model: DPC224D
- No. of Bearings: 1
- Insulation Class: H
- Ingress protection: IP23
- Excitation system: Shunt
- Voltage: ±1%
Dimensions :
- Length (mm): 2280
- Width (mm): 900
- Height (mm): 1150
- Weight* Kg: 1040
- Fuel tank capacity: 75 (L)
Control Panel:
- Make: Deepsea
- Model: DSE6120
Shipping
Available to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, contact us on +44 2080640335 or info@energian.co.uk for a quote.
UK Expert Support
UK expert support available – contact us with any questions or support requests via phone, email or live chat, or visit our office for an in-person consultation. For safe setup and correct integration with existing electrical systems or solar/hybrid installations, we recommend installation via our trusted partners.
