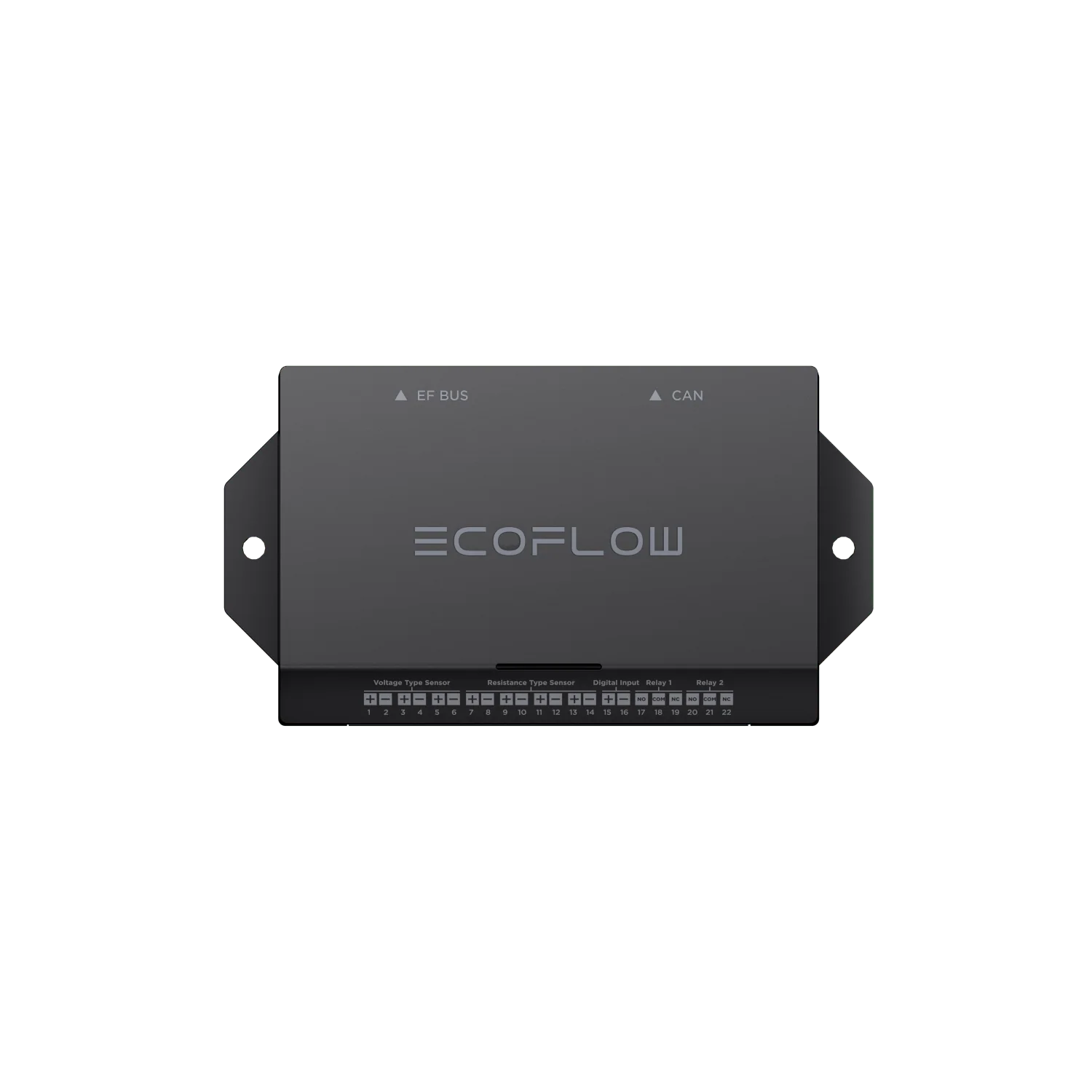

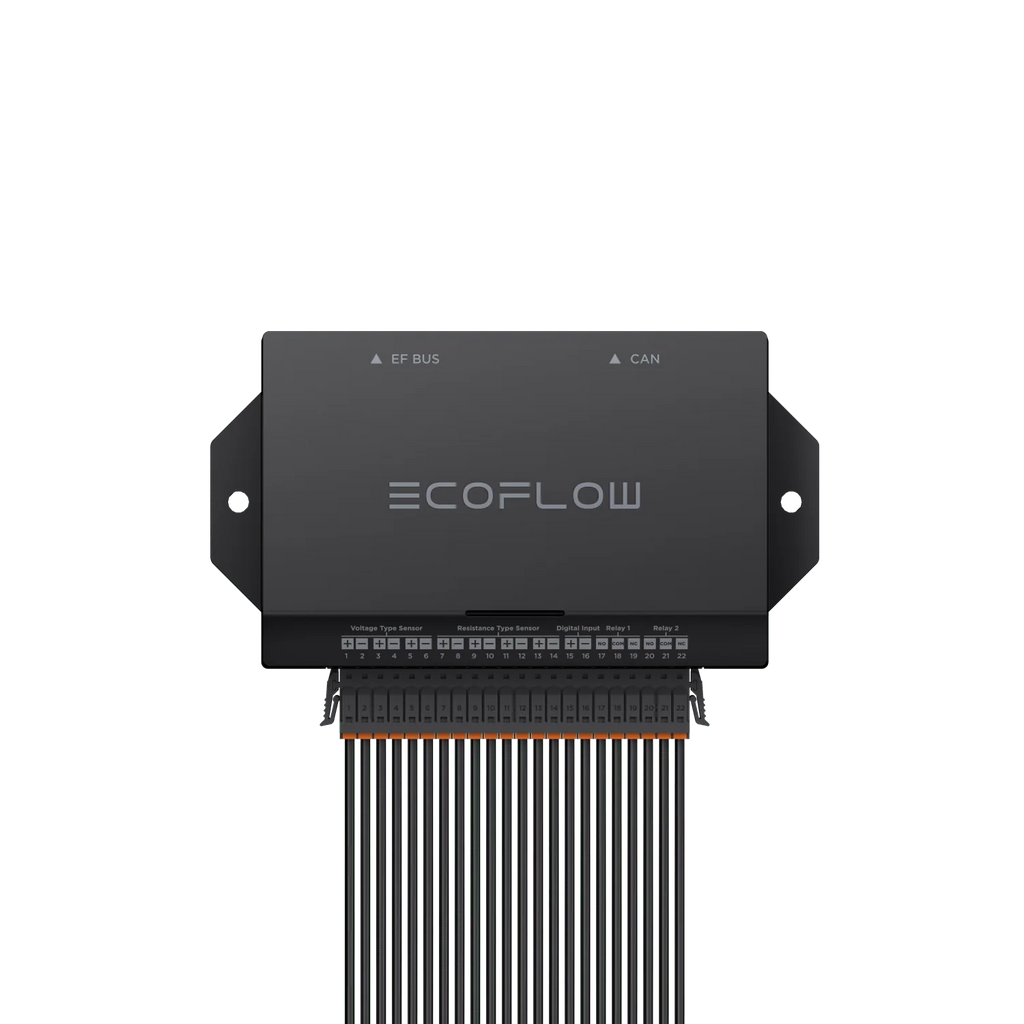

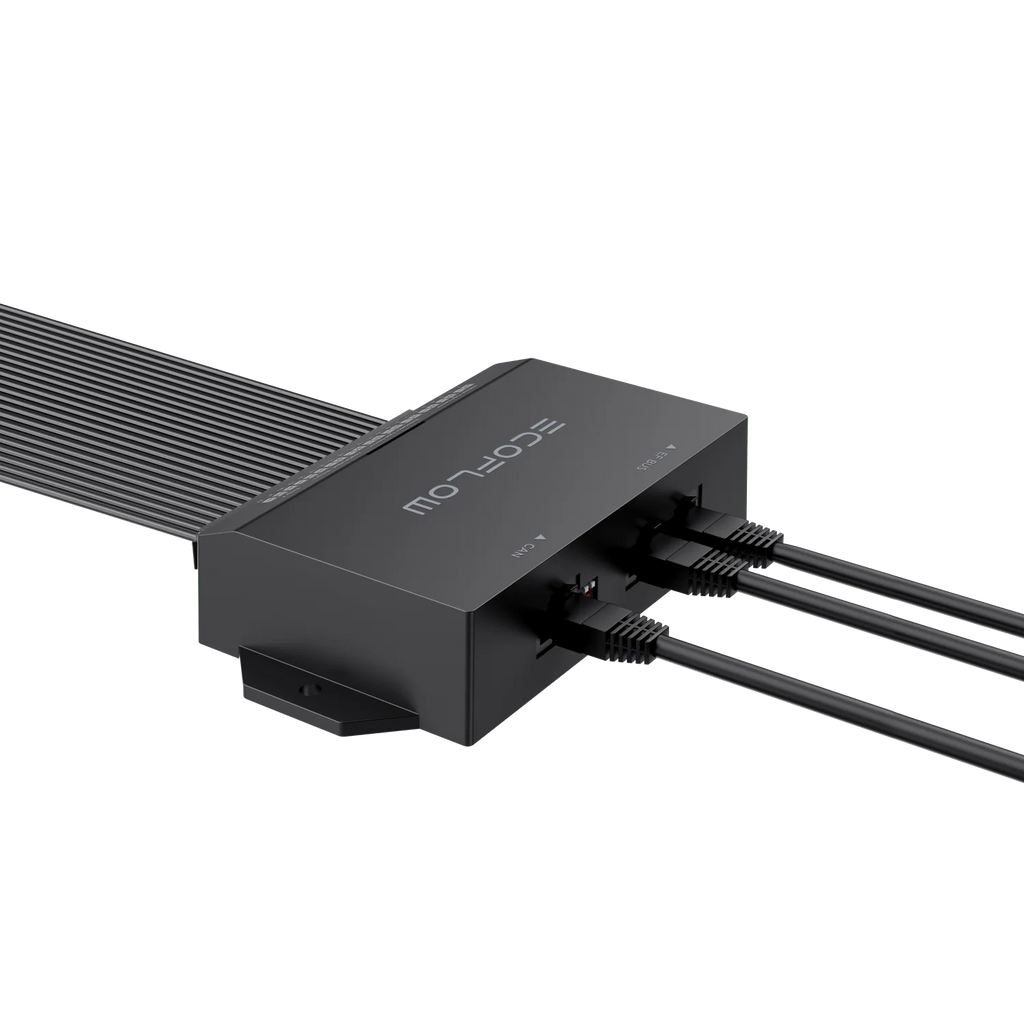

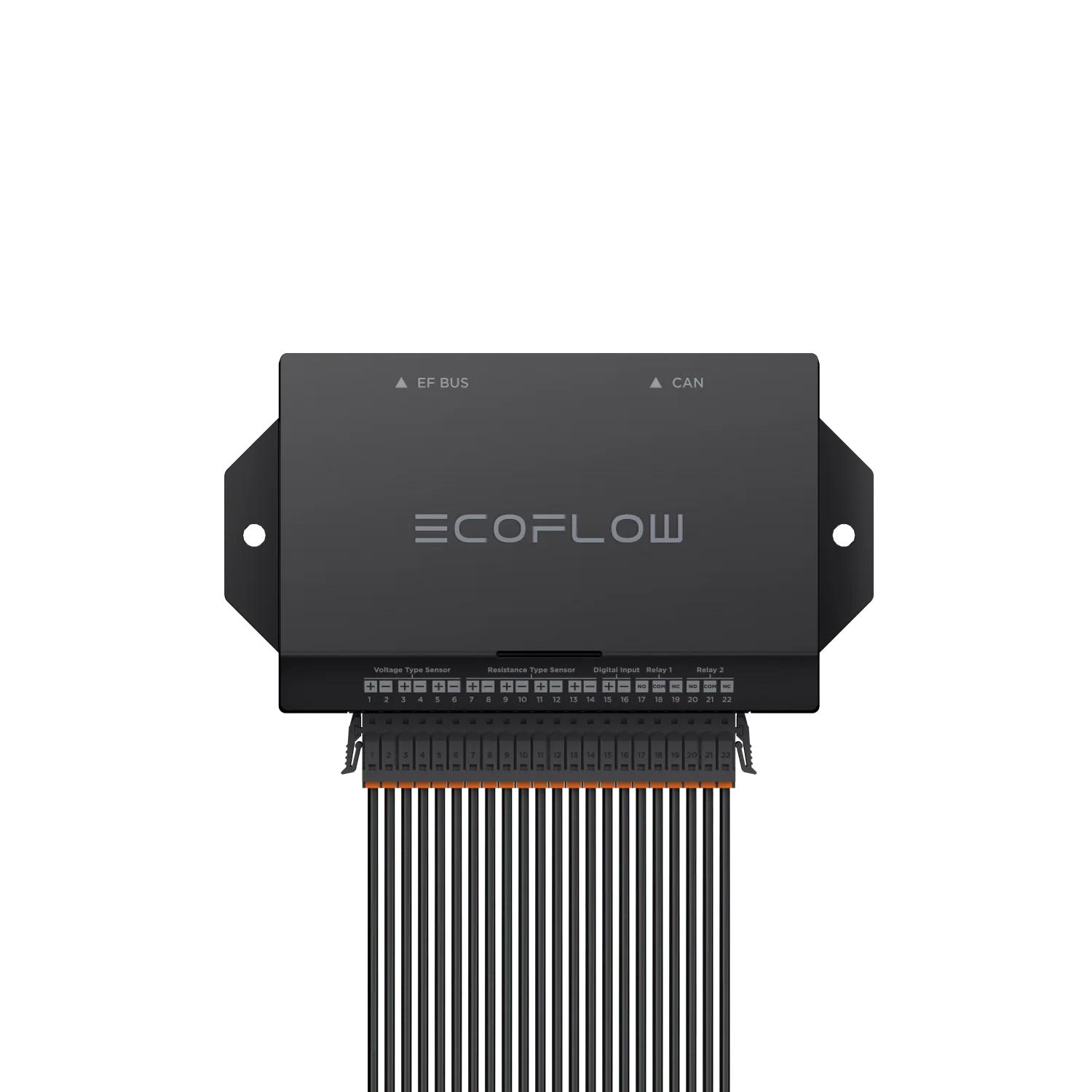

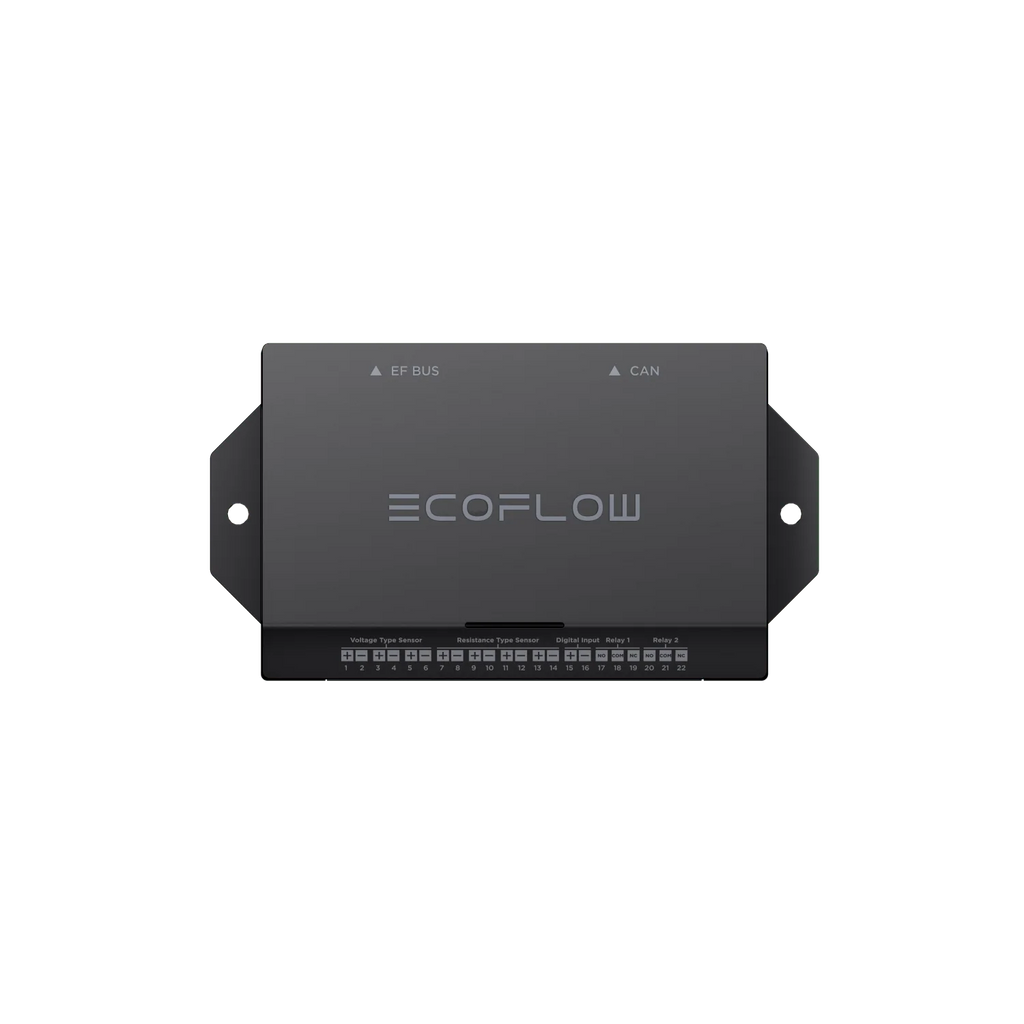

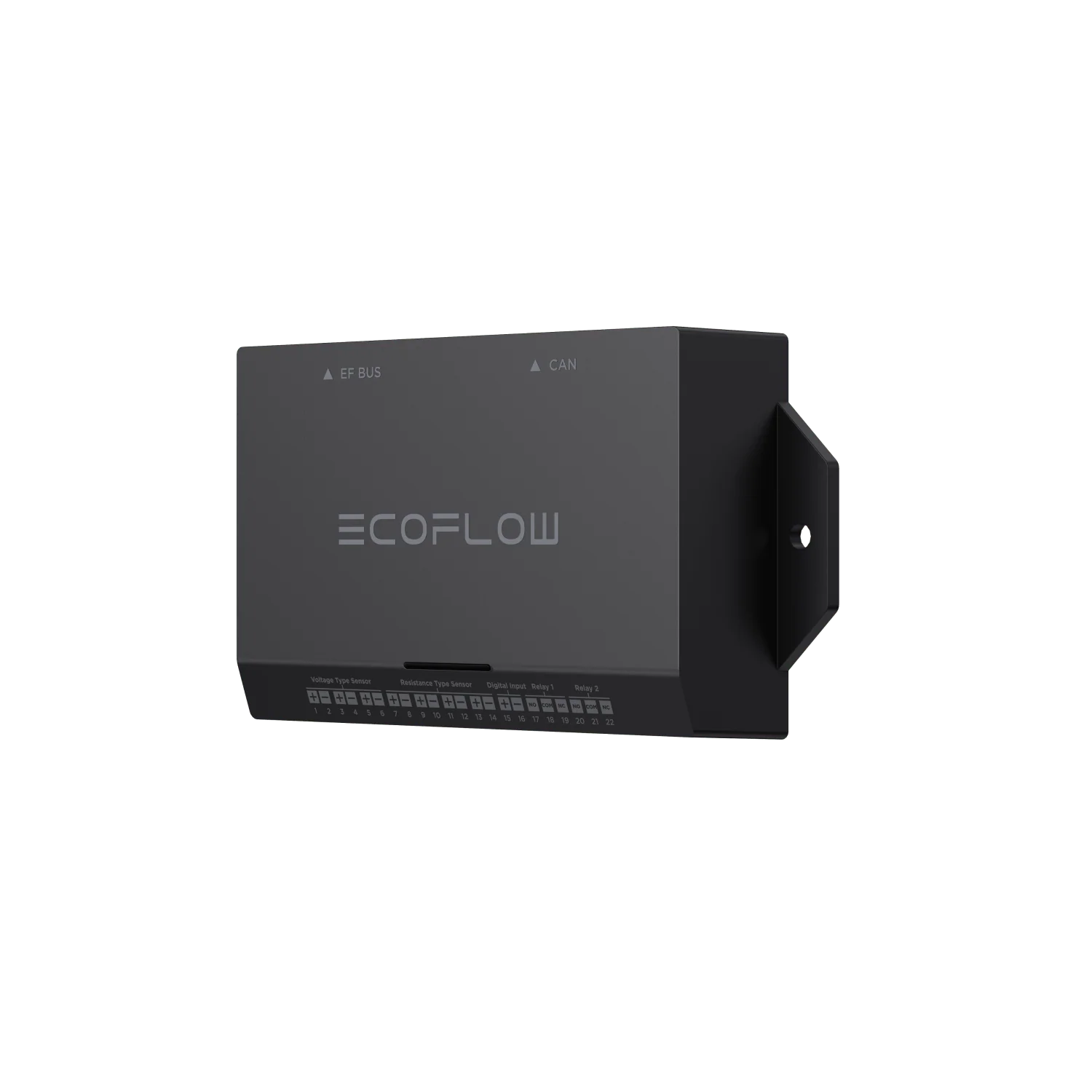

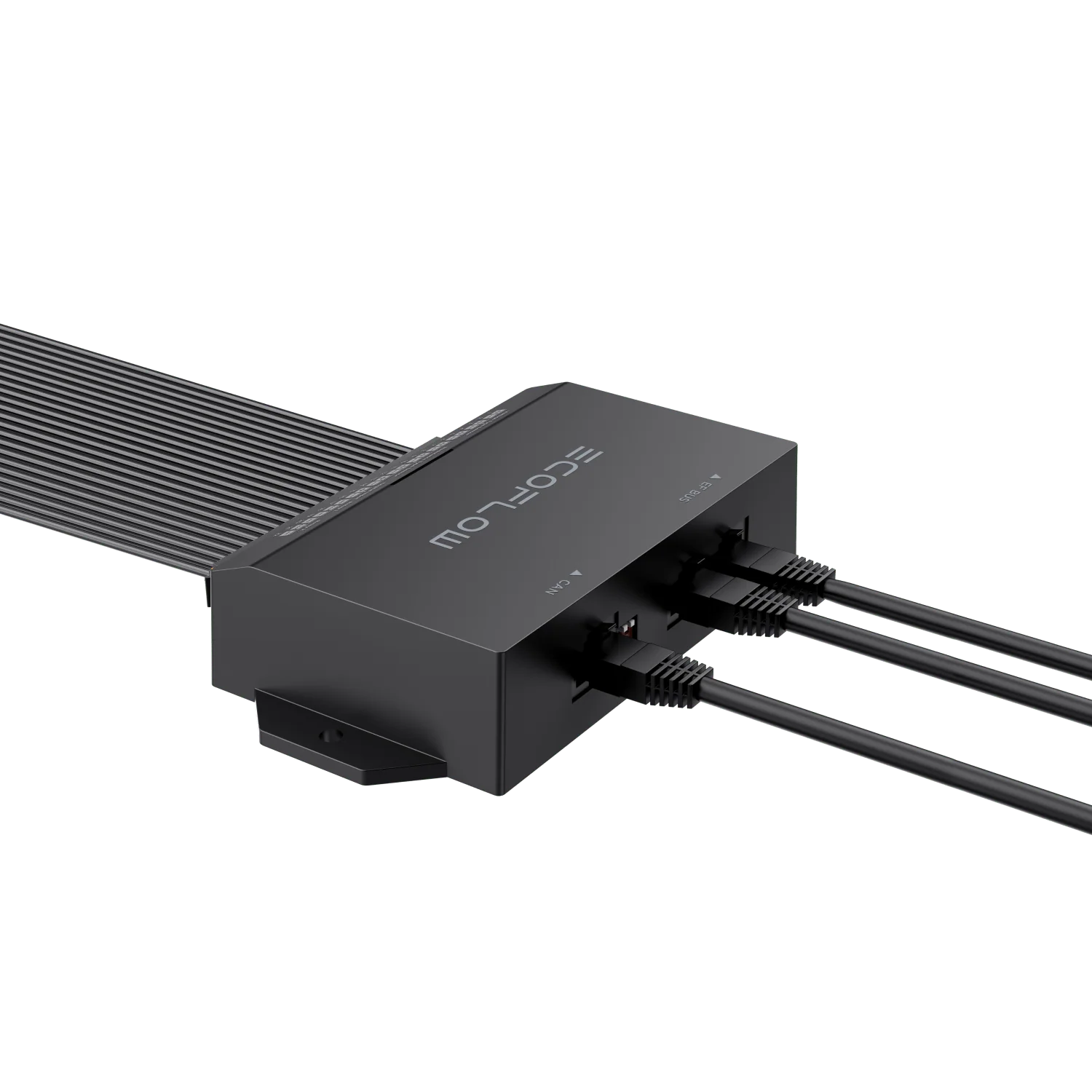

EcoFlow Power Link – Adapter for DELTA Pro Ultra & Smart Home Panel
The EcoFlow Power Link is a plug-and-play adapter that connects the EcoFlow DELTA Pro Ultra to the Smart Home Panel, enabling full home energy backup without rewiring. Designed for the UK market, this compact unit supports seamless integration and intelligent control—ideal for whole-home energy management and off-grid independence.
Key Features
- Plug-and-Play Setup: No rewiring required—connects in minutes
- Compact & Lightweight: Easy to install in tight spaces
- Smart Home Integration: Supports multiple sensor and relay inputs
- Extreme Temperature Ready: Operates from –25℃ to 50℃
- Made for the UK: Optimised for compatibility with the UK Smart Home Panel
Technical Specifications
| Weight | Approx. 120 g (0.26 lb) |
| Dimensions (W×D×H) | 137 × 31 × 74 mm (5.4 × 1.2 × 2.9 in.) |
| EF BUS Input | 12V⎓1.5A Max |
| EF BUS Output | 12V⎓1.33A Max |
| Operating Temperature | –25℃ to 50℃ |
| Storage Temperature | –25℃ to 70℃ |
| Operating Humidity | 0%–95% RH (non-condensing) |
| Altitude Limit | ≤ 3,000 m (9,842 ft) |
| IP Rating | IP20 |
Sensor Inputs
| Voltage Sensor | 3 inputs, 0–35V⎓ |
| Resistance Sensor | 4 inputs, 10Ω–100kΩ |
| Digital Input | 1 input |
| Relay Output | 2 outputs, max 42.4V⎓ / 1.75A |
What’s in the Box
- 1 × EcoFlow Power Link Adapter
- 1 × User Manual
Warranty
12-month UK warranty. Extended coverage available on request.
