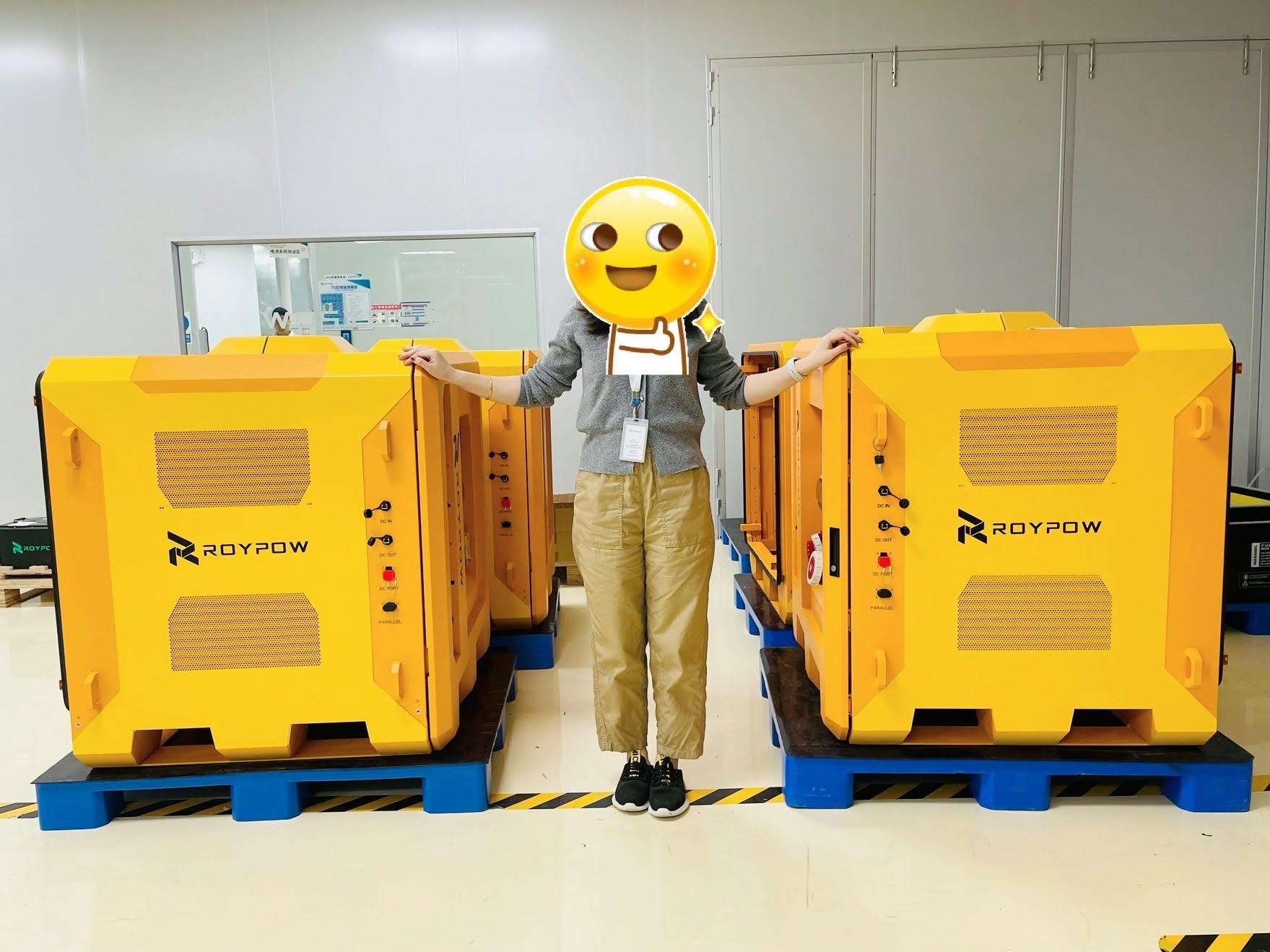

RoyPow PC15KT 15kW 30kWh Mobile Energy Storage System
The RoyPow PC15KT is a 15kW, 30kWh mobile hybrid energy storage system providing clean, quiet and low-maintenance power for construction sites, events, farms and emergency backup. It replaces traditional diesel generators with an all-in-one, wheeled cabinet combining battery storage, hybrid inverter, EMS, protection and connectivity.
Key Features
- 15kW AC output with three-phase 400/380V and single-phase 230/220V outlets for tools, pumps, lighting and temporary site power.

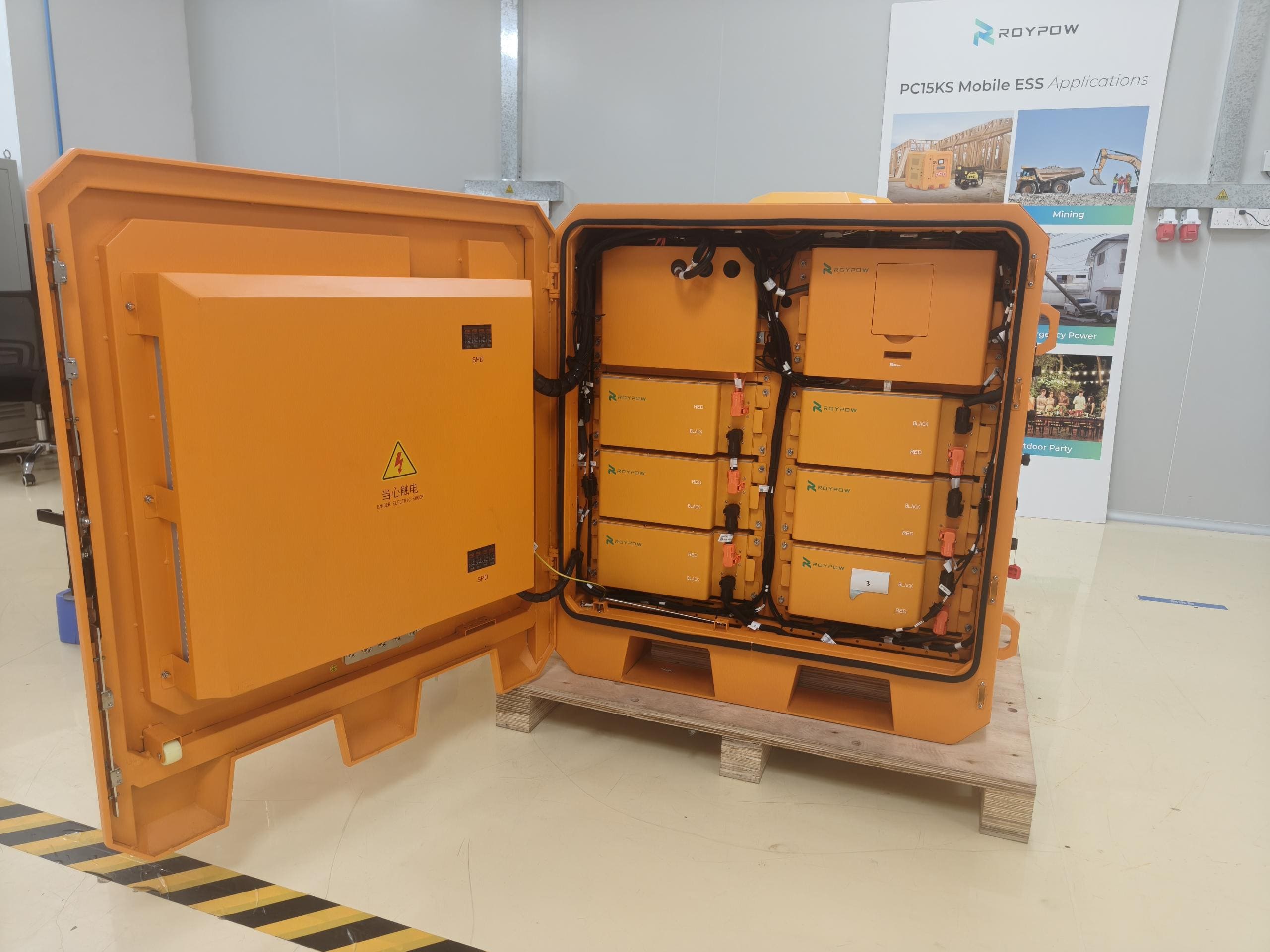

- Integrated 30kWh LiFePO₄ battery with 90% depth of discharge, designed for frequent cycling in mobile and rental applications.
- Flexible charging from grid or generator AC input plus up to 30kW of solar PV via dual MPPTs to reduce diesel runtime.

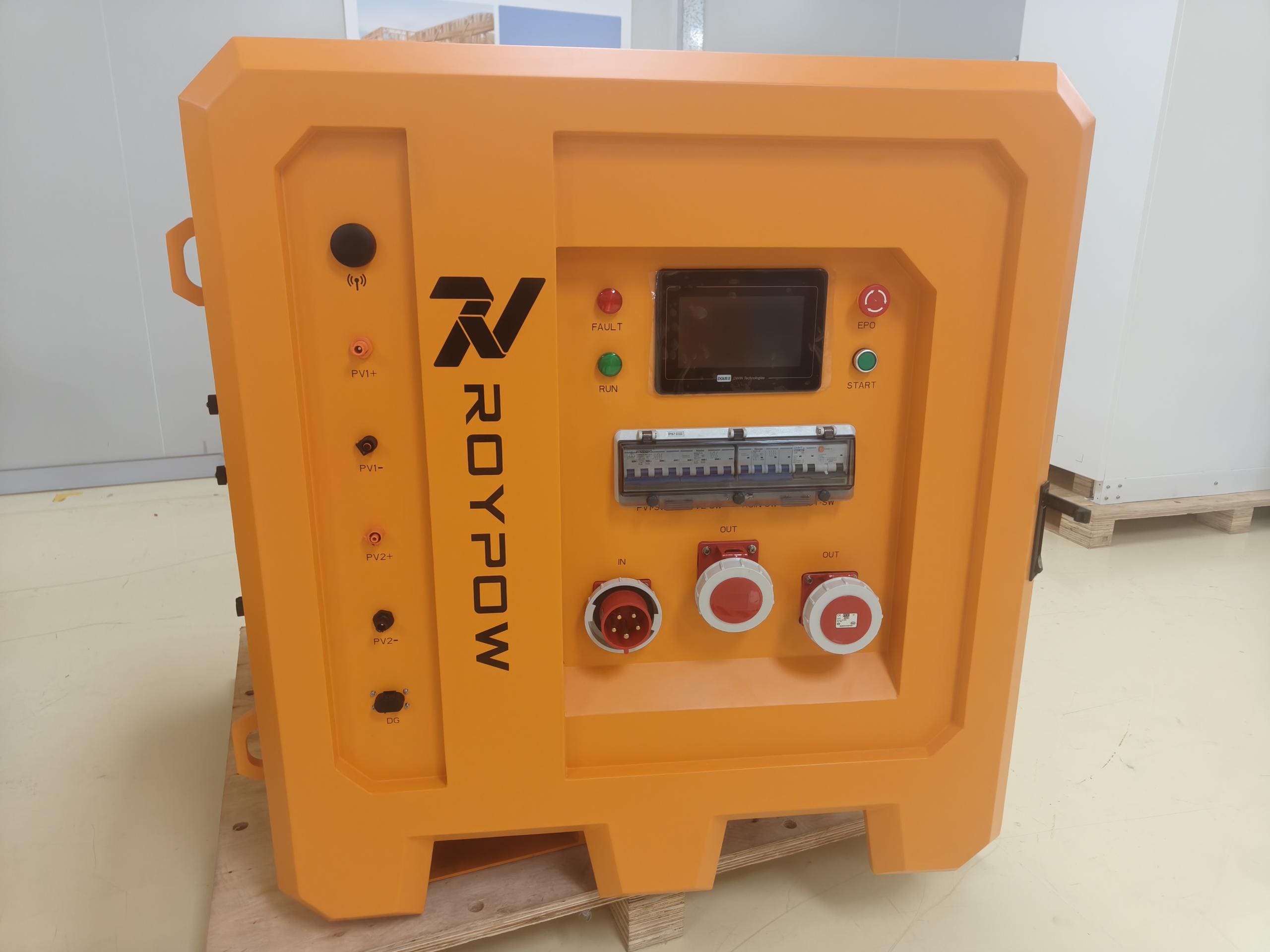

- All-in-one IP54 steel cabinet with natural cooling, forklift handling points and plug-and-play deployment.
- Scalable system design supporting up to six units in parallel for up to 90kW output and approximately 180–198kWh capacity.
- Built-in 4G LTE, GPS tracking and remote monitoring for fleet management and site visibility.
- Supports very high starting currents typical of tower cranes and heavy construction equipment.
Where to Use
Ideal for construction sites, rail and civil engineering projects, temporary site power, outdoor events, farm irrigation systems, ranch water pumps and emergency backup for three-phase loads where quiet, low-emission power is required.
Technical Specifications
| Model | RoyPow PC15KT-E/A |
| Rated AC Output Power | 15kW (up to 90kW with 6 units in parallel) |
| AC Output Voltage | Three-phase 380/400V AC, single-phase 220/230V AC |
| Battery Capacity | 30kWh LiFePO₄, 90% DoD |
| PV Input | Up to 30kW, 2 MPPTs, 160–950V DC |
| AC Charging Input | 15kW three-phase 380/400V AC (single-phase via accessory) |
| Efficiency | Up to 98% PV-to-AC, approx. 94.5% battery-to-AC |
| Noise Level | ≤45dB |
| Ingress Protection | IP54 |
| Dimensions / Weight | Approx. 1040 × 1092 × 1157mm, 450–670kg |
Additional Details
- Optional Bimson Power 12.5kVA Diesel Generator 3 Phase can be connected
- Optional 8800W Solar Array with Relocatable Ground Mounting Systems
- Integrated BMS and EMS with full inverter and battery protection functions.
- Built-in generator dry-contact control for automated start/stop operation.
- GPS positioning, electronic fencing and cloud monitoring for anti-theft and fleet management.
- Operating temperature range −20°C to +50°C with battery pre-heating for cold environments.
- Fire protection via hot aerosol suppression at cell and cabinet level.
Shipping available to the UK, Ireland, Africa, the Caribbean and worldwide. If shipping is not shown at checkout, please contact Energian on +44 2080640335 or info@energian.co.uk for a quotation.
Looking for a complete kit for your project, including solar/generator/batteries/extension units? Contact us for a professional consultation and no-obligation quote.
Documents available for download:
RoyPow PC15KT Mobile Energy Storage System – Specification
