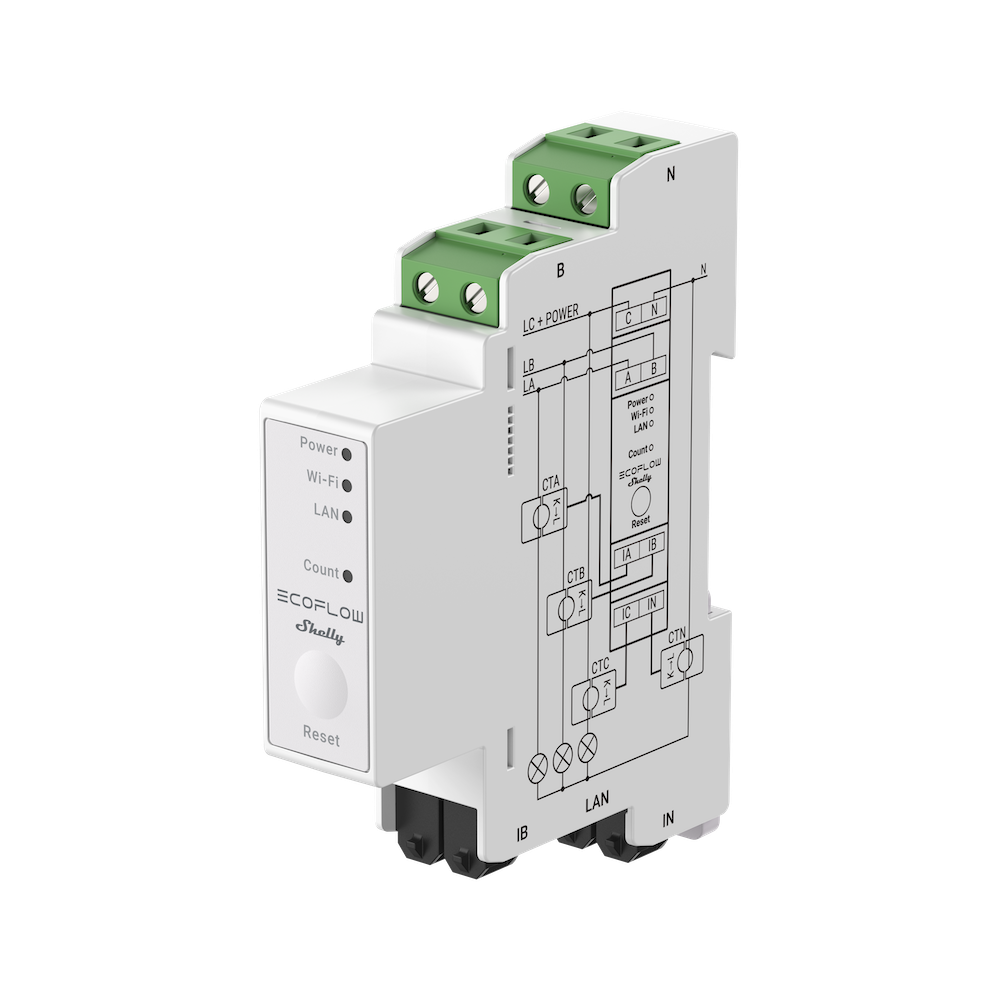

EcoFlow × Shelly Smart Meter
Professional-grade three-phase smart energy meter for real-time whole-home monitoring and efficient energy use with compatible EcoFlow systems.
Overview
The EcoFlow × Shelly Smart Meter integrates Shelly’s advanced three-phase energy measurement technology into your EcoFlow Stream ecosystem. It provides accurate, real-time tracking of electricity usage and generation, giving you full insight into your home’s power flows and helping optimise solar energy use.
Designed for DIN-rail installation in a consumer unit, this smart meter connects over Wi-Fi and Bluetooth for seamless monitoring through the EcoFlow app. Key features
- Three-phase energy measurement with high accuracy.
- Real-time monitoring of consumption, voltage and power factor.
- Wi-Fi and Bluetooth connectivity for remote data access.
- Compact DIN-rail mount design for easy installation.
- Stores at least 60 days of energy data for review.
- Integrates with EcoFlow STREAM systems for smart energy distribution.
Benefits
- Accurate whole-home energy tracking helps reduce waste and optimise self-consumption. :
- Enables smarter solar plus storage control via the EcoFlow OASIS algorithm.
- Compatible with EcoFlow STREAM Ultra, Pro and AC Pro systems.
- Simple installation with standard DIN-rail mounting.
Technical specifications
| Device type | Smart energy meter (three-phase) |
|---|---|
| Connectivity | Wi-Fi & Bluetooth |
| Mounting | DIN rail |
| Measurement storage | At least 60 days data |
| Compatible with | EcoFlow STREAM series solar systems |
Important notes
- Professional or qualified electrician installation recommended.
- Only compatible with EcoFlow STREAM Series solar power systems.
- This product does not include current transformers (CTs) unless specified.
What’s included
- EcoFlow × Shelly Smart Meter
- User manual
- Mounting accessories (where supplied)
Why buy from Energian
- UK-based authorised EcoFlow reseller with genuine products
- Clear pre-sale guidance from real users of the technology
- Fast UK dispatch and reliable after-sales support
Detailed technical specifications
| Physical | |
|---|---|
| Size (H × W × D) | 94 × 19 × 69 mm (±0.5 mm) |
| Weight | 62 g (±1 g) |
| Mounting | DIN rail |
| Shell material | Plastic |
| Colour | White |
| Screw terminal max torque | 0.4 Nm (4.43 lbin) |
| Conductor cross section | 0.5 to 2.5 mm² (20 to 14 AWG, solid, stranded and bootlace lugs) |
| Conductor stripped length | 6 to 7 mm |
| Environmental | |
| Ambient temperature | -20 °C to +40 °C |
| Humidity | 30% to 70% RH |
| Maximum altitude | 2000 m |
| Radio & connectivity | |
| RF band | 2400 – 2495 MHz |
| Maximum RF power | < 20 dBm |
| Wi-Fi protocol | 802.11 b/g/n |
| Wi-Fi range | Up to 30 m indoors, up to 50 m outdoors (depending on conditions) |
| Bluetooth protocol | Bluetooth 4.2 |
| Bluetooth range | Up to 10 m indoors, up to 30 m outdoors (depending on conditions) |
Documents available to download
Installation should be carried out by a qualified electrician in accordance with the UK Wiring Regulations.
