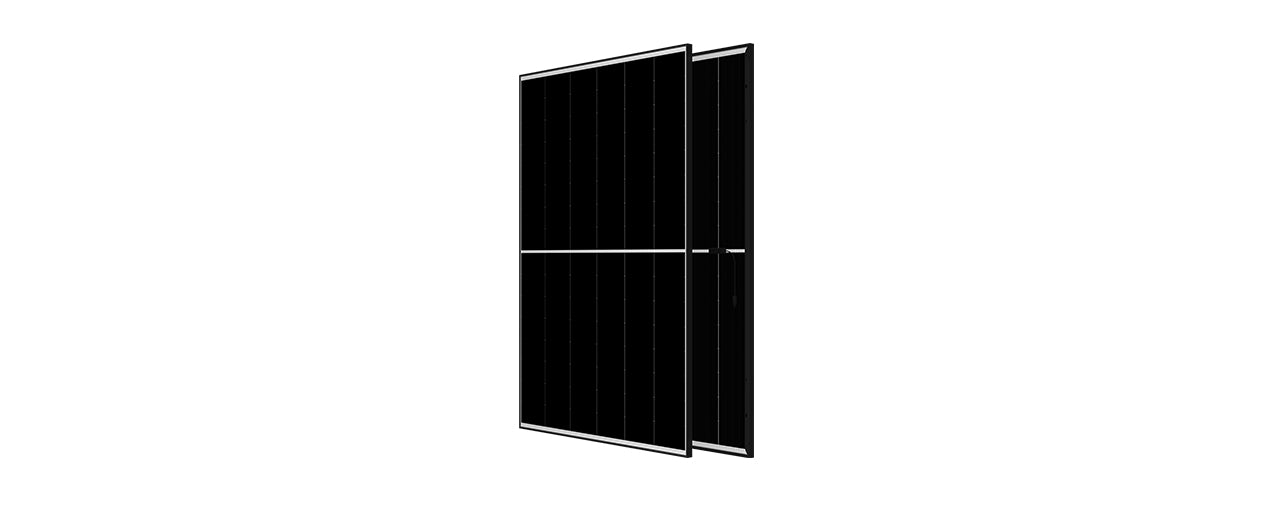

AIKO 490W Neostar 2P+48 N-Type ABC Bifacial Dual-Glass Black Frame Solar Panel
Key Features
- 490W rated front-side output at STC, with 24.5% module efficiency.
- 96-cell N-Type ABC (All Back Contact) design.
- Bifacial dual glass; bifacial factor 80% ±5%.
- ABC back-contact cells keep electrical contacts off the front surface, with cell-level partial shading optimisation.
- Power temperature coefficient of -0.26%/°C.
- IP68 junction box with three bypass diodes; maximum system voltage 1500V DC.
- Manufacturer-rated static test loads: 5400Pa front and 2400Pa rear.
- Product warranty: 15 years, extendable to 25 years subject to manufacturer conditions.
- 30-year linear power performance warranty, subject to manufacturer terms.
Where to Use
Suitable for professionally designed residential and commercial rooftop solar PV systems, agricultural buildings and ground-mounted arrays using compatible mounting equipment. Energian can help check module quantities, mounting compatibility and inverter string design.
Technical Specifications
| Manufacturer | AIKO |
| Product series | Neostar 2P+48 |
| Manufacturer model | AIKO-A490-GRH48Dw |
| SKU | AIKO-A490-GRH48Dw |
| Rated maximum power at STC | 490W |
| Module efficiency at STC | 24.5% |
| Cell technology | N-Type ABC (All Back Contact) |
| Cell count | 96 |
| Module construction | Bifacial dual glass; bifacial factor 80% ±5% |
| Frame finish | Black anodised aluminium frame |
| Dimensions (L × W × D) | 1762 × 1134 × 30 mm |
| Module weight | 24.1 kg |
| Front / rear cover | 2.0 mm coated semi-tempered front glass / 2.0 mm semi-tempered rear glass |
| Voltage at maximum power (Vmp) | 31.35V |
| Current at maximum power (Imp) | 15.63A |
| Open-circuit voltage (Voc) | 35.72V |
| Short-circuit current (Isc) | 16.79A |
| Power tolerance | 0 to +3% |
| Maximum system voltage | 1500V DC |
| Maximum series fuse / overcurrent protection rating | 30A |
| Connectors | Original MC4-EVO2A |
| Junction box | IP68, three bypass diodes |
| Operating temperature | -40°C to +70°C |
| Temperature coefficient of Pmax | -0.26%/°C |
| Temperature coefficient of Voc | -0.22%/°C |
| Temperature coefficient of Isc | +0.05%/°C |
| Maximum static test load (front / rear) | 5400Pa / 2400Pa |
| Protection class | Class II |
| Pallet quantity (information only) | 37 panels; this listing is priced per single panel |
| Product warranty | 15 years, extendable to 25 years subject to manufacturer conditions |
| Performance warranty | 30 years; ≤1% first-year degradation and ≤0.35% annually in years 2–30 |
Additional Details
- Price and quantity refer to one solar panel. Mounting equipment, inverter and installation are supplied separately.
- Solar panels must be installed by a qualified installer in accordance with the manufacturer instructions. Cold-weather open-circuit voltage and input-current limits must be checked against the inverter or controller.
- Rear-side energy gain depends on reflectivity, mounting height, spacing and rear shading. Rated panel wattage is the front-side STC output.
UK delivery available. Contact Energian to confirm delivery charges, lead time and unloading arrangements before ordering.
Documents available for download:
