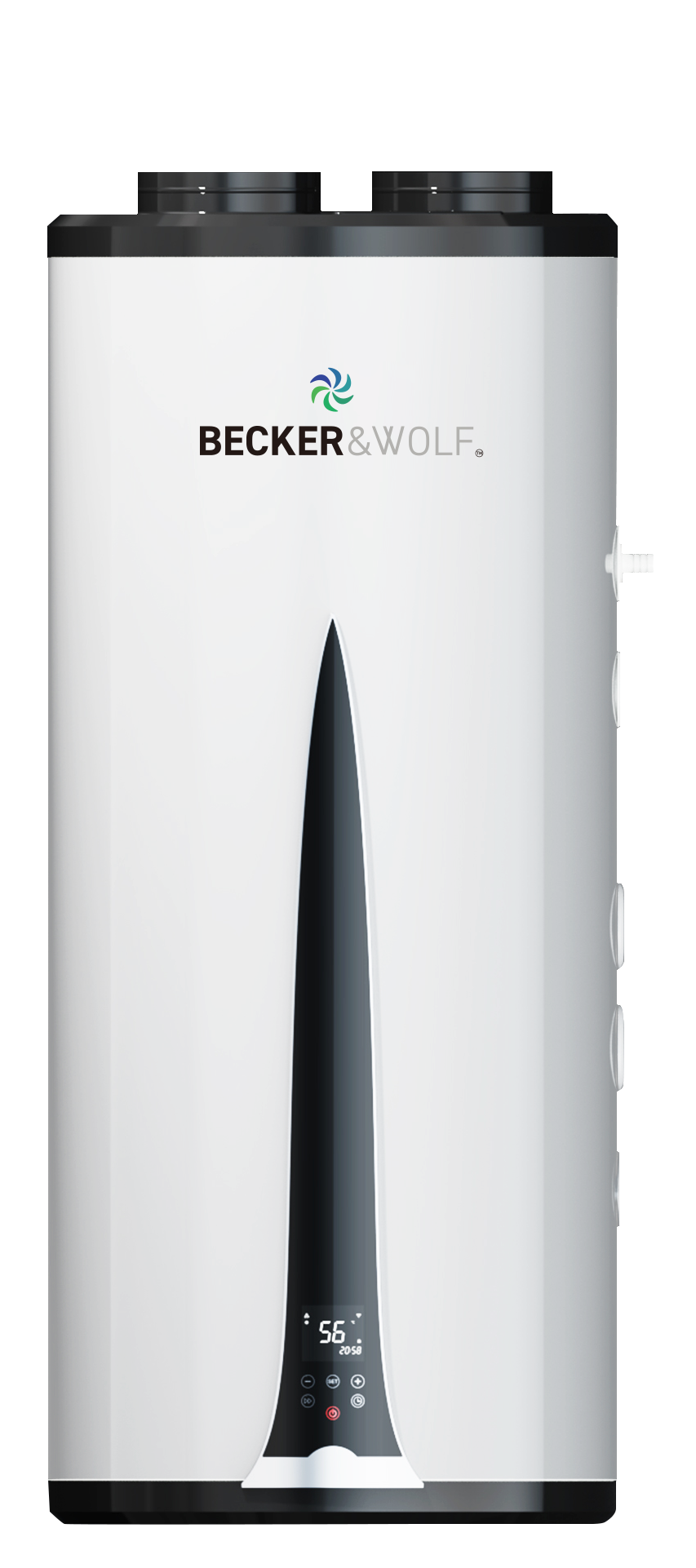

80 L Becker & Wolf Wall‑Mounted Hot‑Water Heat Pump
Model BWHP080WM290 80 L All‑in‑One Cylinder
The BWHP080WM290 is a compact, wall‑mounted hot‑water heat‑pump cylinder designed for small homes and offices. It draws heat from the surrounding air using an energy‑efficient air‑source heat pump and stores it in an 80‑litre tank. Because heat‑pump water heaters move heat rather than create it, they deliver much higher efficiency than conventional electric resistance water heaters or gas boilers.
Attention: vacuuming and refrigerant filling must be carried out by a licensed technician
Key specifications
| Specification | Details |
|---|---|
| Model number | BWHP080WM290 |
| Product name | Becker & Wolf Wall80EU |
| Power supply | 220–240 V / 1 phase / 50 Hz |
| Position | Wall‑mounted vertical |
| Rated heating capacity (kW) | 0.95 kW |
| Refrigerant | R290 (propane) |
| Wi‑Fi connected | Yes |
| Tapping cycle | M |
| Energy efficiency class | A+ |
| Energy efficiency (nWh %) | 118.3 % |
| COP EN 16147 | 2.787 |
| COP (non EN rated) | 4.32 |
| Tank capacity | 80 L |
| Air flow (m³ h⁻¹) | 450 |
| Air discharge | Vertical |
| Air duct diameter | N/A (no duct) |
| Auxiliary electric heater | 2 kW |
| Default water temperature | 55 °C |
| Working temperature range | –7 °C to +43 °C |
| Unpacked dimensions (L × W × H) | Φ468 × 1222 mm |
| Packed dimensions (L × W × H) | 580 × 580 × 1245 mm |
| Net weight | 48 kg |
| Gross weight | 53 kg |
| Noise level | 48 dB(A) |
| Rated hot‑water production | 20 L / h |
| Rated power input | 220 W |
| Rated current input | 0.98 A |
| Power input (max) | 2,300 W |
| Current input (max) | 10.2 A |
| CO₂ equivalent | 0.00045 t |
| Maximum allowable pressure | 3 MPa |
| IP class | IPX1 |
| Water piping connections | DN 15 |
| Rated working pressure of tank | 0.8 MPa |
Why choose this heat‑pump cylinder?
- Reduce energy use. Traditional tankless‑coil boilers must stay hot to deliver hot water; in summer they cycle on and off and waste energy. Heat‑pump water heaters transfer heat instead of generating it and deliver much higher efficiency.
- Lower running costs. Heat‑pump water heater systems may cost more up front, but their lower operating costs generally offset the higher purchase price. The BWHP080WM290 draws just 220 W while producing nearly a kilowatt of heat.
- Eco‑friendly refrigerant. Uses R290 refrigerant with a very low environmental impact and harnesses renewable energy from the air to reduce reliance on fossil fuels.
- All‑season hot water without firing the boiler. Maintain hot water throughout the year without keeping a gas or oil boiler running during warm months, cutting fuel consumption and avoiding wasted energy.
- Quick delivery from stock. The 80 L cylinder is readily available for fast dispatch, helping you upgrade without delay.
- Expert UK support. Becker & Wolf’s UK‑based team offers knowledgeable advice before purchase and technical support after installation.
- Mobile showroom. Interested in seeing the technology in person? Qualifying customers can arrange for Becker & Wolf’s mobile showroom to visit their site or office for a hands‑on demonstration.
Documents available for download:
Becker & Wolf Wall mounted 80L Hot Water Heat pump Cylinder Datasheet
