Maximize Efficiency and Cut Costs with SolarTerrace Eco Pre-Assembled Solar Ground Mounts

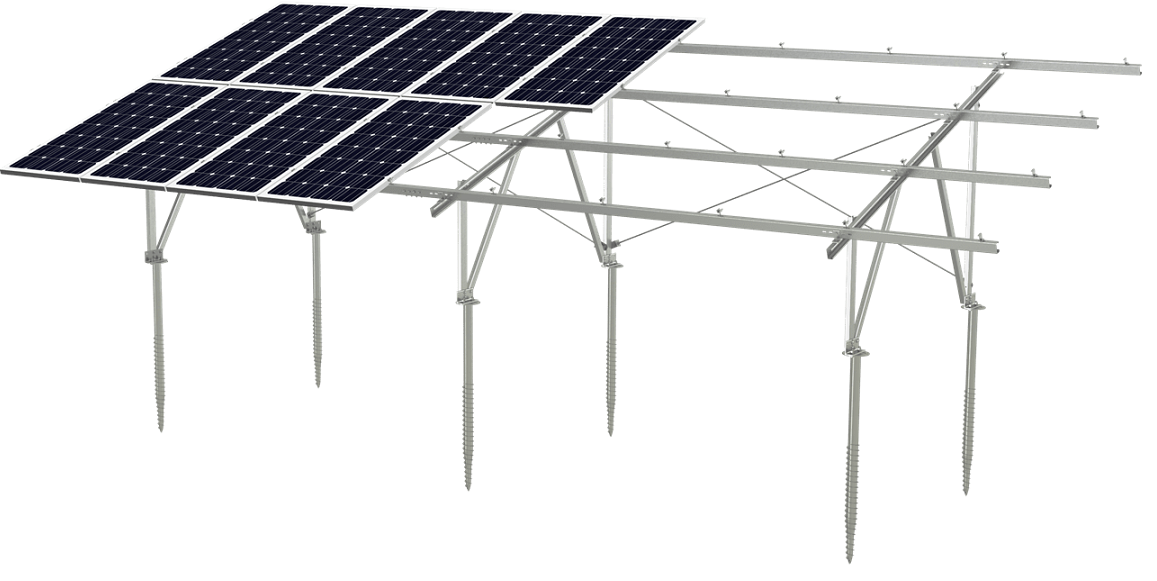

Clenergy PVezRack® SolarTerrace Eco (ST Eco) is a highly pre-assembled ground mounting system, suitable for domestic, commercial and utility-scale PV installations. Innovative module channel rails are very convenient and helpful to improve the installation accuracy. Using high quality components, ST Eco saves labour time and cost, especially delivering large scale projects.
Features:
-
Excellent Corrosion Resistance: Using anodized aluminium and SUS304 stainless steel, the system performs well even in the most corrosive environments, such as coastal areas.
- Easy and Fast Installation: The support legs of Solar Terrace™ Eco are completely pre-assembled which only need to be opened up and secured to the foundation. They even have the positioning rail clamps pre-installed, so you don’t need measure and mark rail positions anymore.
- Cost Effective: The newly designed rail for Solar Terrace™ Eco adopts an innovative structure and has three sizes. Combined with three types of support, ST Eco offers more options for more specific requirements. With better designed system, less structure is required which means less financial costs.
- Versatility: With modular design, such as A-shaped support, N-shaped support, W-shaped support, TM-Rail and TW rail, ST Eco can be compatible with different regions where the wind and snow load vary.
- Warranty: 12 years
Specifications:
-
Maximum PV module size: 2400mm (L) x 1300mm (W) x 30-35mm (H).
-
PV module orientation: Portrait and landscape.
-
Wind speed: Up to 30 m/s (BS EN 1991-1-4-2005 and BS EN 1991-1-3-2003).
-
Angle of Installation: 30 degrees.
-
Foundation: Ground screw Ø76 x 3.5 x 1600mm, with Circular flange (D200) and Continuous Small blade.
-
Land slope: Up to 30° in East-west direction, no limitation in South-north direction.
-
Material: Main Structure: Aluminium AL6005-T5; Ground Screw: HDG Steel; Fasteners: Stainless steel SUS 304.
-
Kit content: Complete set of components including foundation ground screws 1600mm in length.
- Lifetime: 25-year product warranty in the European Union and UK
Below are some ready-to-use Clanergy Solar Grounds Mounting Kits. Need a custom designed system? Just get in touch via 020 8064 0335, WhatsApp 07418 607250, or email us at info@energian.co.uk or use the live chat for a free, no obligation personalised quote.
