Unlocking Solar Potential: Fastensol Ground & Flat Roof Landscape Solar Mounting Trays

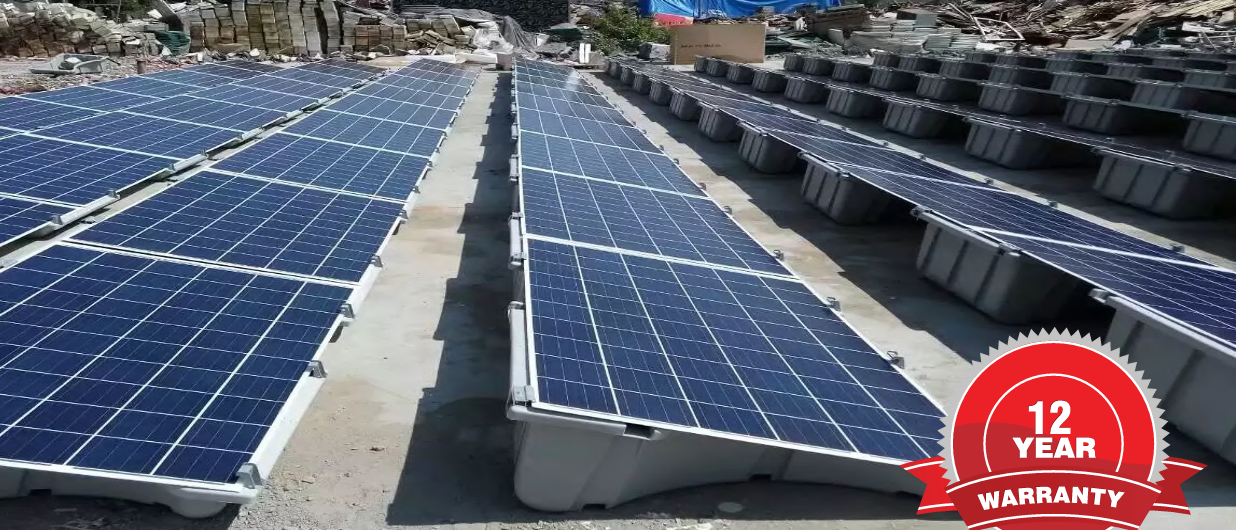

Experience simplicity, speed, and safety of the Fastensol Solar Mounting Trays — an optimal solution for ground-mounted or flat roof standard PV modules up to 2000mm in length and 1100-1134mm in width with landscape orientation.
Features:
- Easy and flexible position planning: Customise the placement of your solar panels effortlessly.
- Fast installation: Save time with quick and easy setup.
- Suitable for any flat surface: Versatile design for use on flat roofs or the ground.
- Without damaging any surface: Protect your property while enjoying the benefits of solar energy.
- Unlimited expansion: Scale your solar installation to meet your energy needs.
Specifications:
-
Suitable for Solar Panels: Up to 2000mm (L) x 1100-1134mm (W) x 30mm (H) in landscape orientation
-
Material: HDPE (High-Density Polyethylene)
- Angle of Installation: 18 degrees
- Filler Material: Ballast
-
Weight of Ballast: Depends on maximum wind speed in the area of installation (see UK wind map below) - 50kg if max. wind speed is 22m/sec; 60kg if max. wind speed is 24m/sec; 70kg if max. wind speed is 26m/sec; 80kg if max. wind speed is 28m/sec; and 92kg if max. wind speed is 30m/sec
-

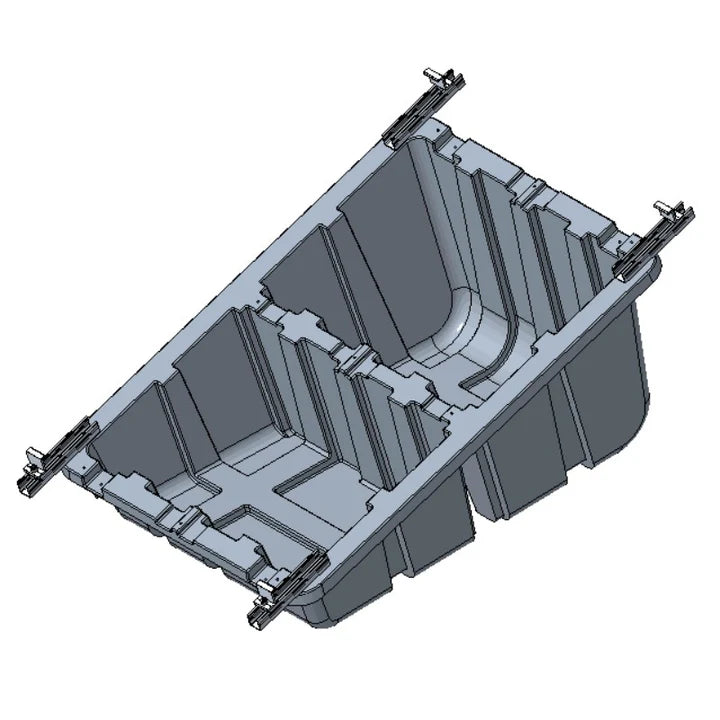

Content: 1 x Plastic tray, 4 x 140mm Mini Rail, 4 x Black End Clamp 30mm, 4 x Screws
- Lifetime: 25 years
- Dimensions: 1054 × 695 x 507 mm
- Net Weight: 7.5 kg
Installation:
- Put the Plastic Tray(s) on the ground with gravels or stones (the weight should be 60-100kg per Tray)
- Fix 4 pcs 140mm Mini Rails on the side of plastic trays by 8pcs 6.3*25 stepping screw
- Place a solar panel in landscape on the Tray and fasten the aluminium End Clamps to install the solar panel.
Upgrade your solar panel setup today with Fastensol Solar Ballast Mounting Trays.
