All in One SolarEast Off-grid Hybrid Energy Storage System 6.0W Inverter, 10/15/20kWh Battery, and (optionally) 6.3kW Solar Panels and 6.0kW Diesel Generator
By SolarEast
Optimise Your Electricity Costs with All in One SolarEast 6.0kW & 10/15/20kWh Off-grid Hybrid Energy Storage System
Reduce your electricity costs sustainably! SolarEast Off-grid Hybrid Energy Storage System with 10-20kWh storage capacity (ESS) optimises your own consumption and reduces your electricity bill.
The SolarEast 6.0kW Solar Kit has a variety of applications, including glamping sites, campsites, rural and remote homes and businesses, eco villages, farms, mobile dwellings, storage containers not connected to the grid.
Your advantages with the SolarEast OFF-GRID HYBRID ESS:
- Off-Grid Living: Supports glamping and camping sites, remote or rural homes and businesses, eco villages without grid access by integrating with solar/wind systems, offering autonomous 24/7 energy supply.
- Generator connection: The ESS supports integration with a generator through a dedicated generator port which is rated for AC input (typically 230VAC, 100A fuse protection). This power allows the generator feed power directly into the ESS system.
-
Flexibility: With the option to connect multiple units, you can
scale your energy storage capacity as your needs grow.
-
Touch-safe: No messy wires, no hot parts, and no clutter.
The All-in-One is touch-safe for the whole family. -
Modular, Easy Installation & Capacity Expansion: Robust but light. With its modular design, the All-in-One is built with easy handling and fitting in mind. Plug & Play modular design; Save 50% installation time; Save 50% installation space.
- Long-lasting & High Safety: We use high-capacity, energy-dense cell chemistry that increases the life of your product. 3-level (cell-pack-system) protection; AFCI standard; Overload capacity 150% for 10mins; IP65 outdoor design.
- Weather-proof: IP65 protection, water resistant, installable indoors or outdoors, and durable enough to function between -25-55°C.
Invest in your Energy independence!
Unlock the potential of home energy storage systems, enabling you to use generated electricity precisely when needed. Charge the battery pack with renewable energy from 14x DMEGC 450W N-Type Double Glass Bifacial Black Frame MC4 solar photovoltaic (PV) panels. The renewable energy generated during the day can be stored, ensuring a sustainable power source for evening activities like boiling the kettle or powering electronic devices.
Tailor the ESS to your unique needs, considering current energy usage, the size of existing generation technologies, and plans such as acquiring an electric vehicle (EV) or implementing a heat pump for home heating. Empower your energy future with the ESS.
Pay zero VAT, save money and time, when you order an installation via one of our trusted partners! Click here to enquire today.
Are you an installer? This product is designed for quick installation. Delight your customers and grow your business - call 020 8064 0335 to become an authorised partner today.
- SolarEast Ares 6KAL 6.0kW 1PH OFF-GRID HYBRID INVERTER is designed to be used as part of the SolarEast Off-grid Hybrid All in One ESS alongside the PowerCool-LFP-VLV5000 battery and battery management unit to ensure you have everything you need to make the most of the power captured by your solar installation.
- SolarEast Ares 6KAL 6.0kW 1PH OFF-GRID HYBRID INVERTER UNINTERRUPTED POWER SUPPLY Back-up functionality with switchover time under 10ms (UPS level).
-
SolarEast Ares 6KAL 6.0kW OFF-GRID HYBRID INVERTER WORKING MODES The SolarEast 6.0kW inverter features several configurable working modes to optimise energy management. These modes include:
- Self-Use Mode: The energy produced by the PV system is used to supply self-consumption needs. The excess energy is used to recharge the batteries, any remaining excess is then exported to the grid. Energy flow: PV → Load → Battery → Grid.
- Selling-First Mode: The Selling First mode is suitable for the regions with high feed-in tariff. Focuses on feeding excess solar energy into the grid while minimising self-consumption. Energy flow: PV → Load → Grid → Battery.
- Time-of-Use Mode: The Time of Use mode is designed to reward customers who do their part to reduce demand on the electric grid, particularly during peak usage periods. Use most of your electricity from PV energy and during off-peak time periods, and you could significantly lower your monthly bill. Two Charge Setting Sub-modes: PV Charge Mode Energy flow: PV → Battery → Load → Grid; AC Charge Mode Energy flow: PV and Grid → Battery → Load.
- Manual Backup Mode: When the grid fails, the system will automatically switch to Back-Up mode. The back-up loads can be supplied by both PV and battery energy. Energy flow: PV and Battery → Load
- SolarEast PowerCool-LFP-VLV 5.12kWh LONG LIFE LIFEPO4 HIGH-EFFICIENCY STORAGE BATTERY has a 5 years product warranty (95% Depth of Discharge); Storage capacity is expandable to 20.48kWh (4 modules in one stack); Easy plug & play installation.
- (Optional) DMEGC 450W N-TYPE DOUBLE GLASS BIFACIAL BLACK FRAME MC4 is a solar power source which captures up to 4.5W DC electricity (2x5 panels strings) to use immediately in the home or a business, store excess energy in the battery or feed into the National Grid
- (Optional) Könner & Söhnen KS 9100HDE-1/3 ATSR (EURO 5) DIESEL GENERATOR is a compact yet powerful portable inverter generator from German Könner & Söhnen. Providing a convenient and cost-effective source of power, this portable generator is perfect for providing power whilst camping or in a caravan away from mains power.
4-5 WORKING DAYS DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).
SOLAREAST ARES 6KAL 6kW 1PH OFF-GRID HYBRID INVERTER
AC LOAD OUTPUT (BACK-UP)

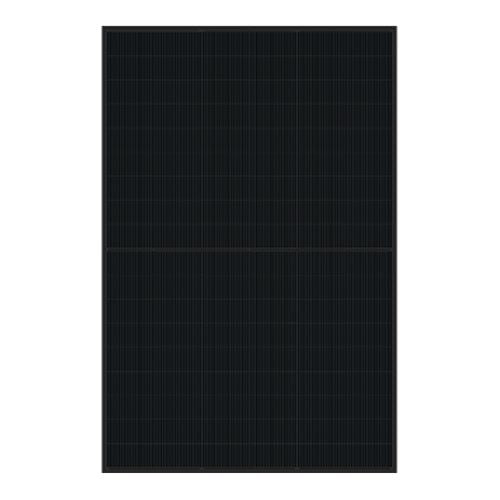

DMEGC 450W N-TYPE DOUBLE GLASS BIFACIAL BLACK FRAME MC4 SOLAR PANEL
| SOLAR INPUT |
| Max. Solar Power (Wp): 9.0kW |
| Max. Input Voltage: 550V |
| Operating Voltage: 360V |
| Start-up Voltage: 100V |
| MPPT Voltage Range: 80-500V |
| MPPT Number of MPPT Trackers: 2 |
| Number of PV Strings per MPPT Tracker: 2 |
| Max. Input Current per MPPT: 18.5A |
| Max. Short Circuit Current per MPPT: 26A |
| AC GRID |
| Max. continuous AC power: 6000VA |
| Max. continuous AC current: 28A |
| Nominal Grid Current: 27.3A / 26.1A |
| Nominal Grid Voltage: 198 to 242 @ 220V / 207 to 253 @ 230 V |
| Rated grid frequency: 50/60Hz |
| Power factor: ~1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Current THD: <3% |
| Max. continuous AC current: 28A |
| Max. continuous AC power: 6000VA |
| Max. Peak Current (10 min): 41.0A / 39.2A |
| Max. Peak Power (10 min): 9.0kVA |
| Switchover Time: <10ms |
| Total Harmonic Distortion (THDv, Linear Load): <3% |
| EFFICIENCY |
| Max. Efficiency / EU Efficiency: 98.1% / 98.1% |
| Rated Battery Charge / Discharge Efficiency: 98.1% / 96.8% |
| GENERAL DATA |

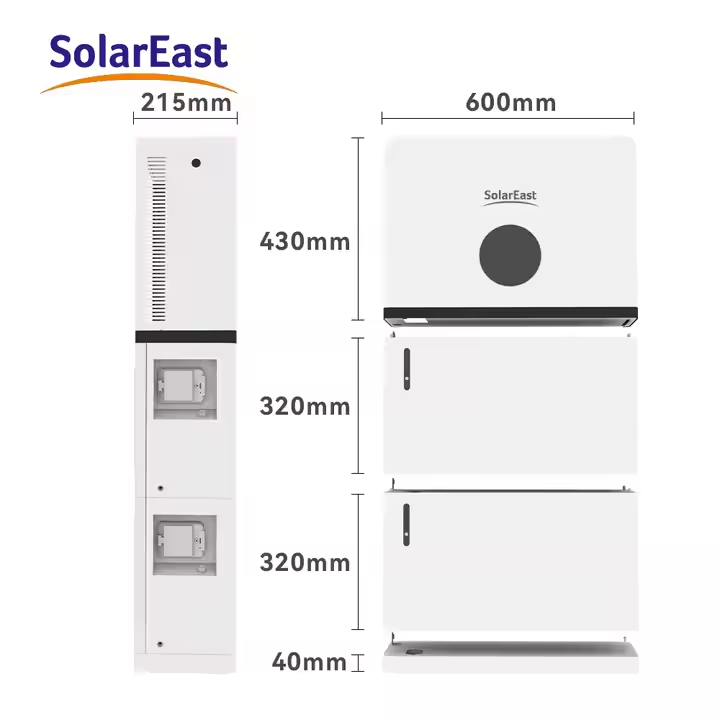

| Dimensions (W/H/D): 600*430*210mm |
| Weight: 25kg |
| Operating Temperature Range: -25 ~ +60°C |
| Ingress Protection: IP65 |
| Cooling: Natural Convection |
| SolarEast PowerCool-LFP-VLV 5.12kWh BATTERY |
| Nominal voltage: 51.2Vdc |
| Battery Voltage Range: 44.8 - 57.6Vdc |
| Communication Interfaces: CAN |
| Battery Module: PowerCool-LFP-VLV |
| Battery Type: LiFePO4 (LFP) |
| Nominal Capacity: 5.12kWh |
| Usable Energy: 4.86kWh |
| Max. Charge / Discharge Current: 50A |
| Cycle Life [Cycles]: >6000 |
| Warranty: 5 years + 5 years (payable) |
| Dimensions (L × W × H) / Weight: 600 × 315 × 360mm / 50kg |
| Rated (peak) power (Wp): 450W under standard test conditions (1000 W/m²) |
| Open circuit voltage (Voc): 40.25V (Vmp = 33.91V) |
| Short circuit current (Isc): 14.17A (Imp = 13.27A) |
| Efficiency: 22.5% |
| Cell type: N-Type Mono-crystalline (bifacial) |
| Connector type: MC4-EVO2A |
| Certification: IEC 61215 / IEC 61730 / IEC TS 63209 / IEC TS 63342 / TÜV Rheinland |
| Net weight: 24.5KG |
| Size: 1762 x 1134 x 30 mm |

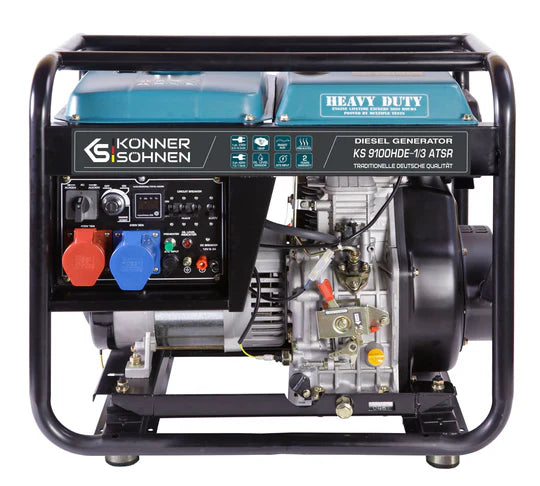

| Könner & Söhnen KS 9100HDE-1/3 ATSR (EURO 5) DIESEL GENERATOR |
| Maximum power: 6500W 6.5kW |
| Continuous power: 6000W 6.0kW |
| Fuel consumption @ 50% load: 1.0L/hr |
| Engine model: KS-520HD-V |
| Engine type: Diesel powered one cylinder, 4-Stroke Air-Cooled |
| Engine size: 498cm3 |
| Max power output: 18hp |
| Power output controller: Intelligent voltage stabilisation system AVR |
| Engine start: Manual / Electric |
| Fuel: Diesel fuel |
| Fuel capacity: 11L |
| Engine oil: 10w40 / 15w40 |
| Noise level @ 7m: 71db(A) |
| Net weight: 122kg |
| Fully assembled dimensions (H x W x L): 630 x 495 x 730mm |
- 1 x SolarEast 6.0kW off-grid hybrid inverter, integrated with
- 2x, 3x or 4x SolarEast PowerCool-LFP-VLV 5.12kWh battery,
- (Optional) 14x DMEGC 450W N-Type Double Glass Bifacial Black Frame MC4 Solar Panels, Efficiency = 22.5%., and
- (Optional) Könner & Söhnen KS 9100HDE-1/3 ATSR (EURO 5) Diesel Generator.
