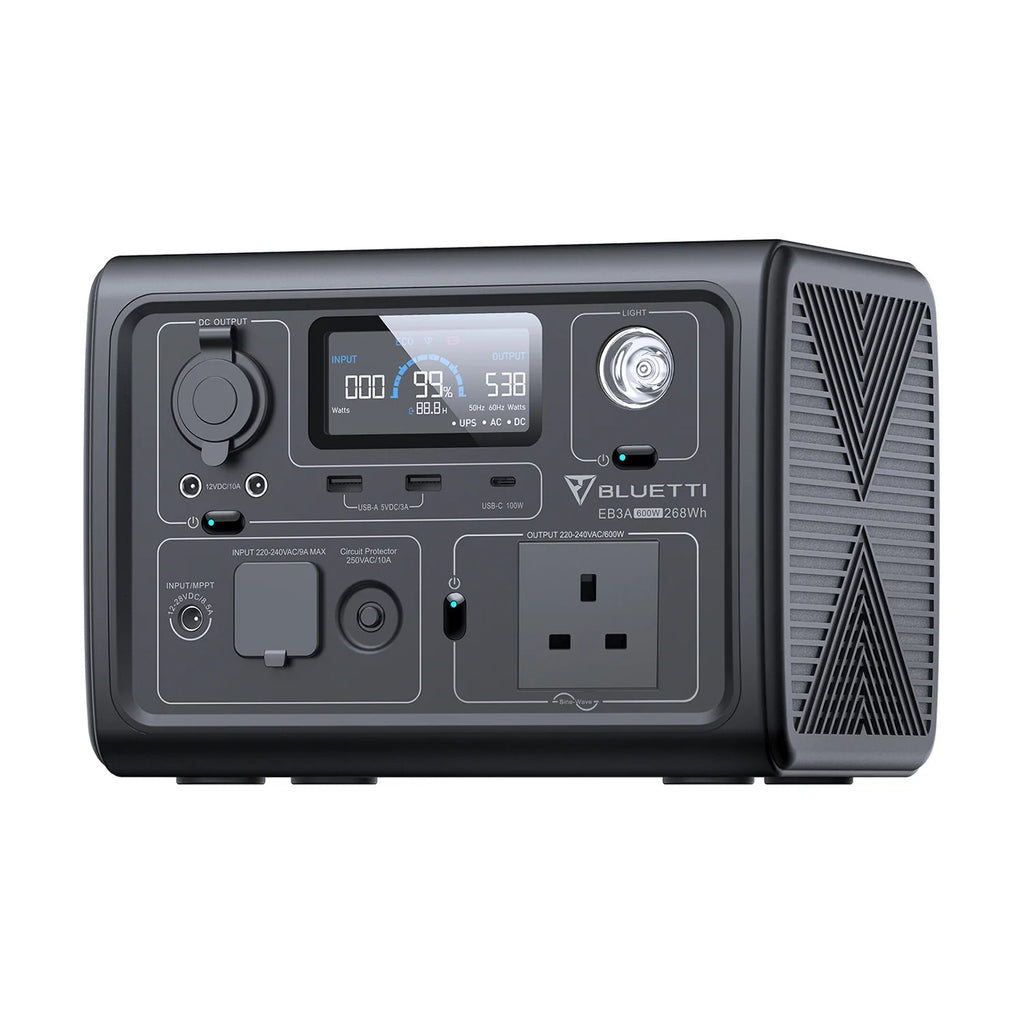

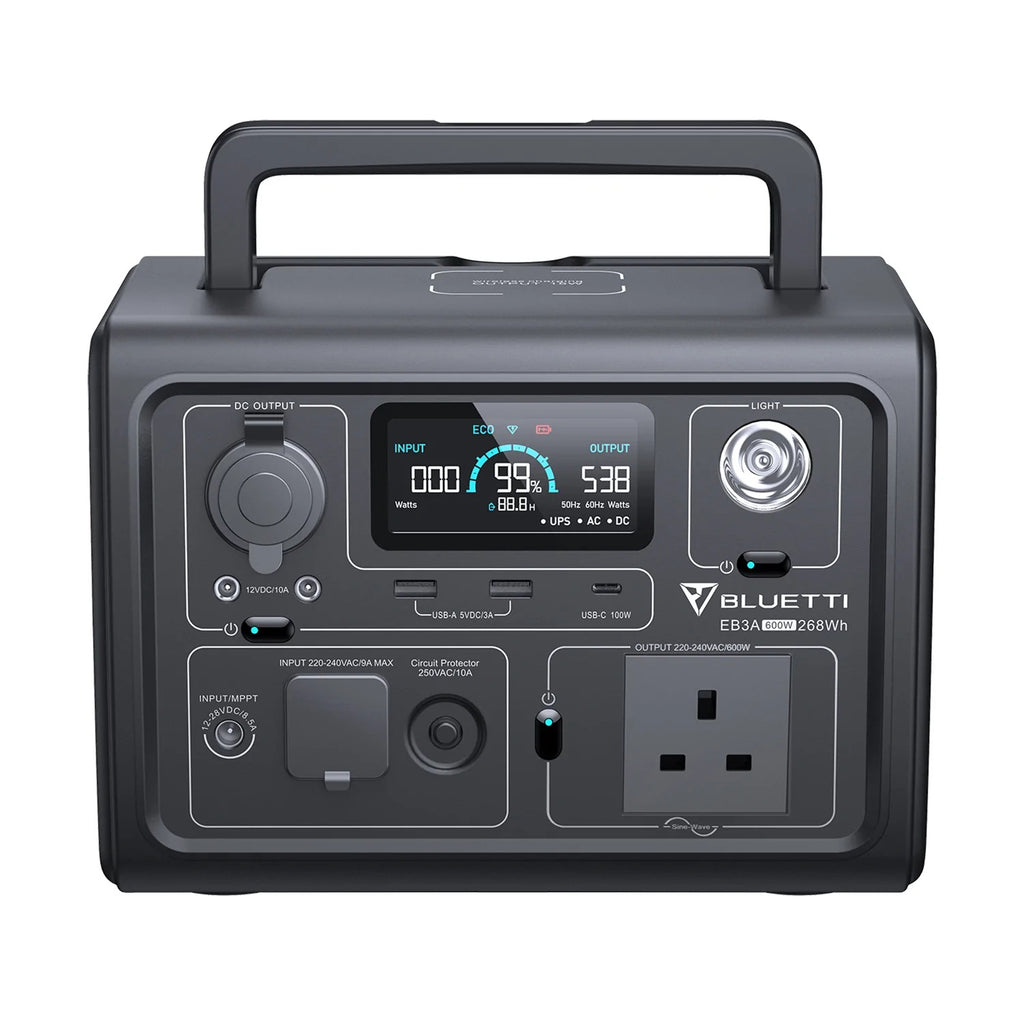

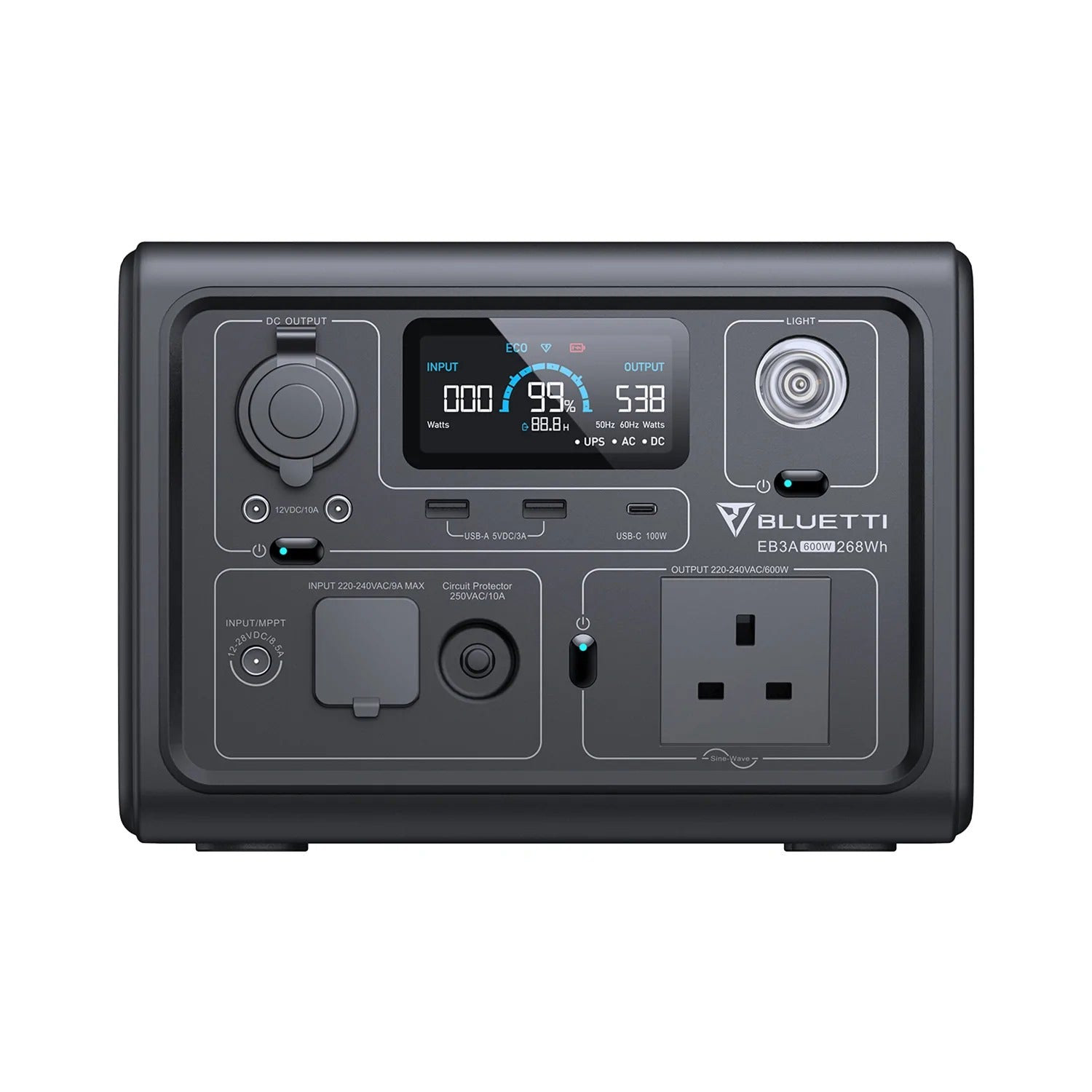

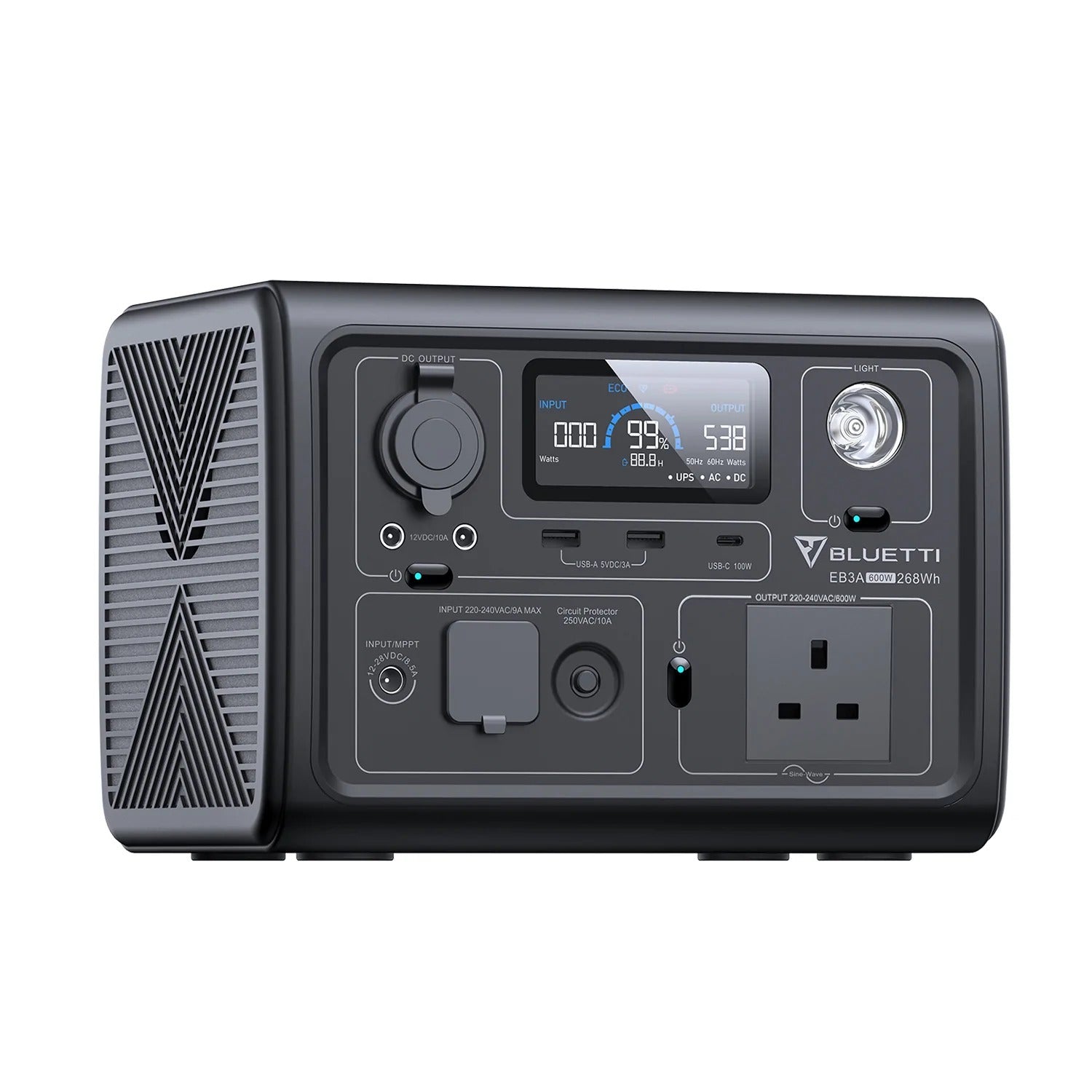

Bluetti EB3A: Your Compact Power Companion for Any Adventure
The Bluetti EB3A is a compact portable power station with a 600W AC outlet, fast mains charging, 100W USB Power Delivery output, and a 268Wh long-lasting LiFePO4 battery. It has an app to control and monitor it via Bluetooth. These power stations are perfect for power cuts, camping, travel, festivals, around the house, and out and about to charge all your tech. And the EB3A can charge at up to 200W off solar panels alone when mains isn’t available.
Benefits:
- Bluetti AC Pure Sine Wave Inverter: 600W and 1,200W surge capability
- Powerful Capacity: 268Wh with Fast Charging Capability
- Durable Battery: LiFePO4 Battery with 2,500+ Life Cycles to 80% of the original capacity
- Versatile Recharging: 6 Ways to Recharge (AC / Solar / Car / Generator / AC+Solar / AC+Adapter)
- Multiple Outputs: 8 Outputs for Charging Multiple Devices at once
- Smart Control: Monitor via the BLUETTI App
- Efficient Solar Input: 200W Max. Solar Input
- Safety & Reliability: Safe & Reliable Performance
Experience the Bluetti EB3A - a powerhouse of features and versatility in a compact design, ready to accompany you on any adventure.
Portable Power for A Sustainable Lifestyle
Small but Reliable
80% Recharge in 40 Minutes
Recharge the way it works for you
Safety Is Paramount
8 Outlets for Every Need
Stay Connected with BLUETTI APP
Specifications
BATTERY INFO
|
Capacity: 268.8Wh (12Ah)
|
|
Type: LiFePO4 (Lithium Iron Phosphate)
|
|
Life Cycles: 2,500+ Cycles to 80% of the Original Capacity
|
|
Shelf-life: Recharge to 80% Every 3-6 Months
|
|
Management System: MPPT Controller, BMS, etc.
|
OUTPUT
|
AC Outlets: 1 x 220V-240V/2.6A Outlets, 600W In Total
|
|
Inverter Type: Pure Sine Wave
|
| Surge Power: 1,200W |
| USB-C Port: 1 x 100W Max. |
| USB-A Port: 2 x 5V/3A USB-A |
| DC Outlets: 1 x 12V/10A (Car Outlet); 2 x 12V/10A DC 5521 (5.5mm Outlets) *All Regulated. |

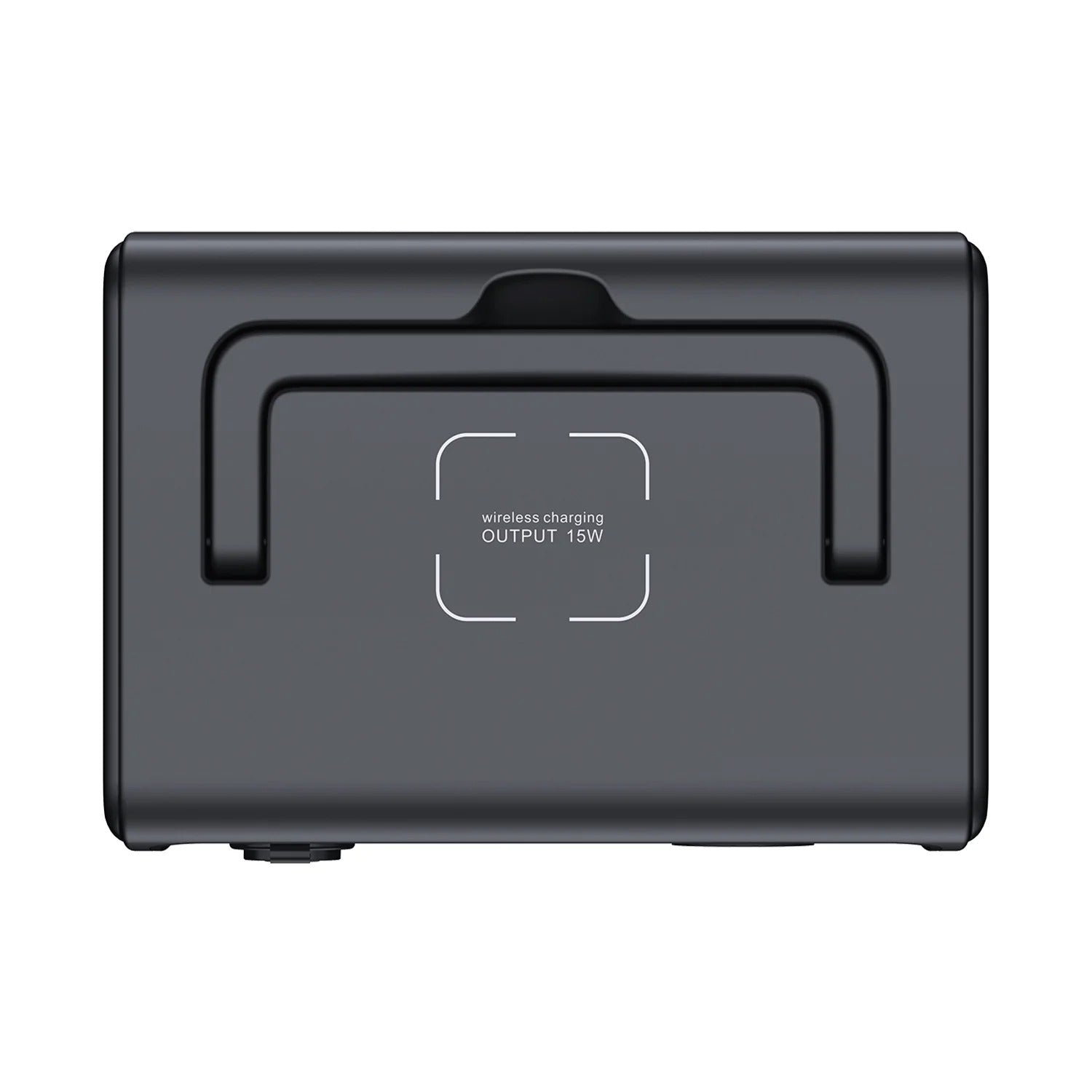

| Wireless Charging Pad: 1 x 15W Max. |
|
AC Charging Cable (Standard Mode): 268W Max.
|
|
AC Charging Cable (Turbo Mode): 330W Max.
|
|
Solar Input: 200W Max, VOC 12-28VDC/ 8.5A
|
|
Car Input: 12/24V from Cigarette Lighter Port
|
|
Maximum Input: 430W, with AC and Solar Input Simultaneously
|
RECHARGE TIMES
|
AC Charging Cable (Turbo Mode 330W): ≈1.3-1.8 hours
|
|
AC Charging Cable (Standard Mode 268W): ≈1.5-2.0 hours
|
|
Solar (200W): ≈1.8-2.0 hours (with strong sunshine, advantageous orientation, and low temperature)
|
|
12V/24V Car Outlet (100W/200W): ≈3.2-3.7 or 1.9-2.4 hours
|
|
AC + Solar (430W): ≈1.2~1.7 hours (with strong sunshine, advantageous orientation and low temperature)
|
|
Dual AC (430W): ≈1.2~1.7 hours (with optional BLUETTTI T200S adapter)
|
GENERAL
|
Pass-through Charging: Yes
|
|
Weight: 10.14lbs/4.6kg
|
|
Dimensions (LxWxD): 10.04*7.09*7.20in/255*180*183mm
|
|
Operating Temperature: -4-104℉ (-20-40℃)
|
|
Storage Temperature: 32-104°F (0-40°C)
|
|
Certifications: UL Standard, CEC, DOE, FCC, CA Prop 65
|
|
Warranty: 24 Months
|
In The Box
Q 1: Can EB3A charge and discharge at the same time?
A: Yes
Q 2: How do I know whether my appliance will work well with the EB3A?
A: You can calculate the total wattage of your devices (information is provided on the device itself or in the instructions). EB3A would work if the load does NOT exceed its rated 600W.
Q 3: How long can EB3A run my device?
A: Running time = Battery capacity × DoD × η ÷ Device rated power
DoD refers to the Depth of Discharge and η is the local inverter efficiency.
For EB3A, both DoD and η are 90%. If you run a 100W LED floodlight with it, the running time will be:
268Wh × 90% × 90% ÷ 100W ≈ 2.17hrs
Note: The formula is NOT suitable for inductive loads with compressors, like refrigerators, air conditioners, etc.
Q 4: What is the maximum input charging power of the EB3A?
A: 430W Max. via AC and solar charging simultaneously.
Q 5: Does EB3A support BLUETTI App control?
A: Yes, via Bluetooth.

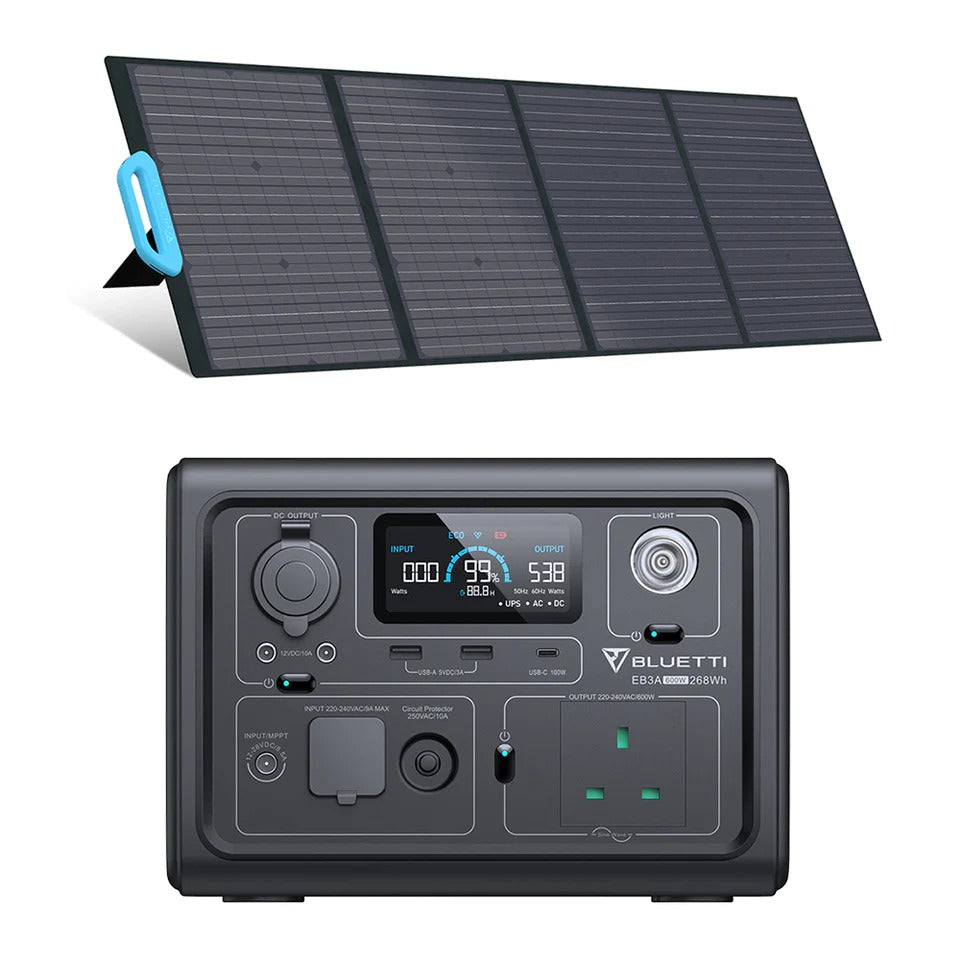

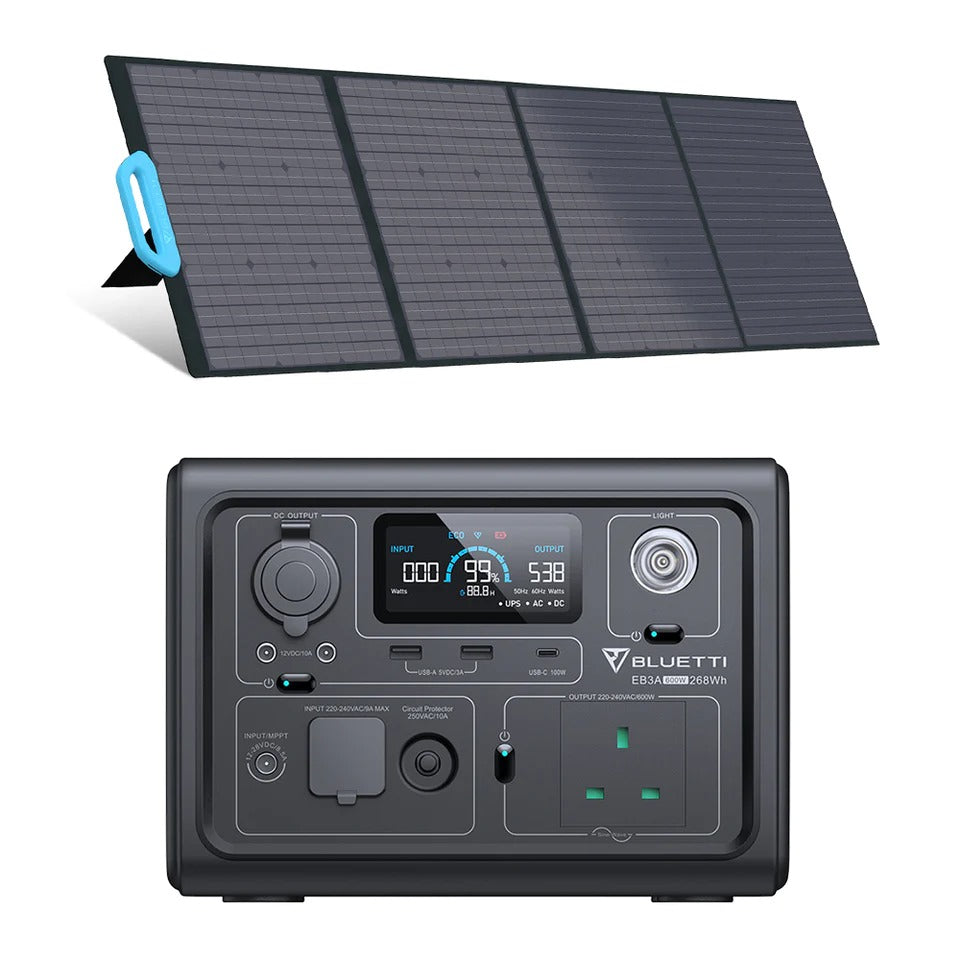

Q 6: What kind of solar panels should I use for EB3A?
EB3A is compatible with solar panels with 12-28V Open Circuit Voltage, 200W Max. input, and MC4 connectors.
Highly Recommended:
1x BLUETTI PV120: recharging time ≈2.7hrs*.
1x BLUETTI PV200: recharging time ≈1.8hrs*.
* For reference ONLY.
Q 7: Is the EB3A power station waterproof?
A: No, the EB3A power station is NOT waterproof. Please do NOT store the EB3A power station in a humid environment for a long time. Keep the power station in a dry place away from water.
Q8: How do I store EB3A?
A: Store it in a dry and well-ventilated place away from water and recharge to 80% every 3-6 months.
Q9: Can I use or charge EB3A in sub-zero temperatures?
A: Temperature ranges for EB3A are:
Charge: 0-40℃ (32-104℉);
Discharge: -20-40℃ (-4-104℉);
Storage: -10-45℃ (14-113°F/).
Technically, EB3A can power electrical devices in sub-zero temperatures, but please avoid recharging it at temperatures below 0 Celsius
Q10: Can it be laid on its side to save space?
A: No, please do not put it on its side. This position may damage the internal structure. Please keep it upright to ensure its performance.
Q11: Is it possible to replace the built-in battery?
A: No. If the internal battery pack malfunctions, please contact BLUETTI Customer Service.
Q12: Can I expand its capacity by connecting with a B230 or B300 battery?
A: No, the EB3A power station is not expandable.
