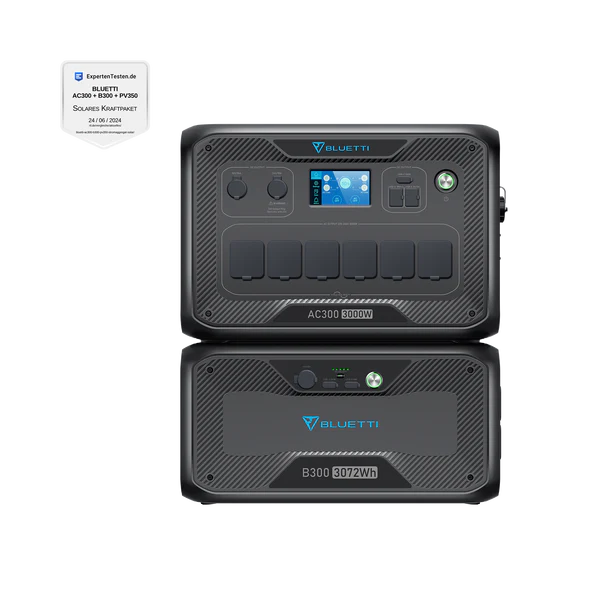

Powerful Combination of AC300 3000W Inverter and B300 3072Wh Battery

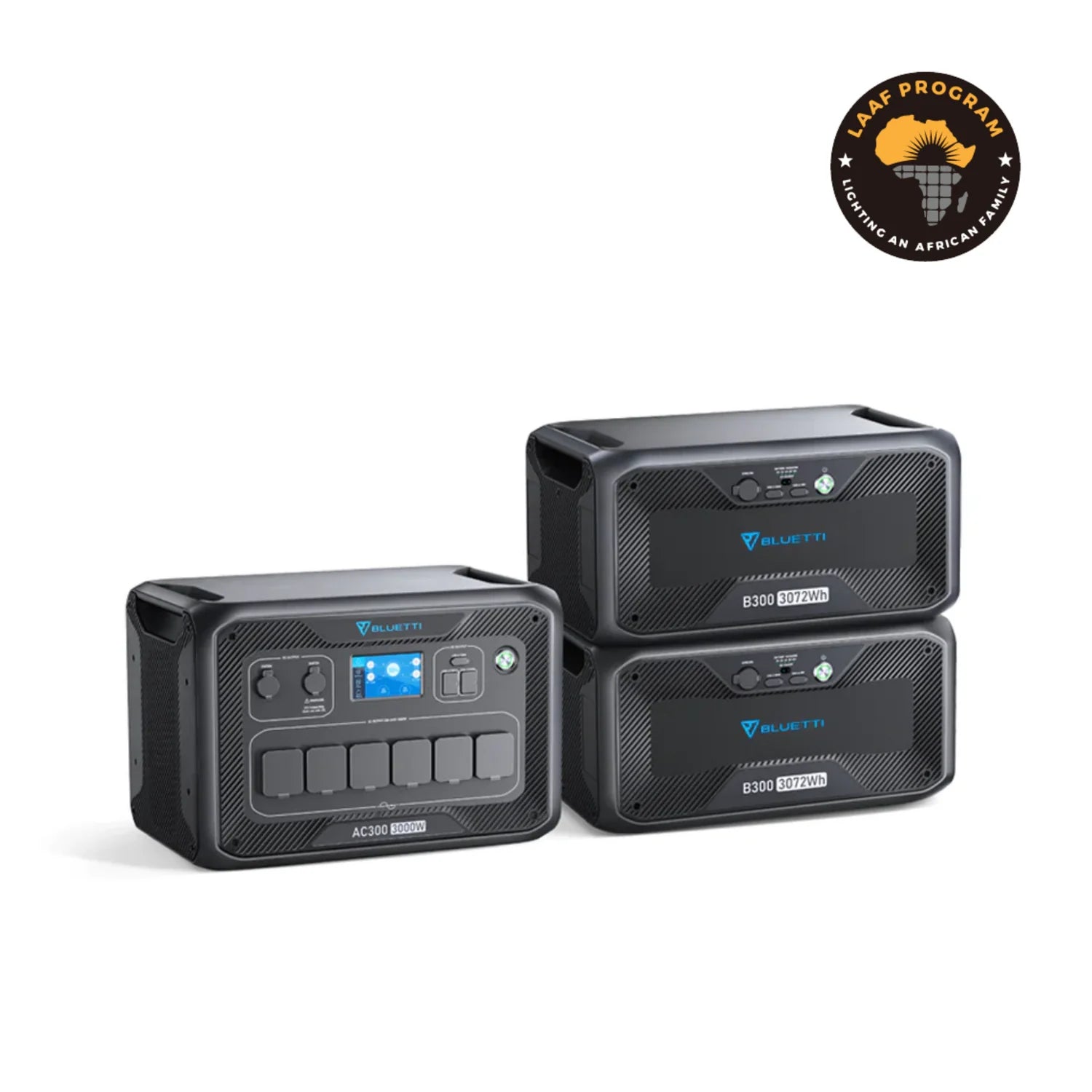

As Bluetti’s first 100% modular power station, the Bluetti AC300 + B300 offers flexible power options. The powerful AC300 3000W inverter coupled to one B300 gives you 3,072Wh of battery capacity. The AC300 can be expanded up to 12,288Wh with 4 x B300 battery modules. This would be able to support off-grid use or emergency home power during a power outage. This combination combines 1 x Bluetti AC300 3000W inverter module plus 1 x B300 battery.
Benefits
- 3,000W AC Pure Sine Wave Inverter (6,000W Surge).

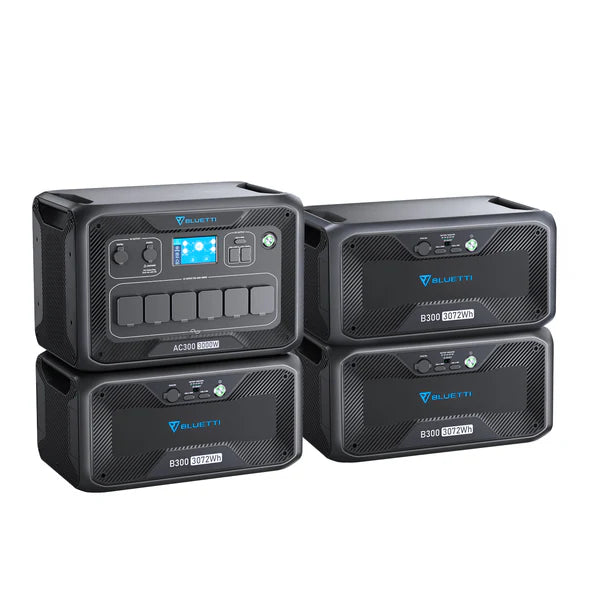

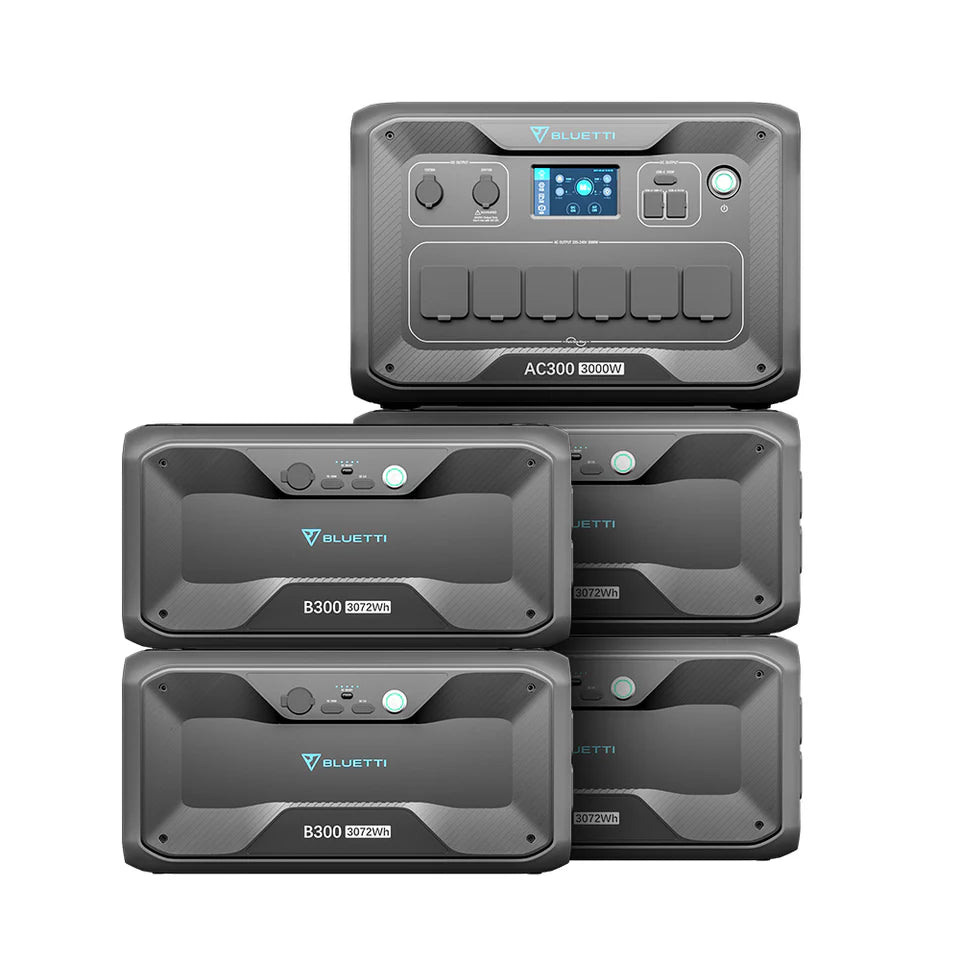

- 3,072Wh Capacity (Expandable w/ up to 4 × B300 for 12,288Wh).
- 7 Ways to Recharge (AC/Solar/Car/Generator/Lead battery/Dual AC/AC+Solar).
- 2400W Max. Solar Input.
- 5400W Max. Fast Dual Charging (Solar + AC Adapter Simultaneously).
- Smart App Control & Monitor.
- 24/7 UPS Home Backup.
- 4 Years Worry-Free Warranty
5400W Blazing Input Rate
Waiting for recharging is never a pleasure. With both the wall outlet and solar panels plugged in, the AC300 can support up to 5400W* horrendous total input rate. Plug the system in before you pack up for the camping, and your power will be ready when you are. *The 5,400W input rate combines 2,400W solar and 3,000W AC, which requires at least two B300’s packs. Or the input rate would be limited to 3,000W with only one B300.
Everything You Want, In One
Power your home whenever power outages occur. Easy setup, Just Power On.
Experience the BLUETTI AC300 + B300 Combo, your both portable power station and home battery backup.
In the Box
Specifications
BATTERY INFO
| Capacity: | Work with B300's / B300K's, start at 3072Wh |
| Cell Chemistry: | LiFePO4 |
| Lifecycle: | 3500+ to 80% |
| Management System: |
MPPT Controller, BMS, etc.
|
OUTPUTS
| AC Output: | 6 x 220V-260V Outlets, 3,000W In Total |
| USB-A Output: | 2 x 5V/3A, 2 x 18W |
| DC Outputs: | 1 x 12V/30A (RV Outlet) 1 x 24V/10A (Car Outlet) *All Regulated. |
| USB-C Output: | 1 x 100W Max. |
| Wireless Charging Pad: | 2 x 15W |
INPUTS
| AC Charging Cable Input: | 3,000W Max. |
| Solar Input: | 2,400W Max., VOC 12-150VDC, 12A |
| Car Input: | 12/24V from Cigarette Lighter Port |
| Maximum Input: | 5,400W, with AC and Solar Input Simultaneously |
GENERAL
| Simultaneous Recharge & Discharge: | Yes |
| Scalability: | Expandable W/Up to 4 x B300 / 4 x B300K |
| Weight: | About 21.6kg |
| Dimensions (L ×W ×D): | 20.5 x 12.5 x 14.1in ( 52 x 32 x 35.80cm) |
| Operating Usage Temperature: | -20°C-40°C |
| Storage Temperature: | -20°C-40°C |
| Certification: | UL2743, UKCA, TELEC, RCM, FCC ID, CE |
| Warranty: | 4 years |
FAQ
Q1: How many B300 battery modules can connect with AC300?
A: Up to 4. AC300 ONLY accepts B300 battery modules.
Friendly Note: which means that if the total power of your devices exceeds 700W.
Q2: Do AC300 and B300 support Hot Swapping?
A: Yes.
A: Yes. Once connected via WiFi or Bluetooth, the BLUETTI App will enable you to control the AC300+B300 remotely like switching the working mode and upgrading the firmware.
Q4: How to recharge AC300 rapidly?
A: AC 300 is a non-battery inverter. It only has power when it is connected to B300. Recharge this unit through the Input charger of AC300 with the wall outlet and solar panels at the same time, then you will get a maximum 5,400W input.
Q5: Does AC300 have UPS function?
A: Yes. It supports 4 UPS modes:1.Standard UPS.2.Time Control UPS(Pay less for higher electricity consumption)3.PV Priority UPS(Recommended for regions with sufficient solar energy)4.Customized UPS.
Q6: What is the UPS switching time?
A: There are two types of working conditions of UPS for AC300 system.1. No delay for online UPS;
2. 20ms from standby UPS.
Q7: How do I connect this unit to my home main panel?
A: BLUETTI recommends a competent and trained licensed electrician undertake the task. Connect the wires of critical equipment from your house electric panel to BLUETTI AC300 directly.
Q8: Can I use third-party solar panels to charge the AC300 system?
A: Yes, if the solar panels' specs fall in
1. Total Voltage: 12-150V
2. Total Power: 2,400W Max. (From the two PV input ports)
3. Include MC4 connectors.
