Haier 6kW Heat Pump and  Unitherm 200L/50L Water Cylinder Kit

This Air Source Heat Pump and Water Cylinder Kit is a cost-effective and low-carbon way to heat your home or light commercial building along with hot water delivery. Built to last, this kit consists of Haier 6kW R290 Monobloc Super Aqua GT heat pump, Unitherm e.Cyl 200L/50L Pre Plumbed how water cylinder, and all the necessary accessories.

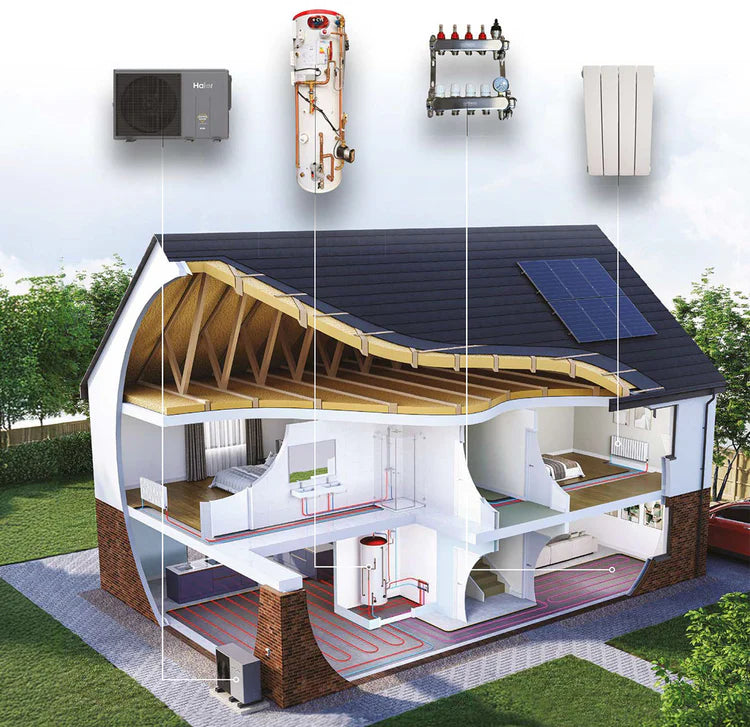

The heat pump absorbs the heat from the outdoor air and then transfers this heat to water in the water cylinder until the water reaches a higher temperature which is then distributed around your home or business building. Because heat‑pump water heater moves heat rather than create it, it delivers much higher efficiency than conventional electric water heaters or gas boilers. This means that not only is your carbon footprint reduced, but your annual heating bills will be significantly lower too.

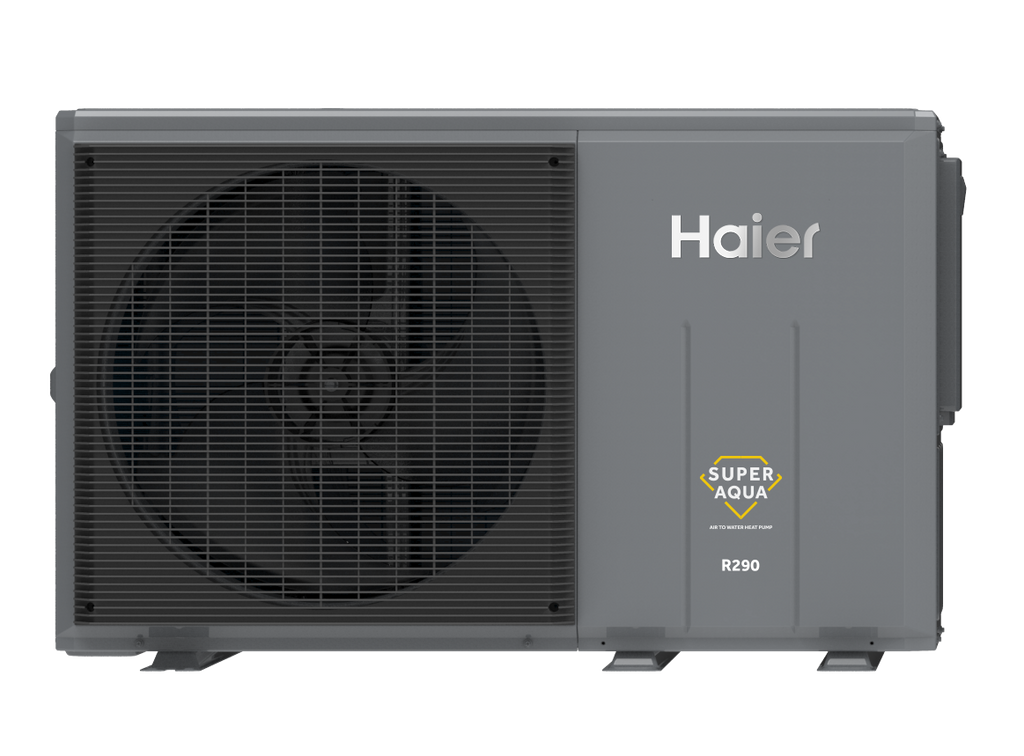

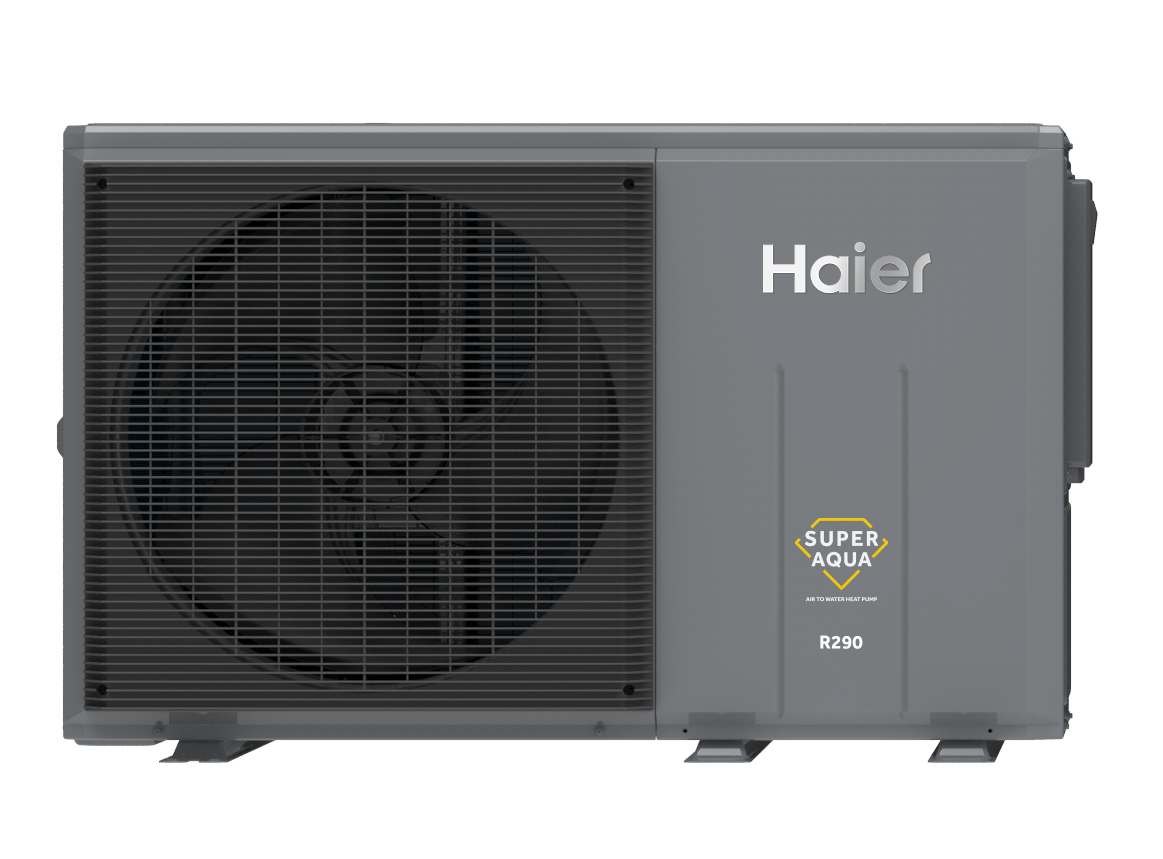

Haier 6kW Heat Pump

• Reduce energy use. With A+++ energy ratings and Coefficient of Performance (COP) from 5.35 for hot water temperature +35°C to 3.30 for hot water temperature +55°C, the Haier heat pump is the most effective and ecological solution for heating homes and buildings and preparing hot water. The Haier heat pump is a practical solution that guarantees uninterrupted operation even at an outside temperature of -28 °C.
• High temperature water. The Super Aqua GT range can deliver market leading water temperatures up to 80°C without using an electric backup heater (when outdoor temperature is above -15°C), making it suitable for both modern buildings and renovations needing high-temperature heating circuits or direct boiler replacement.
• Cooling function. The Super Aqua GT range can cool water temperatures down to 5°C. The cooled water can then be circulated through your underfloor heating, radiators, fan coil units, or other cooling systems to lower the room temperature.
• 2-Zone Control. When there are different room temperature requirements, two zone temperature control through separate heating or cooling circuits is possible. Adjust and maintain two different water temperatures to achieve intelligent control and saving energy.
• Fast hot water delivery. When Fast DHW is activated, the backup heater or auxiliary heating source will be turned on at the same time, in combination with the heat pump. In order to reach DHW setting point as soon as possible. the outdoor ambient temperature and compressor running time will not affect this operation.
• Lower running costs. Heat pump water heater may cost more up front, but their lower operating costs generally offset the higher purchase price. The Haier heat pump draws just 1.82kWh while producing hot water at +55°C.
• Eco‑friendly refrigerant. R290 (propane) is a natural refrigerant with an ultra-low Global Warming Potential (GWP) of 3, far lower than traditional refrigerants like R32 (GWP 675). R290 enables this unit to harnesses renewable energy from the air to reduce reliance on fossil fuels. and achieve high leaving water temperatures while significantly reducing greenhouse gas emissions, making them future-proof and eco-friendly.
• Integrated "Smart Home" Connectivity. With Haier's integrated hOn App, you can check the running state of heat pump allowing you to have complete flexibility and control.
• Comfort and versatility. Super Aqua heat pumps offer very quiet operation at 47dB(A), the compressors in the devices are covered with a special noise-insulating material, additionally a quiet DC fan motor and an optimized fan shape that reduces vibrations. They can be configured with various heat receivers. They work very well with underfloor heating, which guarantees high efficiency and lower bills. Heat pumps can supply heat through traditional radiators, which is very important when replacing heating in an existing building, where a receiver has already been installed. Fan coil units are another possible heat receiver, ideal for heating and cooling a building.
• Quick delivery from stock. The kit is readily available for fast dispatch, helping you upgrade without delay.

Heat pump specifications

Water cylinder

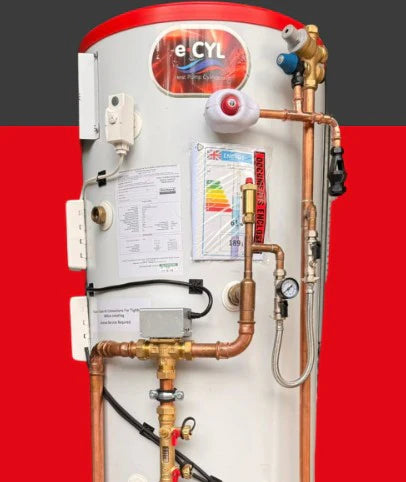

The Unitherm e.Cyl Heat Pump Cylinder is a versatile, pre-plumbed solution designed for efficient space heating and hot water in homes and buildings. With its pre-installed unvented kit and pre-fitted external components, it reduces installation time and enhances overall system quality, making it a go-to choice for heat pump systems.

Components

• G3 compliant cold feed pipework.
• Pre-fitted 12mm sensor probe pocket for seamless integration with heat pumps.
• Dual 12-way wiring centres for both DHW (domestic hot water) and heating controls.
• Universal mounting plate for easy installation with heat pump systems.
• Flow meter, heating circulation pump, and 2-port zone valve included.
• Magnetic filter to maintain system cleanliness.
• Filling link with pressure gauge for easy monitoring


Water cylinder specifications

Accessories

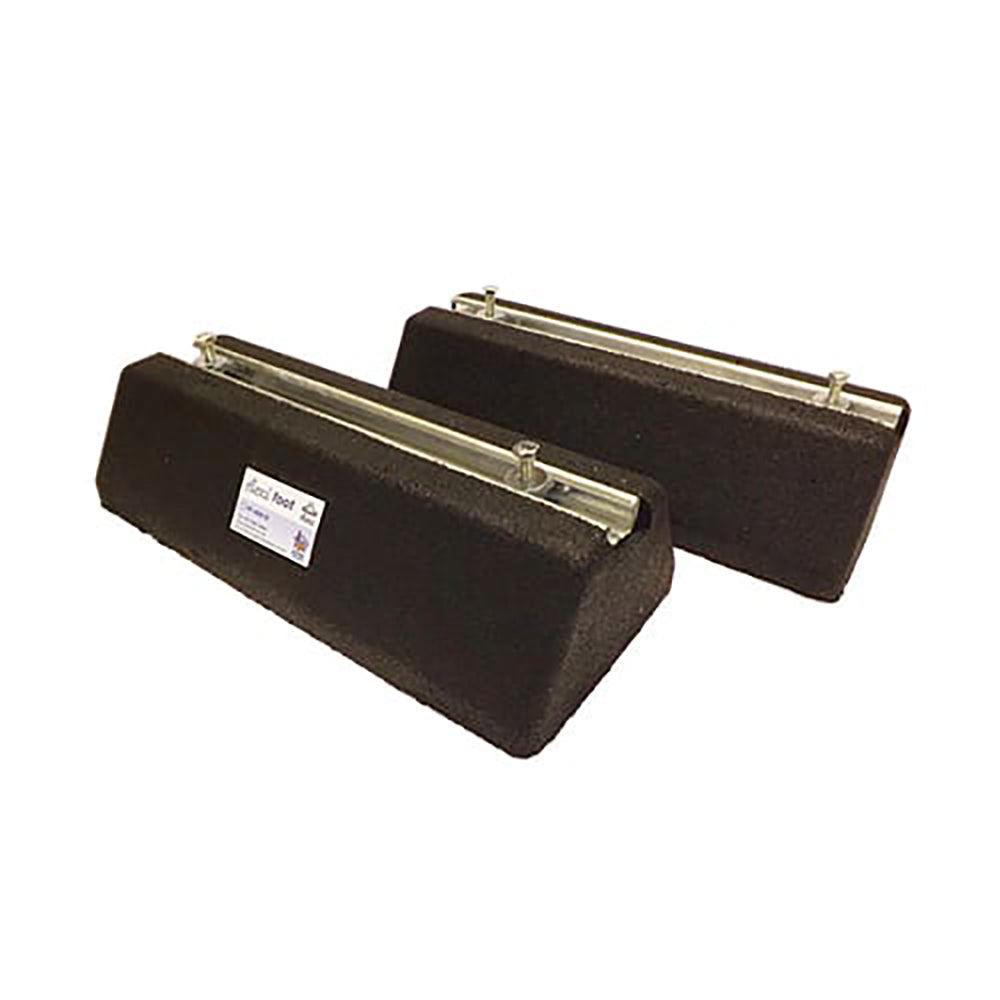

• Heat Pump Flexi Foot Kit - Pair - 600mm. Flexi Foot Kit is a mini split installation kit that includes a pair of rubber bases that are used to mount air source heat pumps. All necessary hardware to attach equipment to the feet is included with the kit.

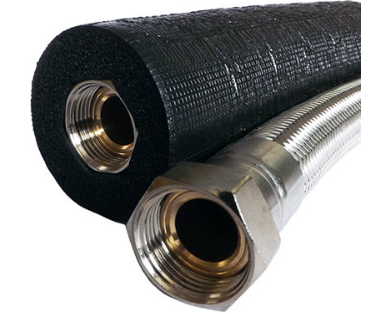

• Flexible ASHP Hose Pair - 750mm. Flexible Hose is designed to meet the requirements of the MCS MIS 3005 installation specification to allow the flow and return pipe work to connect to a heat pump. The flexible hose helps to avoid transmission of vibration in the pipe work and allows for a smooth bend when connecting the flow and return pipe to the heat pump.
• Isolator Switch - 3 Pole - 20A. The enclosed isolator is suitable for disconnecting the power supply to outdoor air source heat pumps. This isolator is weatherproof to IP65, easy to install, and conform to EC 60947-3. They have a lockable off position and inter lockable lever which can be removed only in the off position. Earth and neutral terminals included.

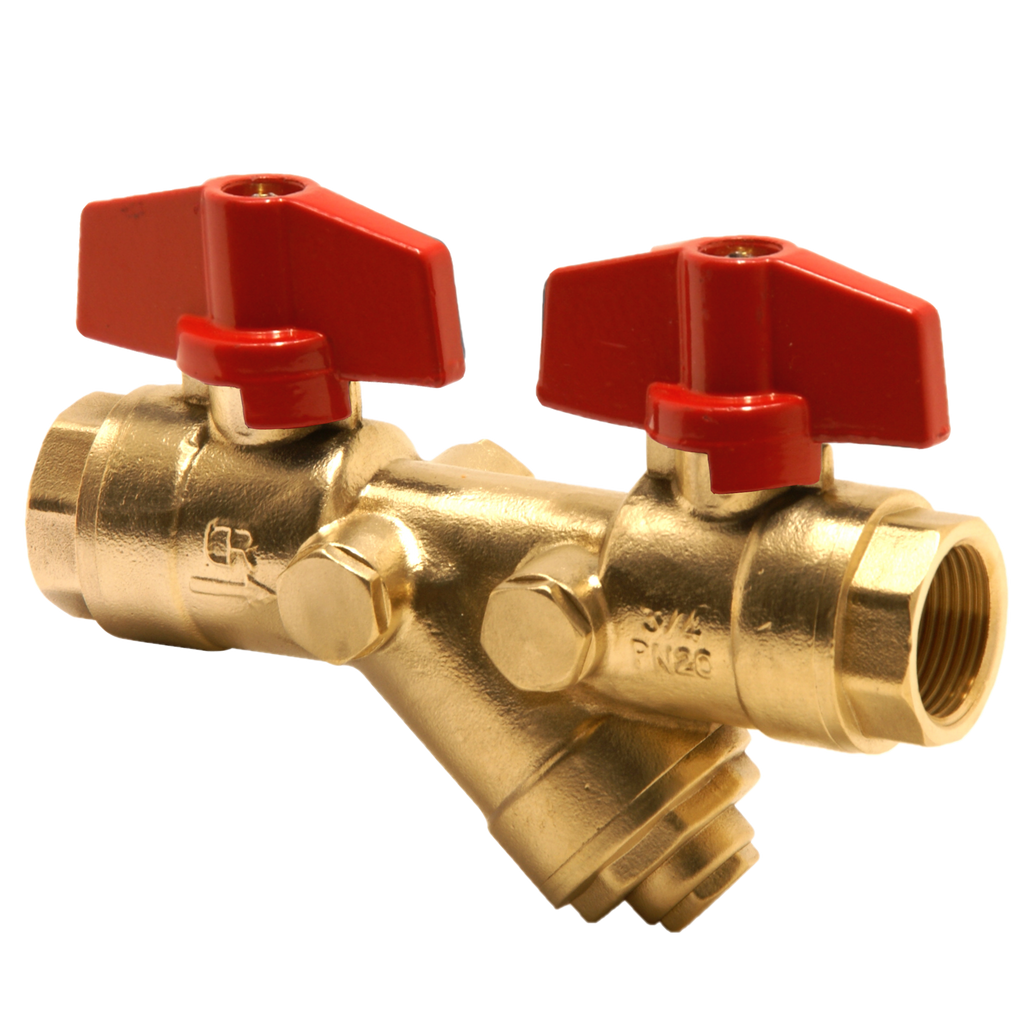

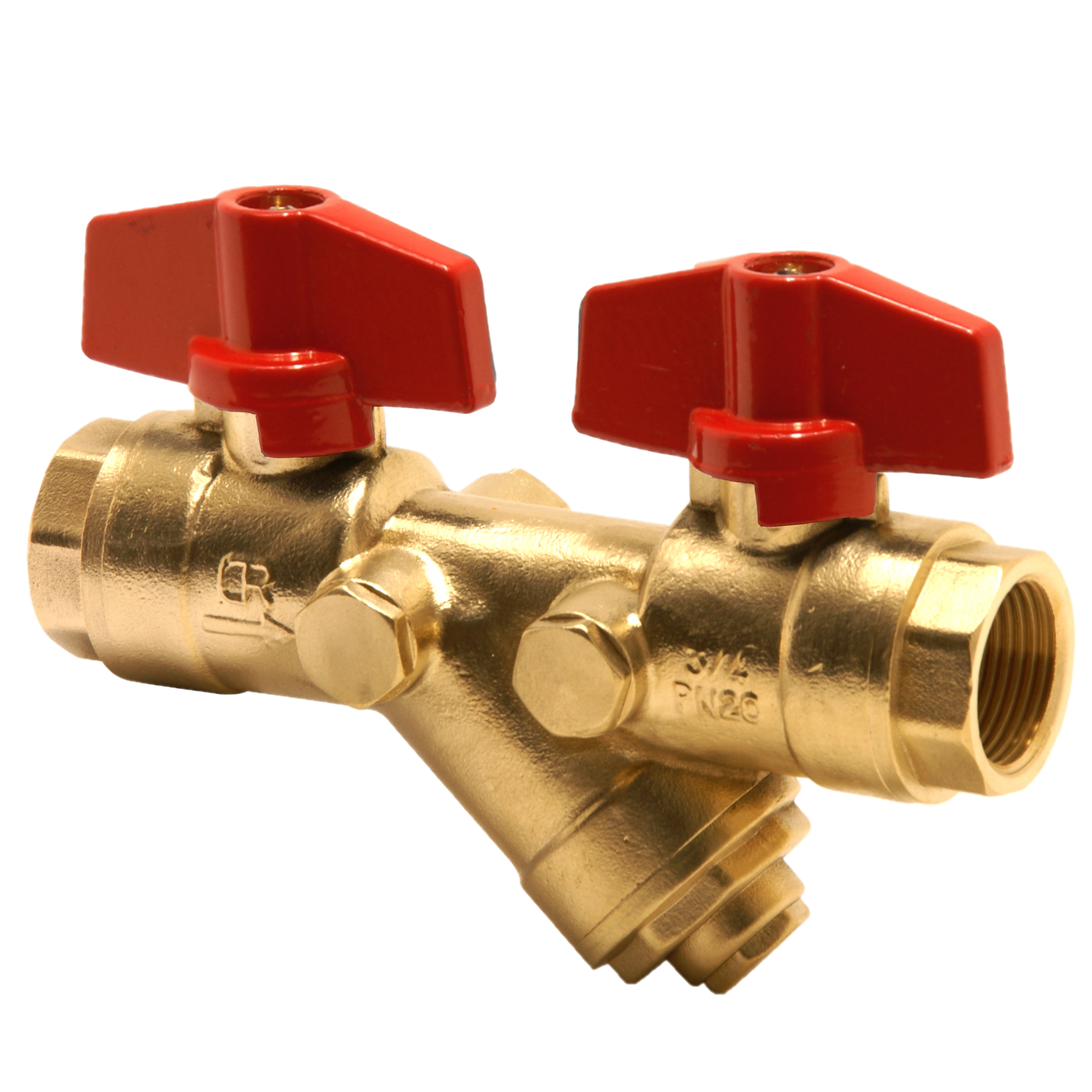

• Ball Valve Strainer and Isolation Valve Pack. This pack is an integrated valve and strainer unit to protect equipment and isolate flow.

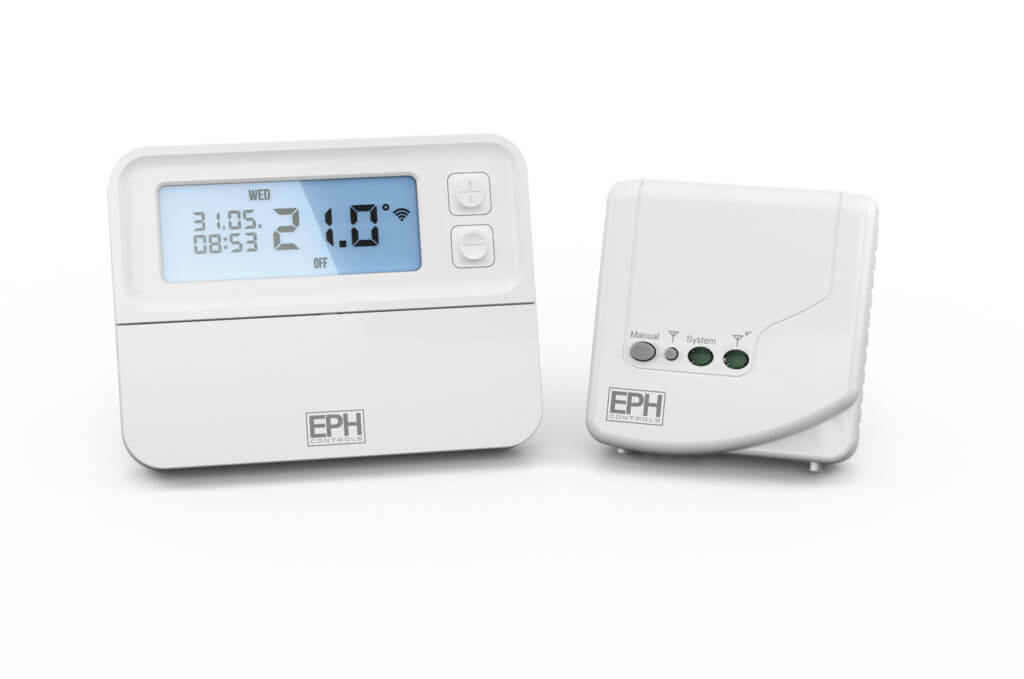

• CP4 (COMBIPACK4) - Programmable RF Thermostat & Receiver. Digital RF programmable room thermostat and receiver suitable for controlling 1 heating zone. It features OpenTherm®, Optimum Start, TPI and On/Off control modes.

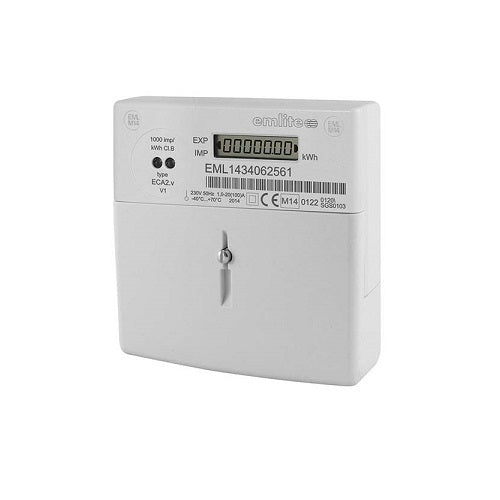

• ASHP Generation Meter - Single Tariff Single Phase. The meter provides measurement of active (kWh) energy in both import and export directions with registers shown on the large easy to read LCD display. The electronic meter is highly reliable and capable of withstanding high voltage events and overcurrent without failure.
