TBB Power 8kW Raython-R8 All-In-One Solar Power System (Batteries not included)


By TBB Renewable
Minus Plus

Delivery available

More details Right

Raython-R8 8kW All-in-One Solar Power System

The Raython-R8 is a compact, factory-assembled 8kW solar energy system designed for off-grid homes, holiday cottages, remote cabins, and backup power applications. It combines a high-performance TBB Power RIIOSUN-II 8kW hybrid inverter with intelligent energy management, seamless generator integration, and optional lithium battery storage—ready to deliver reliable, clean, and quiet power where grid access is unavailable or unreliable.

Key Features

Pre-Built for Fast, Hassle-Free Setup

The Raython-R8 arrives fully pre-wired, pre-configured, and factory tested in a weather-resistant IP54 enclosure. Most installations can be completed in under three hours—ideal for time-critical or remote deployments.

Hybrid System with Solar, Battery and Generator Support

This all-in-one unit integrates solar input, battery storage, and generator backup into a single smart system. It’s designed to maximise solar energy use, reduce generator runtime, and support loads reliably even when the sun isn’t shining.

Automatic Generator Start (AGS)

The built-in AGS feature automatically starts and stops a connected generator based on battery state of charge, load demand, or time settings. This allows larger generators to operate in short, high-efficiency bursts, reducing noise, fuel use, and wear and tear.

Power Assist and Load Support

High inrush loads such as pumps, fridges, and power tools are no problem. The inverter's Power Assist function supplements generator output with battery power during peak demand, allowing smaller generators to be used without compromising system performance.

Fast, Reliable Transfer Time

With a transfer time of just 4 milliseconds, the Raython-R8 provides near-instantaneous switchover between power sources. Sensitive electronics and critical loads remain uninterrupted during generator starts or grid failure.

Smart Energy Management System

The integrated EMS intelligently balances solar, battery, and generator power to optimise fuel efficiency and solar utilisation. Critical loads are prioritised automatically, and AC output includes leakage protection for added safety.

Remote Monitoring and App Control

Monitor and manage the system remotely using the included TBB E4 touchscreen or via the NOVA mobile/web app. View real-time data, access historical logs, and fine-tune settings to maximise self-consumption and performance.

What’s Included

  • 8kW 48V TBB Power RIIOSUN-II Hybrid Inverter Charger (transformer-based)
  • TBB Power E4 LCD display monitor

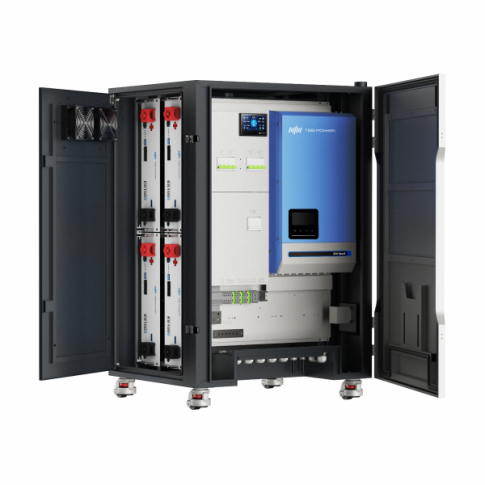

  • IP54-rated steel cabinet with:
    • Pre-wired AC and DC cabling
    • AC/DC circuit breakers and isolators
    • Cooling fans
    • Racking for up to 4 × ES100II LiFePO₄ batteries (sold separately)

Optional: Up to 20.4kWh battery storage with up to four ES100II 48V 5.1kWh LiFePO₄ batteries. The batteries are not included in the price and must be ordered separately.

For those seeking a clean, powerful, and intelligently integrated energy system, the Raython-R8 delivers dependable off-grid and backup performance with minimal installation and maximum control.

Technical Specifications

Raython-R8 System

  • Nominal system voltage: 48V
  • Usable battery capacity: 10.08kWh to 20.16kWh (with 2–4 × ES100II batteries)
  • Maximum output power: 8000W
  • Dimensions (W × D × H): 750 × 650 × 1130 mm
  • Weight (excluding batteries): 140 kg

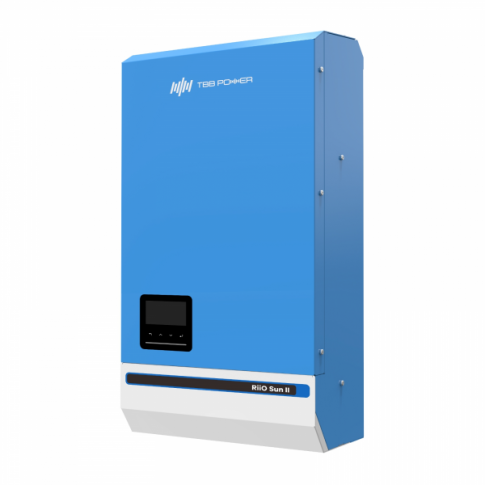

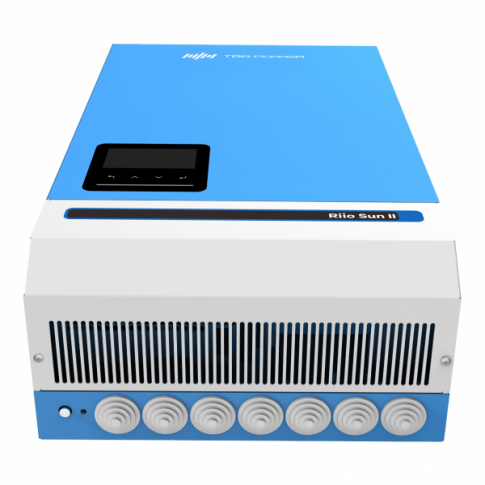

Hybrid Inverter (TBB RIIOSUN-II 8kW)

  • Nominal battery voltage: 48V
  • Continuous output power: 8000W / 8000VA (220–240V AC)
  • Peak output power: 16000W
  • AC output frequency: 50/60Hz
  • Waveform: Pure sine wave
  • Max AC charging current: 90A
  • AC transfer current: 50A
  • Peak inverter efficiency: 95%
  • No-load consumption: 32W
  • Max solar charge current: 100A (50A per MPPT tracker)
  • Max solar charge power: 5760W @ 57.6V (2880W per tracker)
  • Max PV open-circuit voltage: 250V
  • Max PV input per tracker: 4400W + 4400W
  • MPPT voltage range: 65–245V
  • Peak MPPT efficiency: 98%
  • Operating temperature range: -20°C to +65°C

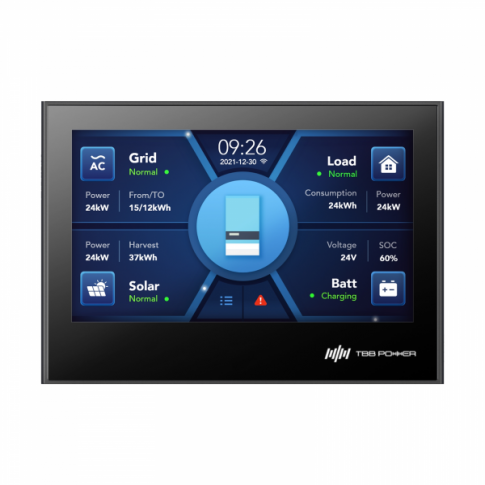

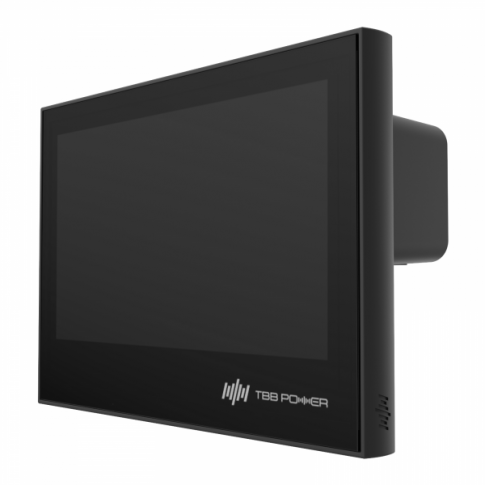

TBB E4 Monitor

  • Input voltage: 12V
  • Operating current: 100mA
  • Display: 4.3-inch LCD screen
  • Screen dimensions: 95.04 × 53.86 mm
  • Communication ports: RS485 and CAN

Warranty: This product is covered by a 5-year warranty.

Documents available to download:

TBB Power 8kW Raython-R8 All-In-One Solar Power System User Manual

TBB Power 8kW Raython-R8 All-In-One Solar Power System Datasheet
