Zappi Eco-smart 22kW 3PH Type 2 Tethered White with Retrofit Tamper Kit EV Charger
Charge Ahead with Intelligence: Zappi 22kW EV Charger
The Zappi 22kW EV Charger is the smartest home charger available today. It charges your car faster than the charger supplied with your vehicle and ensures all power used comes from your solar or wind generation. No solar or wind? No problem – Zappi also functions as a regular grid-powered charger and you can add renewable energy sources later.
Available in black or white, this charger tracks all energy consumed and exported across three phases. You can monitor and schedule your charging sessions easily through the smartphone app. Compatible with any Type 2 electric vehicle, the Zappi ensures efficient and eco-friendly charging.
Key Features:
- Three-phase Power: Charges electric cars much faster than single-phase power by delivering more power to the car's charging system. Check specifications of your electric car before choosing a power supply for charging.
- Flexible Charging: Choose power from solar or wind generation to enhance your EV’s green credentials. The universal socket ensures compatibility with every EV.
-
Three Charging Modes:
- Eco: Balances green energy and grid power to minimise the latter.
- Eco+: Adapts charge power based on home power consumption, pausing when grid power is high and resuming with surplus free power.
- Fast: Charges at maximum power for quick charging.
- Built-in RCD Protection and Grid Sensors: Ensures safety with protection against electrical faults and provides accurate energy consumption measurements.

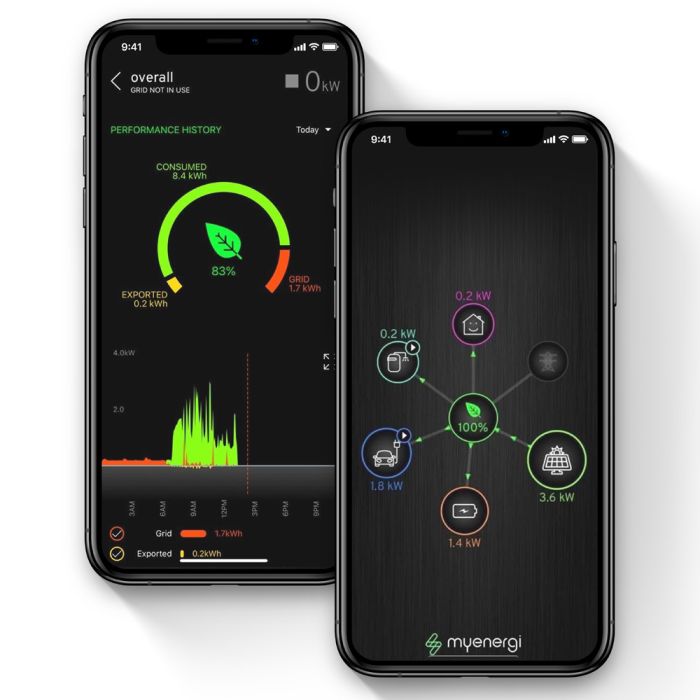

- Zappi App: Access and control your charger remotely, set timers for off-peak charging.
- 3-Year Warranty: Peace of mind with a 3-year manufacturer’s warranty.
- Prompt Delivery: 2-3 working days’ delivery within the UK (longer for Highlands, islands, and Northern Ireland).
Elevate your EV charging experience with the Zappi's intelligence and adaptability.
Detailed specifications:
| Design and Manufacturing: UK |
| Rated Power: 7kW (Single Phase); 22kW (3-Phase) |
| Rated Supply Voltage: 230V AC Single Phase |
| Supply Frequency: 50Hz |
| Charging Current: 6A to 32Amax (Variable) |
| Standby Power Consumption: 3W |
| Integral Protection: 6mA DC residual current protection (RDC-DD in accordance with EN 62955) |
|
Economy Tariff Sense: Input 3.3 – 230Vrms AC Sensing (4.0kV Isolated) Volt Free Contact (24Vdc Supplied from the Zappi) |
| Wireless Interface: 868/915 MHz (Proprietary Protocol) for Wireless Sensor and Remote Monitoring Options |
| WiFi Connectivity: 2.4GHz 802.11BGN Connection up to 150 Mbps |
| Grid Current Sensor: 100A max. Primary Current, 16mm max, Cable Diameter |
| Cable Entry: Rear, Bottom or Side |
| Enclosure Dimensions: 439 x 282 x 122mm |
| Protection Degree: IP65 (Weatherproof) |
| Enclosure Material: PC/ASA (Batch dependant) |
| Operating Temperature: -25 °C to +40 °C |
| Circuit Breaker: 32A Curve B |
| Earthing Arrangement: Built-in RCD protection and earth fault detection - no earth rod required |
| Charging Profile: 3 Charging Modes: ECO, ECO + and FAST. ECO settings use solar or wind energy integrated with grid power. In FAST mode Zappi operates like any other mains powered EV charger. |

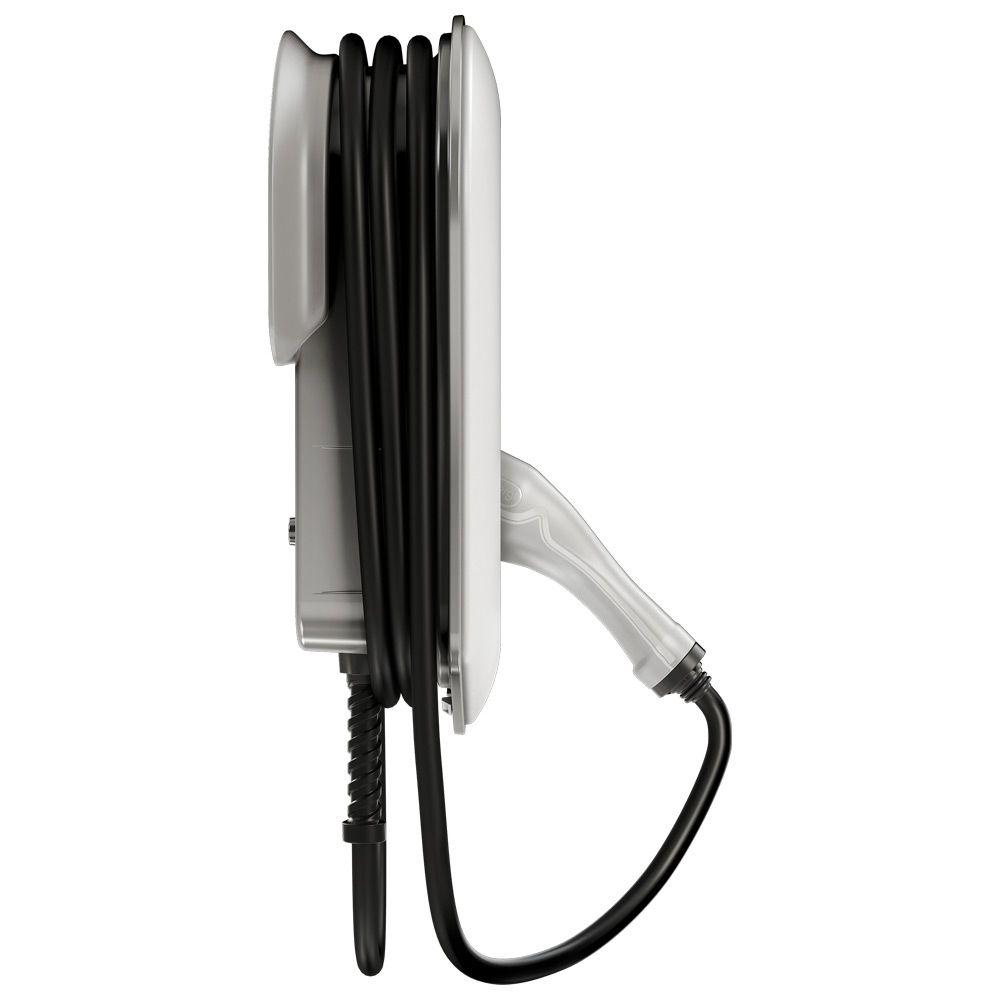

| Connector Type: Type 2 Tethered Cable (6.5m) or Type 2 Socket with Locking System |
| Mounting location: Indoor or Outdoor (Permanent Mounting) |
- 1 X Zappi Eco-smart Unit Three Phase EV Charge Point 22kW Tethered White,
- 1 X myEnergi Retrofit Tamper Kit,
- 3 X CT Clamp,
- 1 X Mounting template,
- 1 x Mounting Kit (for a brick wall) including
- 4 X 50mm Pozi screws,
- 4 X Wall mounting plug,
- 4 X Sealing washer
The main difference between Type 1 and Type 2 EV chargers is the connector design. Type 1 connectors have a five-pin, circular design, whereas Type 2 connectors have seven pins.
When is the myEnergi Retrofit Tamper Kit needed?The myEnergi Tamper Retrofit Kit is for Zappis with an 'H' in their model number. If your Zappi does not have built-in tamper detection, you need this kit for installations in England, Scotland, or Wales from 30th December 2022 to comply with smart charging regulations.
What is Zappi Type 2?Zappi Type 2 is an EV charger that can also use 100% free energy from solar PV or wind generation. It offers bovth 1-phase and 3-phase options, with the latter including three CT clamps.
What is a 3-phase EV charger?A 3-phase EV charger uses a three-phase electrical supply to charge EVs faster than a single-phase charger. It is commonly used in commercial and industrial settings and is ideal for businesses, fleet operators, and public charging stations.
How fast can a 3-phase EV charger charge an EV?A 22 kW 3-phase charger can charge a 60 kWh battery in about three hours, whereas a 7kW single-phase charger takes around nine hours.
Do I need a special electrical supply for a 3-phase EV charger?Yes, 3-phase chargers need a three-phase electrical supply, which is not usually found in homes. You will need to hire a licensed electrician to install this supply.
Can 3-phase EV chargers be used for all types of EVs?Yes, they can charge all types of EVs, including battery electric vehicles (BEVs) and plug-in hybrid electric vehicles (PHEVs). However, some EVs may not support the faster charging speeds of a 3-phase charger.
Can I get government incentives for installing a 3-phase EV charger?Yes, many countries offer incentives such as tax credits, rebates, and grants for installing EV chargers. Check with local authorities for available incentives.
Tethered chargers generally cost more upfront because the cable is included. Untethered chargers are cheaper initially, but you might need to buy a cable separately. Zappi chargers are priced the same whether tethered or untethered.
Is a tethered EV charger more secure?Yes, tethered chargers are more secure as the cable is permanently attached, reducing the risk of theft. Untethered chargers with detachable cables are more prone to theft but often include security features like pin protection or cable locking.
The Zappi Type 2 is compatible with all plug-in hybrid and electric vehicles using a Type 1 or Type 2 connector. It supports charging speeds from 2.3 kW up to 22 kW, depending on your EV’s capability.
