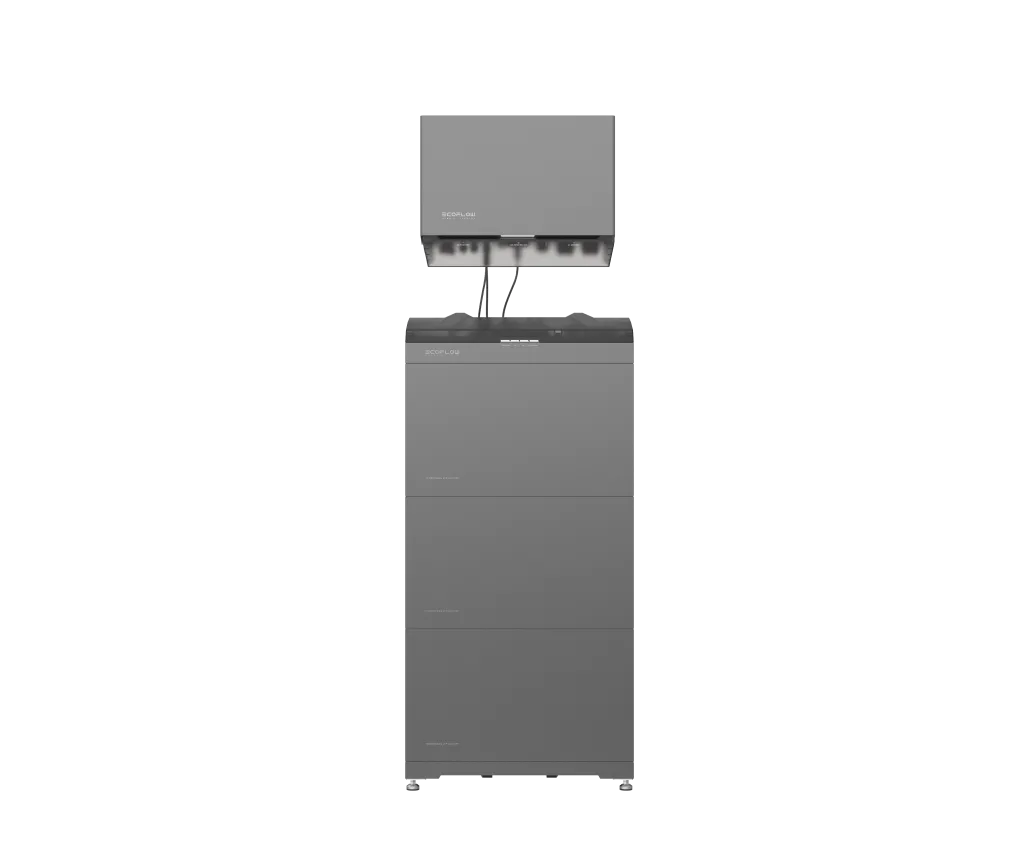

EcoFlow Three-Phase PowerOcean Kit with 15kWh LFP Battery, 10kW Inverter, Battery Junction Box and Battery Base

£0.00
By EcoFlow

Installation & VAT Refund

Delivery available

Introducing the PowerOcean Three-Phase Kit: The Future of Home Energy Storage

EcoFlow, a portable power and eco-friendly energy solutions company, proudly introduces the PowerOcean Three-Phase Kit with three 5kWh LFP Battery, 10kW Inverter, Battery Junction Box and Battery Base (15kWh/10kW PowerOcean Kit), a new battery storage system that prioritises safety above all else. Tailored for homeowners in the UK, the Three-Phase comes after the successful launch of the Three-Phase model across European markets last year.

Engineered with cutting-edge technology and a relentless focus on protecting homes and families, the PowerOcean Three-Phase sets a new benchmark for secure and dependable energy storage.

This innovative system ensures homeowners enjoy unmatched efficiency and performance, providing peace of mind and uninterrupted power supply, even during unexpected outages or emergencies.

The price includes a basic set of cables, protection disconnectors, and accessories required to create a fully operational system. User manuals and a connection diagram will be supplied with your order. Mounting not included - if you require a mounting system, select a suitable option here or contact us for advice.

The system must be installed by a licensed electrician or solar installer in compliance with all applicable regulations and guidance. For residential dwellings, guidance here must be followed.

  • Unmatched Battery Safety and Reliability: Each battery unit surpasses industry safety standards, ensuring families receive top-tier protection. Compliance with the new PAS 63100:2024 guidelines is a cornerstone of PowerOcean, meeting essential safety, fire resistance, and mechanical impact criteria for both inverters and batteries.

This achievement is made possible through advanced Lithium Iron Phosphate (LFP) battery technology and the integration of cutting-edge safety features. Among them, a fire prevention module actively addresses fire-related anomalies before they escalate. EcoFlow guarantees every homeowner can rely on the security and dependability of their energy storage solution.

The IP65-certified aluminium casing provides sturdy protection against environmental elements, facilitating safe outdoor installations. Each battery pack includes built-in heating pads that adjust automatically to maintain optimal operating temperatures, ensuring consistent performance in extreme weather conditions.

  • Seamless Integration: The PowerOcean Three-Phase seamlessly integrates with other power system components. Equipped with a built-in DC-DC converter, each 800V high-voltage pack can function independently, maintaining efficiency even with a single 5kWh battery pack. Additionally, PowerOcean's paralleled connection battery technology enables effortless expansion of battery capacity to 15kWh, ensuring adaptability to changing energy requirements without compromising safety.

    In times of crisis, the PowerOcean hybrid inverter delivers up to 10kW of backup power, ensuring critical appliances such as oven or borehole water pump remain operational during unforeseen power outages. Users benefit from real-time monitoring and control via the intuitive EcoFlow app and Web Portal, as well as EcoFlow’s PowerInsight, a 10-inch touchscreen home energy management system providing visibility and control over power usage, solar input, and battery storage.

  • Effortless Installation and After-Sales Support: The PowerOcean Three-Phase offers a hassle-free installation process with a simple three-step commissioning process and a wiring-free stack-up battery design, enabling homeowners and installers to expand and install the system effortlessly.

    With the EcoFlow Pro app dedicated to installers, device status can be monitored effortlessly, and PowerOcean error codes are intelligently categorized by their emergency level, streamlining the troubleshooting process.

    Rest assured, PowerOcean is backed by comprehensive after-sales support, providing prompt service, maintenance, and assistance throughout the product's lifespan.

  • Enjoy Free 2-3 Working Days Delivery within the UK (including the Highlands, islands and Northern Ireland).
    ECOFLOW POWEROCEAN 5KWH LFP BATTERY
    Battery Type: Lithium-Ferro-Phosphate (LFP
    Nominal Capacity: 5.1kWh
    Useable Capacity (95% Depth of Discharge): 4.8kWh
    Max. Output Power: 3,300W
    Max. Input Power: 2,500W
    Nominal Voltage: 800V
    Operating Voltage Range: 720-960V
    Cycle Life: >6,000
    Installation Location: Outdoor
    Operating Temperature:  -20 ~ +50°C
    Relative Humidity: 0%-100% (Condensing)
    Cooling Method: Natural convection
    Pretection Level: IP65
    Net Weight: 59.2kg
    Size:  680×183×452mm
    Cetrificates: CB/CE MARK
    ECOFLOW POWEROCEAN 10.0KW HYBRID INVERTER
    DC INPUT (PV)
    Maximum PV Input: 14,000W
    Maximum Input Voltage: 160-1000V
    MPPT Voltage Range: 200-850V
    Start-Up Voltage: 160V
    Nominal Input Voltage: 600V
    Maximum Input Current per MPPT: 16A
    Maximum Short Circuit Current per MPPT: 24A
    Number of Strings per MPPT: 1
    Number of MPPTs: 2
    Overvoltage Category: II
    DC INPUT (BATTERY)
    Maximum Charging Power: 10,000W
    Maximum Discharging Power: 10,000W
    Maximum Continuous Charging Current: 12.5A
    Maximum Continuous Discharging Current: 12.5A
    Rated Voltage: 800V
    Maximum Battery Capacity: 45.9kWh
    AC INPUT
    Grid Connection:3L+N+PE
    Overvoltage Category: III
    Nominal Apparent Power from Utility Grid: 16,000W
    Maximum Apparent Power from Utility Grid: 16,000VA
    Rated Output Voltage: 230/400, 3L+N+PE
    Maximum AC Current from Utility Grid: 23.1A
    Nominal Frequency: 50/60Hz
    AC OUTPUT (ON-GRID)
    Grid Connection: 3L+N+PE
    Overvoltage Category: III
    Nominal Apparent Power Output to Utility Grid: 10,000W
    Maximum Apparent Power Output to Utility Grid: 10,000VA
    Nominal Output Voltage: 230/400, 3L+N+PE
    Maximum AC Current Output to Utility Grid: 14.4A
    Nominal Output Current: 14.4A
    Total Harmonic Distortion (At Rated Power): ≤3%
    Power Factor: -0.8...1...+0.8
    AC OUTPUT (BACKUP)
    Nominal Apparent Power: 10,000VA
    Maximum Apparent Power: 12,000VA@1 sec
    Nominal Output Voltage: 230/400, 3L+N+PE
    Nominal Frequency: 50/60Hz
    Nominal Output Current: 14.4A
    Maximum Output Current: 17.4A@1 sec
    Voltage Total Harmonic Distortion (At Linear Load & Rated Power): ≤3%
    EFFICIENCY
    Maximum Efficiency: 97.6%
    Maximum MPPT Efficiency: 99.9%
    PROTECTION
    Residual Current Monitoring: Supported
    PV Insulation Resistance Detection: Supported
    Backup Load Short-Circuit Protection: Supported
    PV Reverse Polarity Protection: Supported
    AC Overcurrent Protection: Supported
    AC Short-Circuit Protection: Supported
    AC Overvoltage Protection: Supported
    DC Switch: Intergrated
    Remote Shutdown: Intergrated
    Protective Class: I
    COMPLIANCE
    Certificates: CE/CB/DEKRA MARK
    GENERAL
    Ingress Protection Rating: IP65
    Operating Temperature Range: –20 to 50°C
    Storage Temperature Range: –30 to 60°C
    Operating Humidity: 0%-100% (Condensing)
    Weight: 29.6kg
    Dimensions (W×D×H): 588×175×380 (±1) (without trim cover), 588×175×455 (±1) (with trim cover)
    Cooling Method: Natural convection
    Communication Method: RS485 & CAN & Wi-Fi & Bluetooth & WAN & 4G
    JUNCTION BOX
    Supported battery: PowerOcean LFP 5kWh
    Maximum number of batteries: 3
    Maximum capacity: 15.3kWh (with 3 batteries)
    Size:  73,2 × 36,8 × 25,2 cm
    Net weight: 11kg
    • 3x ECOFLOW POWEROCEAN 5KWH LFP BATTERY - 2 X Carton,
    • 1x ECOFLOW POWEROCEAN 10.0KW HYBRID INVERTER - 1 X Carton,
    • 1x JUNCTION BOX & 1x BASE 1 X Carton.
