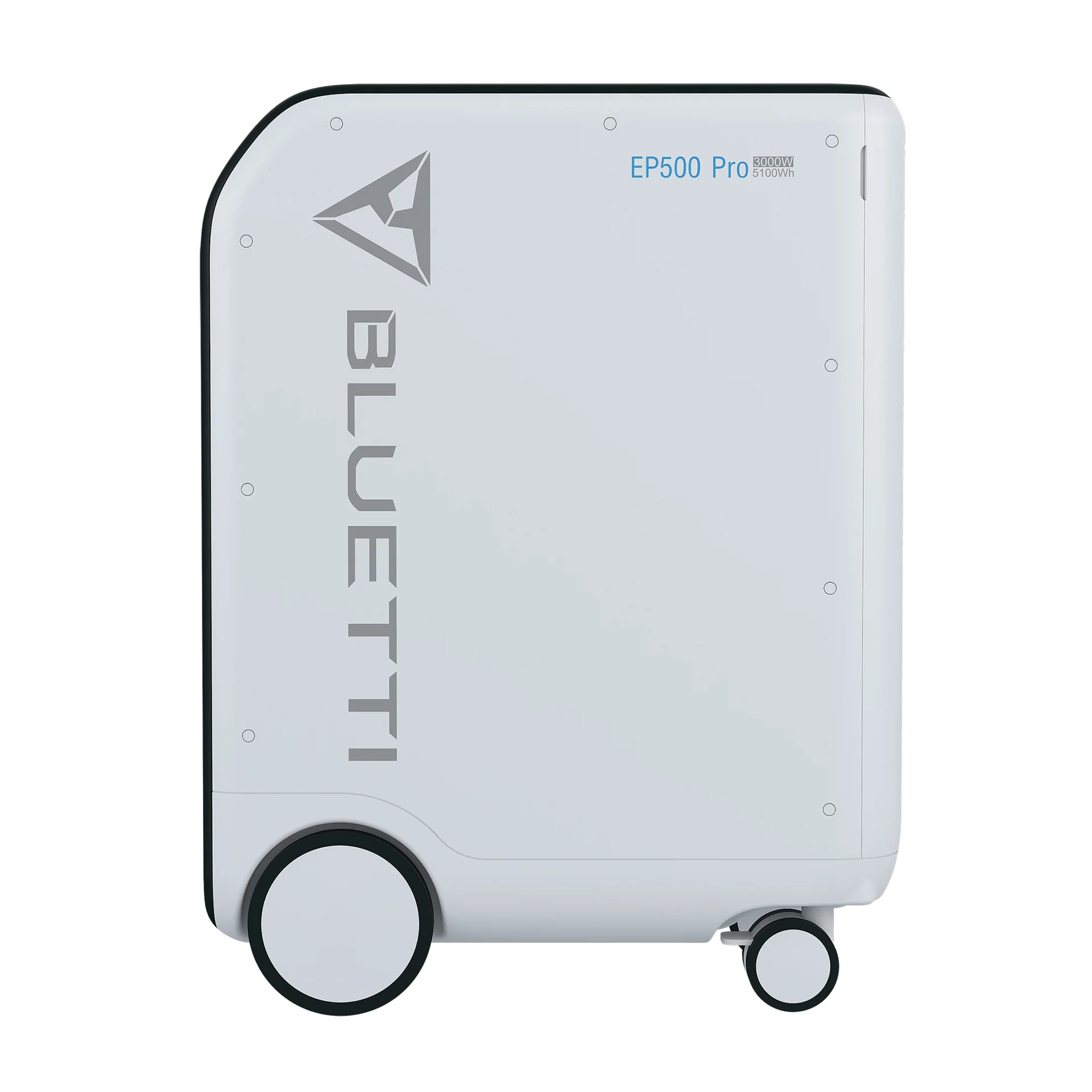

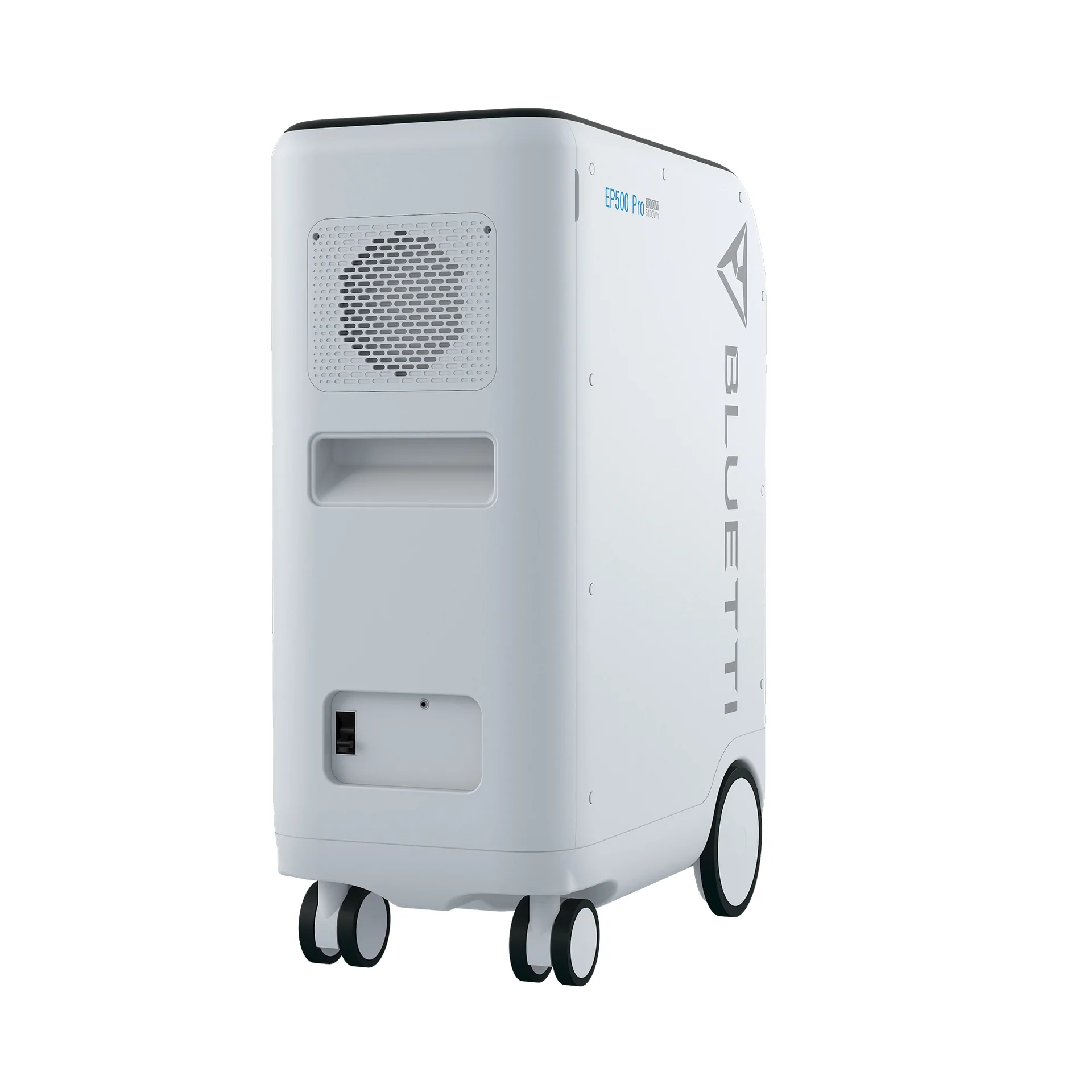

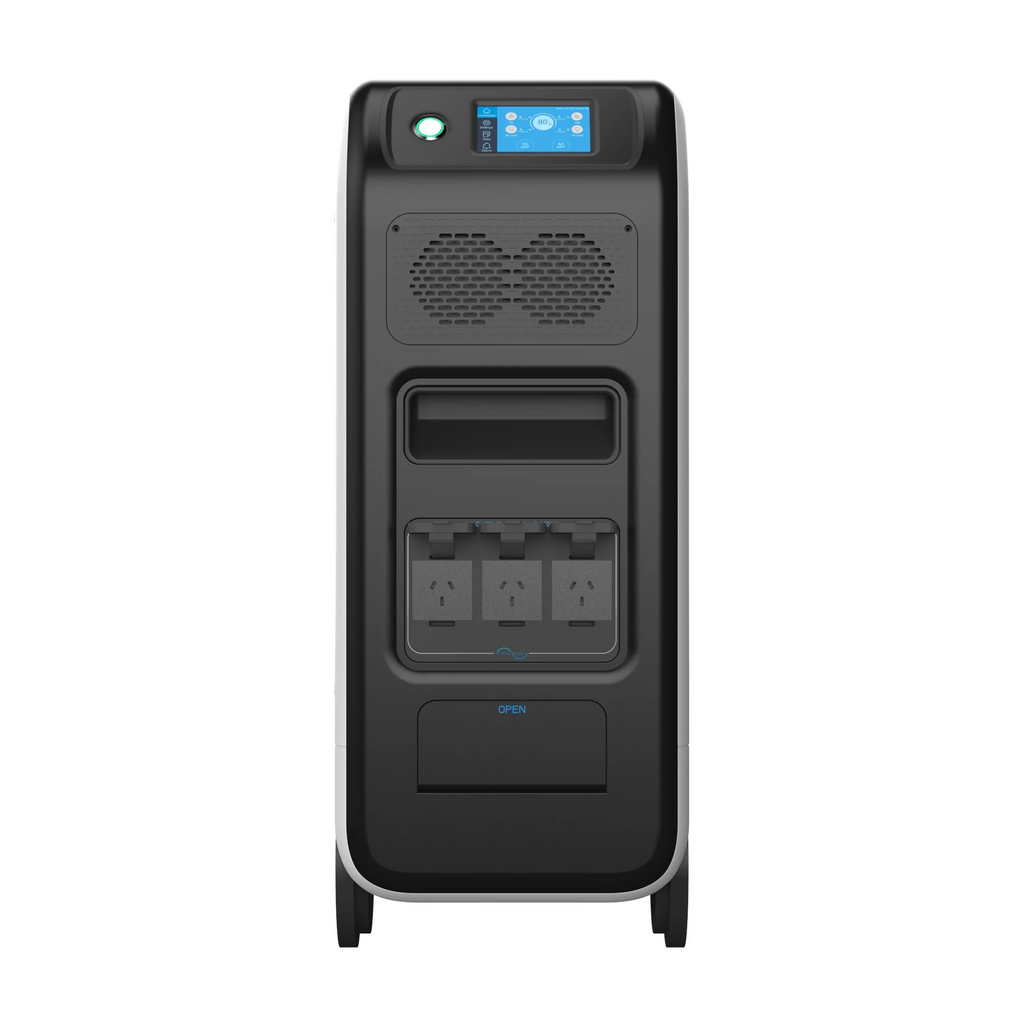

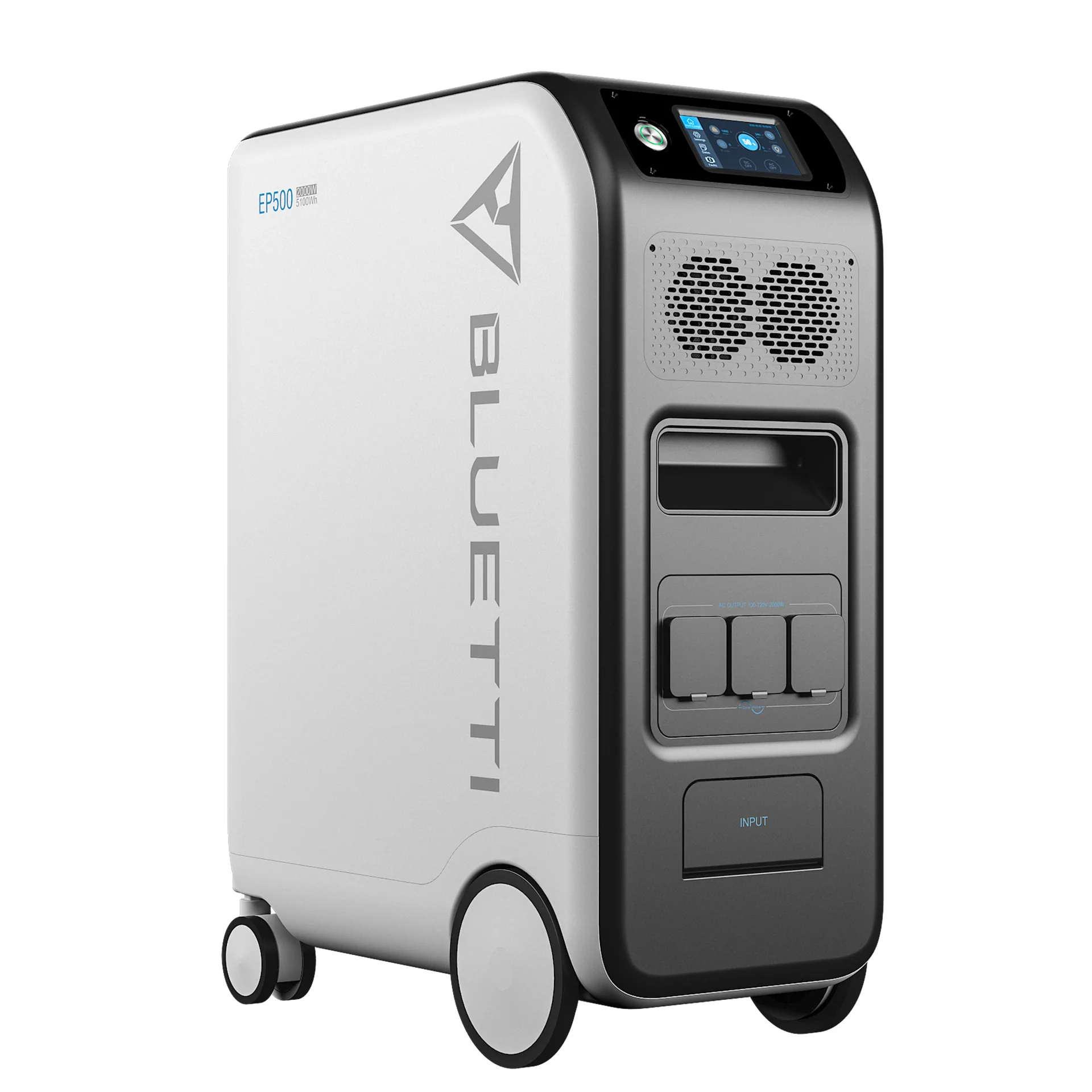

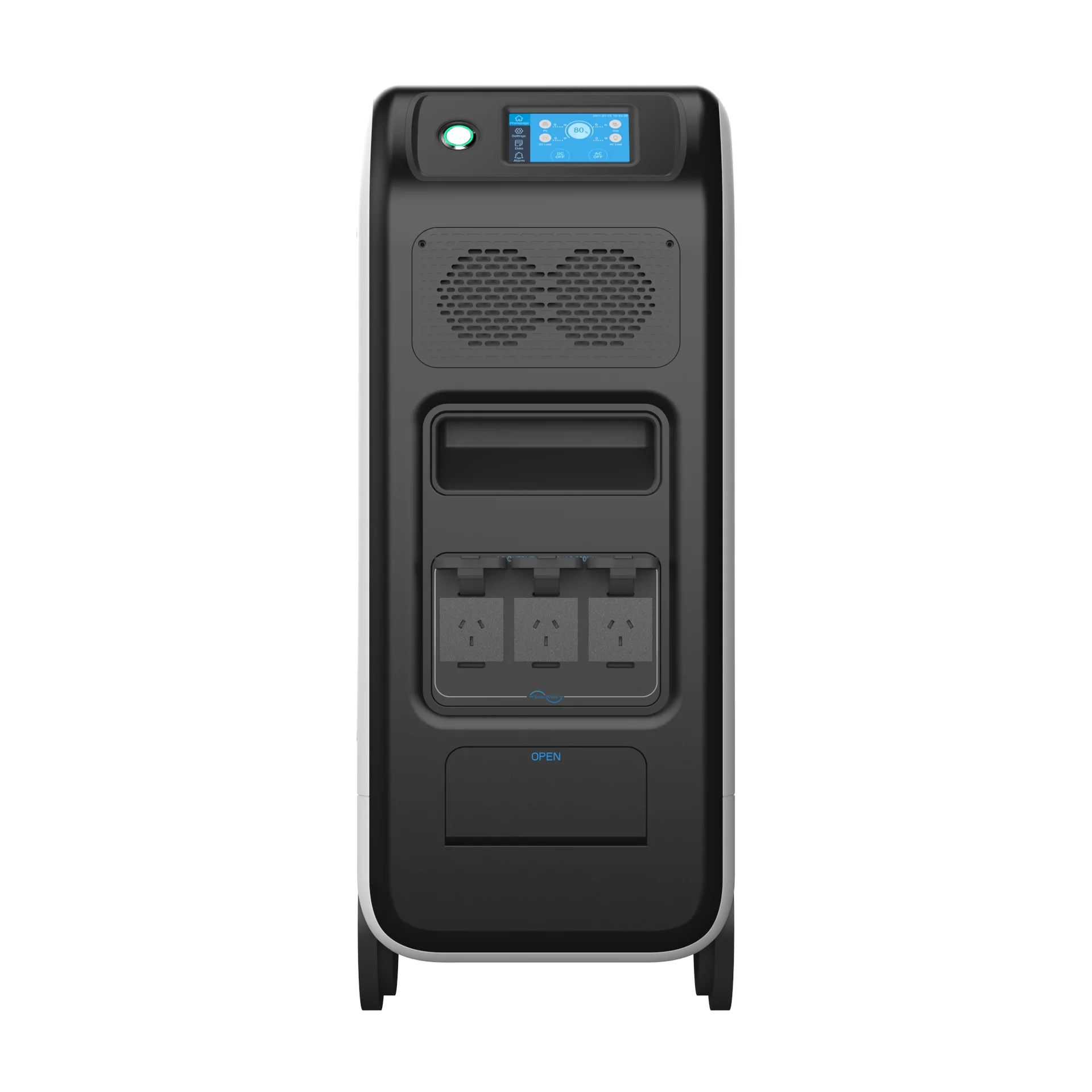

BLUETTI EP500PRO | 3,000W | 5,100Wh Home Battery Backup/Portable Power Station
BLUETTI EP500PRO: Powering Your Home with Ultimate Energy Storage System
The BLUETTI EP500PRO is a cutting-edge solar energy storage system for home use, boasting an impressive 5,100Wh LiFePO4 battery—five times more powerful than many competitors. This eco-friendly alternative to fuel-based generators offers over 6,000 battery life cycles, ensuring extended use before any significant capacity loss.
Key Benefits:
- 5,100Wh LiFePO4 Battery: Delivers over 6,000 charge cycles.
- 3000W Pure Sine Wave Output: Powers your entire house without compromise.
- Portable Design: Equipped with wheels and a handle for easy movement.
- UPS ( Uninterruptible Power Supply) Modes: In-grid and flexible 24/7 UPS modes available.
- Off-Grid Energy Storage: Ideal for emergencies.
- Flexible Recharging: Keeps your EP500PRO always ready.
- App Remote Control: Manage your power station from your phone.
- Smart Touchscreen: Easy and intuitive operation.
All in One Energy Storage System
Safe, Smart, and Continuously Evolving
Seamless Grid Backup
In a power outage, the EP500PRO automatically takes over as your home's energy source. Unlike gasoline generators, it operates quietly and without fuel or maintenance, recharging quickly with up to 2400W MPPT solar input.
Versatile Usage
Designed for various scenarios, the EP500PRO’s 5100Wh battery and 3000W inverter can power a workshop or your entire house for a day or two during an outage.
Experience the brilliance of solar power with the BLUETTI EP500PRO, revolutionising home energy solutions with unmatched power and efficiency.
What in the Box
Specifications
GENERAL
AC Rated Power: 3000W , 3000W<load<3750W,2min , 3750W<load<4500W,5s , 4500W<load<6000W,500ms
(peak 6000W) |
Net Weight: ≈83kg (182lbs)
|
Dimensions: 500*300*760mm (22.8*11.8*29.9in)
|
Battery Capacity: 5100Wh
|
Battery Cell Type: LiFePO4
|
Rated Life Cycle: 6000+
|
Charge Temperature: 0°C ~ 40°C (32°F ~104°F)
|
Storage Ambient Temperature: 0°C ~ 45°C (32°F ~113°F)
|
Working Environment Humidity: 10-90%
|
Certification: PSE, FCC, CE, UN38.3, msds, UL, SAA and ROHS
|
Warranty Period: 5 Years
|
AC Input: 3000W Max
|
PV Input: 2400W Max, 35-150VDC, 12A*2,12V/24V,8.2A
|
USB-C: 2*100W
|
AC: 220-240VAC*3
|
USB-A: 2*Quick Charging, 36W Total, 2*5VDC, 3A Total
|
Cigarette Lighter: 1*12VDC, 10A
|
RV (Aviation Port): 1*12VDC, 30A
|
DC 5521: 2*12VDC, 10A Total
|

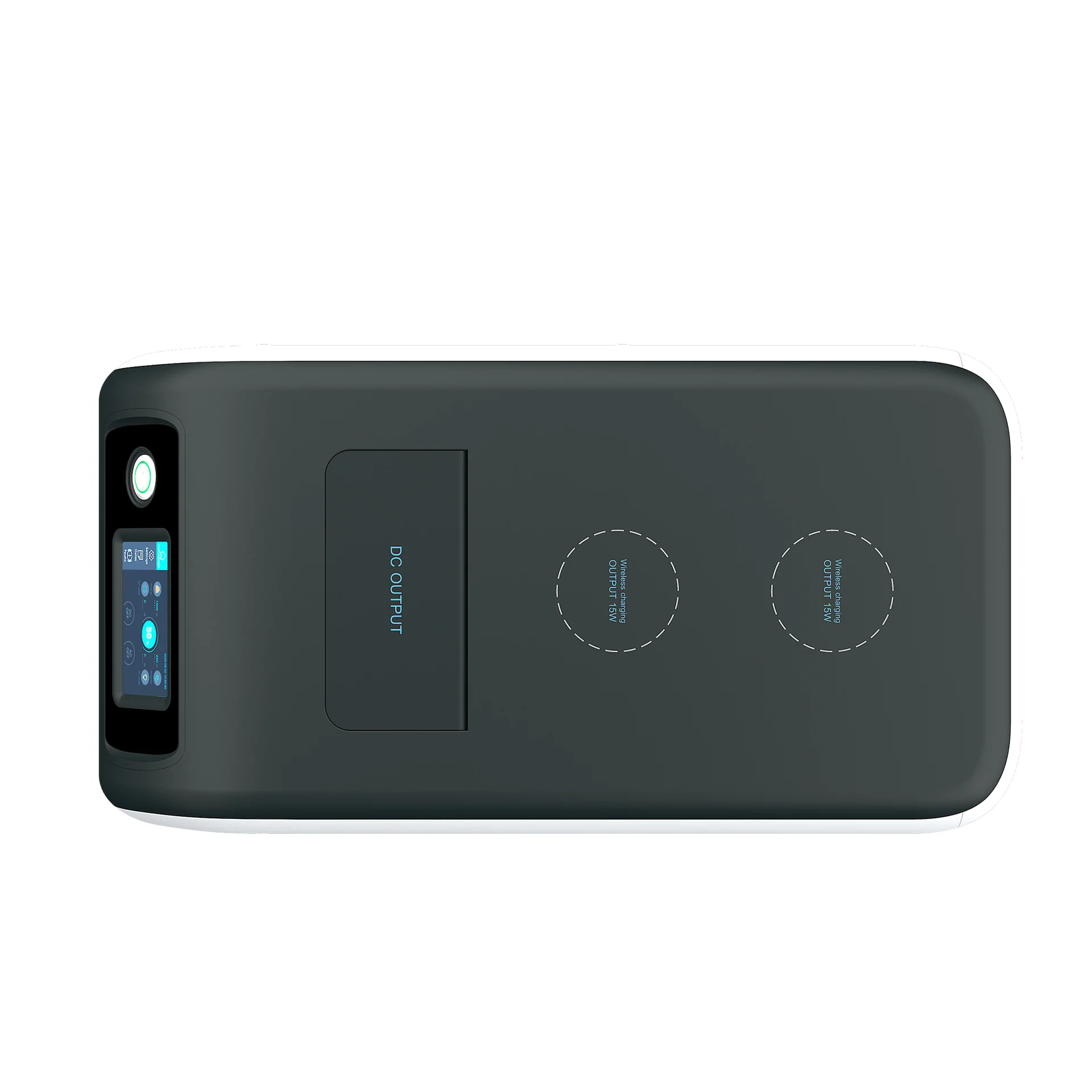

Wireless Charging Pad: 2*5/7.5/10/15W
|
Frequently Asked Questions
Q1: How do I set up the in-grid UPS (Uninterruptible Power Supply)?
1. For non-solar-powered household circuits:A certified electrician must install the system and connect your critical equipment to the BLUETTI UPS BOX. This setup will automatically switch to the EP500PRO when the power fails. The connection is: power grid → home main circuit → BLUETTI UPS box → EP500PRO → critical equipment (e.g. refrigerator, lights, server).
2. For solar-powered UPS:
- If the solar panel voltage is within the EP500PRO's input range, connect directly via the MC4 port connectors.
- If the voltage exceeds the EP500PRO's limit, use a "PV step-down module" to reduce the voltage before connection. The connection is: solar panels → PV step-down module → EP500PRO → critical equipment.
Q2: Why is there a power limitation for the US version of the EP500PRO in mobile UPS mode?
When plugged into a home wall outlet, the power output is limited by the wall plug's current.Q3: What is the UPS switching time?
There are two options.
- No delay for online UPS.
- 20ms delay for standby UPS.
Q4: What is the power loss in different states?
- In standby state: <10W
- AC_ON & DC_OFF: <20W
- AC-ON & DC_ON: <25W
Q5: What capacity remains after 6000 battery cycles?
The EP500PRO maintains above 50% capacity after 6000 cycles.Q6: What is the frequency setting?
- 60Hz: USA, Canada
- 50Hz: Europe, UK, Australia
- Frequency 50/60Hz cannot be switched.
Q7: What if my solar panels exceed the open circuit voltage requirement?
Use a BLUETTI PV Voltage Drop Module to reduce the voltage without altering the original installation.Q8: Can I use a third-party solar panels?
Yes, but they must meet these conditions:
- Open Circuit Voltage(OCV): Dual MPPT, each 35-150V/Max.12A,1200W Max. (2400W Max. for dual connection).
- Suitable MC4 connector.
- It is recommended to use solar panels of the same brand.
Q9: Are there any restrictions on the 100W USB-C port?
It will charge at 60W if the USB-C cable lacks 5A MFI certification.Q10: Can other DC ports be used when the 12V/30A is active?
No, only the 12V/30A RV port will work. Cover the rubber plug when the port is idle to avoid short circuits.Q11: What are the output power restrictions of the Split Phase Bonding Function?
-
Only one AC port marked 4000W/220-240 (or 6000W/220-240) can power high-voltage devices. Other AC ports can load up to 3000W on the EP500PRO.
-
Total load power of all AC ports should not exceed 6000W for the EP500PRO.
