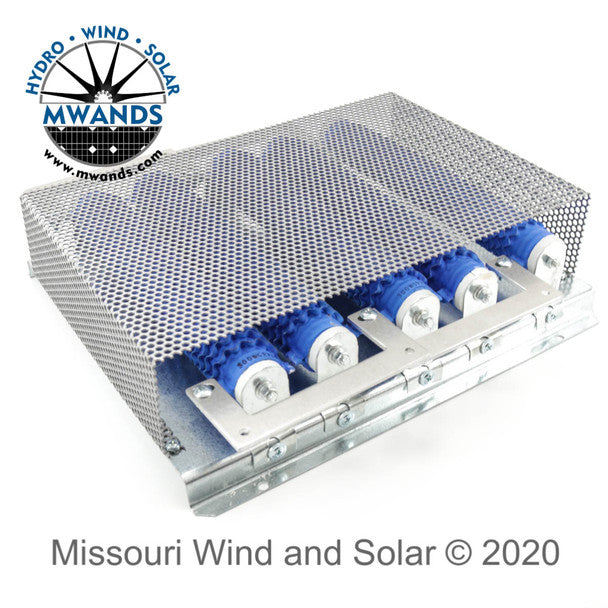

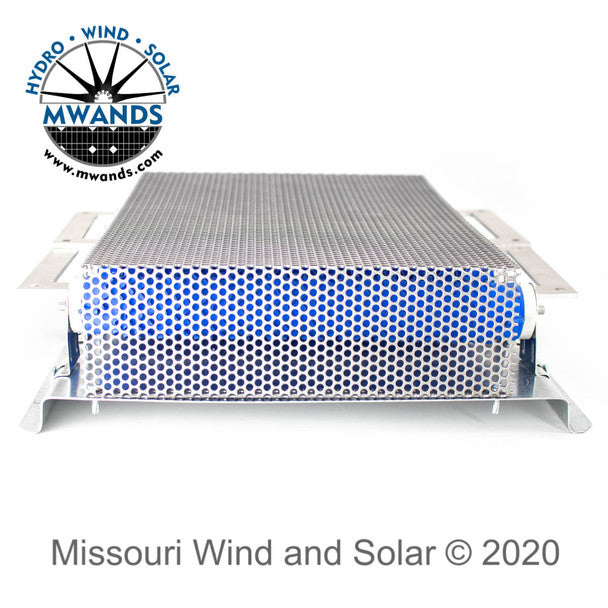

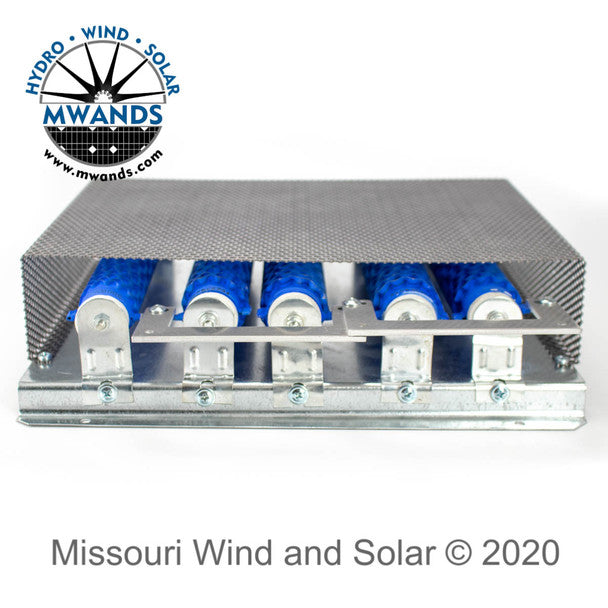

1500 Watt Dump Load (5 Resistor Bank)


Delivery available

Optimize Power Management with 1500 Watt Divert Resistor Bank

Ensure Efficient Power Diversion for Wind Turbine Generators

Key Features:

  • Versatile Power Diversion:
    • Divert excess power generated when wind turbine generator batteries are full.
    • Compatible for use with a solar array in diversion mode.
  • High-Duty Cycle Design: Quality rib wound design allows the unit to run at a 100% duty cycle.

  • Dual Functionality:
    • Can function independently, providing free heat by connecting solar panels directly.
    • Explore alternative dump load options such as DC water heating elements.
  • Easy Installation: Comes fully assembled for seamless installation.

  • Dimensions: Approx. 11.5 x 4 x 3 1/4 inches (29.21 x 27.94 x 8.25 cm).

  • Wire Gauge Note: When used with a relay, utilize 1 gauge cable for connections to prevent heat buildup and premature relay failure.

  • Prevent High-Speed Freewheeling: Divert excess power to avoid high-speed freewheeling during heavy winds.

  • Outdoor Placement: Suitable for outdoor use in a metal enclosure or under an awning or roof.

  • Safety Precautions: Do not attach to wooden or other flammable surfaces.

Enhance the performance of your wind turbine generators with our quality divert resistor bank, designed for reliability and effective power utilization.

  24 Volt Specifications 48 Volt Specifications
Voltage 24 Volts 48 Volts
Amperage 62 Amps 31 Amps
Wattage 1500 Watts 1500 Watts

Attention: These resistors can get very hot!
