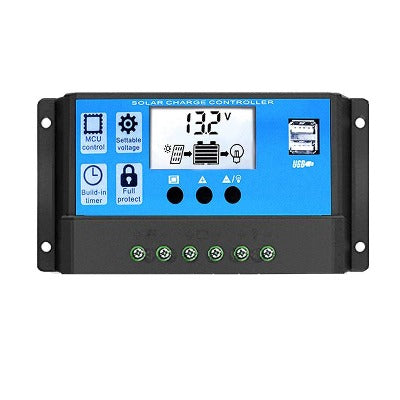

Energian Automatic PWM Solar Charge Controller series

Energian 12V/24V 20A Automatic PWM Solar Charge Controller is a new device and ideal for small solar system especially home system. It has the beautiful appearance and simple operation. And the industrial grade design ensures its reliability

Features
  • High Rated Current The solar charger controller with 20A rated discharge current is compatible with widely used leisure lead-acid batteries (AGM, GEL, FLOODED) change 12V or 24V automatically, Dual USB 5V/2A output ports support charging of mobile phones, tablets or other 5V devices.
  • Multiple Protection Function Equipped with overcurrent protection, short-circuit protection, inverse connection protection, low voltage, and over-load protection, and have fully 3-stage PWM charge management. This 20A solar charge controller will help you improve the system efficiency safely and prolong the life span of the battery.
  • Intelligent Functionality Build-in industrial micro controller for automatical management, memorizing various parameters set by the user and the data won't be lost when the battery runs out. The solar controller will turn off automatically once the voltage is too low.
  • Great Heat Dissipation Dual MOSFET reverse current protection, low heat production(ALL electronic components generate heat when they are running,it is better to shelter them for better heat dissipation, avoid direct sunlight exposure or damp place)

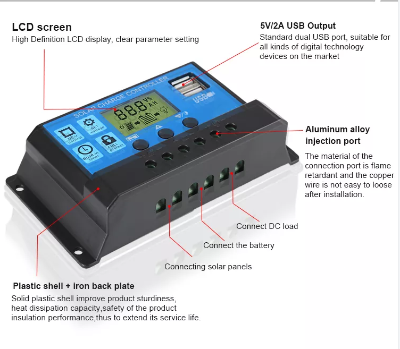

  • LCD Display and Easy to Use Intuitive LCD display that can clearly indicate the status and data is able to switch modes and parameter configuration, suitable for home, industrial, commercial, etc.
Specifications
  • ModelCM20K-20A
  • Acceptable lead-acid battery types: AGM (B01), GEL (B02), FLOODED (B03)
  • Battery voltage:12/24VDC Auto
  • Charge current: 20A
  • Discharge current: 20A
  • Max solar input: 48V
  • 12V System Charging Voltage: 13.7V(B01), 12.6V(B02), 14.6V(B03)
  • 24V System Charging Voltage: 24.7V(B01), 25.2V(B02), 29.2V(B03)
  • 12V System Low Voltage Disconnect:10.7V(B01), 9V(B02), 10V(B03)
  • 24V System Low Voltage Disconnect:21.4V(B01), 18V(B02), 20V(B03)
  • 12V System Low Voltage Reconnect:12.6V(B01), 10.5V(B02), 12V(B03)
  • 24V System Low Voltage Reconnect:25.2V(B01), 21V(B02), 24V(B03)
  • USB-A output: 2X 5V/3A
  • Self-consumption: <10mA
  • Operating temperature: -35 C ... +60 C

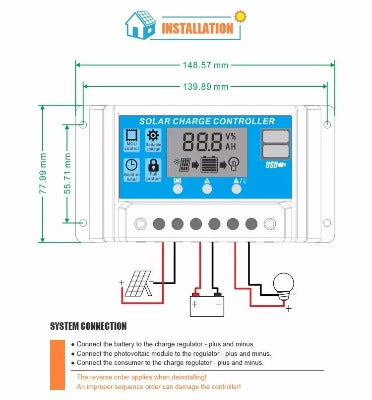

  • Size/Weight: 150 x 78 x 35 mm / 150g
Energian 12V/24V 20A Automatic PWM Solar Charge Controller
