Ground Mounted Kits of JA Solar 455W Solar Panel & Renusol ConSole+ Ground Mounts

Empower Your Space with JA Solar 455W Mono Solar Panels

Looking for a reliable power solution for your home, garden office, shed, or garage? Explore the potential of a Ground-Mounted Kit featuring the exceptional JA Solar 455W Mono Solar Panels & Renusol ConSole+ Ground Mounts.

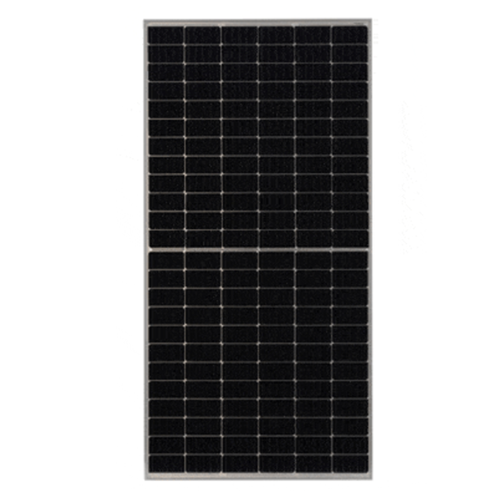

The JA Solar 455W Mono MBB Percium Half-Cell Silver Frame Short Frame QC4 (JAM72S-20-455-MR-SM) solar panel is a 455W monocrystalline module with 144 Half-Cell technology. JA Solar offers a high-efficiency module with PERC cells, which thanks to its half-cell configuration offers high power output, better temperature coefficient, lower efficiency loss against shading, and higher resistance to mechanical loads. JA solar panels come with a 12-year product warranty and a 25-year linear output warranty.

Ideal for off-grid photovoltaic solar energy installations. These panels stand out for their incredible quality/price ratio and their great power in a small size.

THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 2

Key Features:

• High-Efficiency PERC Module:
  • 455W output with 144 Half-Cell technology for superior performance.
  • Half-cell configuration for increased power output, better temperature coefficient, and enhanced resistance to mechanical loads.

• Durable and Weather-Resistant:
  • Excellent response in extreme conditions, including low solar radiation and temperature variations.
  • Textured glass surface for unparalleled resistance to sea salt, ammonia, dust, or sand.

• Reliability with Half-Cut Cell Technology:
  • Higher output power and mechanical loading tolerance.
  • Reduced shading effect and lower temperature coefficient.

• Superior Warranty: 12-year product warranty and a 25-year extra linear power output warranty.

• Ideal for Off-Grid Solar Installations:
  • Incredible quality/price ratio for efficient and cost-effective solutions.
  • Compact design with powerful performance.

• In the Box:
• JA Solar 455W Monocrystalline Solar Panel
• ConSole+ Ground Mount & user manual

• Shipping: Receive your order within 2-3 working days when placed by 5 PM on a working day (shipping times may vary to the Scottish Highlands, islands, and Northern Ireland).

Detailed specifications:

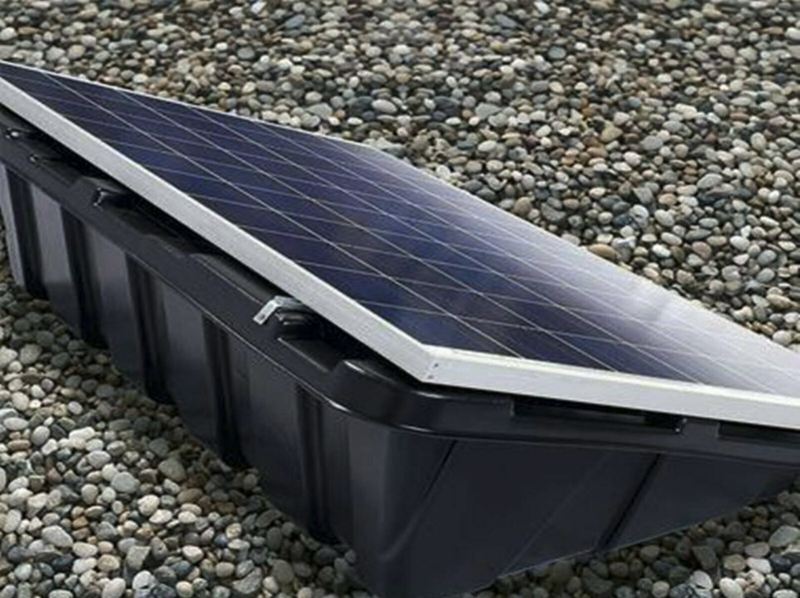

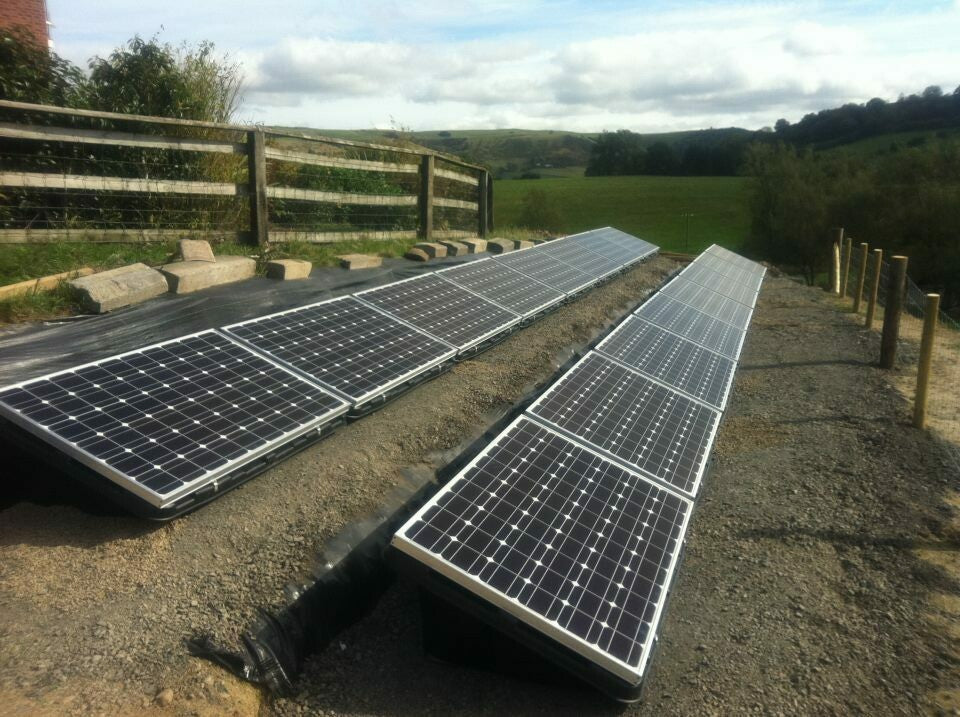

The ConSole+ Ground Mounts is the ideal solution for installing PV modules on the ground, including on unstable ground and without fixing to the ground. The ConSole+ provides an angle of 15 degrees.

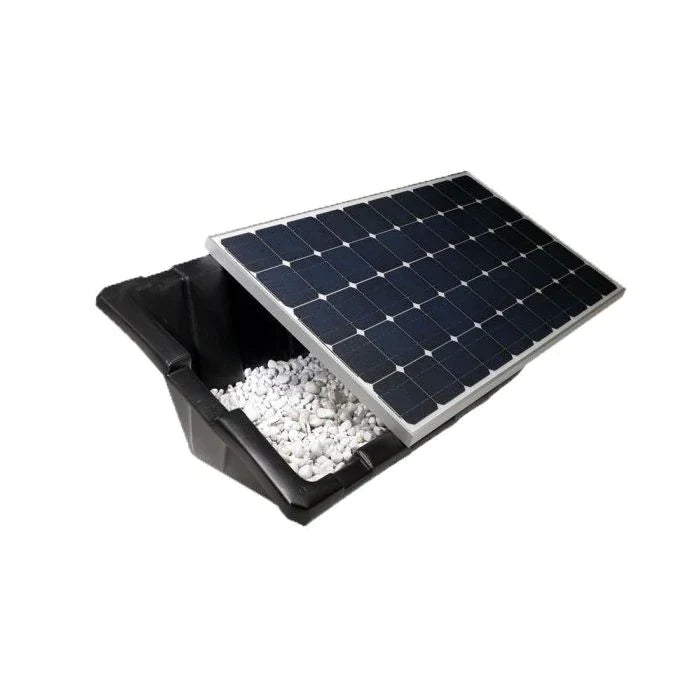

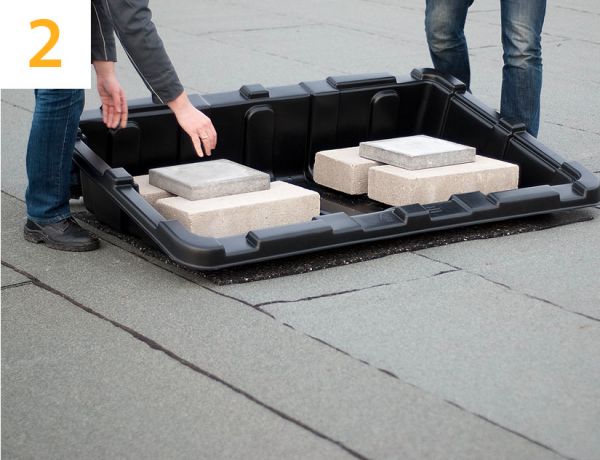

The ConSole+ is ingeniously designed to support PV modules on the ground, delivering stability even on unstable surfaces without the need for fixed foundations. Weighed down with ballast, including gravel and paving slabs, it ensures resilience against wind loads. Essential ballast information is conveniently provided in "Preparing the Assembly - Point 2" on Page 5 of the installation manual.

Simple Installation, Maximum Efficiency:

• Effortless Setup: Place ConSole+ in your desired location, fill it with ballast, and attach the solar module—simple, swift, and secure.
• Proven Performance: With nearly two decades of reliable service, ConSole+ modules are a testament to simplicity, speed, and safety.
• Features of ConSole+ Ground Mounts: Easy Installation: Requires no special equipment or drilling, secured only by ballast—an ideal choice for unstable ground.

• User-Friendly Design: Easy to handle, flexible, and ensures a secure setup.
• Cost-Effective Solution: Lower installation costs compared to roof-mounted solar panels.
• Environmentally Friendly: Effortless removal after use with low dismantling costs, leaving minimal environmental impact.
• Proven Track Record: In use since 2003 with consistently positive customer experiences, backed by a robust 10-year system warranty.

Detailed Specifications:

• Applications: Ideal for flat roofs, open spaces, gardens, pavement around the house, landfills, and more.
• Roof Slope: Max. 5° without additional measures.
• PV Module Tilt: 15°.
• PV Module Length: 1550 mm - 2400 mm.
• PV Module Width Between Mounting Holes: 895 mm - 1015 mm (1085 mm with elongation rails).
• Material: HDPE, aluminum, and stainless steel.
• Ambient Temperature: -30°C to +50°C.
• Dimensions: Width: 1765mm, Depth: 1048 mm, Height: 35mm.
• Weight: 8kg.
