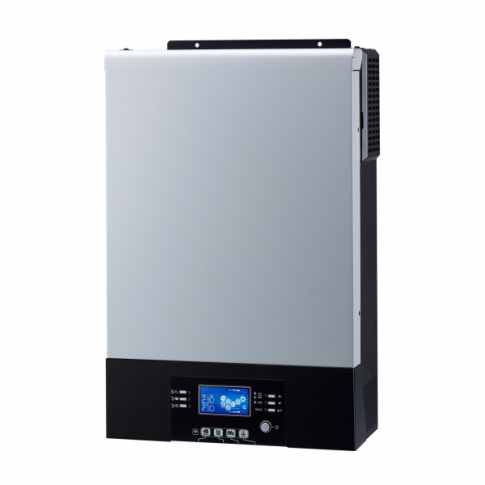

ICONICA 6.0kW 48V Single Phase Off-grid Hybrid Inverter

Empower Your Home with the Iconica 6000W Off-grid Hybrid Inverter

The Iconica 6000W 48V Off-grid Hybrid Inverter ingeniously amalgamates a 6000W pure sine wave inverter, a 120A MPPT solar charge controller, and a 120A smart battery charger into one singular unit. This impressive model readily accepts input from solar panels, mains power/generators, or batteries, either individually or in combinations. It features a zero transfer time, swiftly switching from mains to battery mode instantaneously upon power interruption, alongside advanced communication functions like inbuilt Wi-Fi and a menu rich in customisable settings.

Installation available - contact us for a quote.

Features

• ICONICA 6.0kW INVERTER is compatible with 48V GEL/AGM and LITHIUM-ION batteries with pre-defined charging programs. Note that the solar array must meet the minimum MPPT input voltage requirement of 120V (achieved by connecting several solar panels in series) for solar charging or direct operation of household appliances.

• ICONICA 6.0kW INVERTER converts DC current into 230V AC mains electricity, powering diverse household appliances, providing 6000W continuous power, and handling peaks up to 12000VA for appliances with electric motors, such as pumps, vacuum cleaners, and power tools.

• INBUILT 120A HIGH EFFICIENCY MPPT CONTROLLER efficiently manages the input from solar panels to the batteries or load, ensuring safety measures like protection against overcharge, overheating, and reverse current. The controller operates at up to 98% efficiency, enabling maximum power extraction from the solar array to supply emergency power from PV or a battery to run home appliances.

• ICONICA 6.0kW INVERTER can be connected in parallel with up to 8 additional identical units, providing a powerful 54kW/54kVA system for large-scale expansions. Parallel connections offer 3-phase operation, ideal for powering industrial-grade equipment and machinery running on 3-phase electricity. A Parallel Connection Kit (sold separately) is required for each connected inverter in the system.

• ADVANCED COMMUNICATION OPTIONS Comes with a PC connection cable and PC software CD for monitoring critical system information. Detailed data logs can be viewed and exported to PDF/Excel formats. Offers the potential to send data to an online user portal using a Wi-Fi Remote Monitoring Kit (purchased separately) for remote system monitoring, email status updates, and more.

• INTEGRATED Wi-Fi FUNCTION allows remote monitoring via the WatchPower mobile app, available for Android and iOS devices, giving users essential information about solar/battery/AC voltage, charging current, and battery capacity.

• 2-3 WORKING DAYS DELIVERY within the UK (longer delivery times to the Highlands, islands, and Northern Ireland).

Detailed specifications
