Ground & Flat Roof Mounting Kits
Effortless Solar Panel Installation: No Drilling Required
Are you keen on installing solar panels on the ground or a flat roof without drilling? The answer is a resounding yes, and we've got you covered. But there are some challenges you should be aware of. That's precisely why we offer ground and flat roof solar mounts designed to address these challenges.
Eliminating Leakage Risks
Unlike traditional sloped roofs that efficiently channel water to eaves and gutters, flat roofs tend to collect water in specific areas, leading to pooling or ponding. Even without the presence of solar panels, this pooling phenomenon poses a risk of leakage and potential water damage to your home. Adding solar systems to the equation only exacerbates the problem, as it introduces the challenge of water leaking through the drill holes used for mounting.
Fortunately, there's a solution to mitigate this risk. Instead of drilling into the roof to attach solar panels, our solar mounts employ ballast, essentially weights that secure the solar system in place. This innovative approach eliminates the need for drilling and the associated risk of leakage.
Optimising Panel Tilt
On a flat roof, you have the flexibility to slightly raise the panels, enhancing annual energy production. Typically, an angle of 15-25 degrees strikes the ideal balance between maximising solar irradiance and minimising shading between panel rows.
Affordable Panel Installation
Our Ground and Flat Roof Ballasted Mount installations represent a cost-effective strategy, ideal for solar mounts. Not only is this approach budget-friendly, but it's also the quickest to install. This strategy, initially designed for flat roofs, has been seamlessly adapted for ground-based installations.
Our Offerings: Ballasted No-Drill Solar Mounts
We provide two compelling options for ground and flat roof ballasted mounts that eliminate the need for roof drilling:

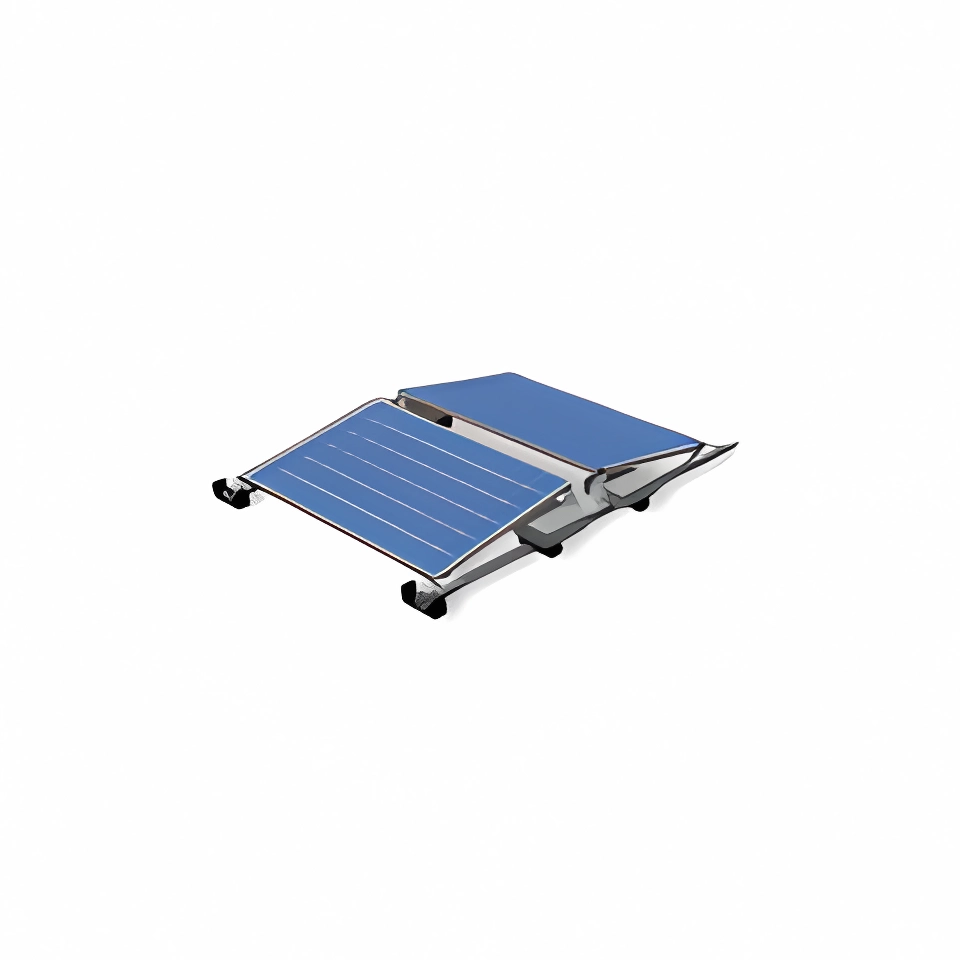

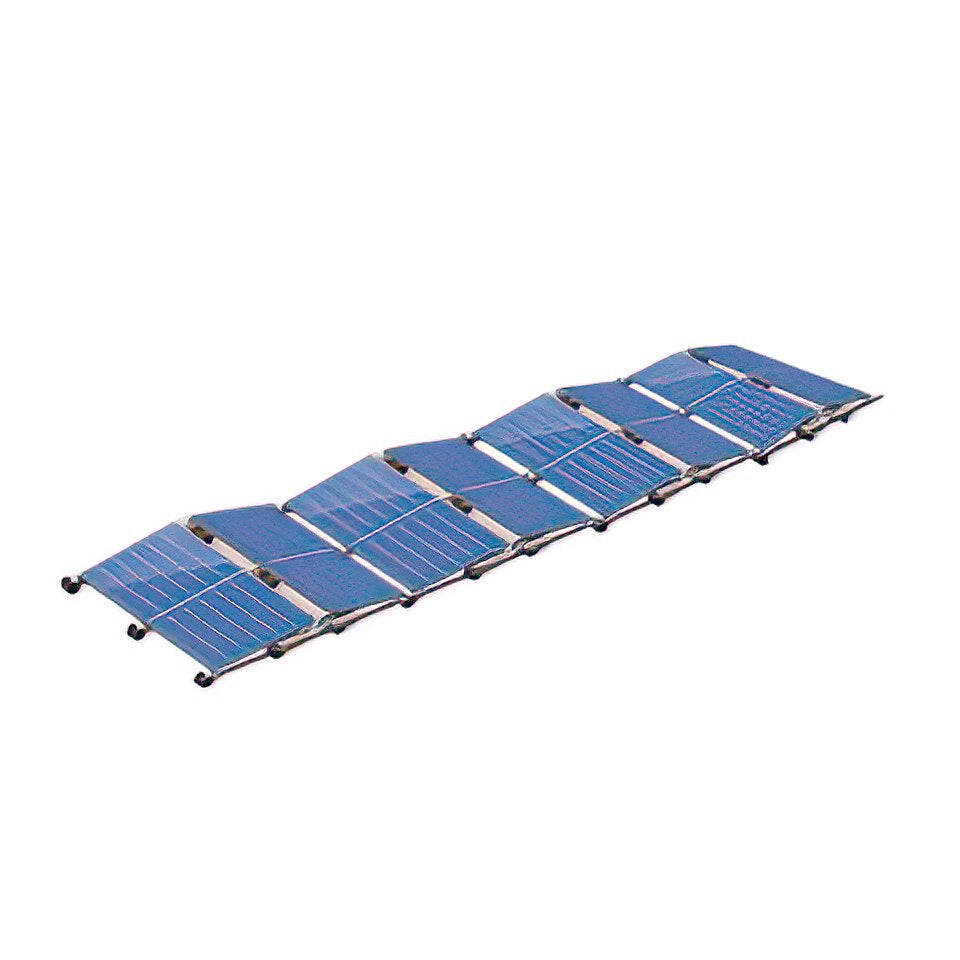

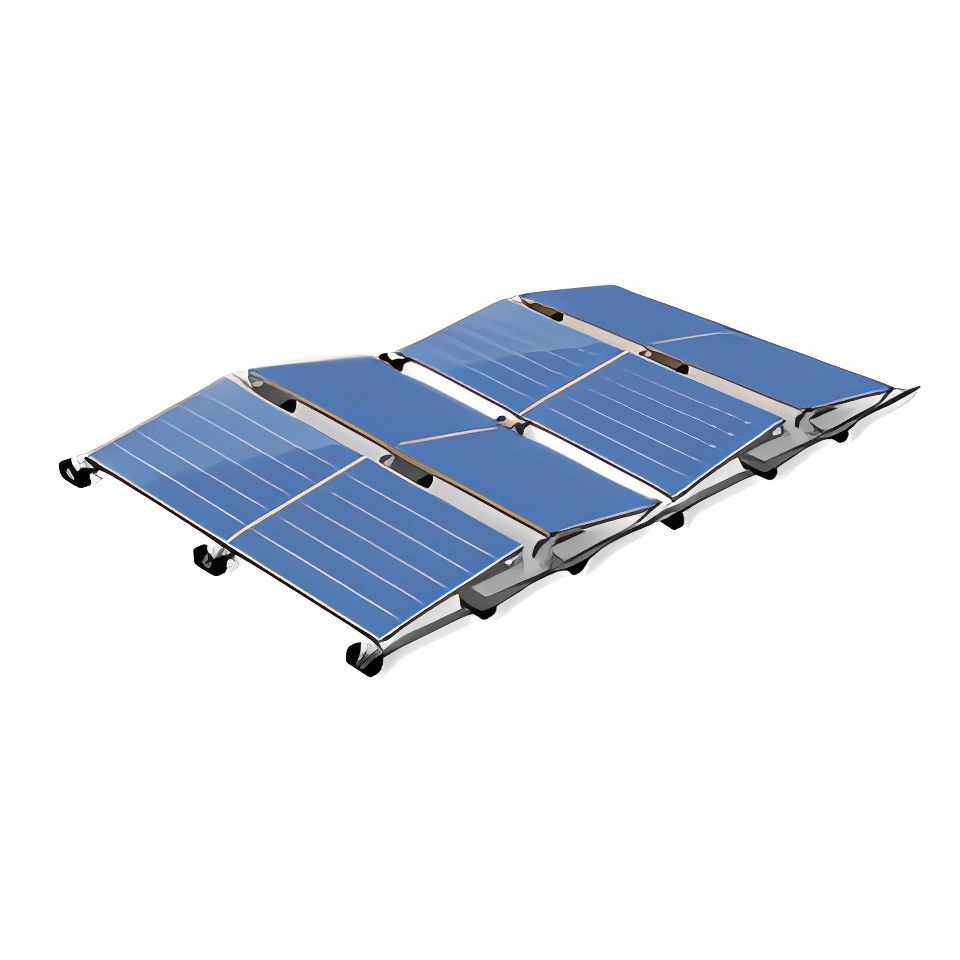

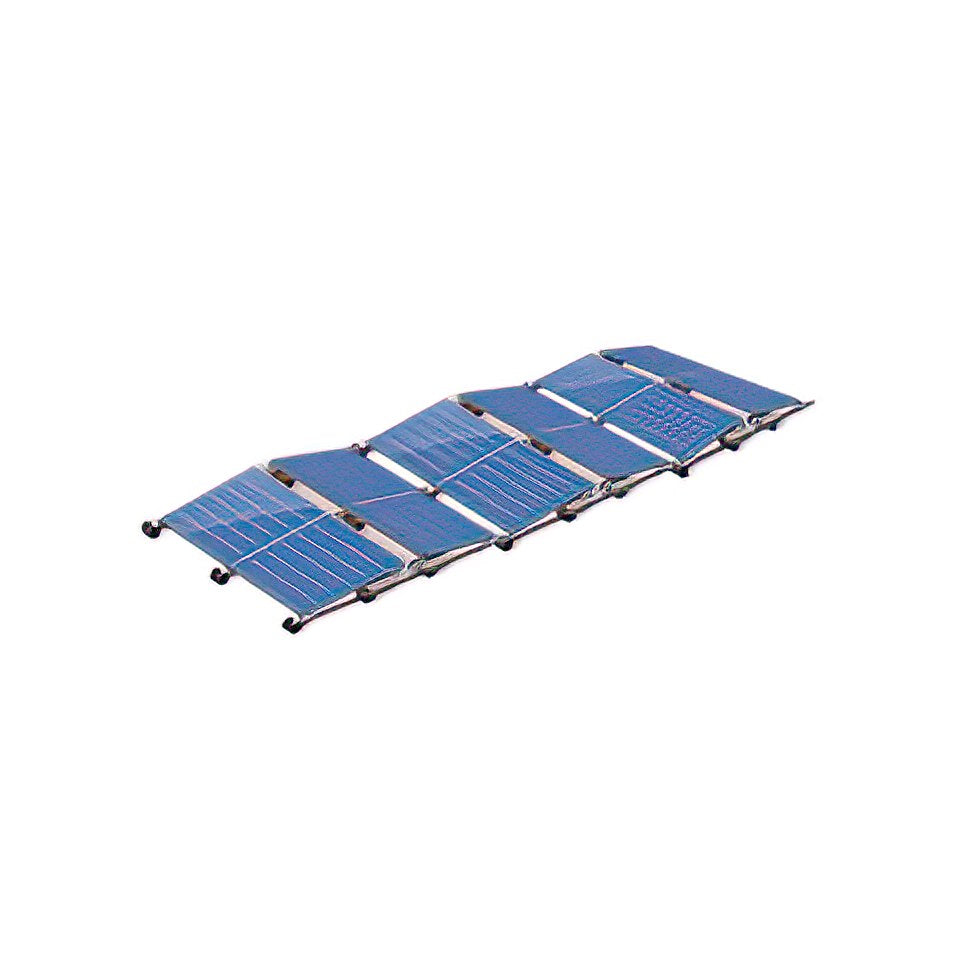

- Renusol ConSole+ Ballasted Trays: Designed for landscape mounting of solar panels ranging from 1550 mm to 2400 mm in length, with mounting holes spaced between 895 mm and 1015 mm (or 1085 mm with elongation rails).

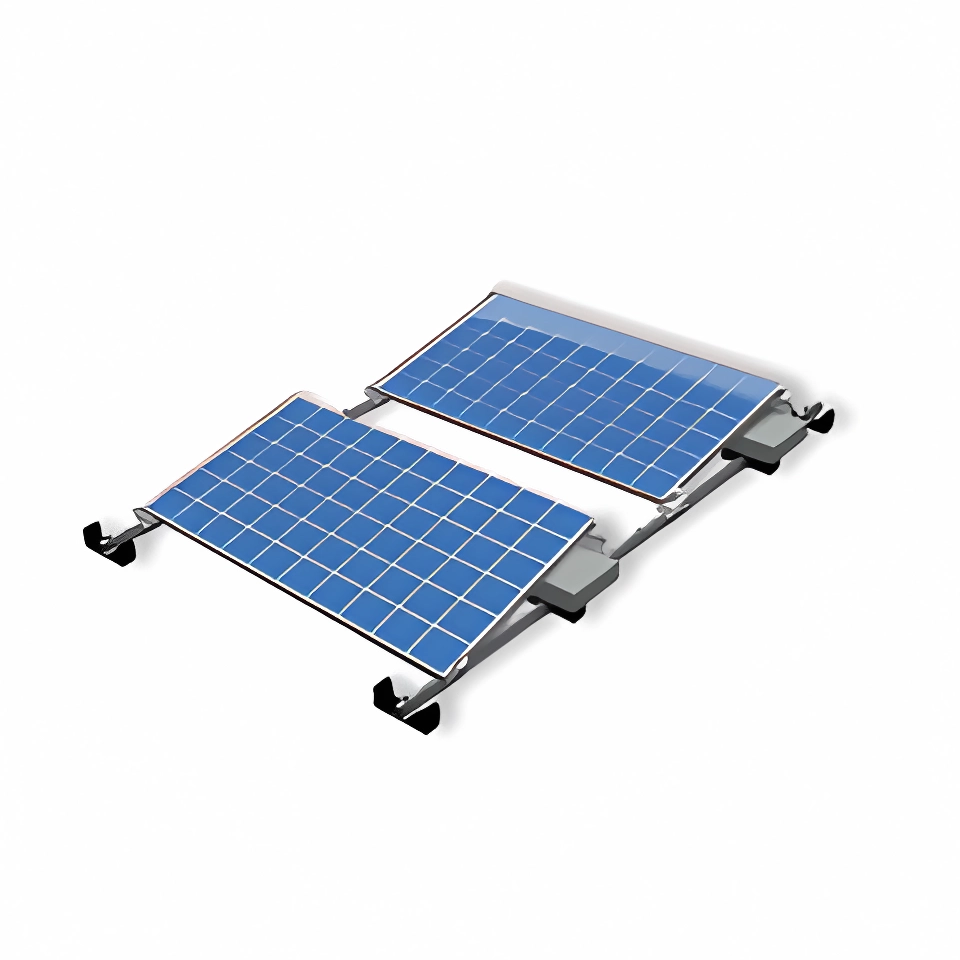

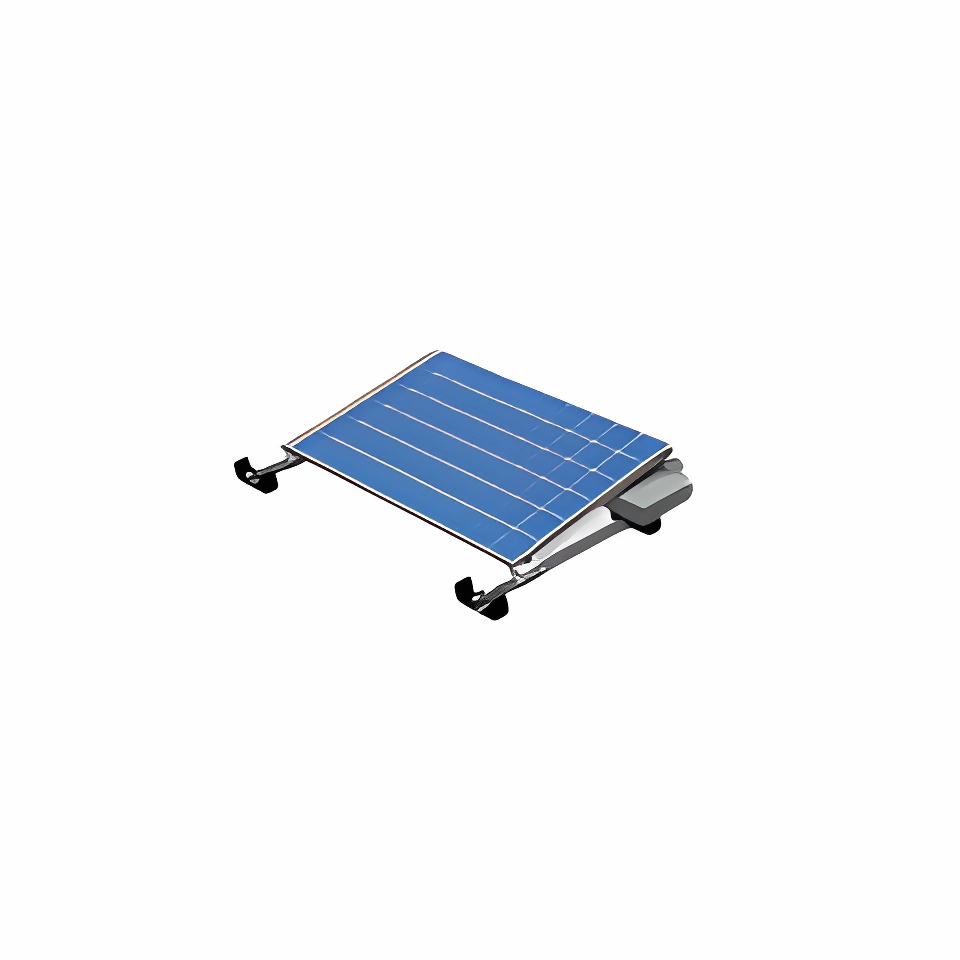

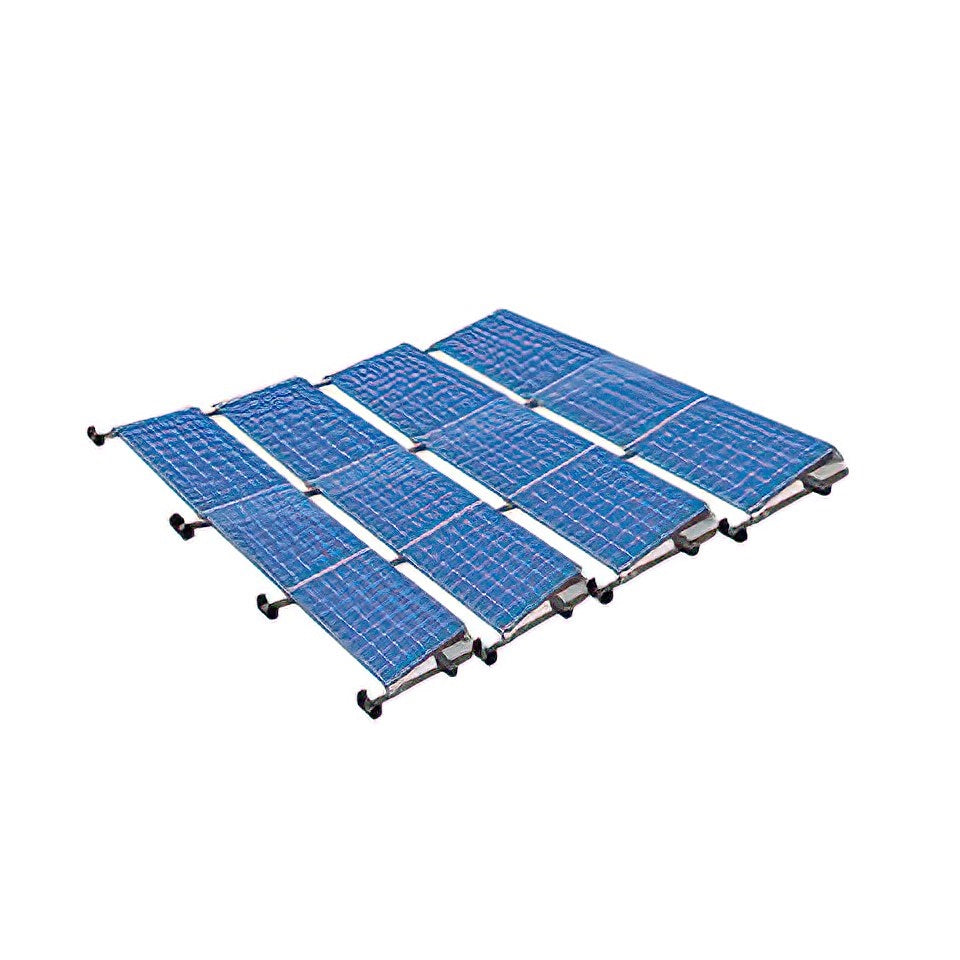

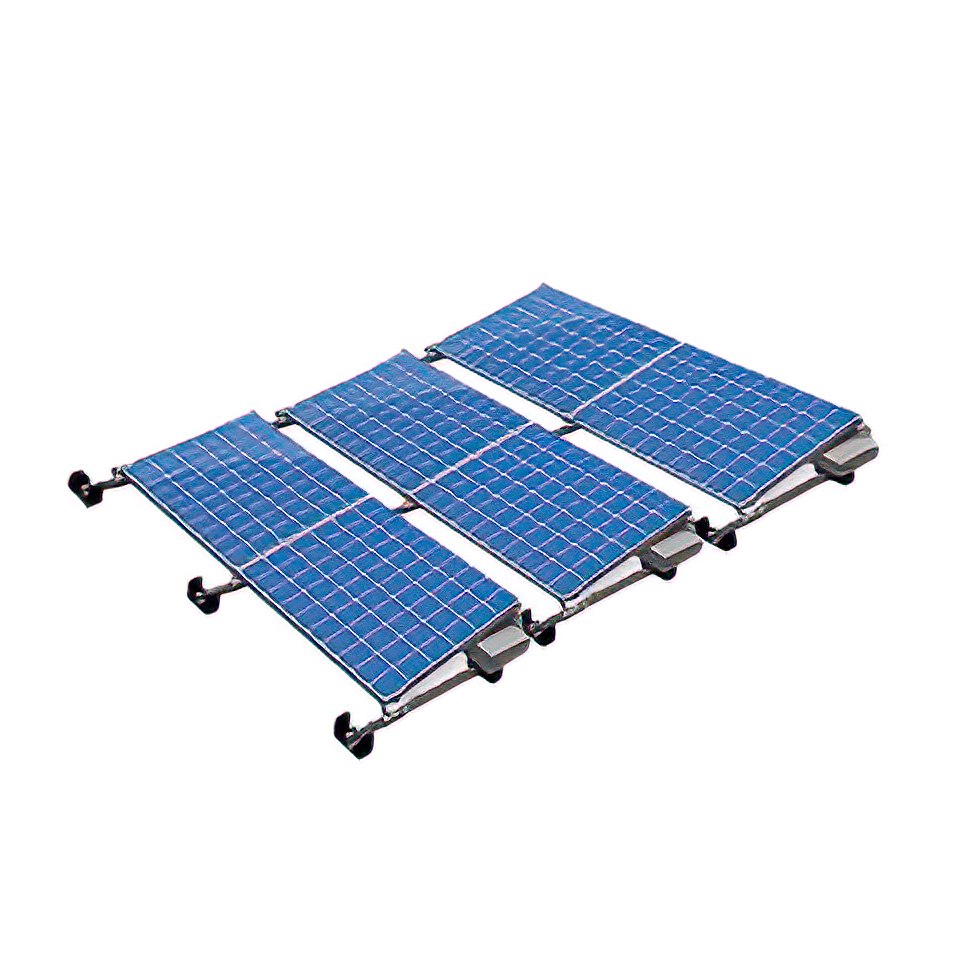

- Ballasted Rack Solar Panel Mounting Systems: These systems feature a 20° tilt angle, suitable for landscape mounting of solar panels up to 2280mm in length and up to 1150 mm in width.
Choose a hassle-free solar panel installation with our innovative, no-drill solutions for ground and flat roof scenarios.
