Fox ESS AC Coupled 5-15kWh Energy Storage System with 3.7kW AC Charger Inverter
£2,817.09
By Fox ESS
Optimise Energy Management with Fox AC Coupled 5-15kWh Energy Storage System
An AC Coupled Energy Storage System provides a strategic solution for harnessing energy from cost-effective sources like solar panels and off-peak Octopus mains power. This system enables users to utilize stored energy efficiently, avoiding low feed-in tariffs and expensive peak-rate power.
The Government recently announced Zero VAT on new residential energy storage batteries when purchased from your installer. Take advantage of our cost effective battery installation service (starting at just £199) and eliminate VAT on your battery installation! Click here to request a quote or contact us via live chat or call 020 8064 0335 for live expert advice.
The Fox ESS AC Coupled 5-15kWh Energy Storage System, equipped with a 3.7kW AC1 Charger Inverter (5.12kWh/3.7kW ESS), comprises:
- 2x - 6x Fox ESS HV2600 2.56kWh High Voltage Battery V2
- 1x Fox ESS AC1 3.7kW AC Charger Inverter
- 1x Fox ESS HV BMS-V2 High Voltage Battery Management System
- 3x - 7x Fox HV Battery Brackets (pair)
This 5-15kWh/3.7kW AC Coupled ESS efficiently manages energy usage, ensuring a stable electricity supply and reducing costs by charging the battery with low-priced Octopus electricity. Coupled with a private power source like on-grid solar panels, it provides a continuous 24/7 power supply for your home.
The 3.7kW AC1 Charger Inverter is designed for compatibility with an external backup generator, seamlessly supplying electricity during prolonged grid outages when the battery storage is emptied.

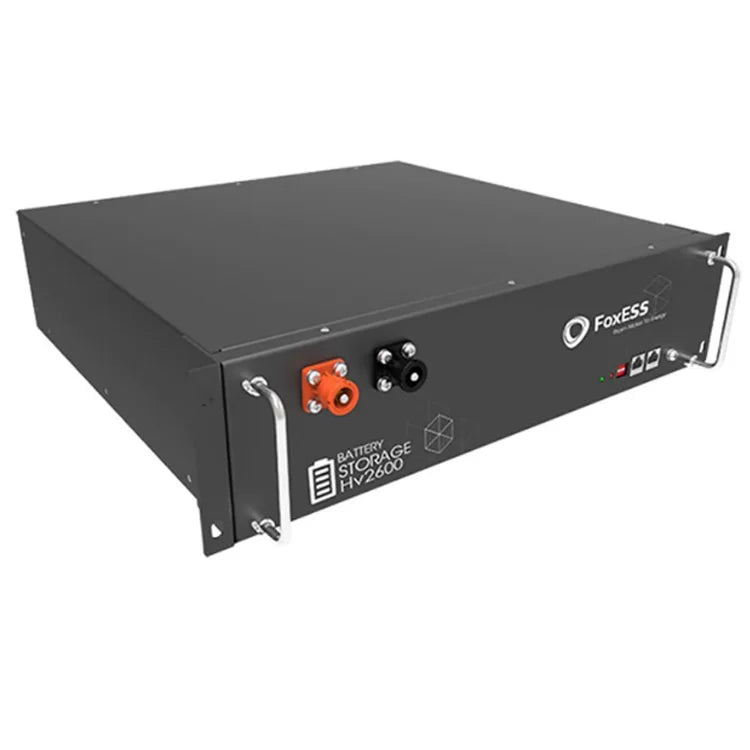

- Fox ESS HV2600 2.56kWh HV Battery V2 is a high-performance, scalable battery storage module. The modular design allows for maximum flexibility with storage. Additional batteries can be installed in series, allowing a maximum storage capacity of 20.48kWh (1 master and up to 7 slaves). Installation is easy, with a plug-and-play solution that can save valuable time for installers. The batteries have a 98% charge/discharge efficiency and 90% depth of discharge. The batteries have a cycle life of over 4000 cycles.

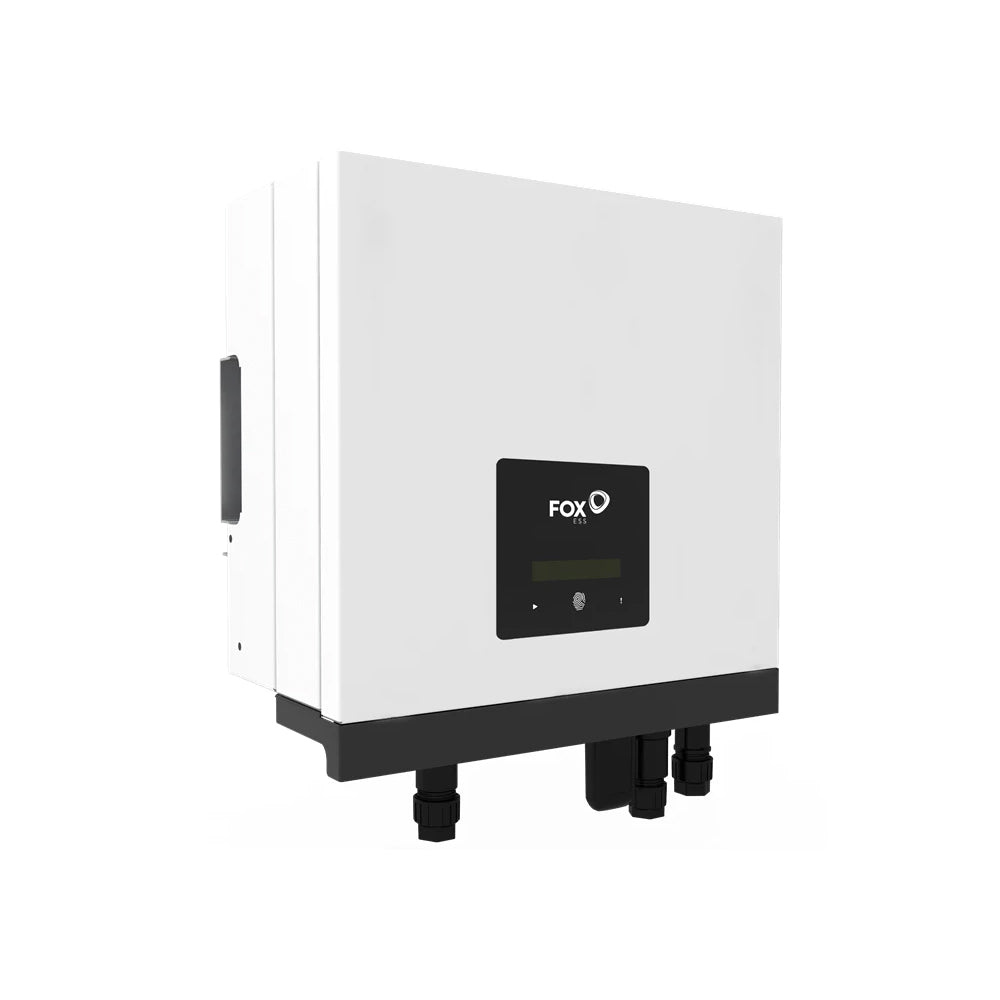

- Fox ESS AC1 3.7kW AC Charger Inverter is a high-quality inverter which converts solar energy to AC energy which is stored in a battery. The inverter can be used to optimise energy consumption, store energy in the battery for future use or feed energy into the energy grid. System advantages:
- Advanced DSP control technology
- Utilises the latest high-efficiency power components
- Advanced anti-islanding
- Max. efficiency up to 97.8%, THD<3%
- Export limitation (CT/Meter/DRM0/ENSTOP)
- WiFi remote control (with WiFi dongle installed)
- Fox ESS AC1 3.7kW AC Charger Inverter has four work modes:
- Self-use: The battery will discharge for local loads first, and the grid will supply power when the battery capacity is not enough.
- Feed in priority: In the case of an external generator, the power generated will be used to supply the local loads first, then export to the grid. The redundant power will charge the battery.
- Force time use: This mode is used in the area which has peak and off-peak prices. The user can use off-peak electricity to charge the battery. The charging and discharging time can be set flexibly, and this also allows one to choose whether to charge from the grid or not.
- Back up (EPS) mode: When the grid experiences an outage, the system will supply emergency power from PV or a battery to supply the home loads.
- The Fox ESS AC Coupled 5-15kWh Energy Storage System has been designed to work seamlessly with smart Octopus tariffs. The first energy supplier to offer such a tariff is Octopus Energy, but the Fox energy storage system also works perfectly with any other energy provider. The Fox energy storage system can be controlled automatically to take advantage of Plunge Prices and super cheap prices. With solar panels and the battery storage system, your electric unit price can be drastically reduced!

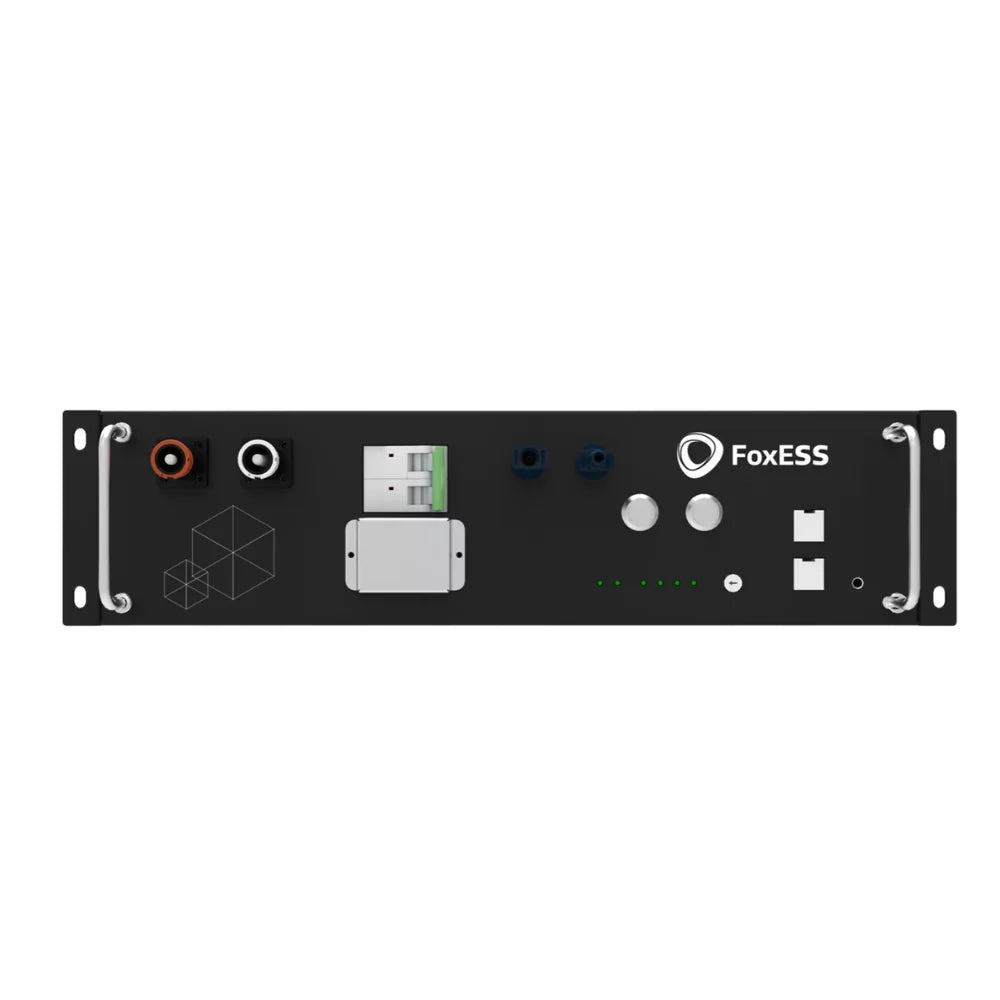

- Fox ESS HV BMS-V2 High Voltage BMS is a communication module which is required for each stack of HV2600 batteries. The use of the FoxESS BMS battery control system extends battery life, which is a very profitable investment. It reduces the risk of failures related to energy storage in batteries. It also allows you to constantly monitor the charge level. It is distinguished by compact dimensions, a wide operating range in terms of voltage and temperature, as well as the presence of RS485 and CAN communication interfaces. Weight 8.75kg.

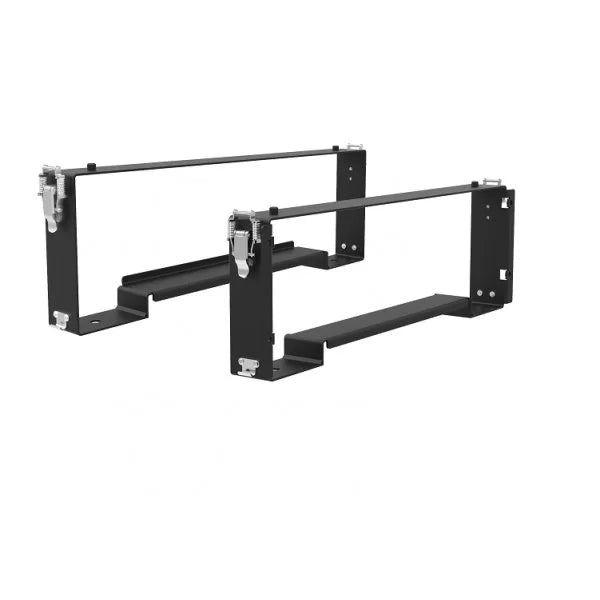

- Fox HV Battery Brackets allow vertical stacking of the HV2600 batteries and BMS. 1 pair of battery brackets per battery and BMS is required.
- FREE DELIVERY within the UK (longer to the Highlands, islands and Northern Ireland).
| HV2600 2.56KWH HIGH VOLTAGE BATTERY V2 |
| Battery Type: Lithium Iron Phosphate (LiFePO4) |
| Nominal Capacity: 2.56kWh |
| Maximum Charge Voltage: 2pcs 116.8V 3pcs 175.2V 4pcs 233.6V 5pcs 292.0V 6pcs 350.4V |
| Discharge Cut Voltage: 40V |
| Rated Charge/Discharge Current: 50A |
| Peak Discharge Current: 60A |
| Peak Charge Current (30sec): 60A |
| Operating Temperature: -10 ~ +50°C |
| Storage Temperature: -20 ~ +50°C |
| Charge/Discharge Efficiency: >98% |
| Protection Level: IP21 |
| Weight: 27kg |
| Size: 443 * 410 * 116mm |
| Cycle Life: >6000 |
| Depth of Discharge: 90% |
| FOX ESS AC1 3.7KW AC CHARGER INVERTER |
| BATTERY CONNECTION |
| Battery Type: Lithium Iron Phosphate (LiFePO4) |
| Battery Voltage: 85-450V |
| Max. Charge/Discharge Current: 40A |
| Communication Interface: CAN(Communicate With Inverter), RS485 (Upgrade BMS) |
| AC INPUT AND OUTPUT (GRID) |
| Max. AC Input Power: 7680VA |
| Max. Input Current (per phase): 34.9A |
| Rated Output Power: 3680W |
| Max. Output Apparent Power: 4048VA |
| Rated Output Current (per phase): 16.0A |
| Max. Output Current: 17.6A |
| Rated Grid Voltage: 220-240VAC |
| Rated Grid Frequency: 50/60Hz |
| Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging ) |
| THDi: <3% @rated power |
| EPS OUTPUT (WITH BATTERY) |
| Max. Output Apparent Power: 5000VA |
| Peak Output Apparent Power (60sec): 6000VA |
| Max. Current (per phase): 21.7A |
| Rated Output Voltage: 220-240VAC |
| Rated Output Frequency: 50/60Hz |
| Power Factor: 1 ( Adjustable from 0.8 leading to 0.8 lagging ) |
| THDi (linear load): <2% @rated power |
| Switch Time: 20ms |
| EFFICIENCY |
| Max. Efficiency: 97.80% |
| Max. Battery Discharge Efficiency (BAT to AC)(@full load): 97.00% |
| Operating Temperature: -25 ~ +60°C |
| Protection Degree: IP65 |
| Size: 430 x 410 x 178mm |
|
Net Weight: 23kg |
- 2x - 6x Fox ESS HV2600 2.56kWh High Voltage Battery V2,
- 1x Fox ESS AC1 3.7kW AC Charger Inverter,
- 1x Fox ESS HV BMS-V2 High Voltage Battery Management System, and
- 3x - 7x Fox HV Battery Brackets (pair).
