EcoFlow DELTA MAX (1600) 5644Wh Portable Battery Power Station Kit - Amazon gift card
Special Offer: Free EcoFlow DELTA MAX 1600 bag with any order of the EcoFlow DELTA MAX 1600.
EcoFlow DELTA MAX (1600) 5644Wh Portable Battery Power Station Kit consists of DELTA MAX (1600) 1612Wh Power Station and 2x DELTA MAX 2016Wh SMART EXTRA BATTERY. The DELTA MAX 1600) and EXTRA BATTERY include both Lithium-Nickel-Manganese-Cobalt (Lithium-NCM) batteries and are rated each to 800 complete cycles (80%+). The integrated battery management system provides real-time status updates and regulates the voltage, current, and internal temperature, so the DELTA MAX (1600) 5644Wh Portable Power Station Kit always operates safely and efficiently. Compatible with a wide range of devices, you can stay powered for hours whenever and wherever.
- USE SOLAR PANELS OR MAINS POWER TO CHARGE THE UNIT. The addition of portable solar panels turns the unit into a portable power generator. For portable applications use our Portable Folding Solar Panels. For STATIONARY APPLICATIONS the best option is using Ground Mounted Kit of 2x Canadian Solar 380W Rigid Solar Panels installed on the ground using 2x Renusol ConSole+ Ground Mounts.
- PORTABLE POWER FOR HUNGRY DEVICES Large coffee makers, cooking equipment, power tools, projectors, lights... the list is endless.
- HOME EXPANDABLE EMERGENCY POWER. A single DELTA MAX (1600) 1612 Portable Power Station offers an AC output up to 2000W, which can be expanded up to 2800W with X-Boost. This allows you to power air conditioners, washing machines, and other heavy-duty devices. The DELTA MAX (1600) 5644Wh KIT's capacity is increased from DELTA MAX 1600's 1612Wh to 5644Wh with 2x DELTA MAX SMART EXTRA BATTERY. 1600W X-Stream and Solar Dual Fast Charging make DELTA MAX (1600) 5644Wh KIT an Ecosystem to integrate with your home. Li-Ni-Mn-Co battery chemistry and Ultra-safe BMS. With short switch-over EPS and one extra battery support, it can truly back up your entire home and eliminate the impacts of blackout.
- RAPID DUAL CHARGING. Charge up 0-100% in 4.8 hrs from mains. 1600W X-Stream AC and solar dual fast charging.
- POWER MULTIPLE DEVICES. Looking for something to power heavy-duty devices like your fridge, dryer, and more? With X-Boost, DELTA MAX (1600) 5644Wh KIT handles devices up to 2000W with ease. That’s the industry gold standard for a portable power station of this size and capacity.

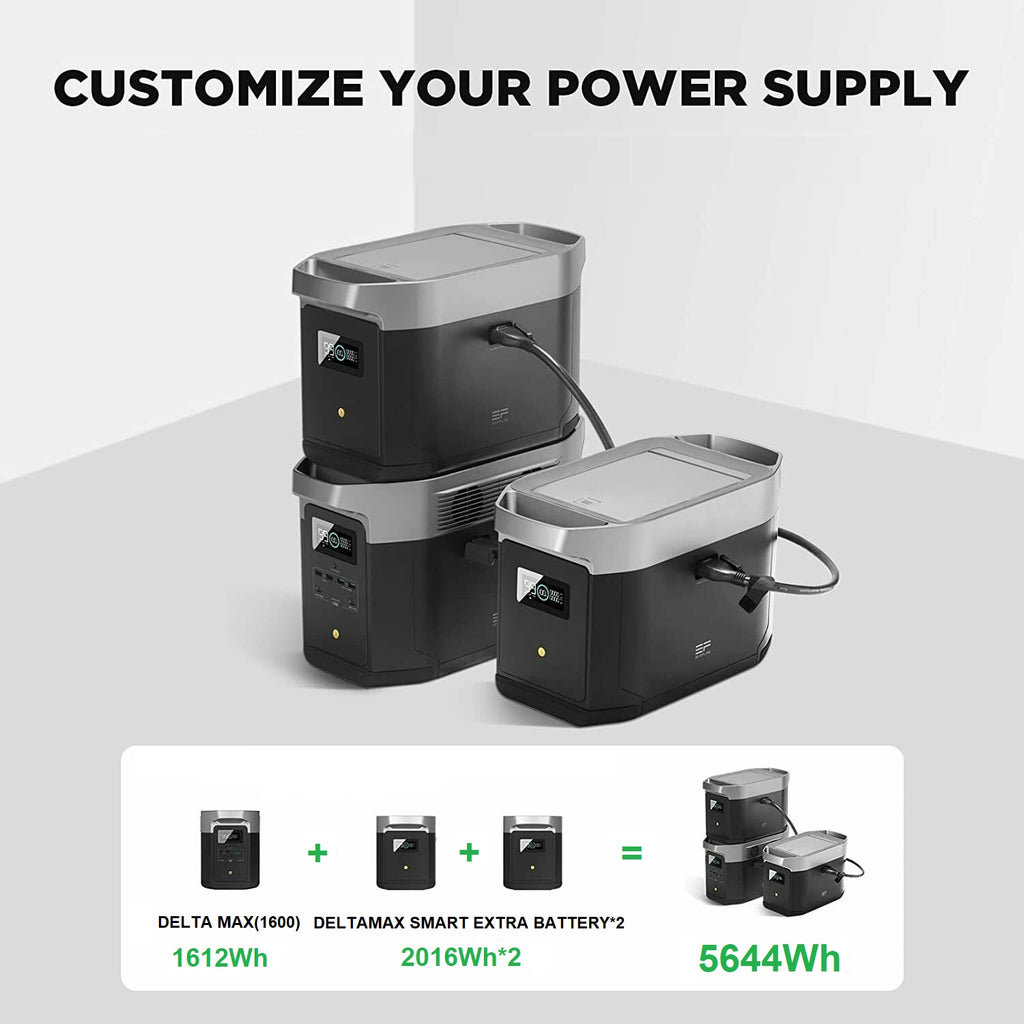

- EXTEND THE TOTAL CAPACITY WITH DELTA MAX SMART EXTRA BATTERY: Supports connection with two DELTA MAX 2016W Smart Extra Batteries.
- MULTIPLE OPTIONS FOR FAST RECHARGE BY AC, SOLAR AND CAR: EcoFlow DELTA MAX (1600) 5644Wh KIT can be fully recharged by: AC Charging Input: 1600W Max, 15A; Car Charging Input: Support 12V/24V battery, 8A; Solar Charging Input: 800W Max, 11-100V, 13A.
- POWER 15 DEVICES SIMULTANEOUSLY. EcoFlow DELTA MAX (1600) 5644Wh KIT includes every port you’ll ever need to power any device anywhere, so you will always feel right at home. DELTA MAX (1600) 5644Wh KIT includes: AC Output: 6 outlets, 2000W total (Surge 5000W); USB-A Output: 2 ports, 5V, 2.4A, 12W Max per port; USB-A Fast Charge: 2 ports, 5V, 2.4A / 9V, 2A / 12V, 1.5A. 18W Max per port; USB-C Output: 2 ports, 5/9/12/15/20V, 5A, 100W Max per port; Car Power Output: 12.6V, 10A, 126W Max; DC5521 Output: 2 ports, 12.6V, 3A, 38W Max per port.
- CONTROL AND MONITOR your DELTA MAX (1600) 5644Wh KIT with the EcoFlow app. Dive into the settings to customize your power use or control DELTA MAX (1600) 5644Wh KIT remotely.
- Free next working day delivery within the UK (longer to the Highlands, islands, and Northern Ireland) if ordered by 14:45.
- This product is available for free same-day collection from our Croydon office and same working day delivery (cost from £25) within 30 miles of the M25, as well as within the Midlands and South Yorkshire. Please telephone 020 8064 0335 or email info@energian.co.uk to arrange.
Color: Black
Material: Aluminum alloy +Plastic
Capacity: 5644Wh (1,568,000mAh)
Input:
AC Charge Input Power: X-STREAM Charge 1600W max
AC Charge Input Voltage: International version 220-240V
Solar Charge Input: 10-100V 13A 800W max
Car Charge Input: 12V/24V 8A max
Output:
AC outlet 220-240V (*6), 2000W total (Surge 5000W for 300 ms)
Max Device(s) Power Supported by X-Boost 220-240V 2800W
12V Car Port Output (*1) ,126W, 12.6V DC, 10A 126W Max
DC55121 Output (*2), 12.6V, 3A, 38W Max per port;
USB-A Fast Charge Port Output (*2), 5V, 2.4A/9V, 2A/12V, 1.5A 18W Max Per Port
USB-A Output Port (*2) 5V, 2.4A, 12W Max per port
USB-C Output Port (*2) 5/9/12/15/20V, 5A, 100W Max per port
Working Temperature:
Recharging: 32~113F (0~45℃)
Discharging: -4~140F (-20~60℃)
Dimensions and Weight
DELTA MAX 1600) 1612Wh STATION Size: 50cm*24cm*30cm
DELTA MAX 1600) 1612Wh STATION Product Weight: 20.7kg (46lbs)
DELTA MAX 2016Wh EXTRA BATTERY Size: 46.5cm*23.6cm*28.2cm
DELTA MAX 2016Wh EXTRA BATTERY Weight: 17.8kg
Certification: FCC/CE/ROHS/UL
- EcoFlow DELTA MAX 1600) x 1;
- 3.5m MC4 to XT60 Solar Panel Charging Cable x 1;
- 1.5m AC Charging Cable x 1;
- 1.5m Car Charging Cable x 1;
- DC5521 to DC5525 cable x 1;
- User Manual x 1;
Box #2
- EcoFlow DELTA MAX Smart Energy Battery x 1;
- DELTA MAX Smart Energy Cable x 1;
- User Manual x 1.
Box #3
- EcoFlow DELTA MAX Smart Energy Battery x 1;
- DELTA MAX Smart Energy Cable x 1;
- User Manual x 1.
Box #4 (Optional)
- (For bundles with solar panels, the requisite number of solar panels are added together with connection cables)
If you cannot answer your question, please call us or send an email to info@energian.co.uk.
DELTA MAX (1600) 5644Wh KIT BATTERY
1. WHAT IS THE BATTERY CAPACITY OF DELTA MAX (1600) 5644Wh KIT?
DELTA MAX (1600) 5644Wh KIT has a battery capacity of 5644Wh (1,568,000mAh) .
2. WHAT IS THE LIFESPAN OF THE BATTERY?
DELTA MAX (1600) 5644Wh KIT’s batteries maintain 80% capacity after 800+ cycles - much better than a typical phone or laptop battery.
3. HOW CAN I GET THE LONGEST LIFESPAN FROM THE BATTERY?
1. Keep it within 20–30°C (68–86°F) and away from water and heat.
2. For safety reasons, do not store DELTA MAX (1600) 5644Wh KIT above 45°C (113°F) or below −10°C (−14°F) for extended periods.
3. For long-term storage, discharge the battery to 30% and charge it to 60% every three months (products that have not been charged and discharged for more than 6 months are not covered under the product warranty)
4. WHAT ARE THE BATTERY CARE AND STORAGE GUIDELINES?
1. Please use or store the product at an ambient temperature between 20°C to 30°C, away from water, heat, and metal objects.
2. For long-term storage, please discharge the battery to 30% and recharge it to 60% every three months; products that have not been charged and discharged for more than 6 months will not be covered by the free product warranty.
3. For safety, please do not store the product at an ambient temperature higher than 45°C or lower than -10°C for a long time.
4. To prolong the battery life, please use the product at an ambient temperature between 20°C to 30°C.
5. HOW TO CALIBRATE (RESET) THE DELTA MAX (1600) 5644Wh KIT?
Discharge the unit until it shuts down and then charge to 100% until it takes in no input power; then do a complete discharge to calibrate.
6. CAN THE DELTA MAX (1600) 5644Wh KIT USE AN EXTRA BATTERY?

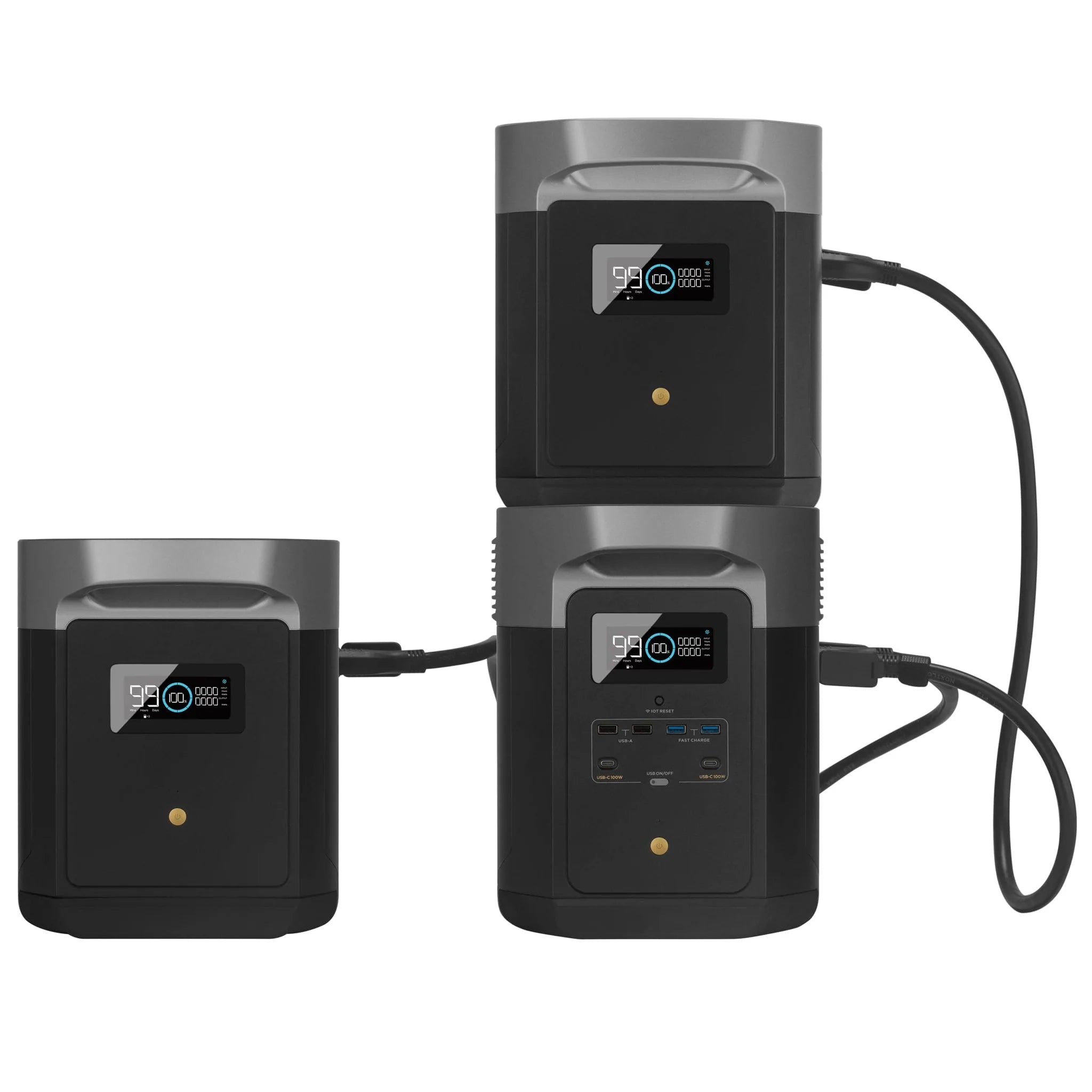

Yes, DELTA MAX 1600) uses two EcoFlow DELTA MAX EXTRA BATTERIES 2016Wh each.
DELTA MAX (1600) 5644Wh KIT MAINS AND CAR CHARGING
1.WHAT ARE THE CHARGING STANDARDS? HOW LONG DOES IT TAKE TO CHARGE MY DELTA MAX (1600) 5644Wh KIT?
The DELTA MAX (1600) 5644Wh KIT supports three charging methods: mains charging, car charging, and solar charging:
Mains charging
The voltage of mains charging input: AC 220-240V (50Hz) Current: 15A
AC charging input power: X-Stream supercharge 1600W max
X-Stream supercharge charging time: 4.8 hours 0-100%
Charging with a car charger
Input from car charger: 12V/24V, DC 8A (maximum)
Charging time: 51 hours
Charging with a solar panel
Solar charging input 800W 11-110V DC 10A (maximum)
Charging time: 7.5-15 hours (400W x 2 in series);
Combined charging
DELTA MAX (1600) 5644Wh KIT charges up safely and rapidly. And it gets even better. If you're looking for an even faster way to charge up DELTA MAX (1600) 5644Wh KIT, you can combine AC with Solar Panels to get up to 2400W accepted input power.
2. WHAT TO DO IF CHARGING POWER IS LOW?
1. If the ambient temperature is too high, turn off the machine or stop the load, and let DELTA MAX (1600) 5644Wh KIT cool down for some time.
2. If the ambient temperature is too low, place DELTA MAX (1600) 5644Wh KIT in a place with a higher ambient temperature or use electrical appliances to discharge for a while, to let the battery heat up before charging.
3. The charging power of the machine is related to the State of Charge of the battery. When the engine starts charging from 0% or is about to be fully charged, it is expected that the charging power is lower than during other phases of the charge cycle.
3. WHAT TO DO IF CHARGING POWER HOPS FOR A SHORT TIME?
Calibrate the unit (item 5 above) and do a complete charge and discharge cycle, then try to see if the problem reappears during charging. If it still occurs, please take a video of the fault and contact the after-sales service at info@energian.co.uk.
4. DOES THE DELTA MAX (1600) 5644Wh KIT SUPPORT CHARGING WHILE USING?
Yes, DELTA MAX (1600) 5644Wh KIT supports charging and discharging when charging in vehicles, by solar panel, etc. However, when the battery of the machine is low or is about to run out, it is best not to connect appliances to the DELTA MAX (1600) 5644Wh KIT while connected to DC charging (solar/vehicle charging); at this time, if the input of the power is less than or equal to the output power, the device will continue to consume power, which may result in power loss and eventually damage the battery.
5. IS THE SIMULTANEOUS ACCESS OF THE MAINS AND CAR CHARGER SUPPORTED?
Yes, this is called dual fast charge up to 2800W. Need to connect an Extra Battery.
6. WHAT TO DO IF THE BATTERY DOES NOT CHARGE TO 100%?
Conduct a calibration i.e. fully discharge and charge the battery.
7. IS IT POSSIBLE TO USE OTHER PRODUCTS TO CHARGE DELTA MAX (1600) 5644Wh KIT?
1. In addition to the main sockets, car chargers, and solar panels can also charge DELTA MAX (1600) 5644Wh KIT. You can also use equipment such as generators or inverters if they provide 220-240V (50Hz/60Hz) AC power. These should be connected to the AC port of DELTA MAX (1600) 5644Wh KIT. The output is a sine wave, which can charge DELTA MAX 1600). When charging the DELTA MAX (1600) 5644Wh KIT, X-Stream needs an AC input power to be greater than 1600W.
8. WHY DELTA MAX (1600) 5644Wh KIT CANNOT TURN ON?
1. Check for an insufficient battery charge level. If you suspect this, charge and turn the unit on again. If the charging fails, please follow the instructions on charging failures.
2. If there is no response after you short-press or long-press the Main Power Button for 3 seconds, please contact Energian Customer Service at info@energian.co.uk or 020 8064 0335.
10. WHAT TO DO IF THE DELTA MAX (1600) 5644Wh KIT DOES NOT CHARGE?
This can be caused by one of a few issues:
1. The ambient temperature is too high. The ambient temperature suitable for charging the DELTA MAX (1600) 5644Wh KIT is between 0℃ and 45℃. If you have used a DELTA MAX (1600) 5644Wh KIT with high-wattage appliances for a long time, please charge it after it cools down.
2. The ambient temperature is too low. The ambient temperature suitable for charging the DELTA MAX (1600) 5644Wh KIT is between 0℃ and 45℃. If the ambient temperature is too low and the cell temperature is lower than 0℃, please move DELTA MAX (1600) 5644Wh KIT to a warmer place.
3. The charging voltage or current is too low. Please charge the device according to the charging standard specified in Question 1.
4. Change the charging method or cable. For example, if solar charging doesn’t work, but car charging does, it means that the solar panel or MC4 cable is broken. You can try charging DELTA MAX (1600) 5644Wh KIT again with another MC4 cable or solar panel.
5. If all the above solutions cannot solve your problem, please contact Energian Customer Service at info@energian.co.uk or 020 8064 0335, ideally with a video of the attempted charge.
11. WHAT TO DO IF THE DELTA MAX (1600) 5644Wh KIT OVERLOADS WHILE CHARGING?
This can be seen when the RECHARGING TIME icon, the exclamation mark icon, and the OVERLOAD icon flash together on the charging overload screen.
1. Check whether the input current is too high. If it is confirmed that there is no problem, restart the machine and try to charge again.
2. If the overload still occurs again, please contact us.
12. WHAT TO DO IF THE SCREEN SHOWS FULL CHARGE, BUT THERE IS STILL CHARGING POWER?
The charging logic of DELTA MAX (1600) 5644Wh KIT is that the battery level indicator turns 100% first while it continues to charge for a while until it's really fully charged.
13. WHAT TO DO IF THE CAR CHARGER DOES NOT CHARGE DELTA MAX (1600) 5644Wh KIT?
1. Confirm whether the 12V cigarette lighter socket of the car has normal power output. You can check the car DVR or try charging your phone in the car via the cigarette lighter.
2. Charge DELTA MAX (1600) 5644Wh KIT with a third-party car charger cable to check if the problem lies in the DELTA MAX (1600) 5644Wh KIT Car Charger Cable, or use a solar panel to charge the DELTA MAX (1600) 5644Wh KIT. If it works, the fault is in the EcoFlow Car Charging to the XT60 Cable. In this case, you need to change the cable. In this case, or if the solar panel can’t charge your DELTA MAX (1600) 5644Wh KIT, please contact Energian Customer Service.
14. WHAT IS THE STANDARD OF CAR CHARGER PORT?
The car charging port XT60 is a standard car charger's input port. You can power your device with a DELTA MAX (1600) 5644Wh KIT Car Charger Cable (1.5 m) or a third-party car charger cable to charge.
DELTA MAX (1600) 5644Wh KIT OUTPUT POWER
1. WHAT IS THE DELTA MAX (1600) 5644Wh KIT OUTPUT POWER?
DELTA Max (1600) 5644Wh KIT supports AC output, USB output, car charger output, and DC5521 output, providing a total of 13 output ports:
1. AC output (pure sine wave) - 6 sockets
AC output power: rated power 2000W, surge power 5000W, 220V, AC 50Hz
Intelligent inverter system: X-BOOST supports 2800W equipment
2. USB-A port - 2 pcs
Parameters: 12W, 5V, DC 2.4A
3. USB-A fast charging port - 2 pcs
Parameters: 18W, 5-12V, DC 2.4A (maximum)
4. Type-C port - 2 pcs
Parameters: 100W, 5-20V, DC 5A (maximum)
5. Car charger port - 1 pc
Parameters: 126W, 12.6V, DC 10A (maximum)
6. DC5521 output - 2 pcs
Parameters: 37.8W, 12.6V, DC 3A
2. IS THE DELTA MAX (1600) 5644Wh KIT OUTPUT 100% PURE SINE WAVE?
Any product contains a certain ratio of harmonics. The harmonic rate of EcoFlow products is as low as 3%, which can power some inductive loads, such as induction cookers.
3. WHAT ELECTRICAL APPLIANCES ARE SUPPORTED BY THE DELTA MAX (1600) 5644Wh KIT?
DELTA MAX (1600) 5644Wh KIT supports appliances with rated power within the standard DELTA MAX 1600) output power range 2000W. You can see the appliance-rated power in the user manual or on the nameplate, or calculate it according to the formula W=U*I (rated voltage multiplied by rated current). Note that since the start-up power and continuous power of different brands of products are different, it depends on the actual measurement to determine whether it can be supported. If in doubt, please contact customer service at info@energian.co.uk or 020 8064 0335.
4. DOES THE DELTA MAX (1600) 5644Wh KIT SUPPORT THE X-BOOST FUNCTION?
Yes, the DELTA MAX (1600) 5644Wh KIT supports X-BOOST.
5. WHAT TO DO IF DELTA MAX (1600) 5644Wh KIT POWER MY ELECTRICAL APPLIANCE?
1. Check whether the relevant DC or AC switch on the DELTA MAX (1600) 5644Wh KIT is turned on.
2. If the AC or DC switch is turned on, and the appliance is still not running, please confirm whether the output power of DELTA MAX (1600) 5644Wh KIT meets the requirement of charging the electrical appliance.
3. When the power of DC and car charger is less than 1 watt, the charging power will not be displayed. If the actual device is charging, you can try charging another appliance.
4. When the screen displays an overload alarm, it means that the charging power is too high. Please shut down and cool down for a while or replace it with a low-power device, then try charging again (shut down and cool the machine for 30 minutes and restart)
5. After the AC switch is turned on, if the power of the electrical appliance is less than 10W, the power detection is equivalent to no power output, and the AC switch will be automatically turned off after 12 hours. At this time, the switch needs to be turned on again.
If the above information does not resolve your issue, contact customer support at info@energian.co.uk or 020 8064 0335.
6. WHAT TO DO IF THE USE TIME OF AN ELECTRICAL APPLIANCE IS TOO SHORT?
Due to the different power of each appliance, the discharge efficiency of DELTA MAX (1600) 5644Wh KIT will be less than 100%, resulting in the usage time of the appliance being lower than the theoretical time. This is particularly the case with AC (mains powered) appliances where inverter losses are likely to reduce the use time by 15-25%. If the usage time is less than what is indicated here, contact customer support.
7. WHAT TO DO IF THE DELTA MAX (1600) 5644Wh KIT DISCHARGES TOO QUICKLY?
1. Check if there are any high-power electrical appliances connected. DELTA MAX (1600) 5644Wh KIT's battery capacity is 5644Wh. Normally, if the power of connected electrical appliances is ~1600W (DC), DELTA MAX (1600) 5644Wh KIT's battery will run out in more than 3 hours. For AC (mains powered) appliances, inverter losses are likely to reduce the use time by 15-25%.
2. If the use time appears too low, calibrate the DELTA MAX (1600) 5644Wh KIT as described above, and do a complete charge and discharge.
8. WHAT TO DO IF THE STANDBY TIME OF DELTA MAX (1600) 5644Wh KIT IS TOO SHORT?
1. Check whether it is in a room temperature environment, if it is in a low temperature environment, place it in a room temperature environment for use
2. Calibrate the DELTA MAX (1600) 5644Wh KIT as described above, and do a complete charge and discharge.
9. WHAT TO DO IF THE OUTPUT OVERLOADS?
AC output overload: The AC icon will appear on the screen, and the OVERLOAD icon flashes
1. Please check whether the power of the connected device meets our power range, and connect the 2800W power device to confirm whether the X-BOOST is turned on. If the default is turned on, connect to the APP again;
2. In EPS mode, we support the maximum power of 2000W, and confirm whether the electrical equipment is within this range;
3. The instantaneous power of the electrical equipment is too large, causing it to fail to operate;
DC output overload: The USB icon and the OVERLOAD icon will flash together on the screen
1. The output of the DC-car charger is overloaded, confirm whether the rated current of the electrical equipment power is within 8A. If the current is too high, it will cause overload, and even the car charger will burn out.
2. The output of the DC-USB-Type C interface is overloaded, please confirm whether the electrical equipment is within the current limit of the interface.
10. WHAT TO DO IF NO OUTPUT OF USB-A, USB Type-C PORTS OCCURS?
1. Confirm whether the DC switch is turned on and whether the DC switch light is always on after it is turned on.
2. Change to a different USB-A port, try to connect to other USB ports such as USB-C, and confirm whether it is just the problem of a single port.
3. Replace the USB cable to confirm whether the cable is faulty.
4. If there is no output from the USB port after the above methods, provide a video explaining the fault and contact the after-sales service.
11. WHAT TO DO IF THE LIGHT BULB FLASHES FREQUENTLY?
1. If the light bulb only flashes occasionally when turned on, it might be caused by instant charging voltage fluctuation. In this case, normal product use won't be affected.
2. If the light bulb constantly flashes, you can change it with a new one. If the problem remains after you change to a new bulb that meets DELTA MAX (1600) 5644Wh KIT's charging standards, you can contact EcoFlow Customer Service and provide the flickering video and the light bulb's charging specifications.
12. WHAT TO DO IF WHEN DELTA MAX (1600) 5644Wh KIT IS CONNECTED TO THE SPEAKER, THE NOISE IS TOO LOUD?
Allow customers to try to connect other brands of speakers to confirm whether the noise still exists. Some speakers’ EMC electromagnetic compatibility is not good enough. It is a problem with the speaker itself, not a fault of the product itself. If the noise still exists after replacing the speaker, please make a video showing the fault and contact the after-sales department.
13. WHY REFRIGERATOR POWER OFF AUTOMATICALLY?
If the refrigerator is connected to a 12V car charger port, the DC and AC buttons power off. Cause the refrigerator works for a while and then the standby by, the power of standby is too low to be detected by DELTA MAX (1600) 5644Wh KIT. So DELTA MAX (1600) 5644Wh KIT will power off automatically in 30 minutes with low output. Please turn on the DC button when you use the refrigerator.
14. WHAT TO DO IF WHEN DELTA MAX (1600) 5644Wh KIT IS CONNECTED TO THE FAN, THE NOISE IS TOO LOUD?
Confirm whether it is fully charged if the device has just been fully charged, the temperature is too high, the fan speed is high, and the sound may be loud. This can reassure the customers. The fan is designed to cool the device and protect the device. Even if the sound is loud, there will not be an impact on its use. If the customer is still not at ease, guide the customer to take a video at a distance of 2 meters from the device, and the technology department will confirm remotely whether there is an abnormality.
15. WHEN AND WHY DELTA MAX (1600) 5644Wh KIT SHUTS DOWN?
1. The battery of DELTA MAX (1600) 5644Wh KIT runs out, please charge the battery.
2. The default standby time of this product is 2 hours. If the other switches' output power is not turned on and the product is not connected to any load, the product will automatically shut down after 2 hours, and the standby time can be set on the APP.
16. WHAT TO DO IF DELTA MAX (1600) 5644Wh KIT DOES NOT BOOT?
1. If the battery is dead, charge it first and try to turn it on. If it cannot be charged, please refer to the relevant instructions.
2. If there is no response after short pressing or long pressing the power button for 3 seconds, please contact the after-sales department.
17. IS IT POSSIBLE TO USE DELTA MAX (1600) 5644Wh KIT IN SERIES?
1. When charging, charge the one with low power first, then charge the battery itself and the power pack. Balance before charging.
2. When discharging, discharge the one with high power first, then discharge at the same time.
3. The multi-level series can be used directly by connecting to the port of the power pack.
X-BOOST FUNCTION
1. WHAT IS DELTA MAX (1600) 5644Wh KIT X-BOOST FUNCTION?
DELTA MAX 5644Wh KIT supports the X-Boost function to supply power to devices with a rated power of 2800W, and will not cause the device to fail because of an overload protection. When using the X-Boost function, the output power of this product is still the rated output power of 2000W.
2. HOW USE THE X-BOOST FUNCTION?
The X-Boost function is not available in the following situations:
the AC output is turned on in the charging state (in bypass mode at this time) and the X-Boost mode is turned off.
The X-Boost function is more suitable for heating and electrical equipment, but not for all electrical appliances. Some electrical appliances equipped with voltage protection (such as precision instruments, etc.) are not suitable for the X-Boost function. To confirm whether the device is compatible with the X-Boost function, please refer to the actual test.
